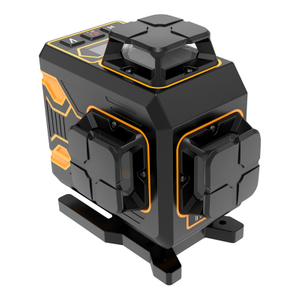

T92
inorm
±3mm/10m
Class Ⅱ
3.7V 4000mAh lithium battery
| Quantity: | |
|---|---|

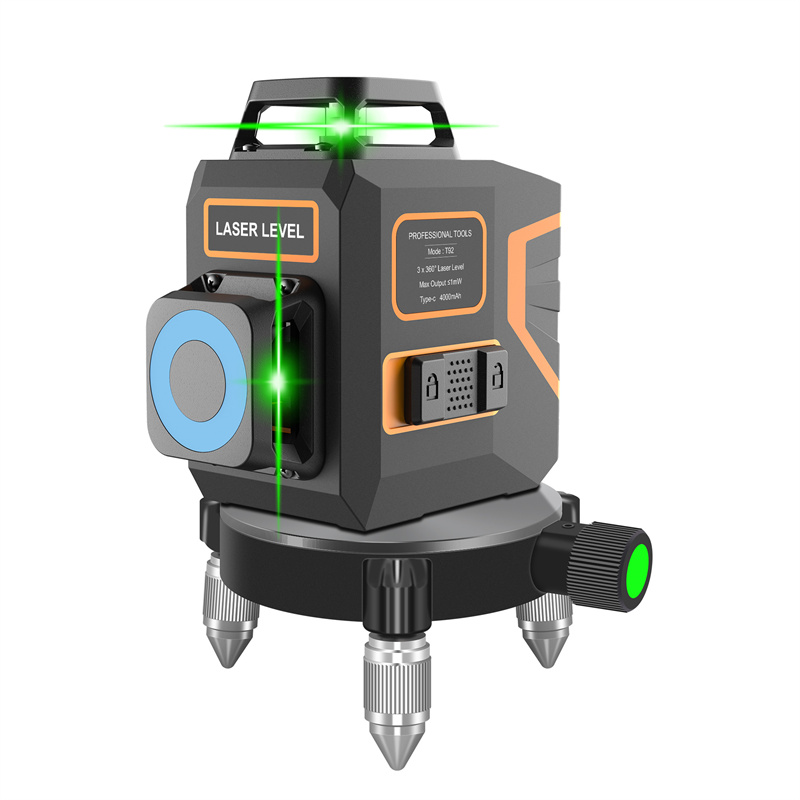

T92 is 3*360 ° horizontal line output, can achieve 10mm close to the ground, the use ofimported high quality LD light source, bright laser indoor and outdoor clearly visible, built-in 4400mAh large lithium battery, with energy saving mode, can be extremely long standby, 3 color button design is more beautiful .
| Model | T92 | ||
| Laser beam | 1H2V | ||
| Qty of laser diode | three | ||
| Color of beam | Green | ||
| Laser wavelength | 520nm | ||
| Laser power(H/V) | 20mw | ||
| Accuracy(H/V) | 3mm at 10m distance | ||
| Auto-compensation Range | 4° ± 1° | ||
| IP rating | IP54 | ||
| Laser class | Class 2 | ||
| Working temperature | -10~500C | ||
| Working range | 30m | ||
| Working range with reciever | about 50m | ||
| Beam Emission Angle(H/V) | 360° | ||
| Battery | 3.7V 4000mAh lithium battery | ||
| Working time | six hours | ||

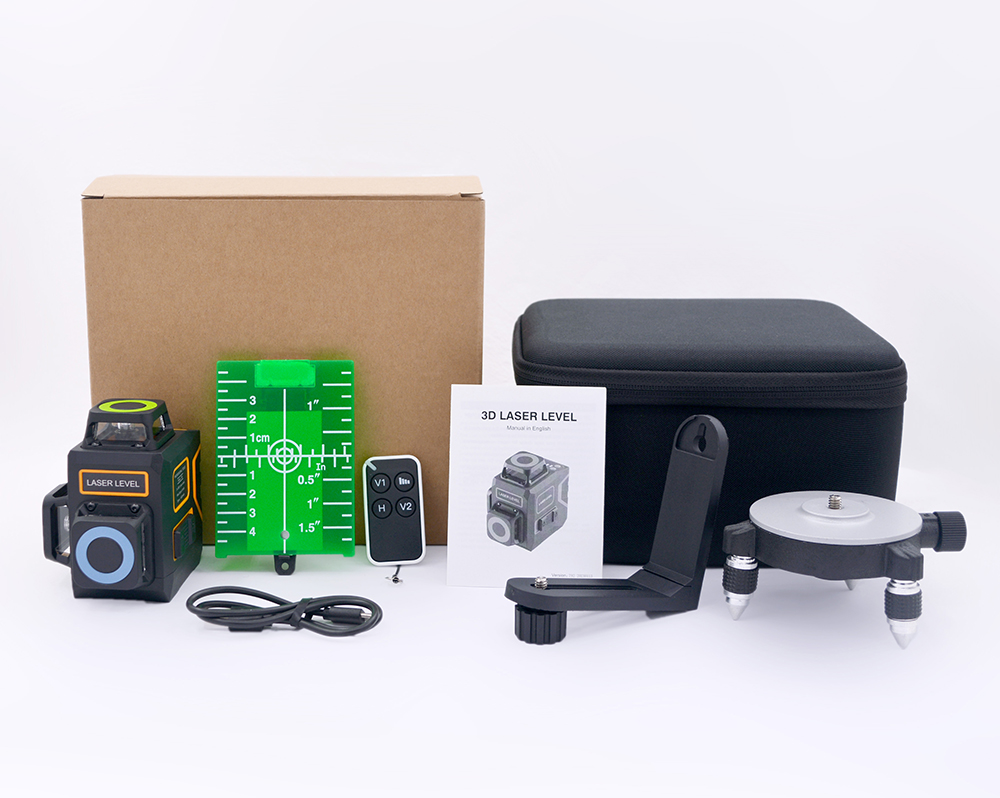

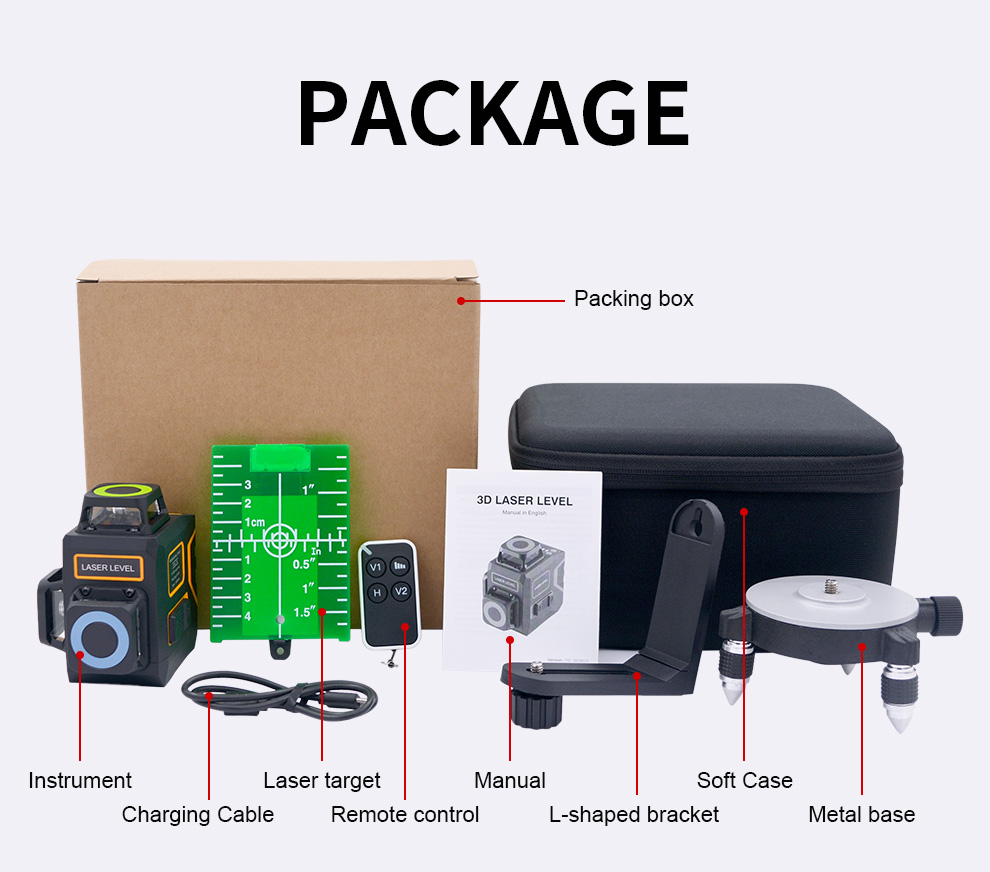

| Kit content | 1 X laser level,1 X L-shaped magnetic support | ||
| 1 X USB-C Charging line,1 X EVA case | |||
| 1 X Tripod base ,1 XReflecting plate | |||
| Laser Level Weight/Size of level | 340 g/98.5*96*73mm | ||
| Weight/Size of Color box | 1220 g/ 220*130*200 mm | ||
| Weight/Size of out carton | 8pcs/ 10.5 kg/ 520*440*210 mm |
Manual of 12 Lines 3D Laser Level T92.pdf
The main advantage of T92 laser level compared with other levels is that it provides more reference lines, to achieve all-round accurate positioning, significantly improve work efficiency and accuracy. 12-line level provides all-round reference through its 12 laser lines makes the marking work of walls, ceiling and floor easy and fast. In addition, 12-line level also has a high-precision and convenient dual-purpose design, to meet the diverse needs of wall and floor work.

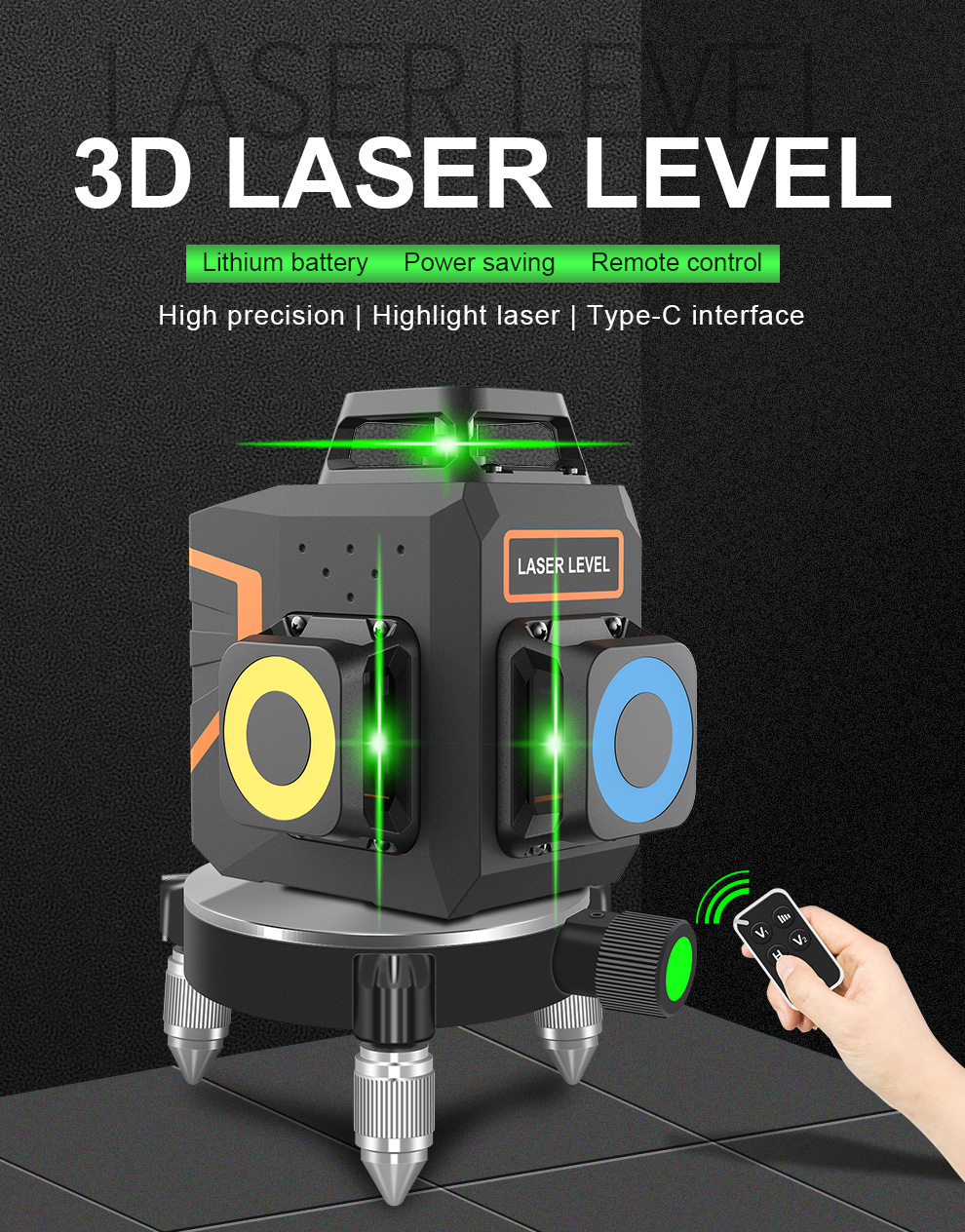

Lithium battery Power saving Remote control
High precision |Highlight laser |Type-C interface
| Automatic leveling | Energy saving | Slash function | Pulse mode | Superior Light Source |
| Lithium battery | Suitable for tripod | Type-Cinterface | Remote contro | Portable |

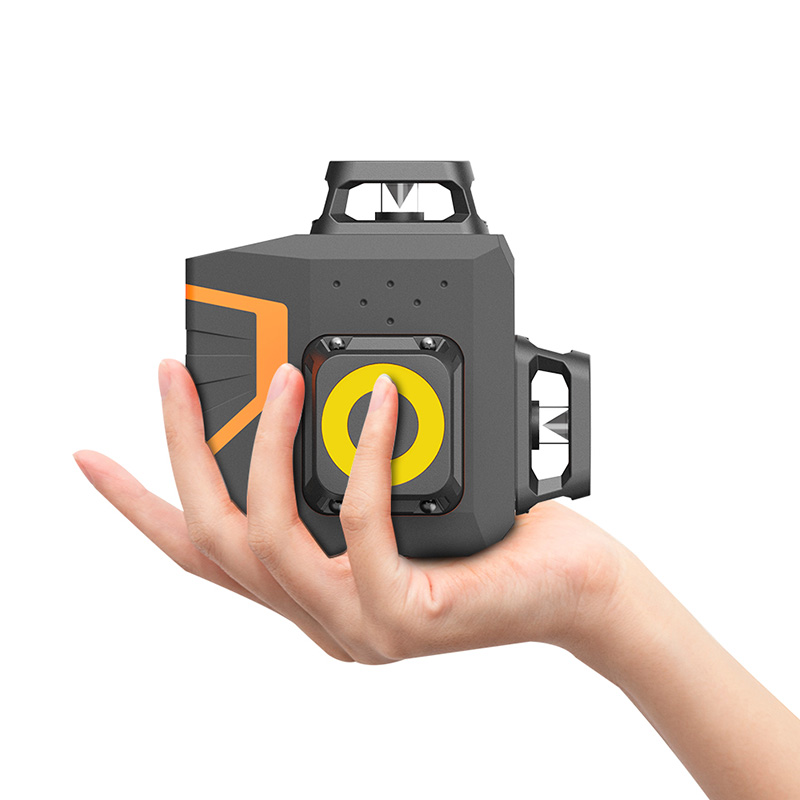

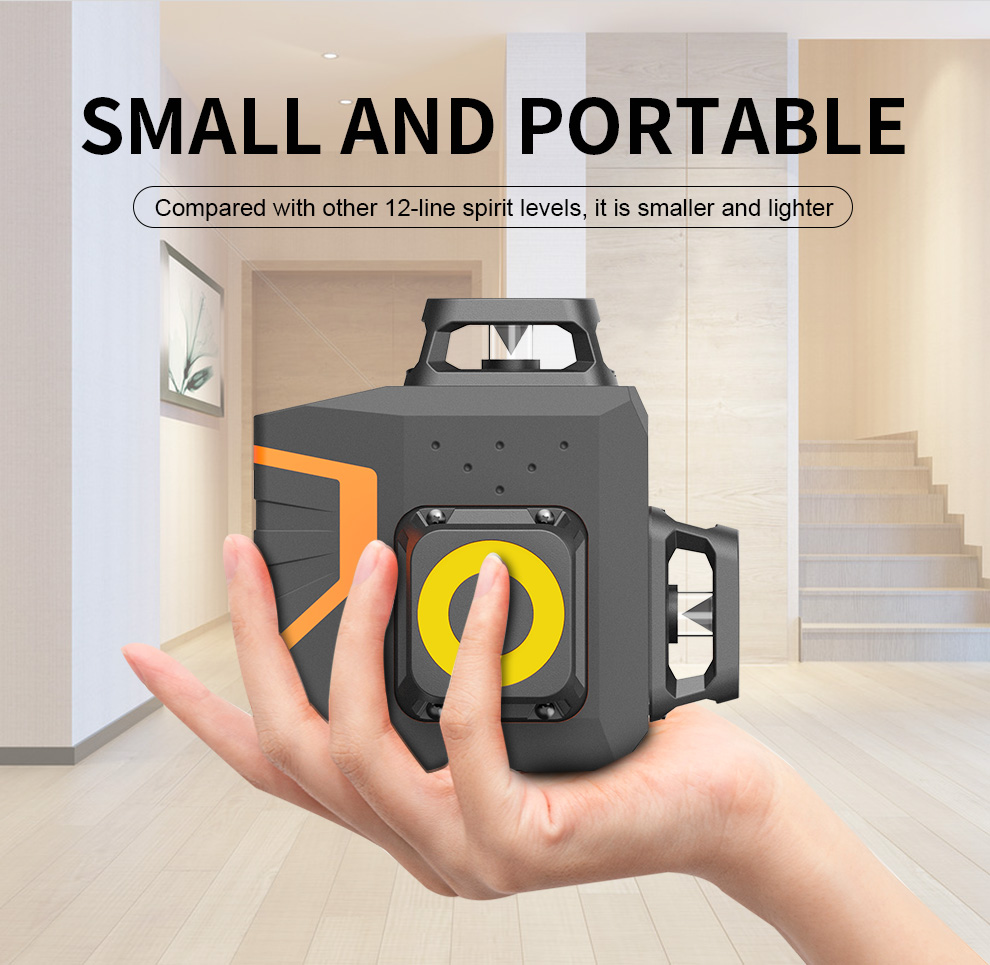

Compared with other 12-line spirit levels, it is smaller and lighter

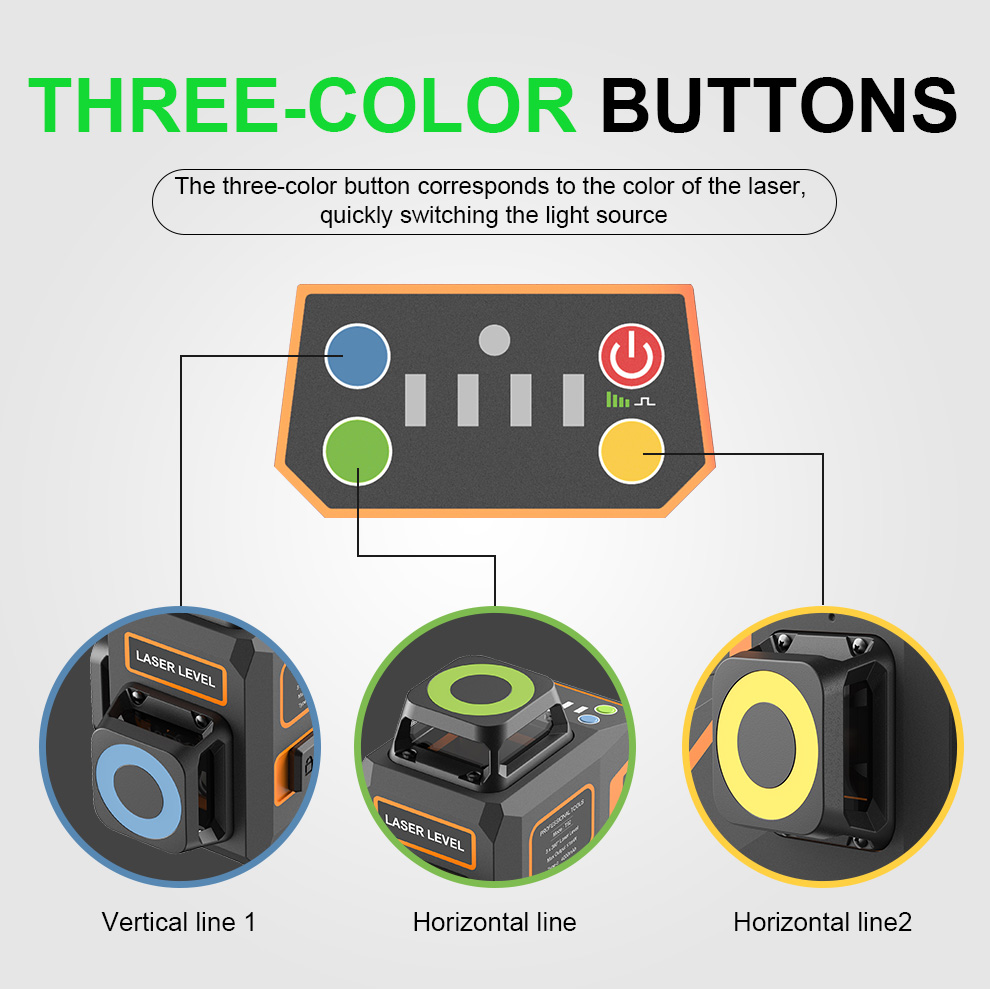

The three-color button corresponds to the color of the laser.quickly switching the light source
With the tripod, it can realize the function of slashing at any angle

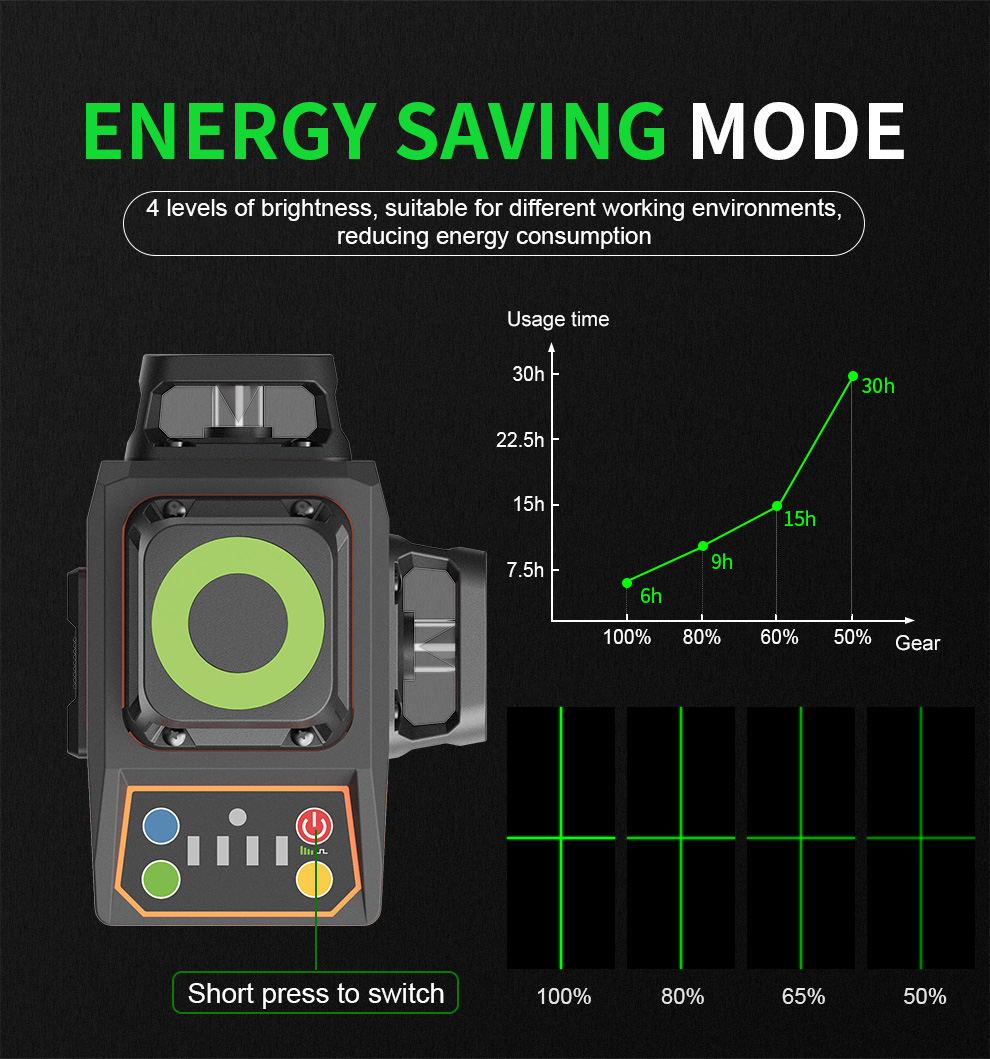

4 levels of brightness, suitable for different working environments
reducing energy consumption

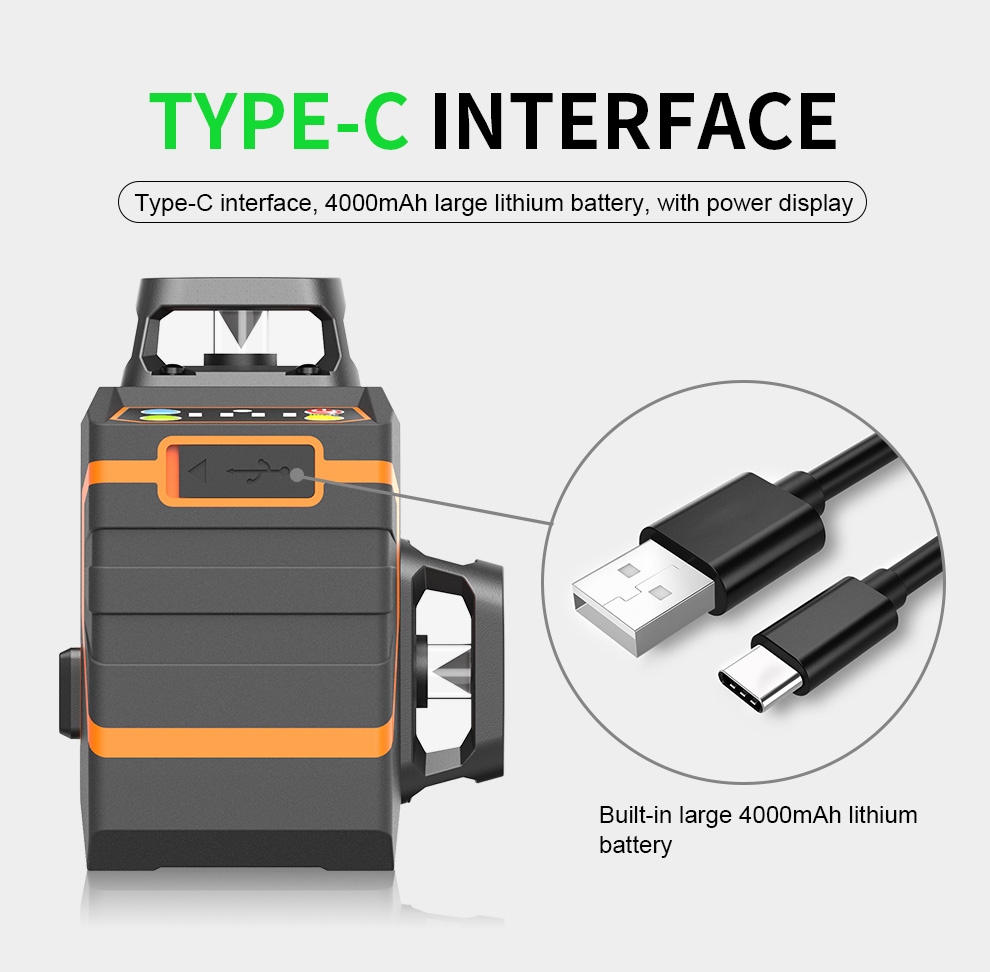

Type-C interface, 4000mAh large lithium battery, with power display
Built-in large 4000mAh lithiumbattery

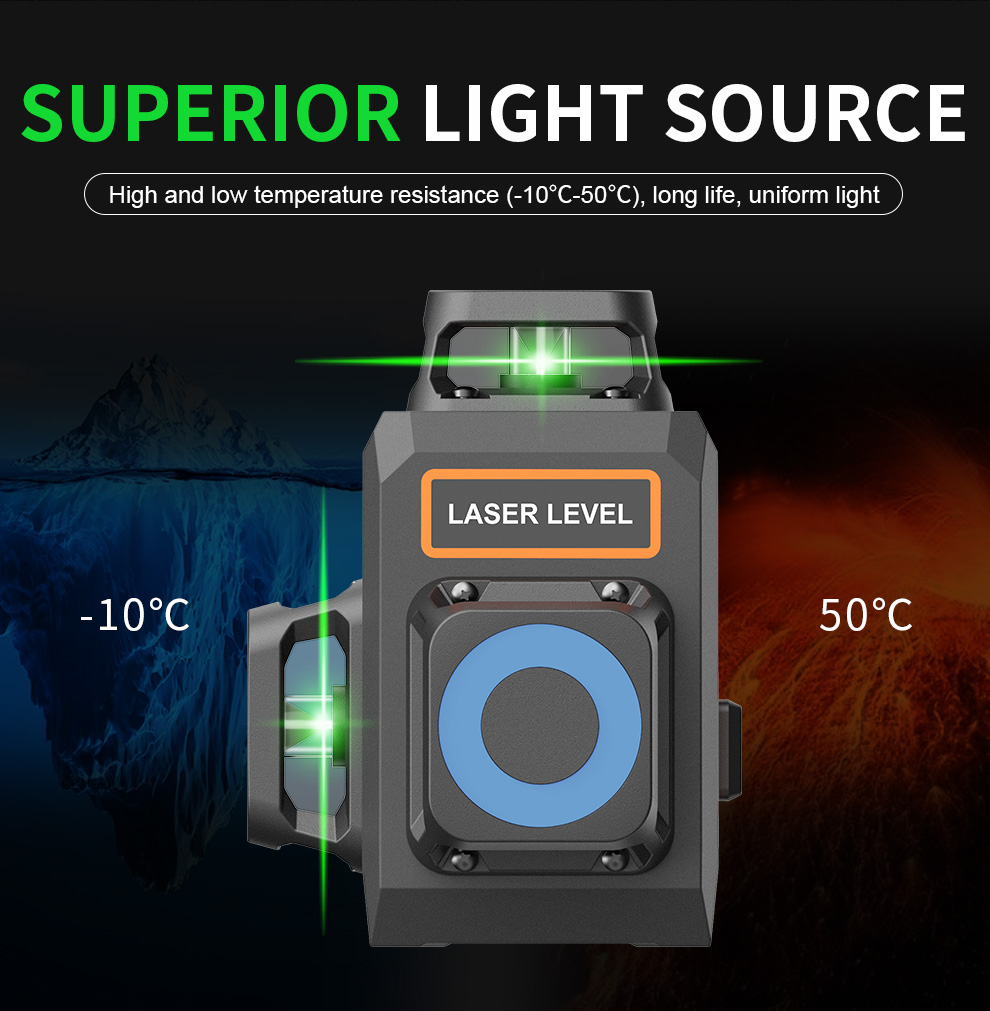

High and low temperature resistance (-10°C-50°C), long life, uniform light
Fullyfunctional, enough for home decoration
| Interior Renovation | Stair laying | Floor laying |
| Ornamentinstallation | Wooden installation | Wall construction |

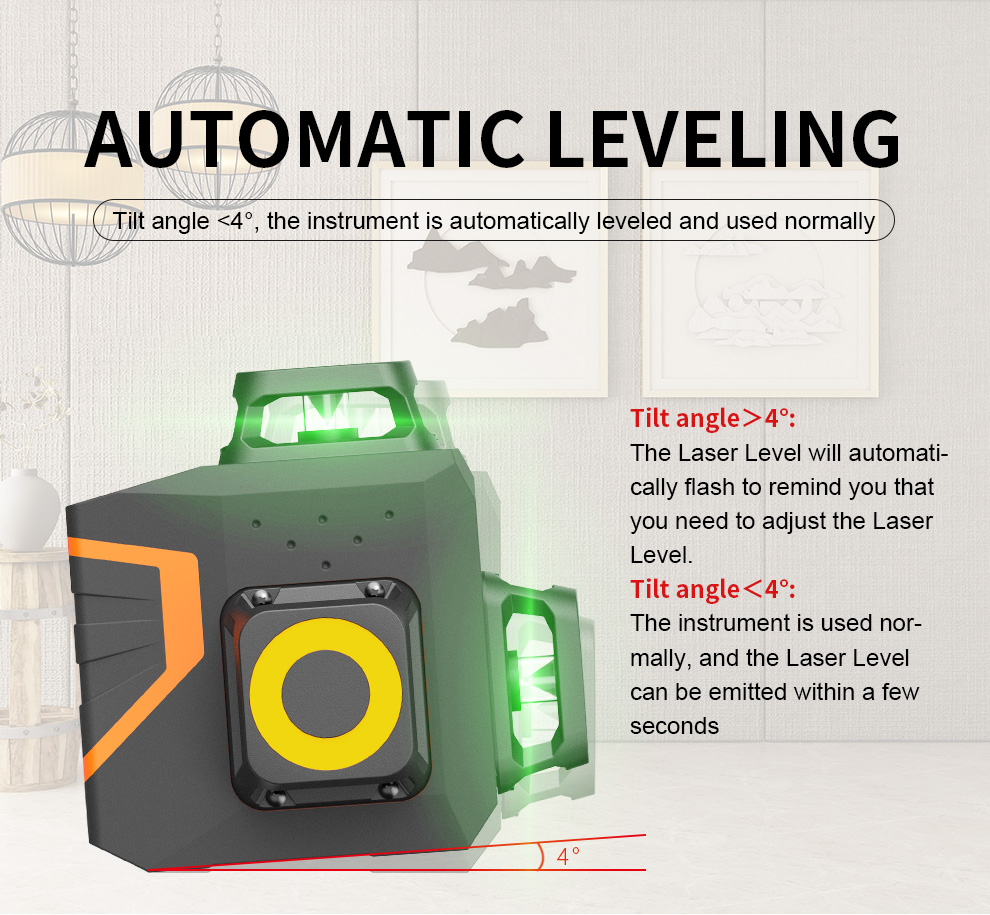

Tilt angle <4°, the instrument is automatically leveled and used normally
Tilt angle>4°The Laser Level will automati-cally flash to remind you thatyou need to adjust the LaserLevel
Tilt angle<4°:The instrument is used nor-mally, and the Laser Levelcan be emitted within a fewseconds

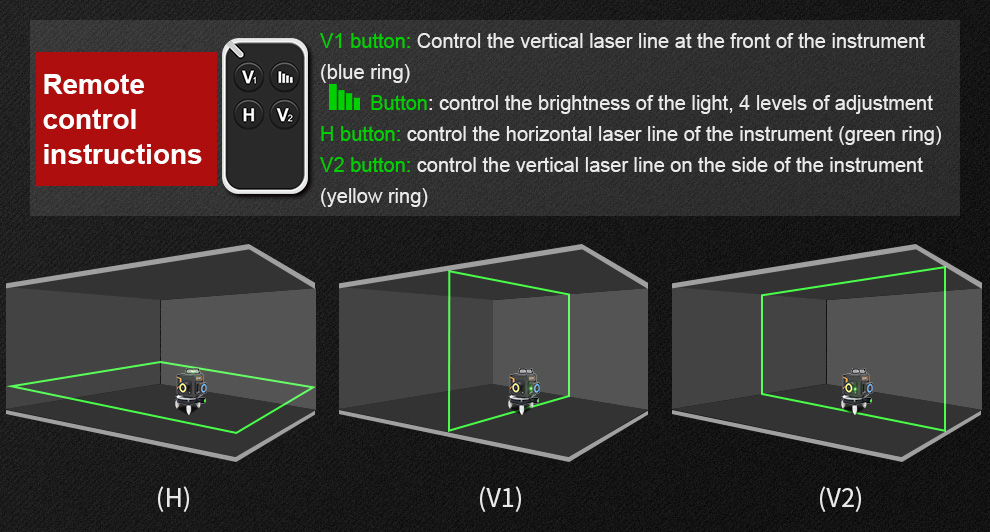

V1 button: Control the vertical laser line at the front of the instrument(blue ring)
Button: control the brightness of the light, 4 levels of adjustmentH button: control the horizontal laser line of the instrument (green ring）
V2 button: control the vertical laser line on the side of the instrument(yellow ring)

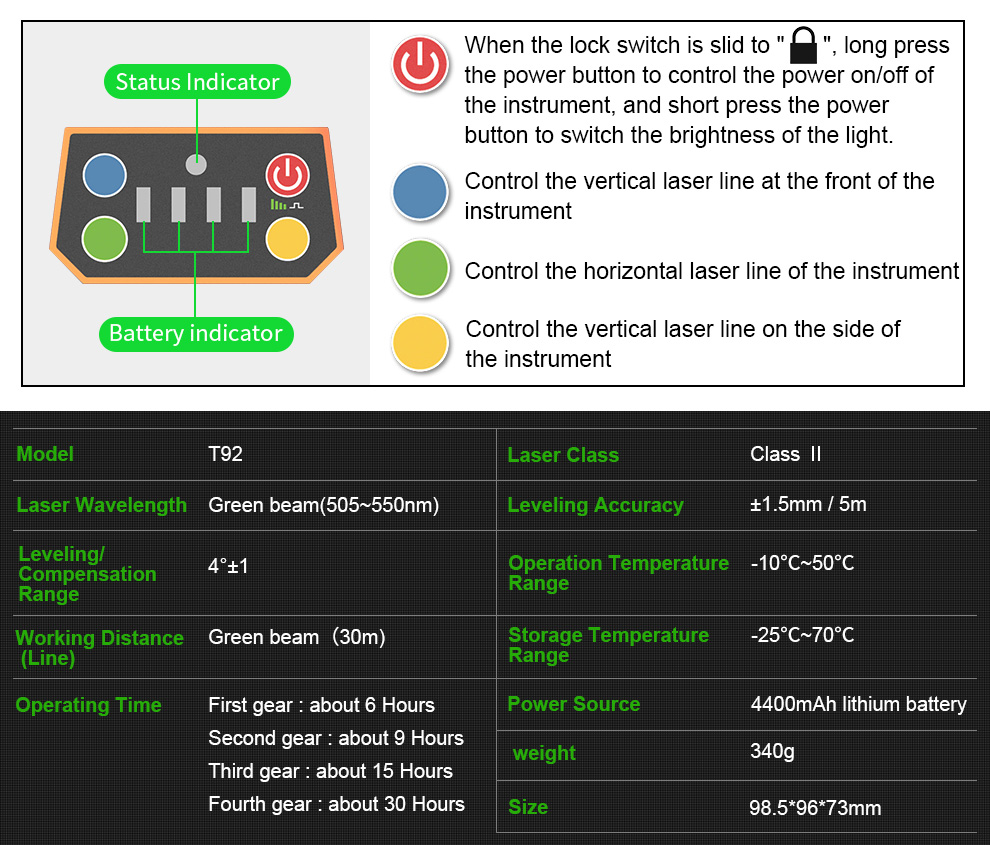

When the lock switch is slid to "", long pressthe power button to control the power on/off ofthe instrument, and short press the powerbutton to switch the brightness of the light.
Control the vertical laser line at the front of theinstrument
Control the horizontal laser line of the instrument
Control the vertical laser line on the side ofthe instrument

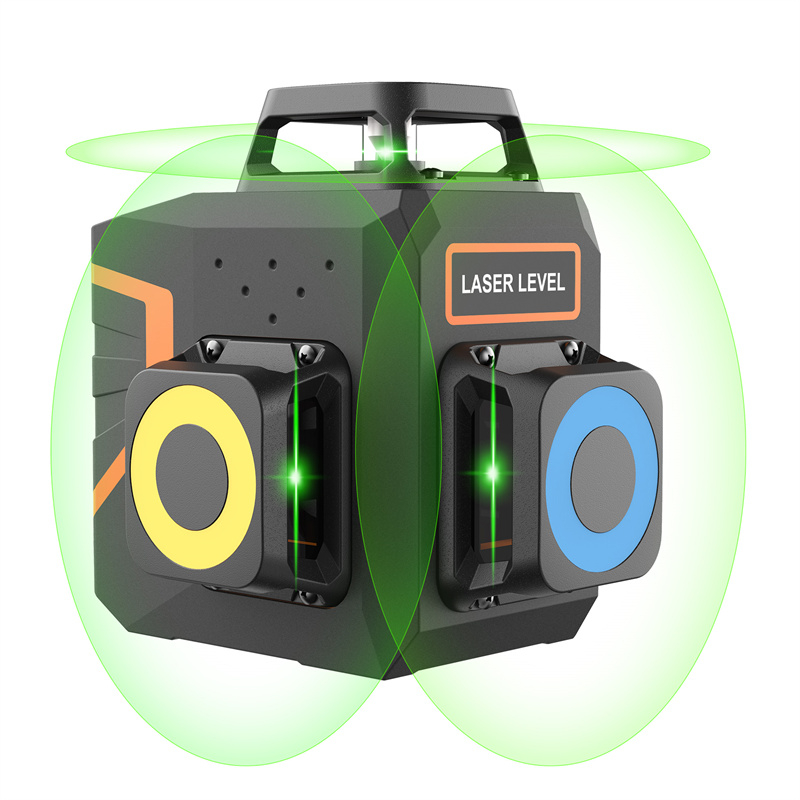

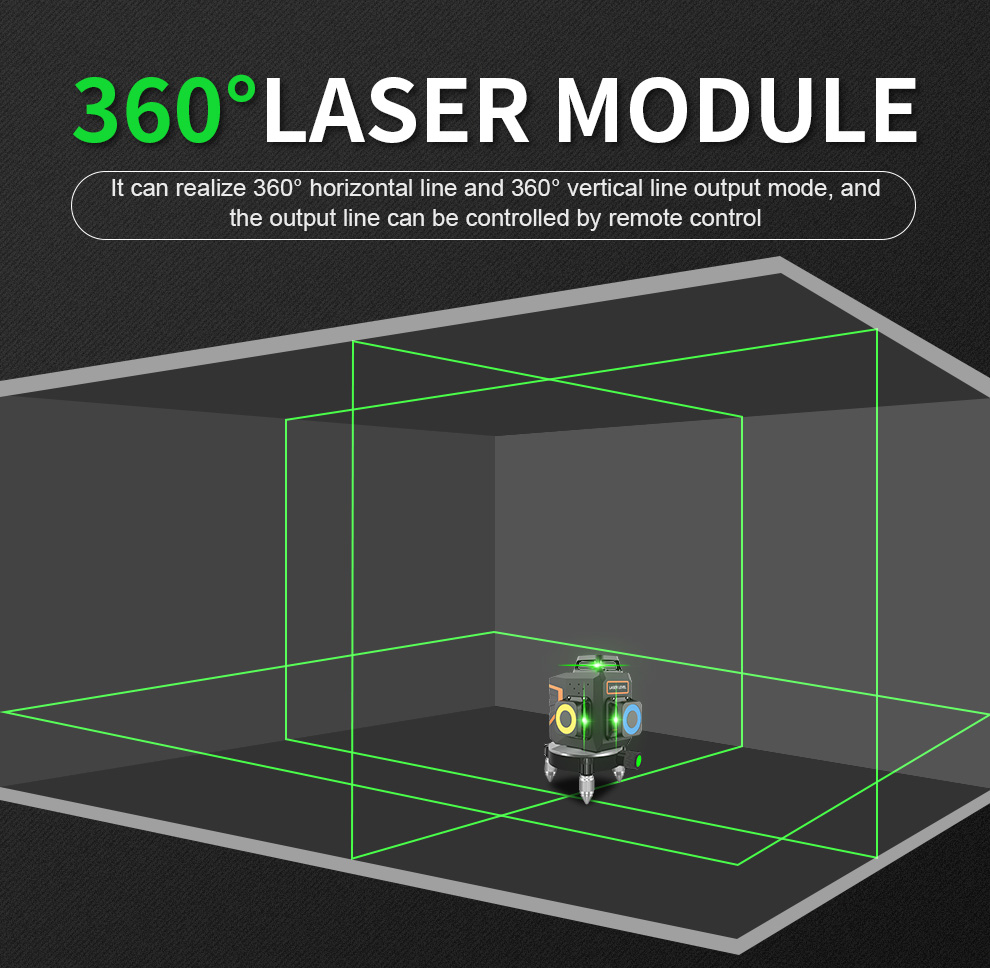

It can realize 360° horizontal line and 360° vertical line output mode, and
the output line can be controlled by remote control

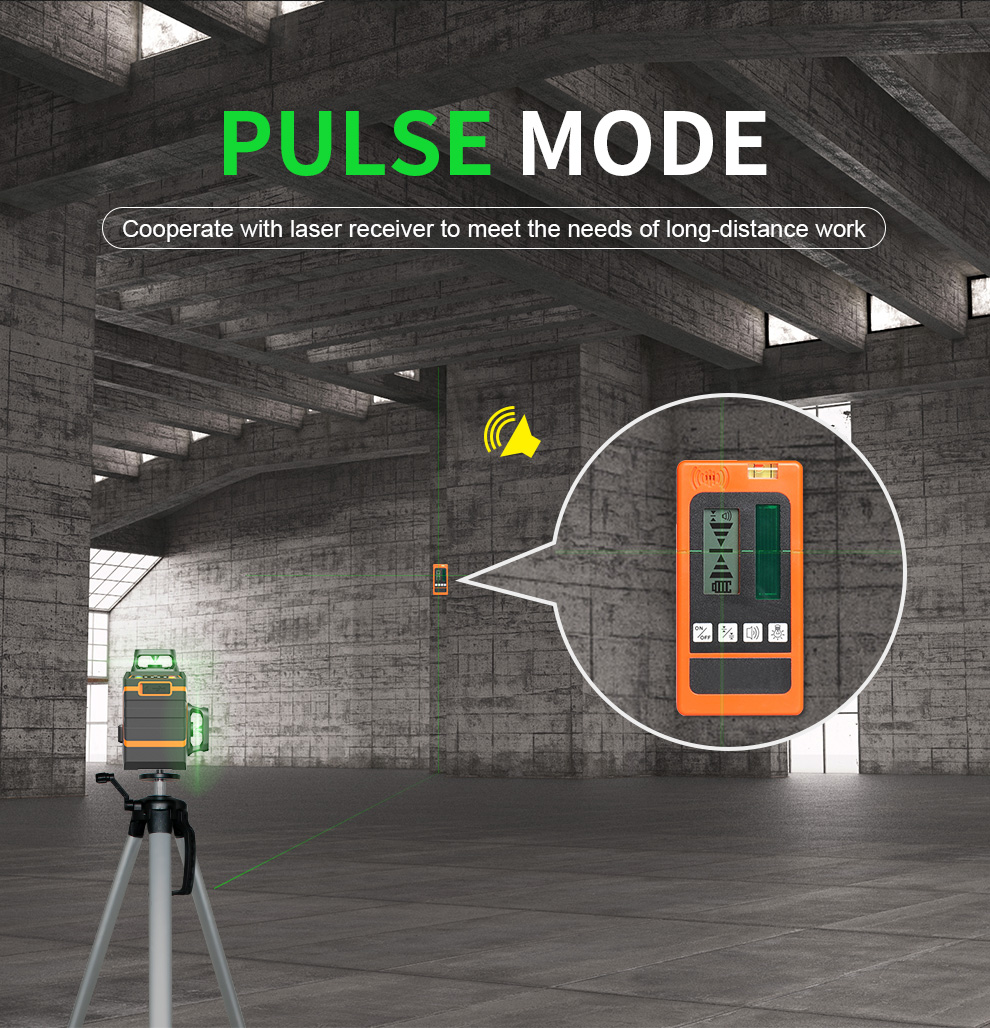

Cooperate with laser receiver to meet the needs of long-distance work
We are a manufacturer .Our factory has 9,000 square meters of professional production workshops and independent research and development
experimental centers, providing continuous and stable support and guarantee for new product development, production and upgrading quality and market sales.
We have our own factory and excellent design team. OEM/ODM is accepted. Please do not hesitate to contact with us to show your idea.
RoHS CE FCC UKCA FDA
A :Factory (We produce, we sell).
A : We do customizing service for customers. OEM/ ODM is welcome. Any logo and any color is up to you.The English copy of manual is also available.
A : Regular products only 1 standard carton. but no limit for sample order!
a: Send us an inquiry
b: Confirm your wanted products
c: Confirm the price, freight and other details
d: Complete the payment in Alibaba
e: We start production and arrange the shipment
f: You got your products
g: We get the payment
A : It depends on whether we are in stock or not. Our standard arrangement time is 3 days if we have stock, otherwise it will be decided by factory production. Generally, it needs 10-45 days of production according to the quantity of your order.
A : DHL/FEDEX/UPS/EMS all is ok, it is base on Customer's prefer! and we can advise the suitable shipping way base on the customer's order quantity!
A : We offer 12month warranty. Our policy: Within the warranty period, If there is any quality problem, please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair or exchange. Please make sure to contact us first instead of sending it to us directly. You only need to pay double-run freight.
