X01
inorm
±3mm/10m
Class Ⅱ
2000mAh lithium battery
| Quantity: | |
|---|---|

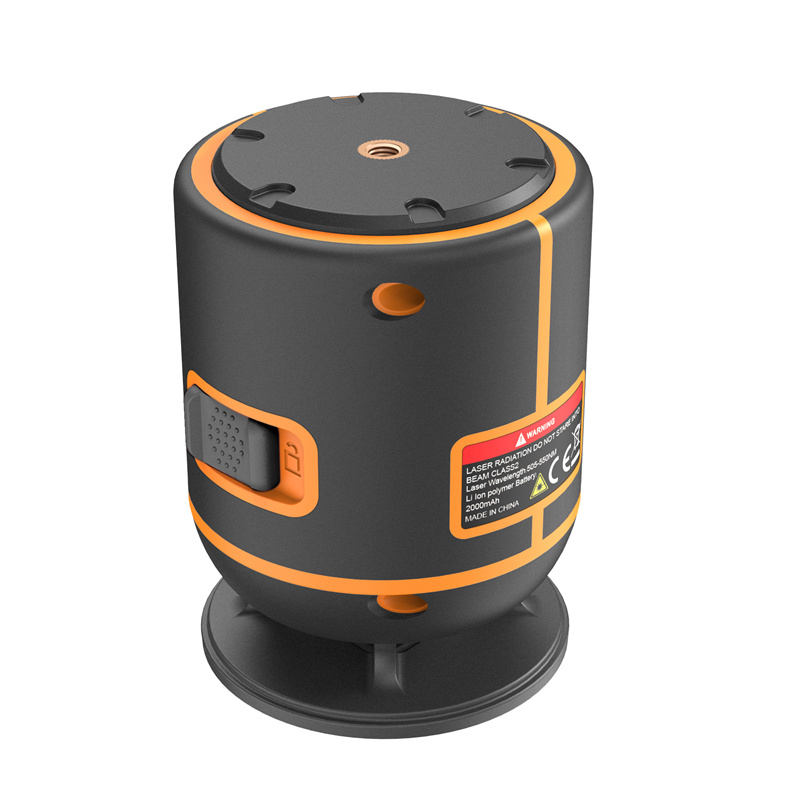

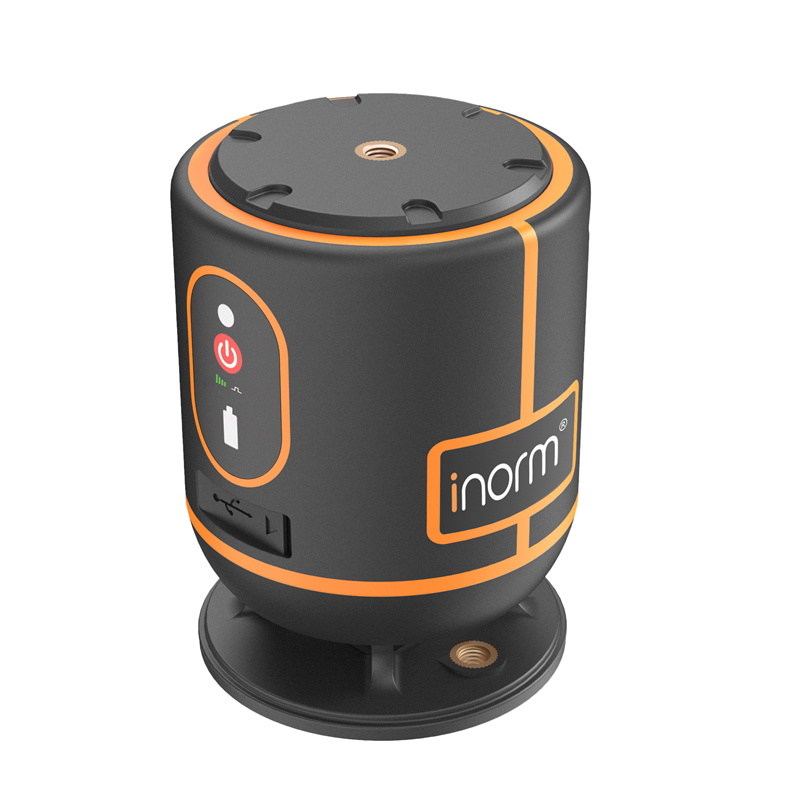

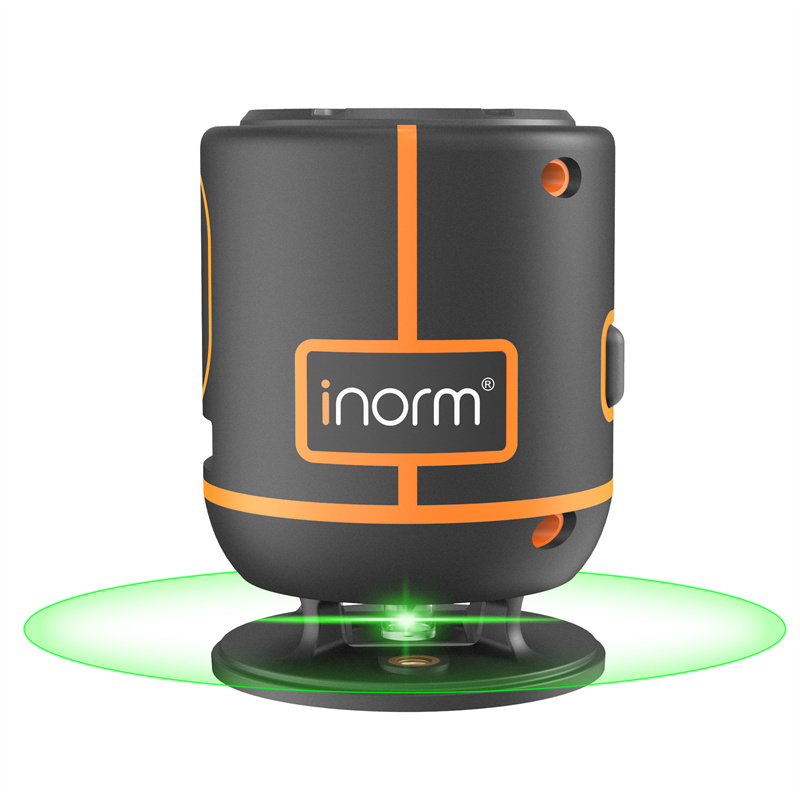

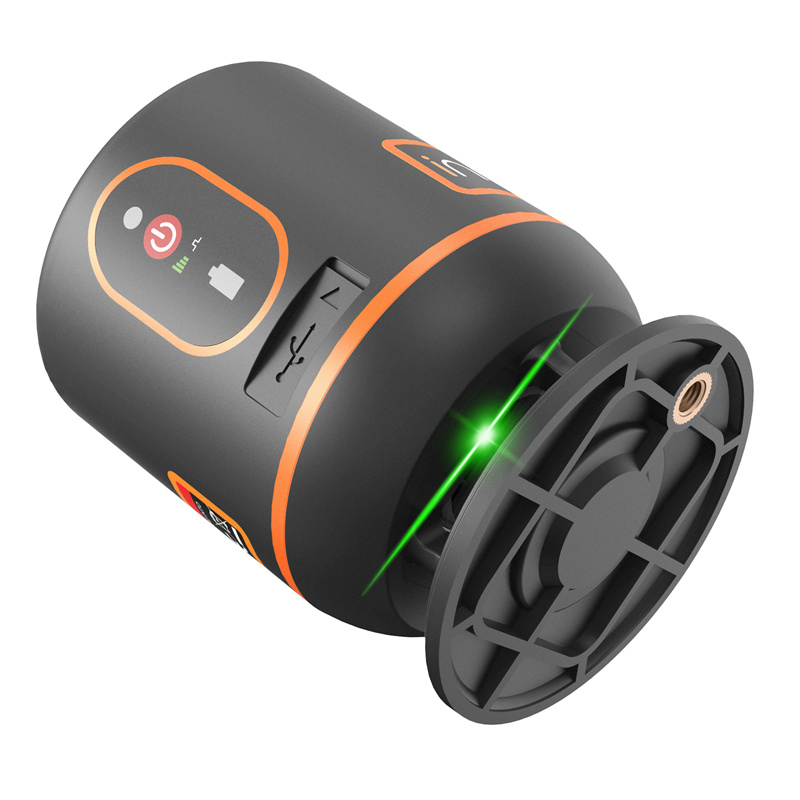

X01 laser rangefinder is 360° horizontal line output, using imported high quality LD light source, high light laser can be clearly seen indoors and outdoors, built-in 2000mAh lithium, universal Type-c interface, with energy saving mode, small and portable body, with bracket.
| Model | X01 | ||
| Laser beam | 1H | ||
| oQty of laser diode | one | ||
| Color of beam | Green | ||
| Laser wavelength | 520nm | ||
| Laser power(H/V) | 20mw | ||
| Accuracy(H/V) | 3mm at 10m distance | ||
| Auto-compensation Range | 4° ± 1° | ||
| IP rating | IP54 | ||
| Laser class | Class 2 | ||
| Working temperature | -10~50°C | ||
| Working range | 30m | ||
| Working range with reciever | about 50m | ||
| Beam Emission Angle(H/V) | 360° | ||
| Battery | 2000mAh lithium battery | ||
| Working time | First gear 8h fourth gear 16h | ||

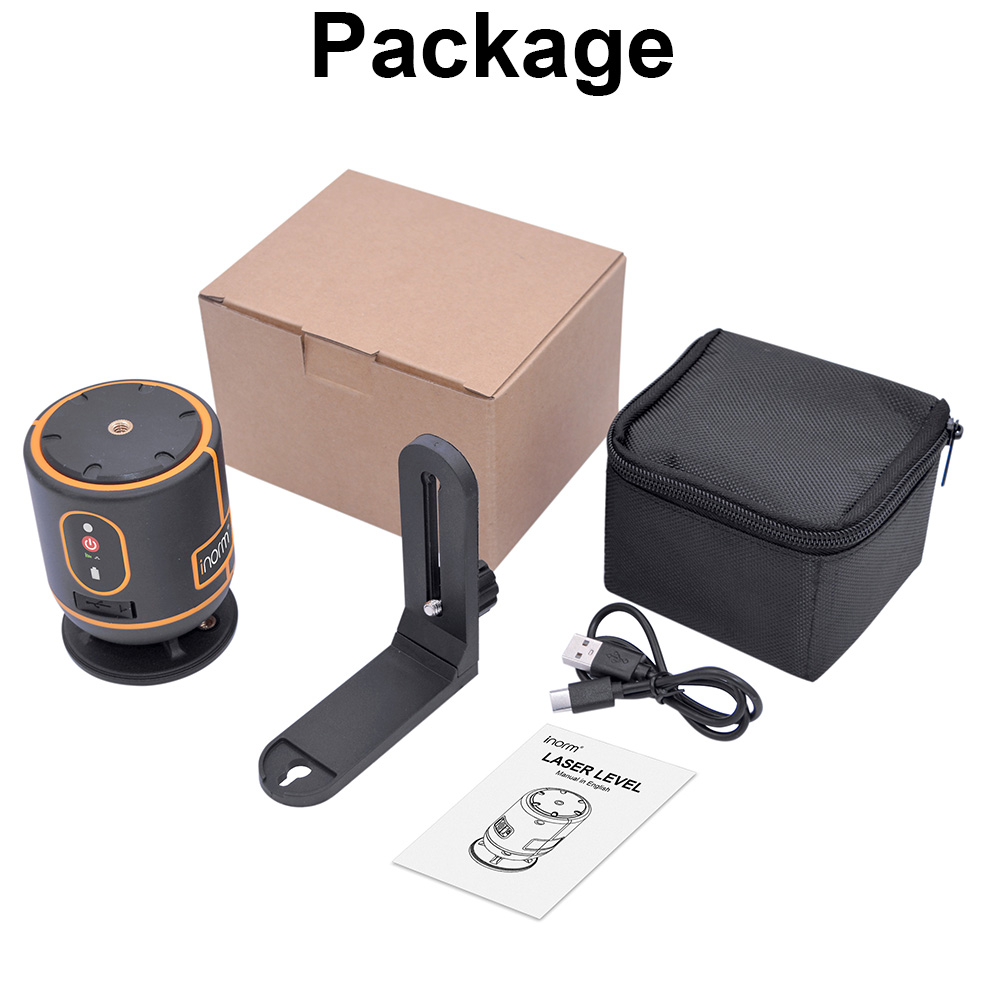

| Kit content | 1 X laser level,1 X L-shaped magnetic support | ||
| 1 X USB-C Charging line,1 X EVA case | |||
| Laser Level Weight/Size of level | 280 g/98*ø72mm | ||
| Weight/Size of Color box | 475g/ 138*111*91mm | ||
| Weight/Size of out carton | 24pcs/ 12.3 kg/ 35.5*29.5*38.5CM |
Manual of 4 Lines Laser Level X01.pdf
X01 laser rangefinder is 360° horizontal line output, using imported high quality LD light source, high light laser can be clearly seen indoors and outdoors, built-in 2000mAh lithium, universal Type-c interface, with energy saving mode, small and portable body, with bracket.

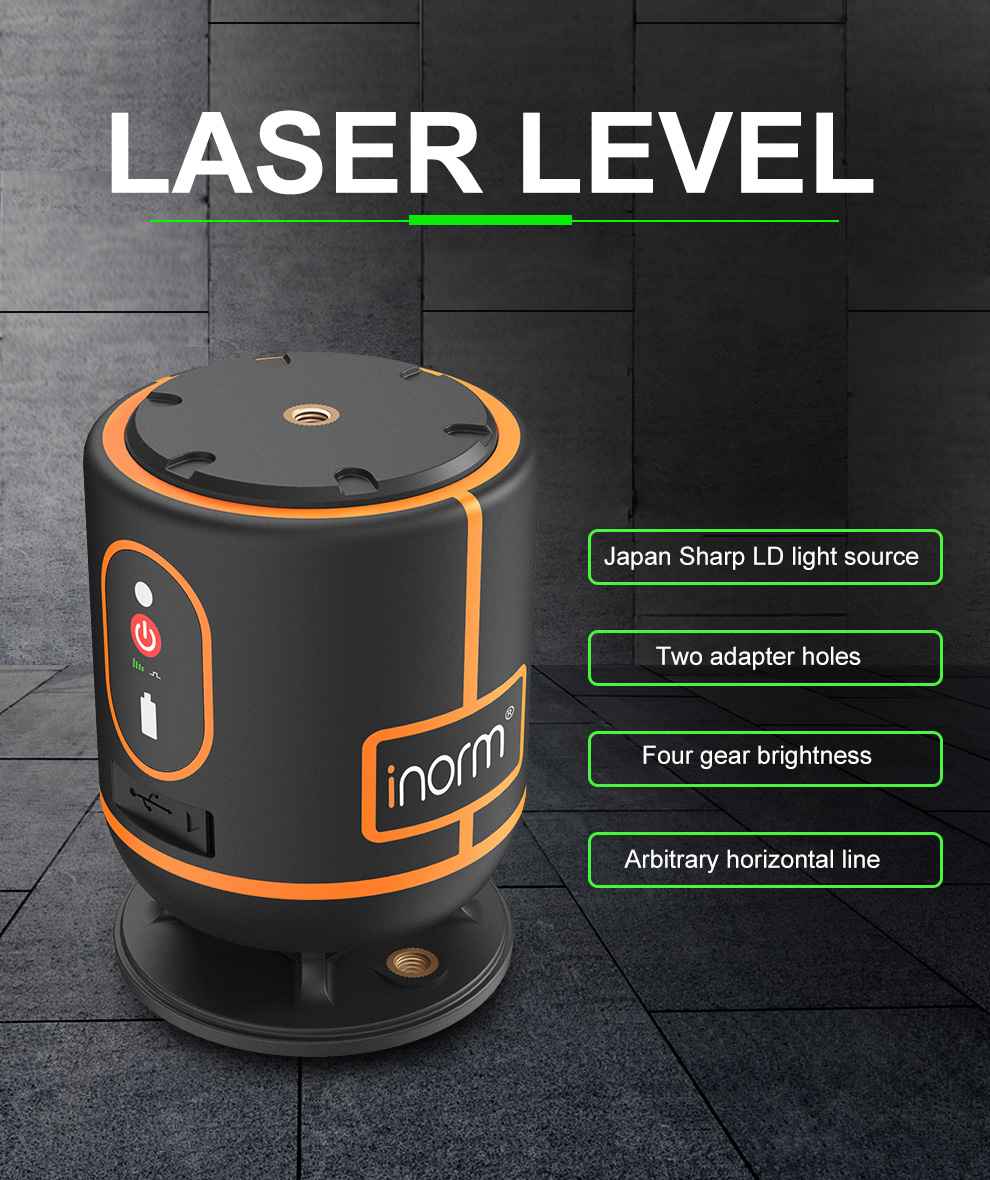

Japan Sharp LD light source
Two adapter holes
Four gear brightness
Arbitrary horizontal line
Any horizontal line Lithiumdirect charge Energy saving
Two universal adapter holes Automatic leveling

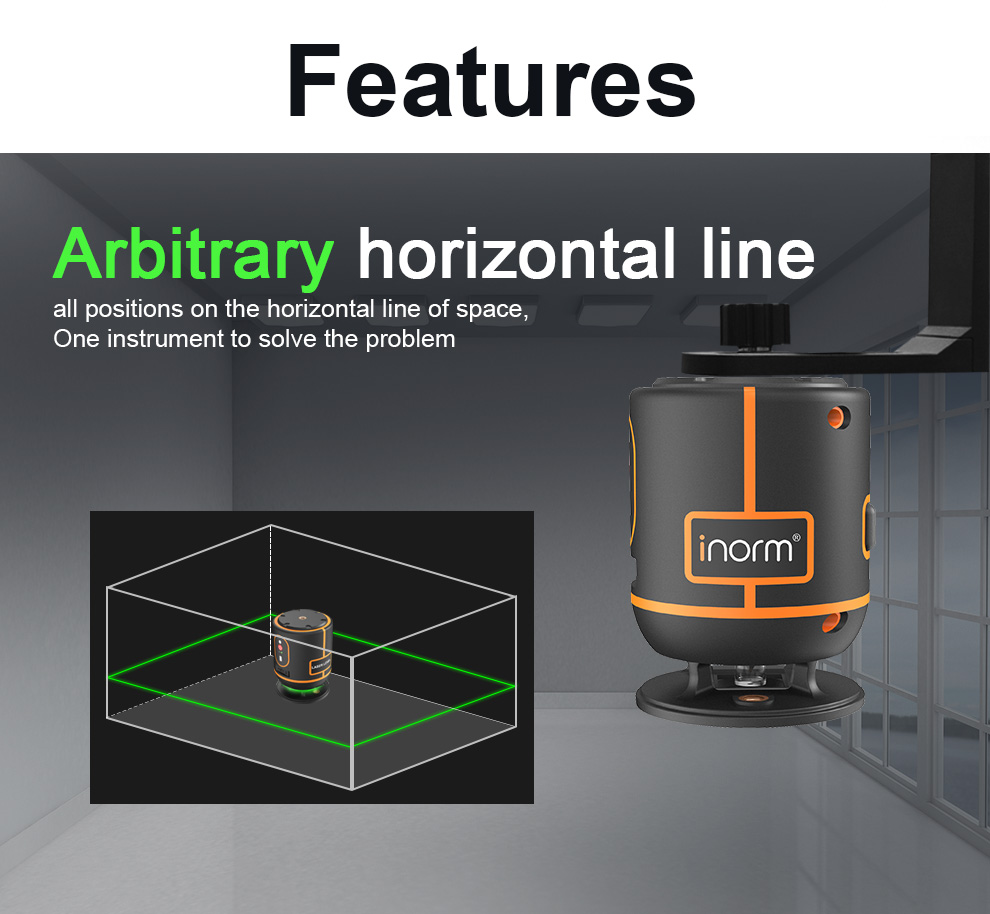

Arbitrary horizontal lineall positions on the horizontal line of space,One instrument to solve the problem

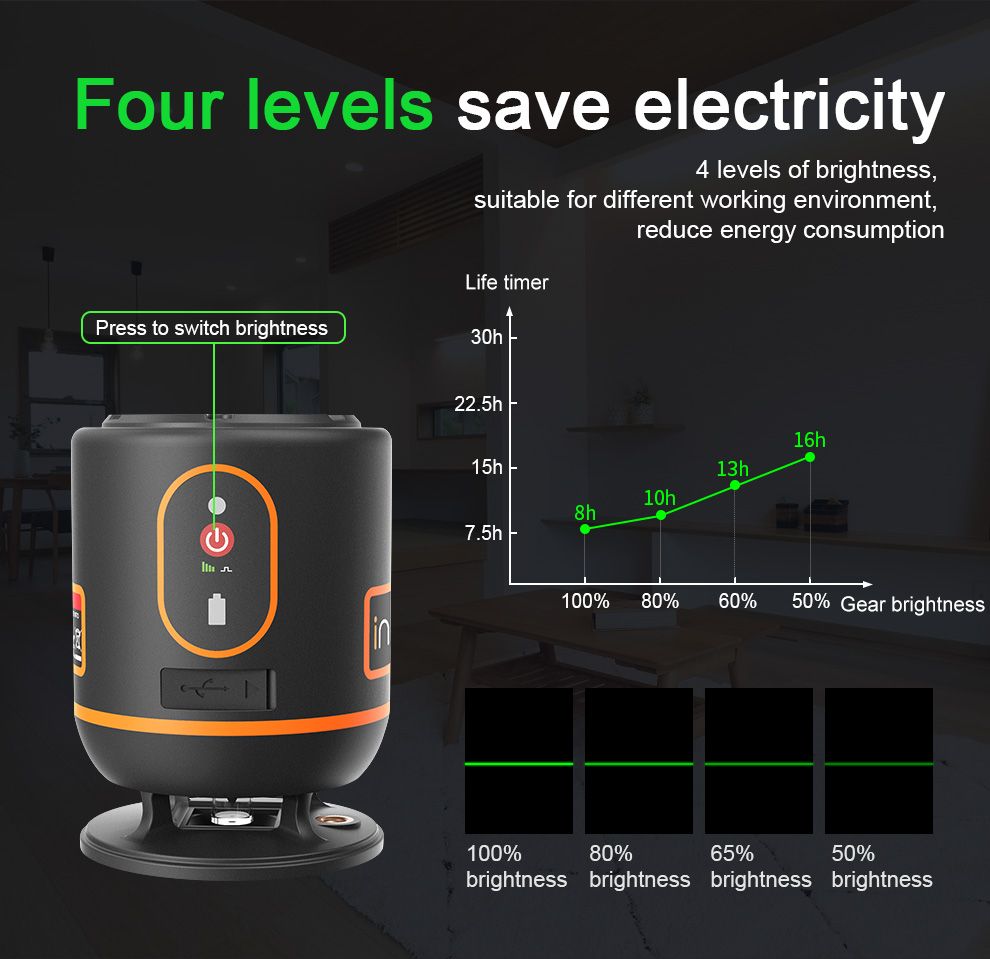

Four levels save electricity
4 levels of brightness
suitable for different working environment,
reduce energy consumption

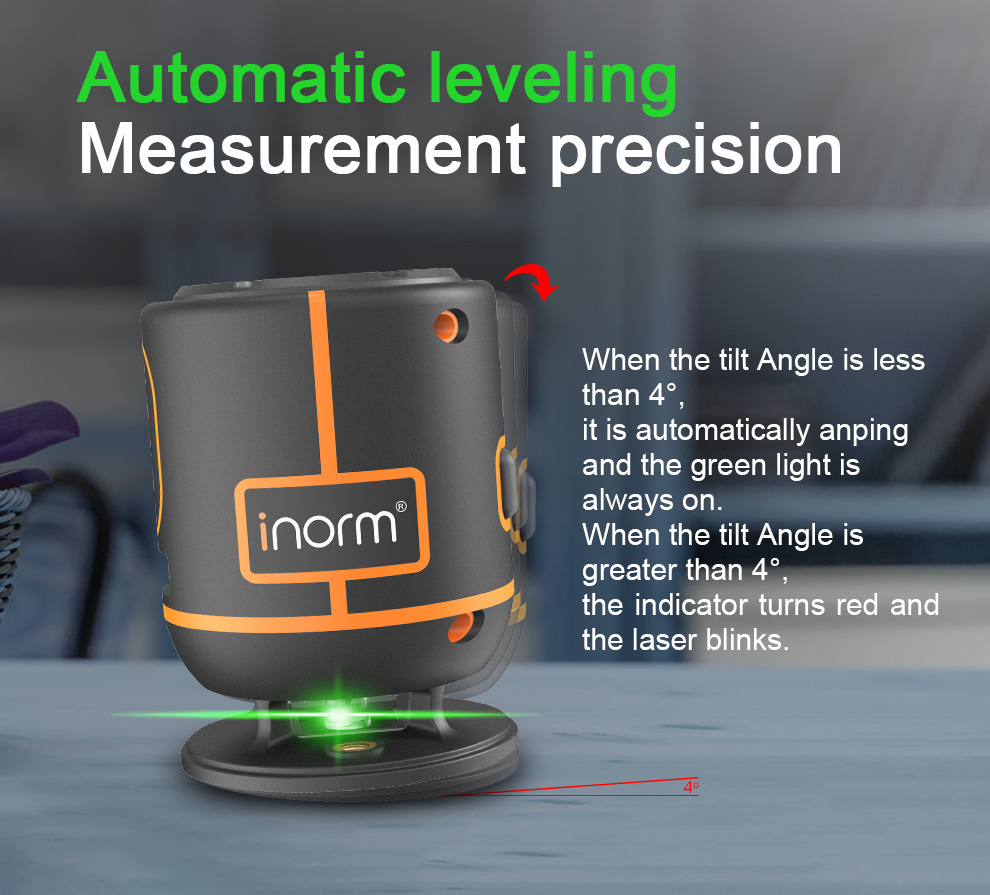

Automatic levelingMeasurement precision

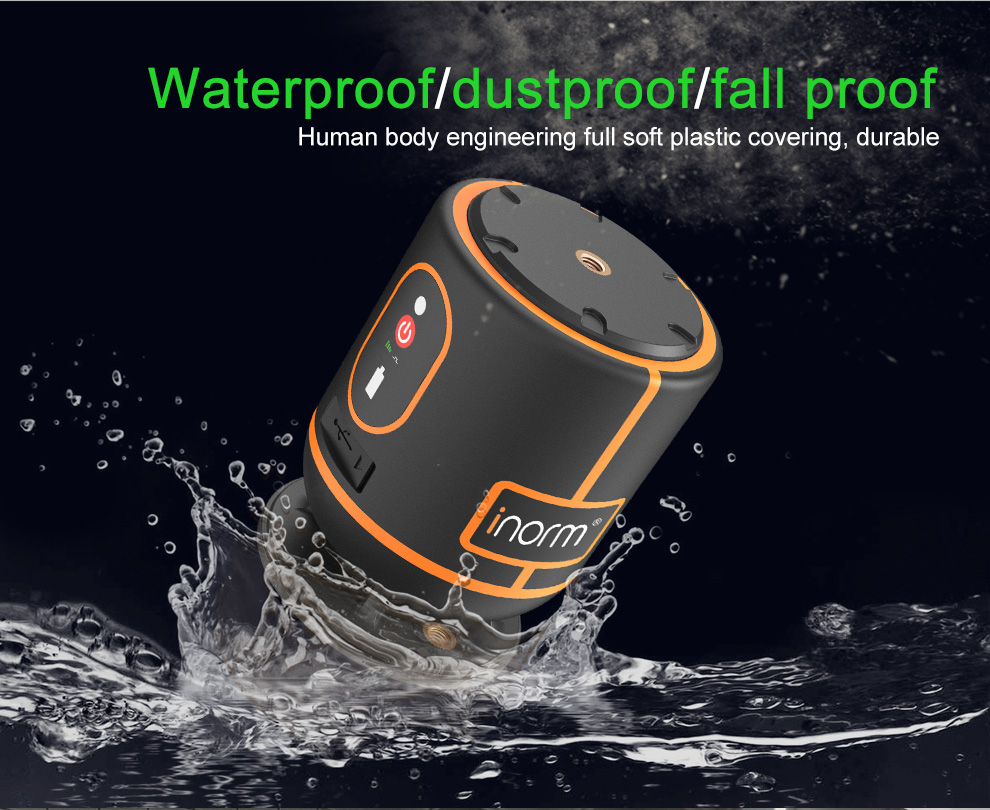

Waterproof/dustproof/fall proof
Human body engineering full soft plastic covering, durable

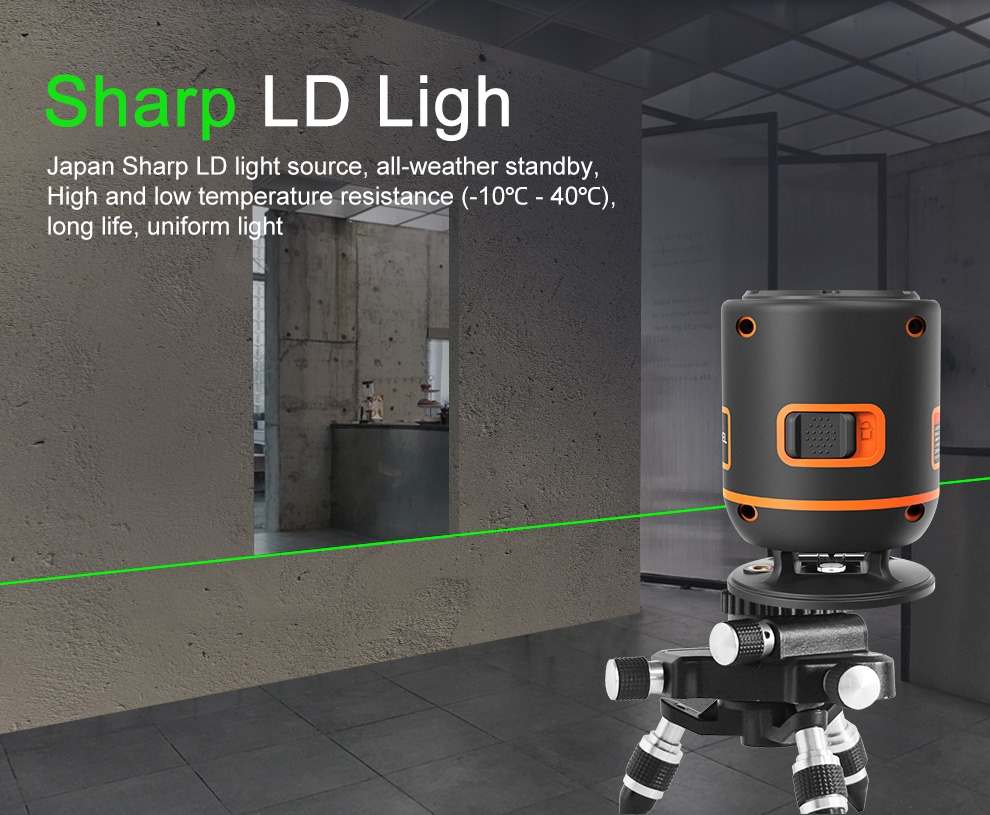

Sharp LD Light
Japan Sharp LD light source, all-weather standby,High and low temperature resistance (-10°C-40°C)long life, uniform light

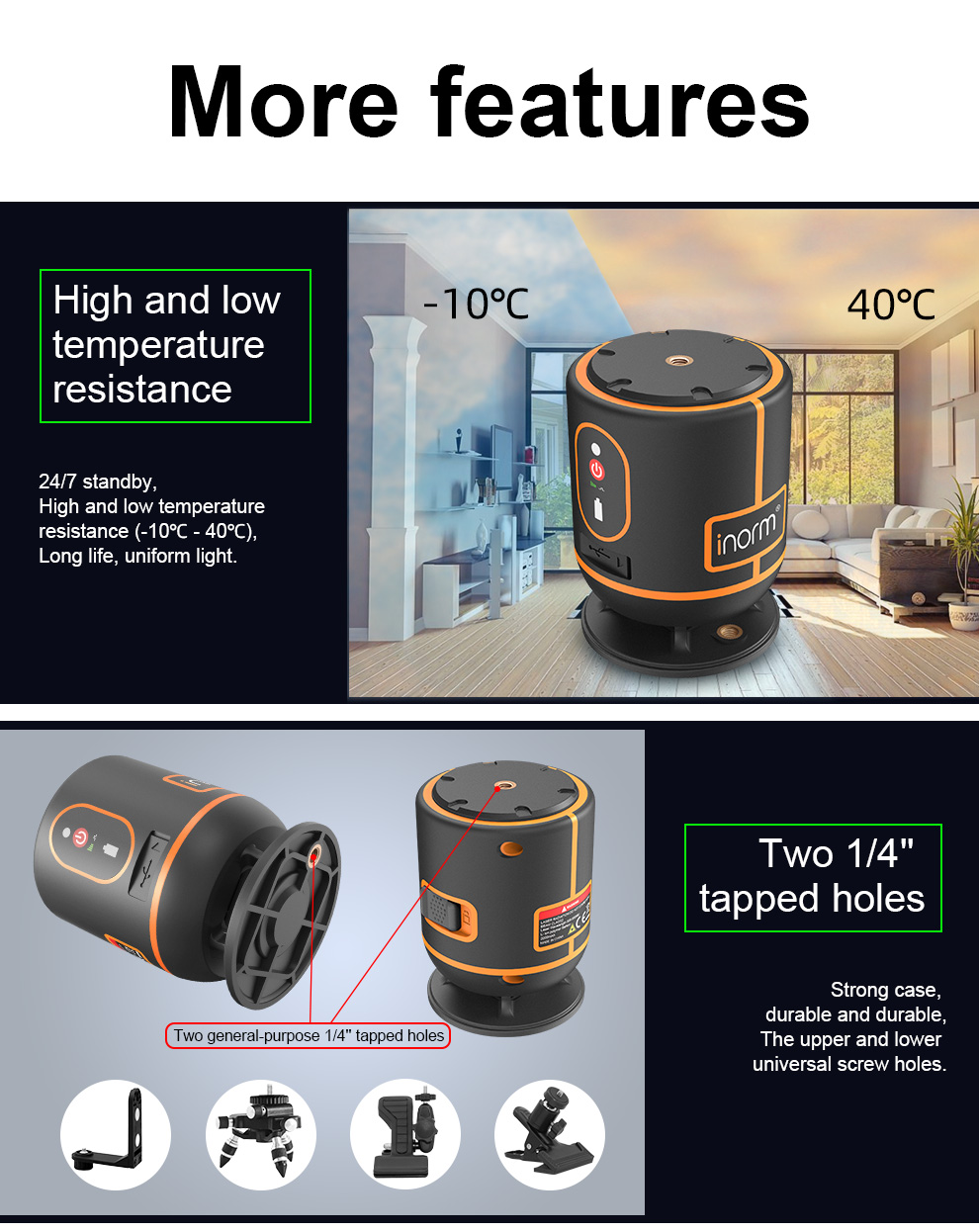

High and low temperature resistance
24/7 standby,High and low temperatureresistance (-10°C -40°C),Long life, uniform light.
Two 1/4" tapped holes
Strong case,durable and durable,The upper and loweruniversal screw holes

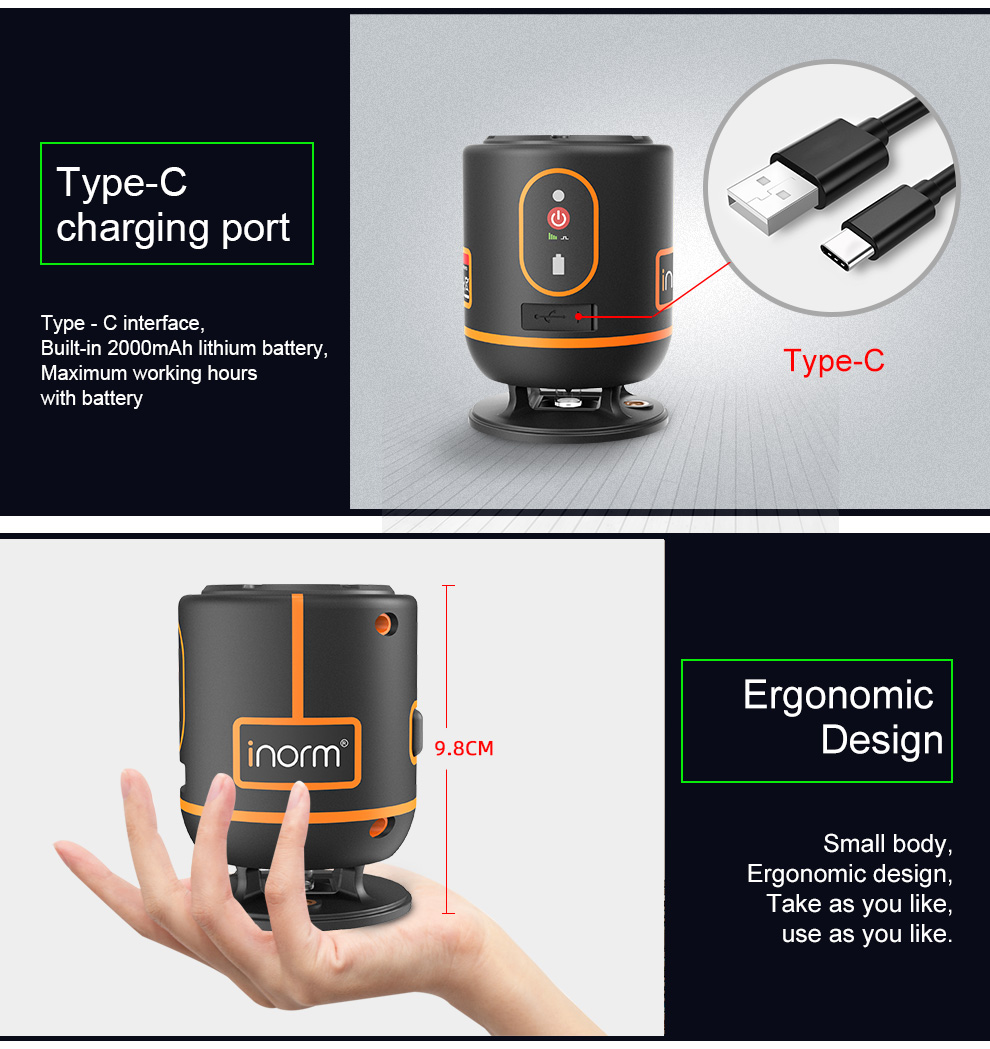

Type-Ccharging port
Type - C interface,Built-in 2000mAh lithium battery,Maximum working hourswith battery
Ergonomic Design
Small body,Ergonomic design,Take as you like,use as you like.
We are a manufacturer .Our factory has 9,000 square meters of professional production workshops and independent research and development
experimental centers, providing continuous and stable support and guarantee for new product development, production and upgrading quality and market sales.
We have our own factory and excellent design team. OEM/ODM is accepted. Please do not hesitate to contact with us to show your idea.
RoHS CE FCC UKCA FDA
A :Factory (We produce, we sell).
A : We do customizing service for customers. OEM/ ODM is welcome. Any logo and any color is up to you.The English copy of manual is also available.
A : Regular products only 1 standard carton. but no limit for sample order!
a: Send us an inquiry
b: Confirm your wanted products
c: Confirm the price, freight and other details
d: Complete the payment in Alibaba
e: We start production and arrange the shipment
f: You got your products
g: We get the payment
A : It depends on whether we are in stock or not. Our standard arrangement time is 3 days if we have stock, otherwise it will be decided by factory production. Generally, it needs 10-45 days of production according to the quantity of your order.
A : DHL/FEDEX/UPS/EMS all is ok, it is base on Customer's prefer! and we can advise the suitable shipping way base on the customer's order quantity!
A : We offer 12month warranty. Our policy: Within the warranty period, If there is any quality problem, please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair or exchange. Please make sure to contact us first instead of sending it to us directly. You only need to pay double-run freight.
