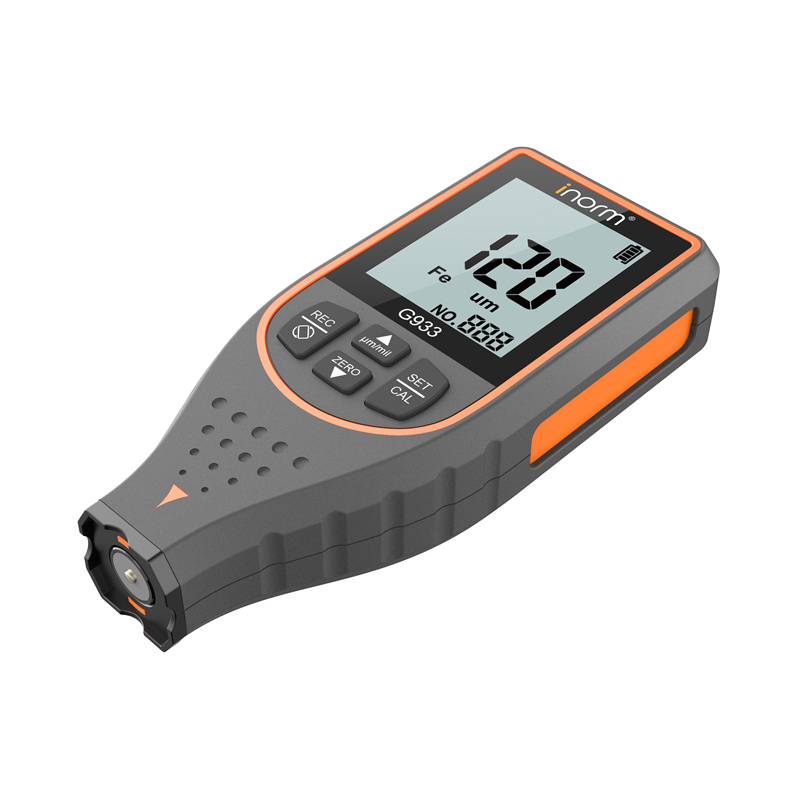

G933
inorm
±(2+2%*H)μm @ (0 ~ 500μm) ±((2.5%*H)μm @ (500~1700μm)
2x1.5V AAA Battery
| Quantity: | |
|---|---|

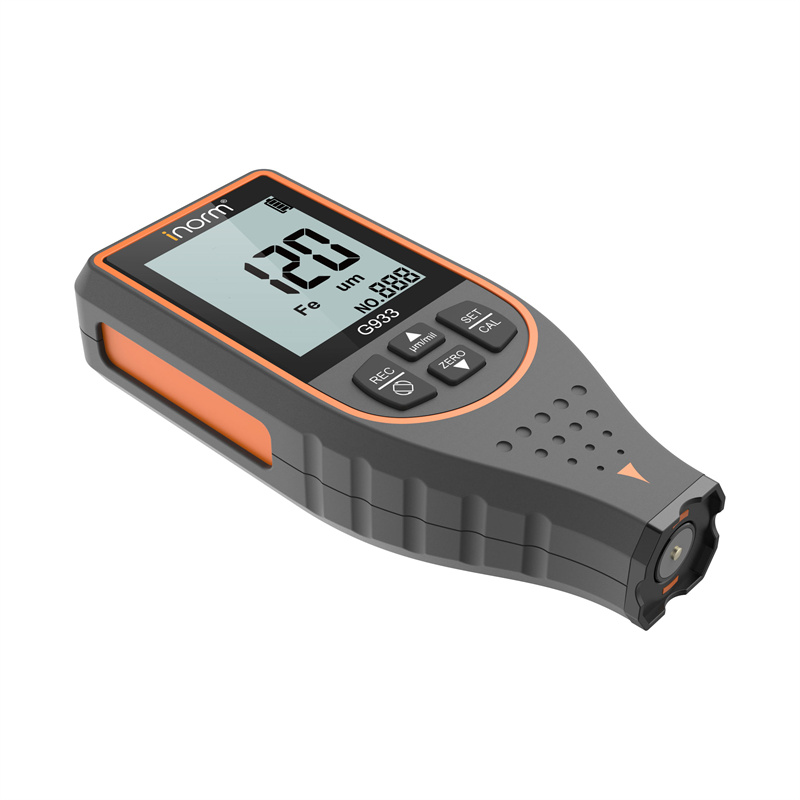

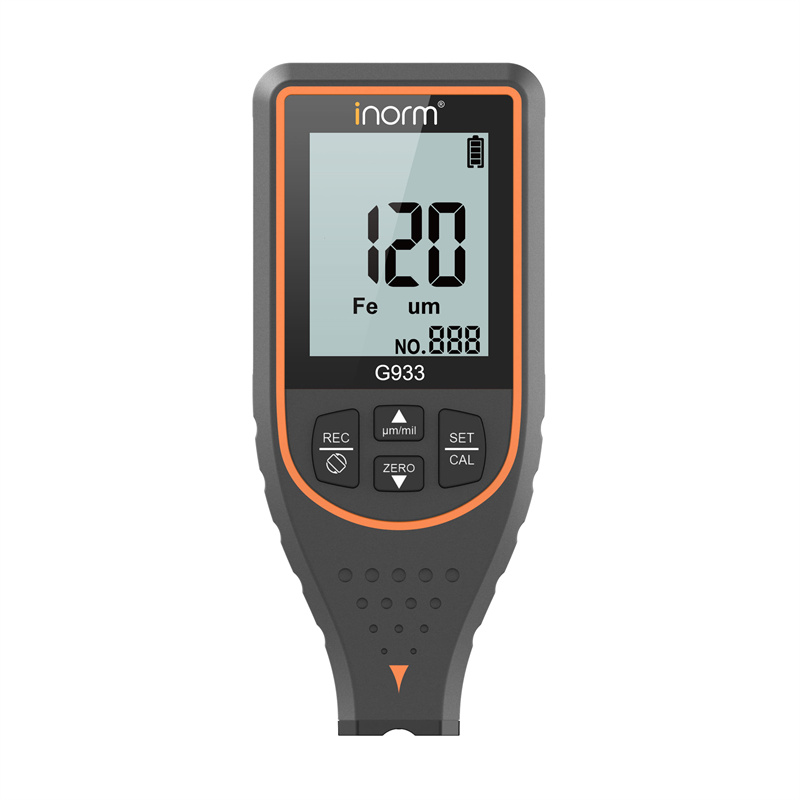

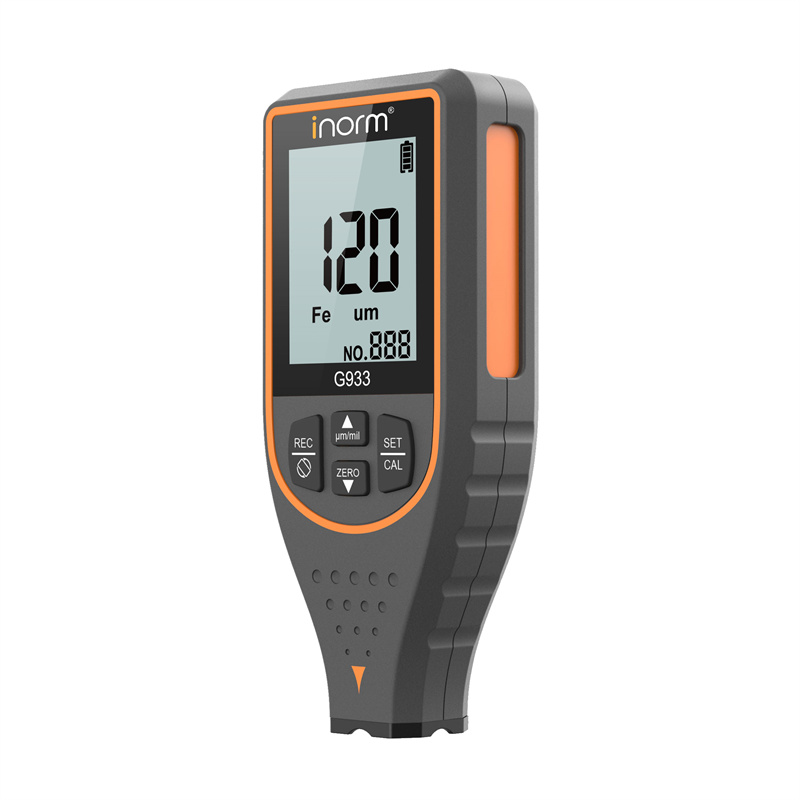

The G933 coating thickness gauge can nondestructive measure the thickness of non-magnetic coating (such as aluminum, chromium, copper, enamel, rubber, paint, etc.) on magnetic metal substrates (such as copper, aluminum, zinc, tin, etc.) and the thickness of non-conductive coating (such as: Enamel, rubber, paint, plastic, etc.), with small measurement error, screen 180° flip, good stability, easy to operate and so on.
Name | |

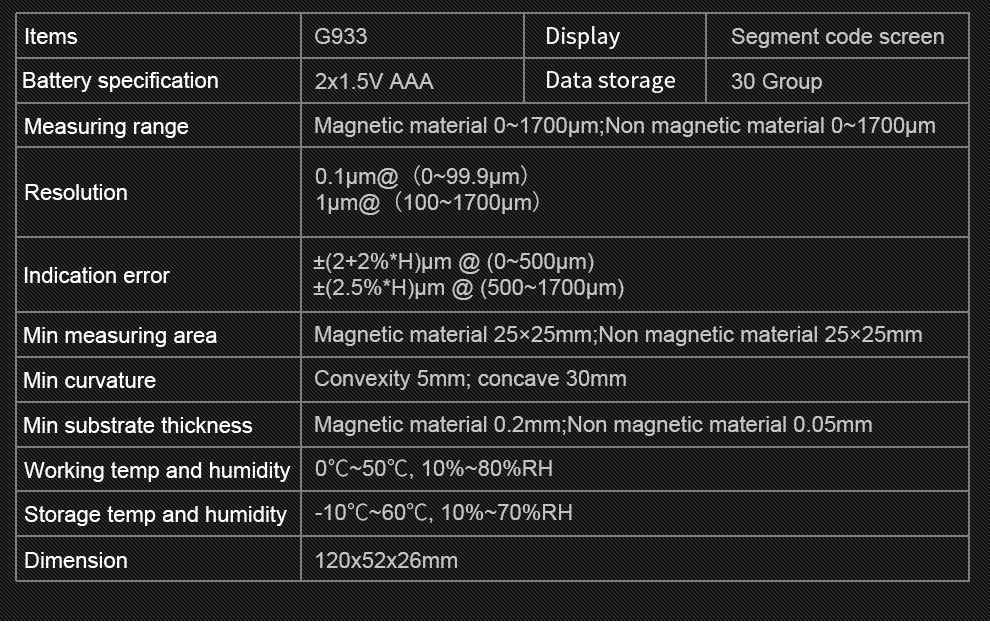

| Measuring range | Magnetic: 0-1700um; Non-magnetic 0-170um |
| Indication error | ±（2+2%*H）um@(0*500um) , ±（2.5%*H）um@(5000*1700um) , |
| Resolution | 0.01um@(0-9.99um) ，0.1um@(10-99.9um) ，1um@(100-1700um) |
| Minimum curvature | Convex surface 5mm. Concave surface 30mm |
| Minimum measurement area | Magnetic 25*25mm, non-magnetic 25*25mm |
| Minimum substrate thickness | Magnetic 0.2mm. Non-magnetic 0.005mm |
| Store data | 30groups |
| Battery specification | 2x1.5v AAA battery |
| Moderate operating temperature | 0~50℃.10%~70%RH |
| Storage temperature and humidity | ﹣10℃~﹢60℃， 10%~80%RH |
| Single size weight | 120*52*26mm .75g |
| Individual package size weight | 100*66*182mm 9.25kg |
| The number of boxes in the outer box | 30pcs/box |
Manual of Coating thickness gauge G933.pdf
High-precision measurement : The coating thickness measuring instrument adopts advanced measuring technology and algorithm, which can realize the high-precision measurement of the coating thickness. Whether it is metal, non-metal or composite material, coating thickness gauges can provide accurate and reliable measurement results, reduce measurement errors, improve the reliability and confidence of measurement results

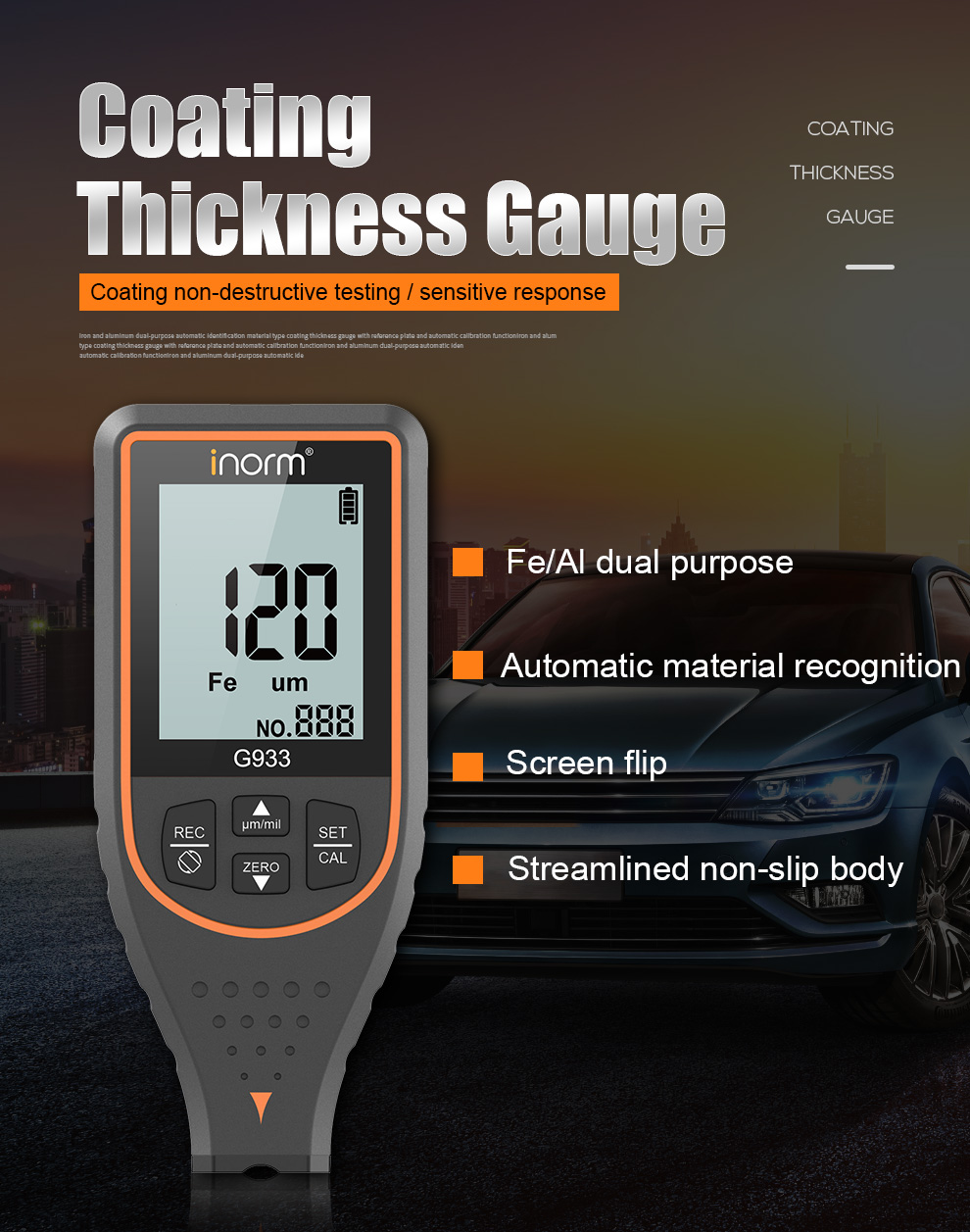

Fe/Al dual purpose
Automatic material recognition
Screen flip
Streamlined non-slip body
Used car market detection
Metal parts inspection
Car and ship manufacturing
Paint thickness

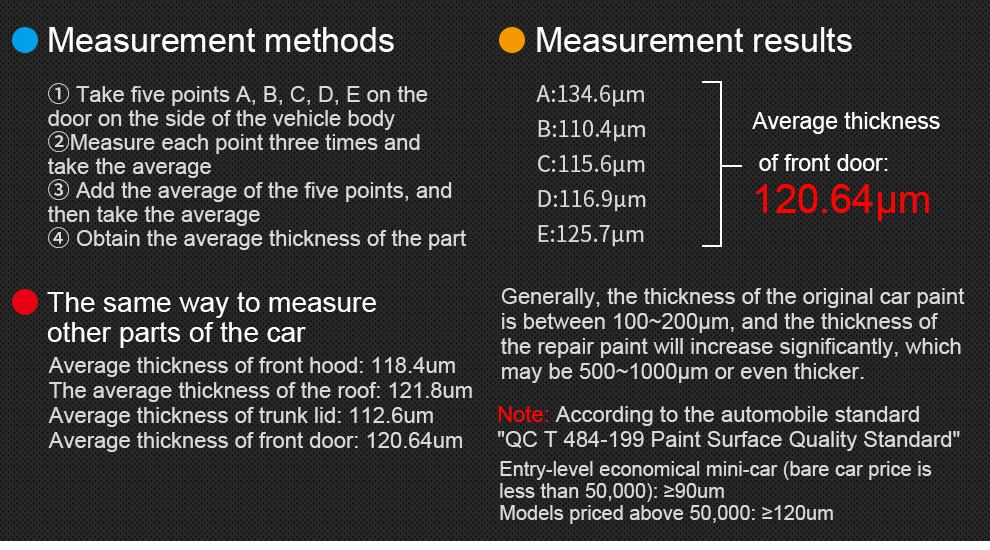

USED GAR PAINT INSPECTION

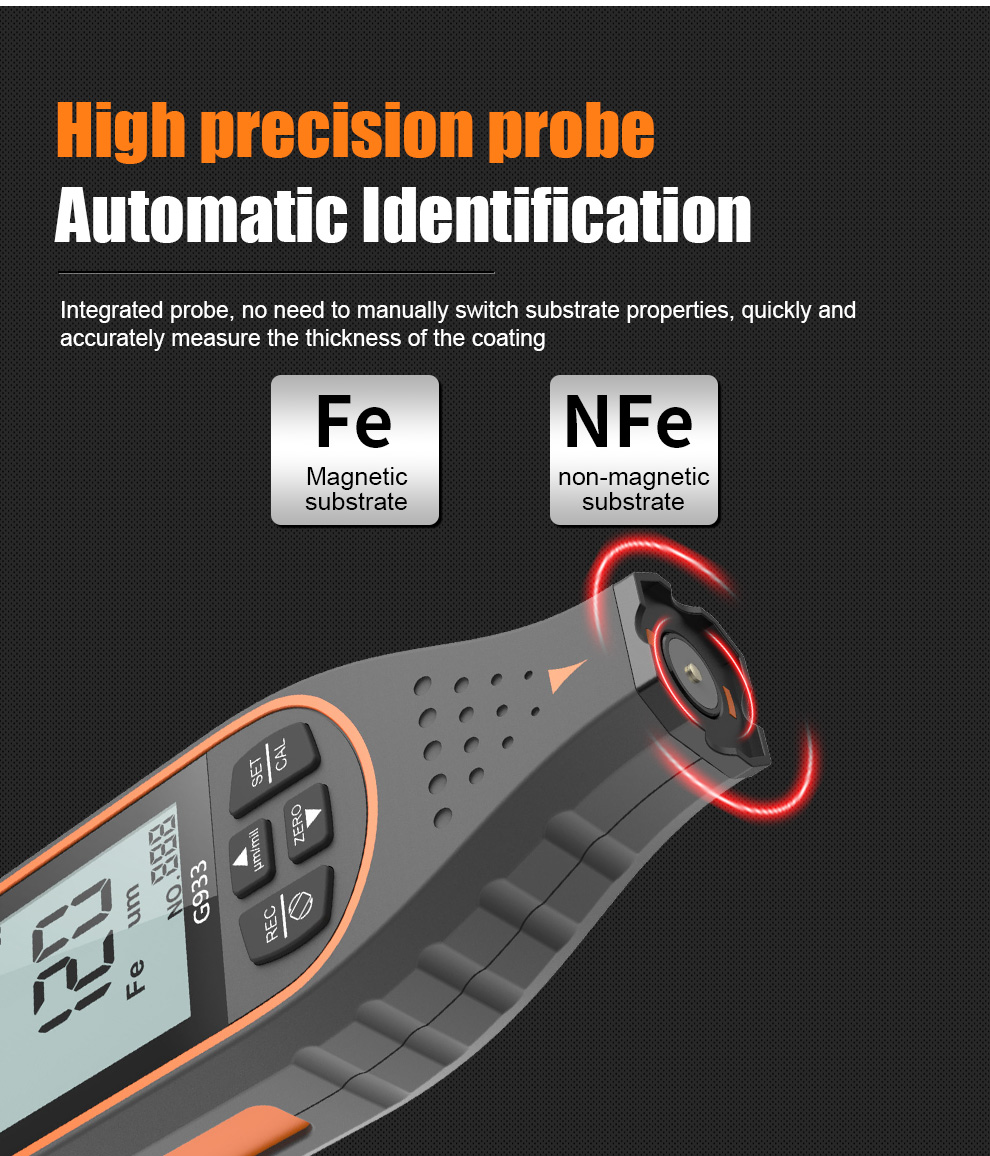

High precision probeAutomatic identification
Integrated probe, no need to manually switch substrate properties, quickly andaccurately measure the thickness of the coating

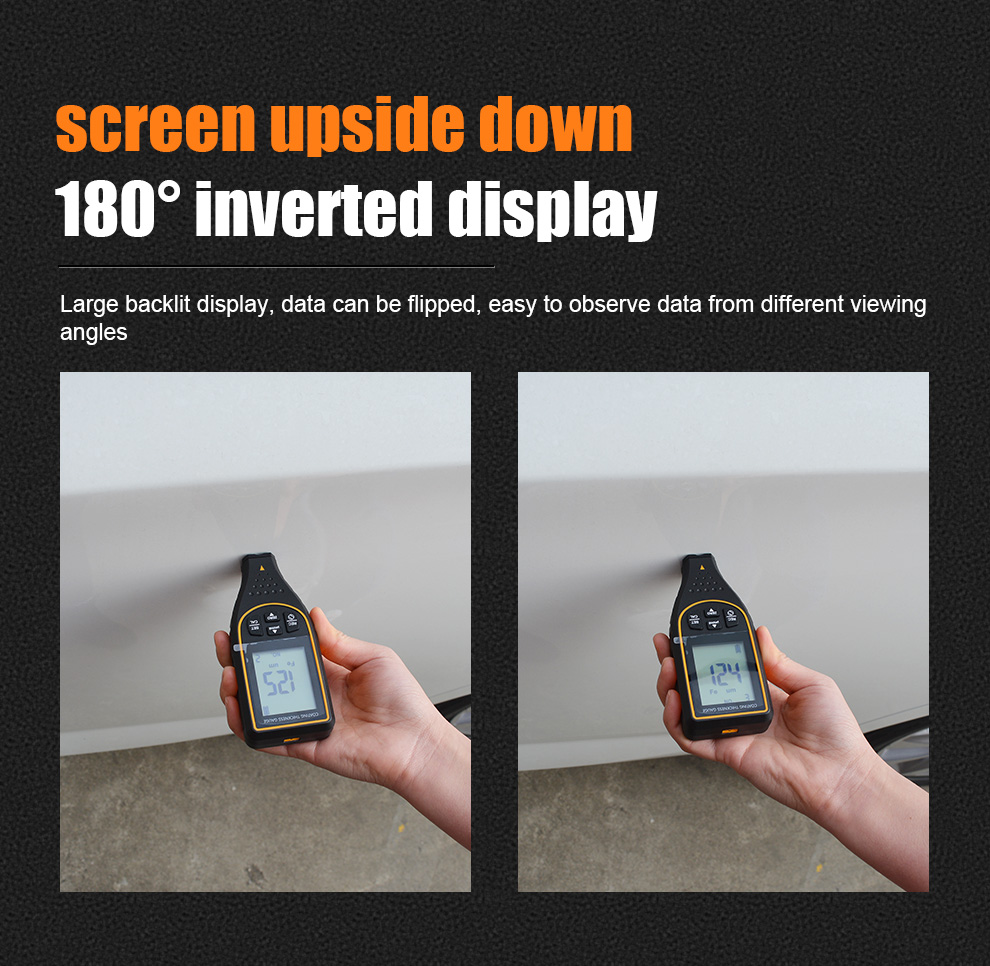

screen unside down180° inverted display
Large backlit display, data can be flipped, easy to observe data from different viewing
angles

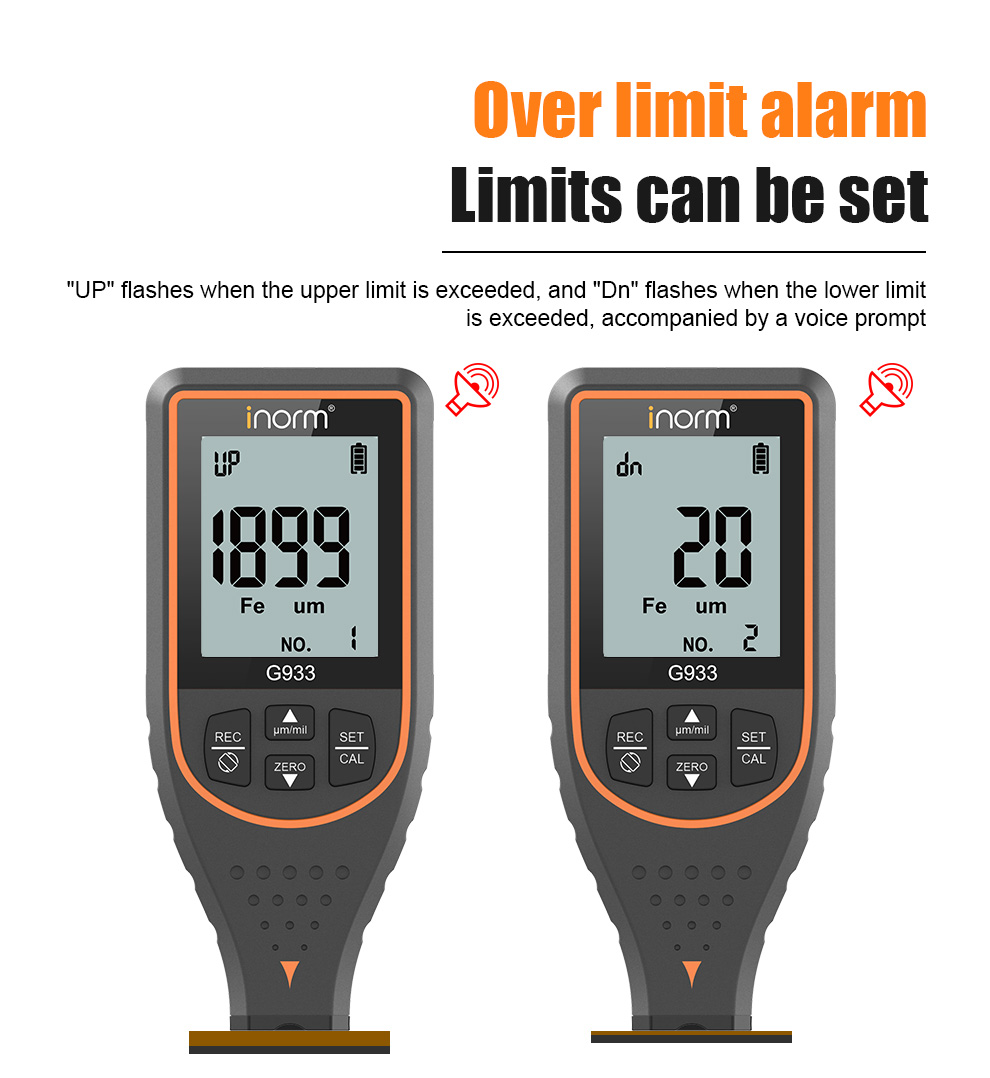

Over limit alarmLimits can be set.
"UP" flashes when the upper limit is exceeded, and "Dn" flashes when the lower limitis exceeded, accompanied by a voice prompt

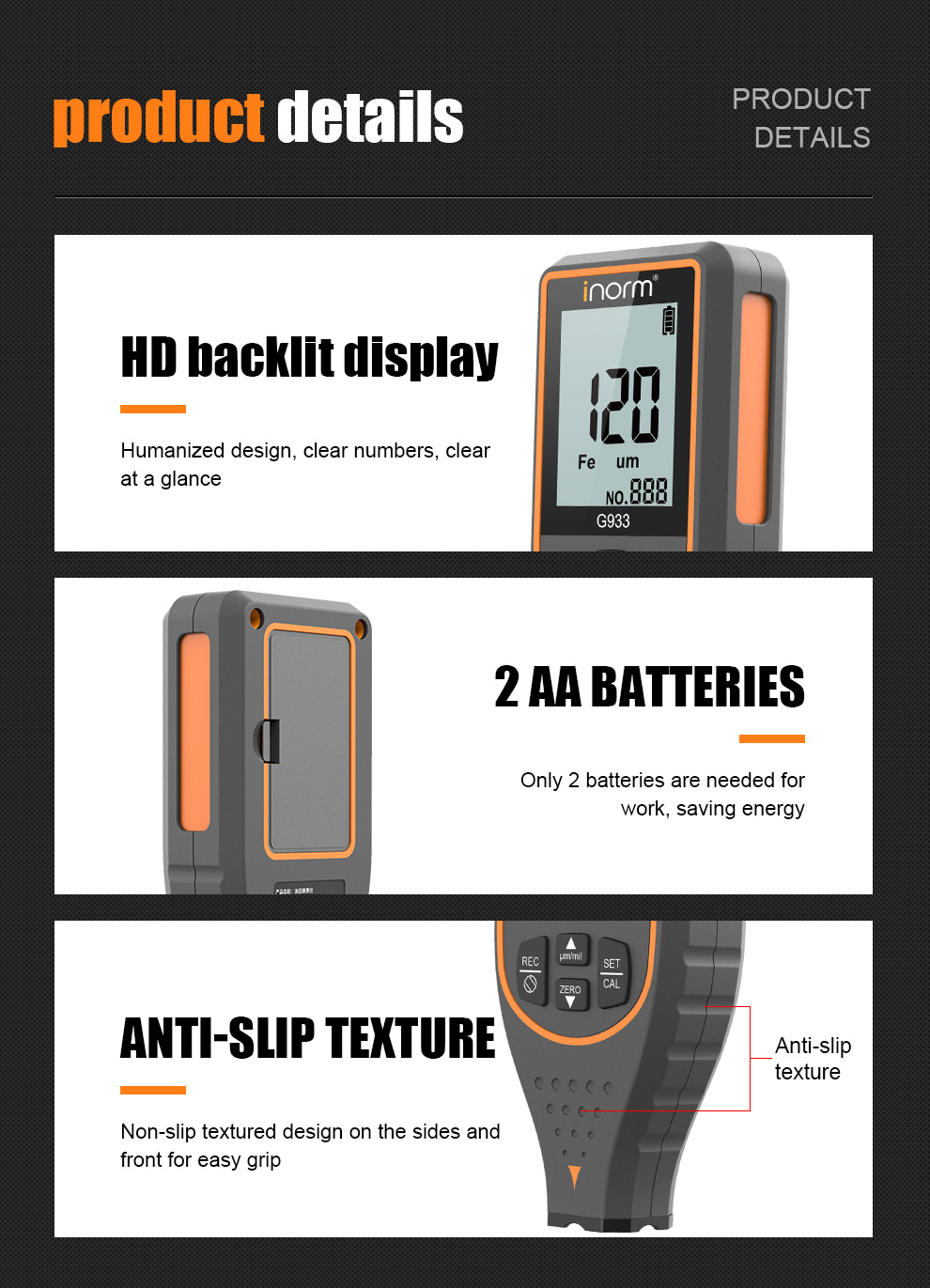

HD backlit display
Humanized design, clear numbers, clearat a glance
2 AA BATTERIES
Only 2 batteries are needed forwork, saving energy
ANTI-SLIP TEXTURE
Non-slip textured design on the sides andfront for easy grip
We are a manufacturer .Our factory has 9,000 square meters of professional production workshops and independent research and development
experimental centers, providing continuous and stable support and guarantee for new product development, production and upgrading quality and market sales.
We have our own factory and excellent design team. OEM/ODM is accepted. Please do not hesitate to contact with us to show your idea.
RoHS CE FCC UKCA FDA
A :Factory (We produce, we sell).
A : We do customizing service for customers. OEM/ ODM is welcome. Any logo and any color is up to you.The English copy of manual is also available.
A : Regular products only 1 standard carton. but no limit for sample order!
a: Send us an inquiry
b: Confirm your wanted products
c: Confirm the price, freight and other details
d: Complete the payment in Alibaba
e: We start production and arrange the shipment
f: You got your products
g: We get the payment
A : It depends on whether we are in stock or not. Our standard arrangement time is 3 days if we have stock, otherwise it will be decided by factory production. Generally, it needs 10-45 days of production according to the quantity of your order.
A : DHL/FEDEX/UPS/EMS all is ok, it is base on Customer's prefer! and we can advise the suitable shipping way base on the customer's order quantity!
A : We offer 12month warranty. Our policy: Within the warranty period, If there is any quality problem, please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair or exchange. Please make sure to contact us first instead of sending it to us directly. You only need to pay double-run freight.
