T03/T04
inorm
±3mm/10m
Class Ⅱ
2*1.5V AA
| Quantity: | |
|---|---|

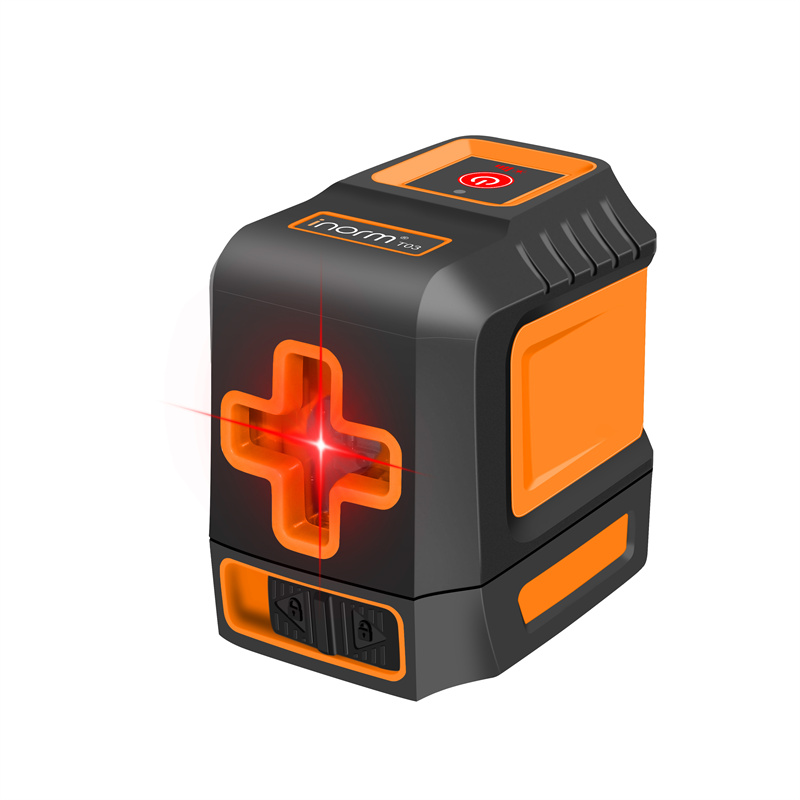

T03 (red light) /T04 (green light) laser level adopts imported high quality light source, integrated two-color mold shell, super small body, easy to carry, crosshair laser, with energy-saving mode, double switch design, can be matched with tripod.

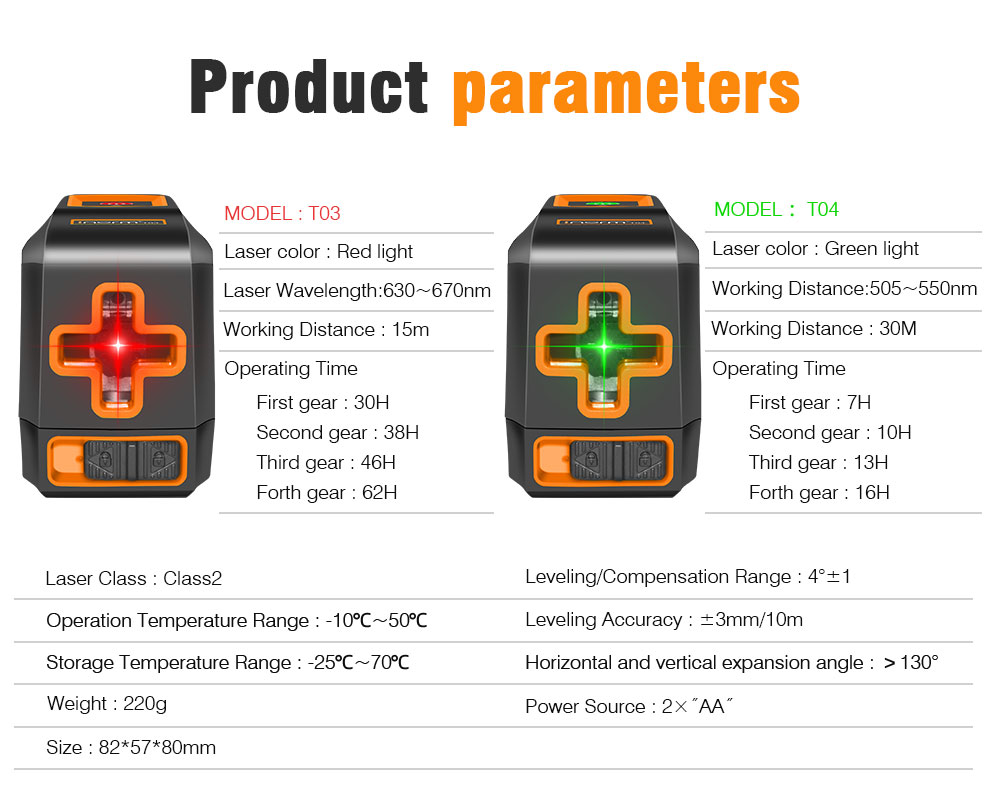

| Model | T03（red beam） | T04 （green beam） | ||
| Laser wavelength | 630-670nm | 505-550nm | ||
| Laser power(H/V) | 5mw | 10mw | ||
| Laser class | Output<1mW Class 2 | Output<1mW Class 2 | ||
| Laser beam | 1H1V(Vertial line over zenith) | 1H1V(Vertial line over zenith) | ||
| Accuracy(H/V) | ±3mm/10m | ±3mm/10m | ||
| Auto-compensation Range | 4°±1° | 4°±1° | ||
| Beam Emission Angle(H/V) | ＞130° | ＞130° | ||
| IP rating | IP54 | IP54 | ||
| Laser class | Class 2 | |||
| Working temperature | ﹣10~50℃ | ﹣10~50℃ | ||
| Working range | 15m | 30m | ||
| Working range with reciever | about 50m | |||
| Battery | 2*1.5V AA | 2*1.5V AA | ||
| Working time | First gear:30H Fourth gear:62H | First gear:11H Fourth gear:28 | ||
| Laser Level Weight/Size of level | 220g g/82*57*81mm | 220g g/82*57*81mm | ||
| Weight/Size of Color box | 350g/124x104x78mm | 350g/124x104x78mm | ||
| Weight/Size of out carton | 32 pcs/ 11.35kg/ 44*27*33.5cm | 32 pcs/ 11.35kg/ 44*27*33.5cm | ||
Manual of Cross line Laser Level T03T04.pdf

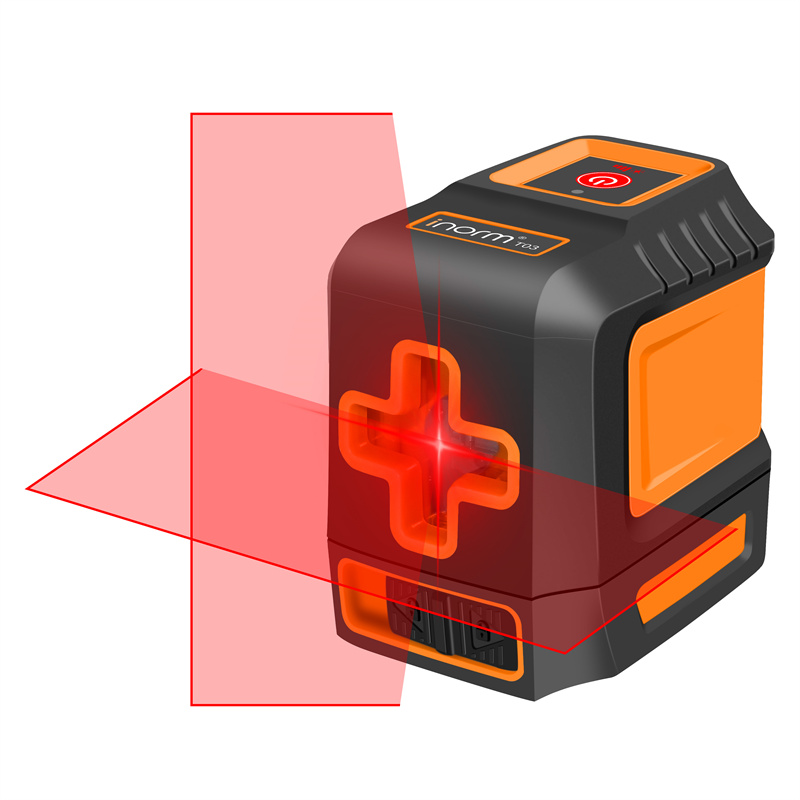

Although this level has only two lines, it is smaller and more portable than a normal two-line level and the vertical line can pass through the zenith

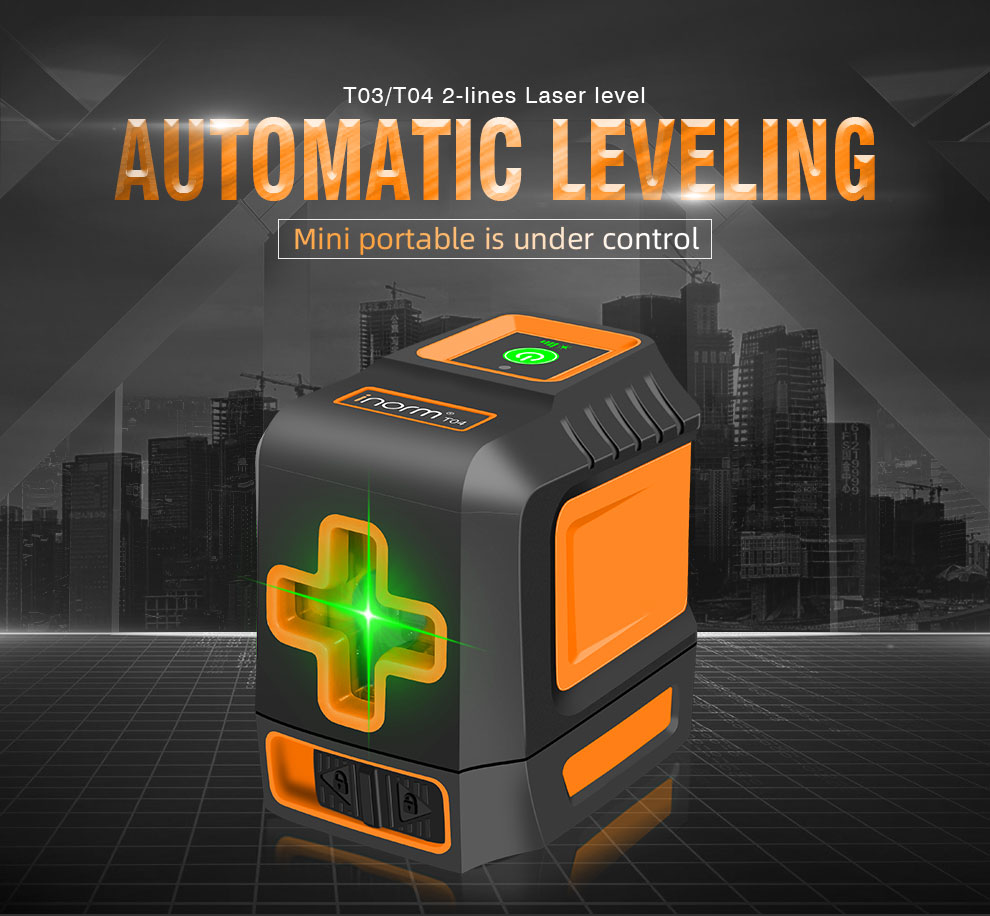

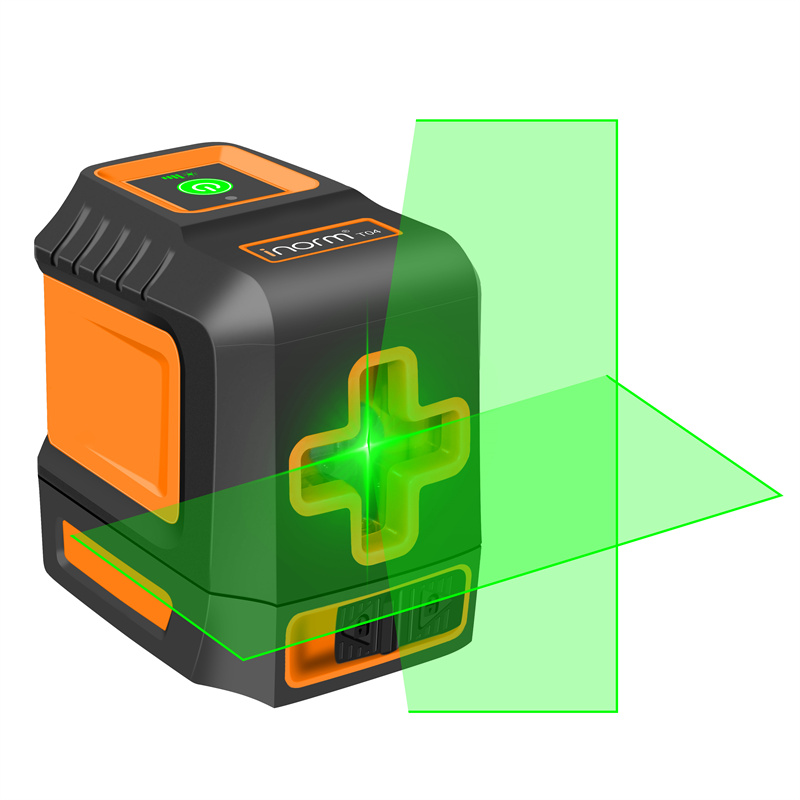

T03/T04 2-lines Laser level
AUTOMATIC LEVELING
Mini portable is under control

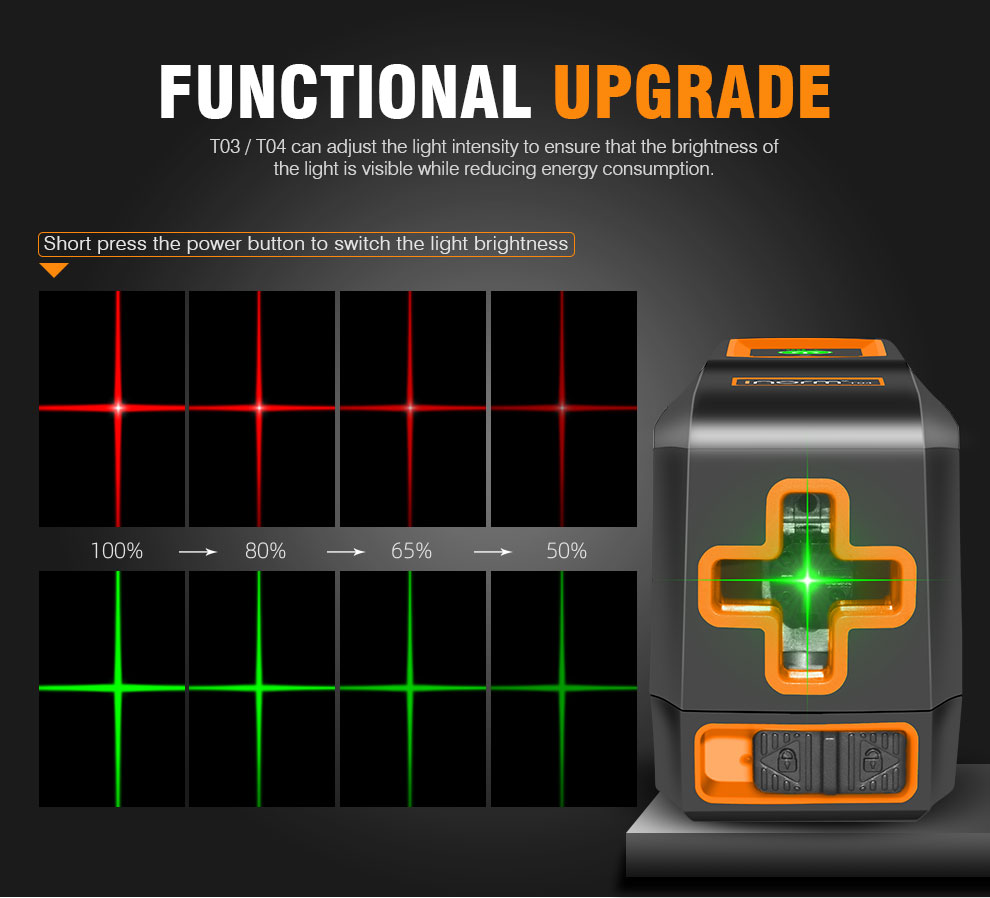

FUNCTIONAL UPGRADE
T03 /T04 can adjust the light intensity to ensure that the brightness of
the light is visible while reducing energy consumption.
Short press the power button to switch the light brightness

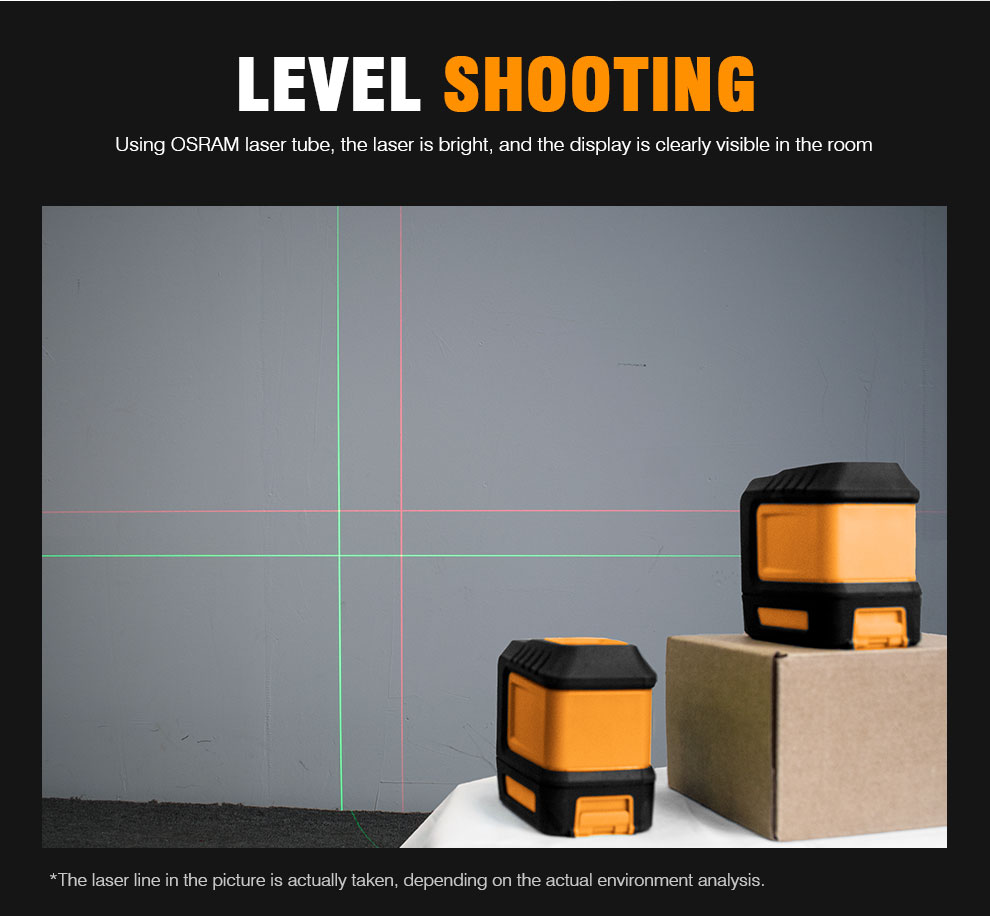

LEVEL SHOOTING
Using OSRAM laser tube, the laser is bright, and the display is clearly visible in the room
SIX ADVANTAGES
Superior Light Source Pulse mode Automatic leveling
Adapt to a variety of tripods Slash mode Three-proof design

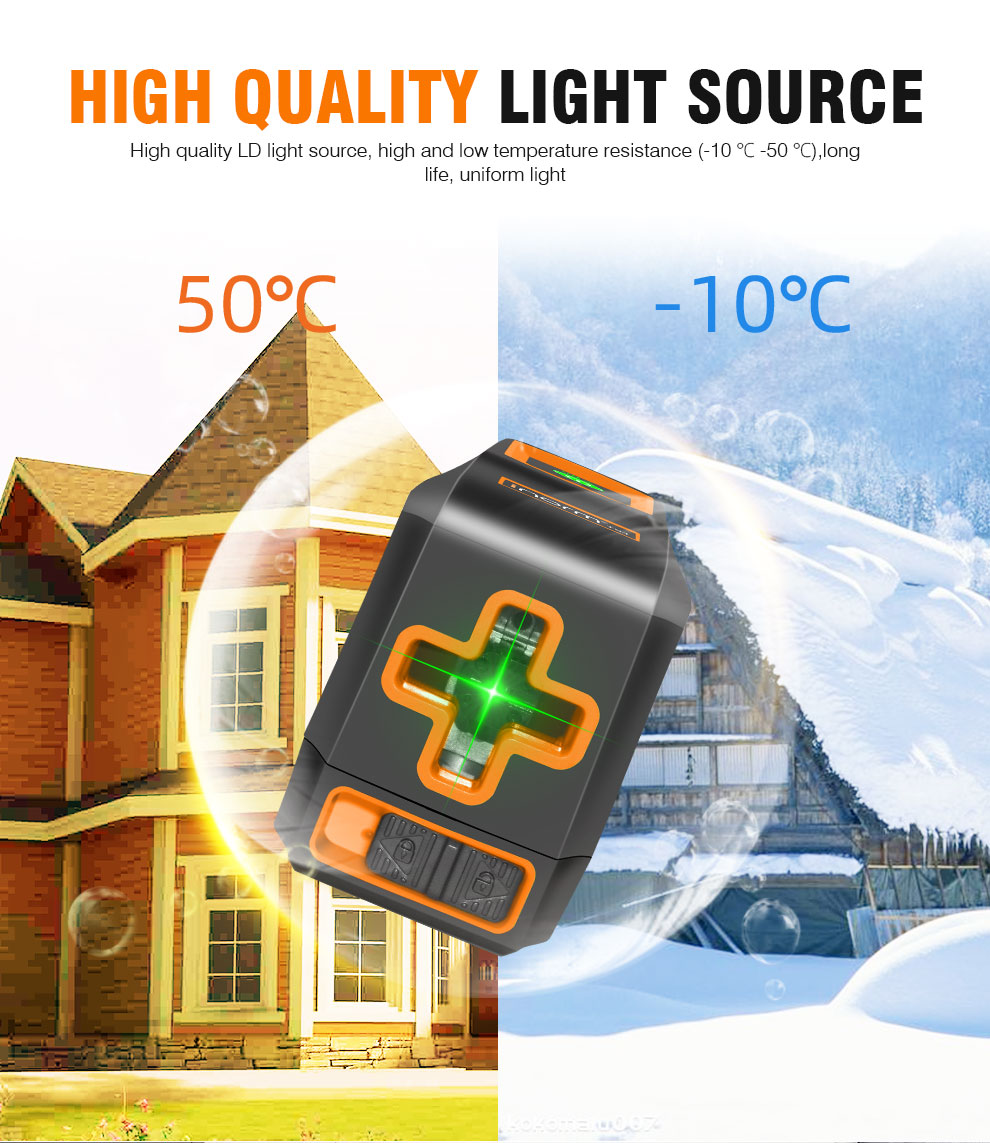

HIGH OUALITY LIGHT SOURCE
High quality LD light source, high and low temperature resistance (-10 °C -50 °C),longlife, uniform light

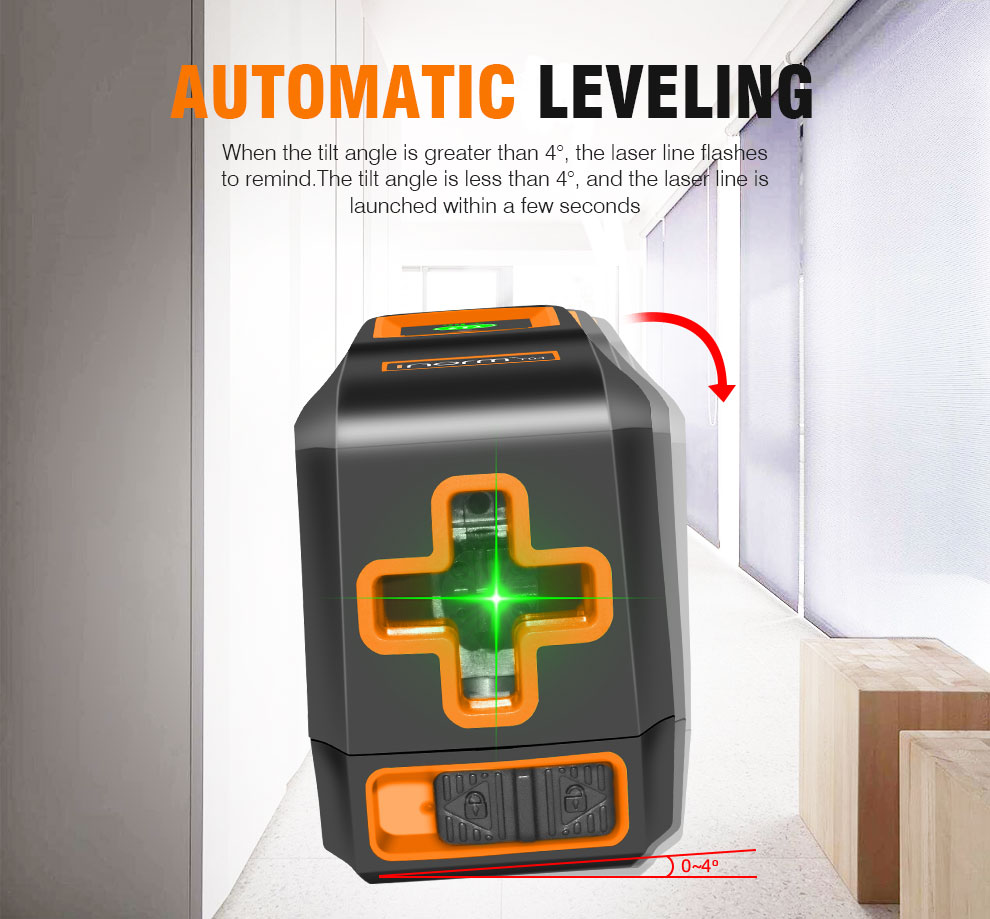

AUTOMATIC LEVELING
When the tilt angle is greater than 4°, the laser line flashesto remind.The tilt angle is less than 4°, and the lasef line islaunched within a few seconds

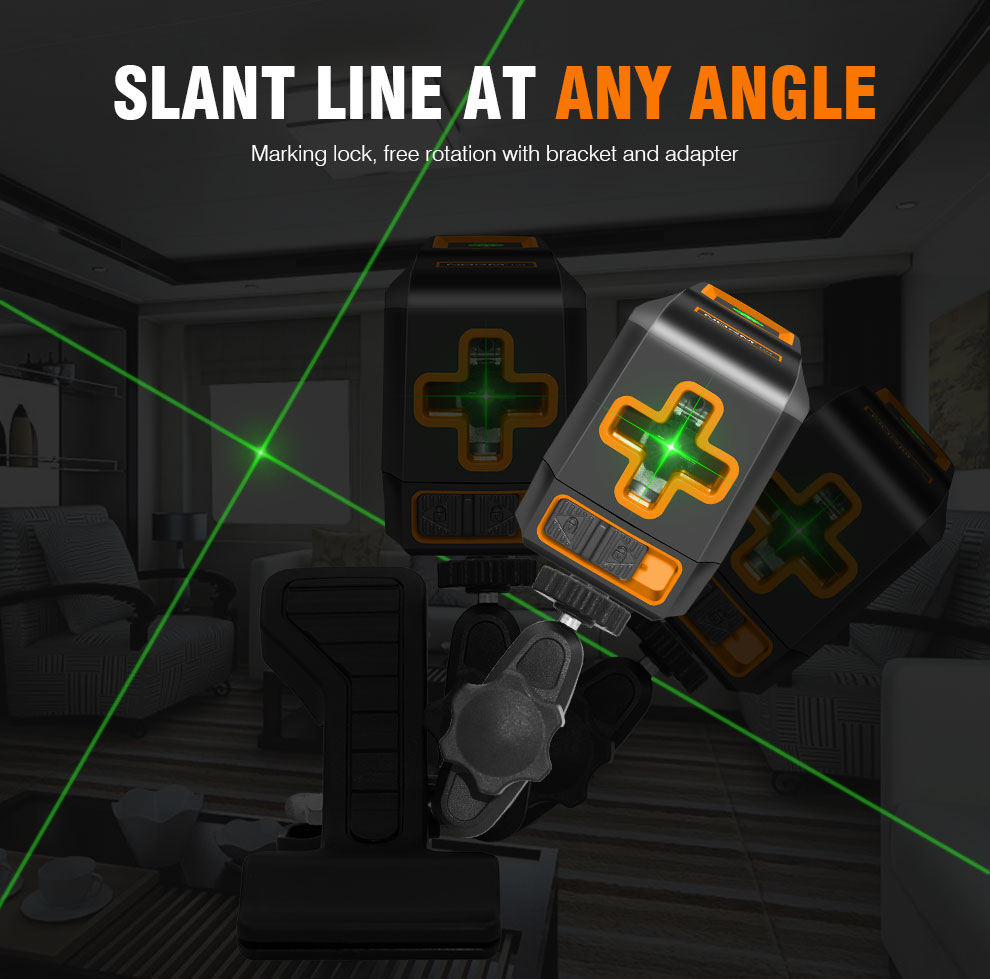

SLANT LINEAT ANY ANGLE

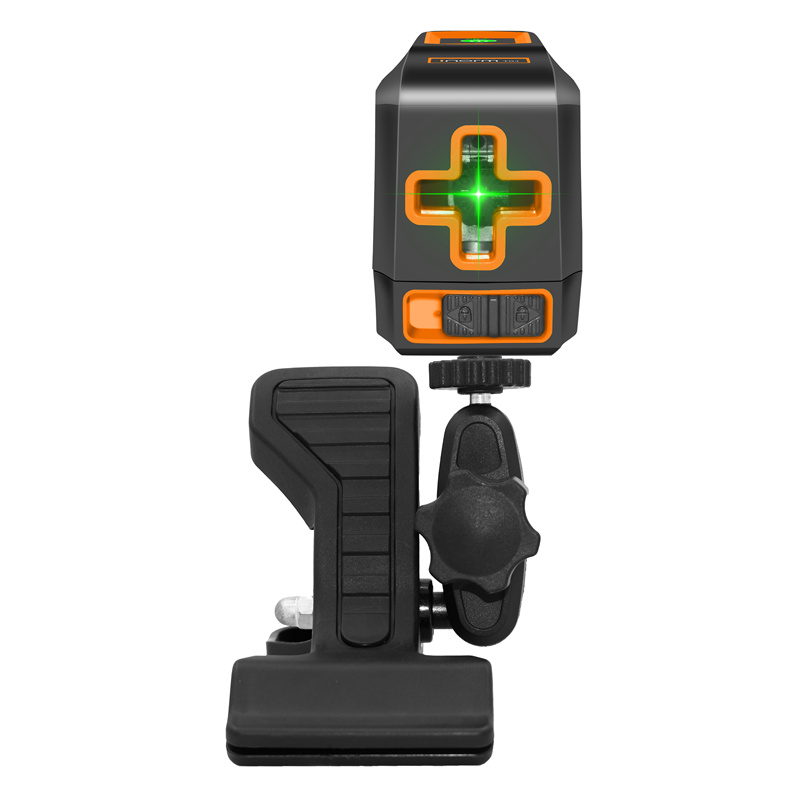

Marking lock, free rotation with bracket and adapter

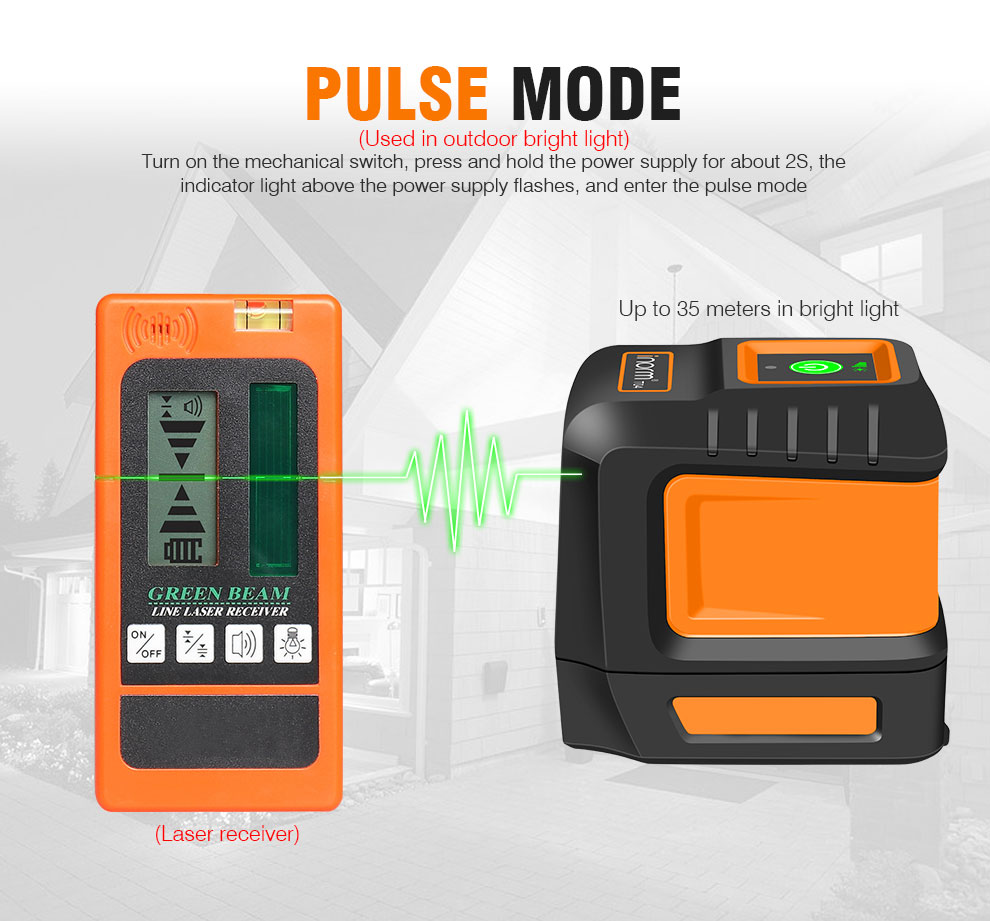

PULSE MODE
(Used in outdoor bright light)Turn on the mechanical switch, press and hold the power supply for about 2S, theindicator light above the power supply flashes, and enter the pulse mode

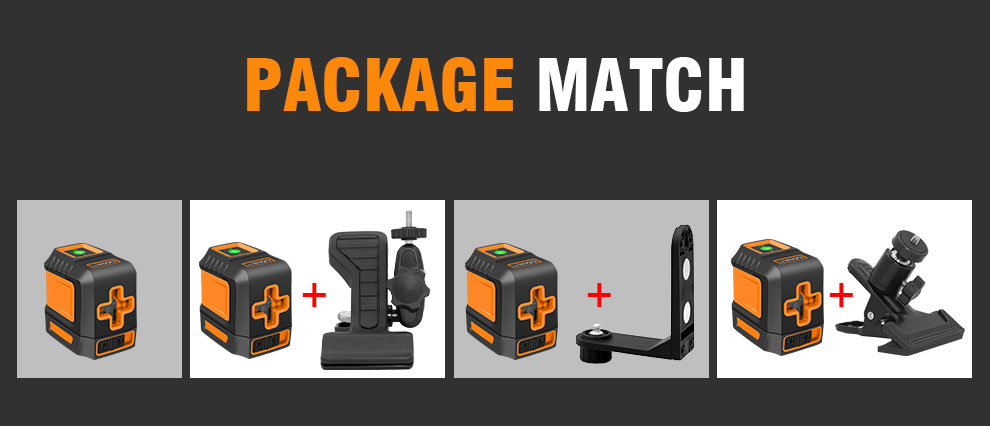

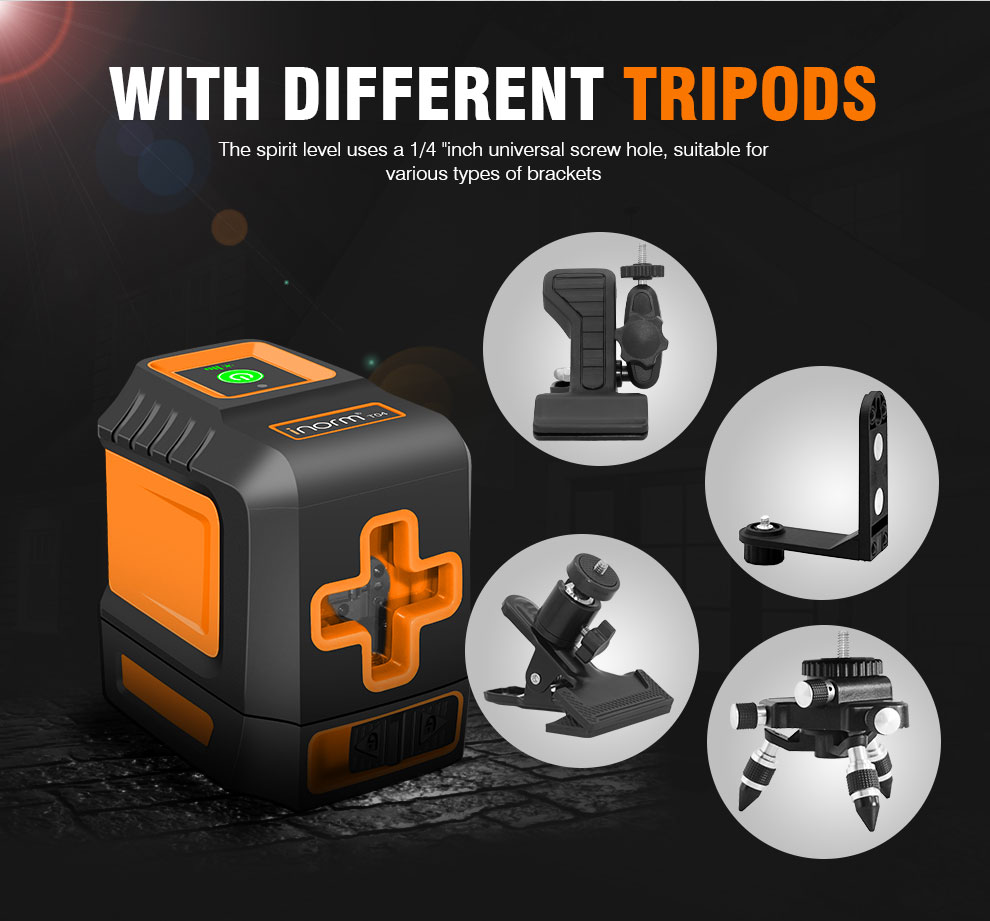

WITH DIFFERENT TRIPODS
The spirit level uses a 1/4 "inch universal screw hole, suitable for
various types of brackets

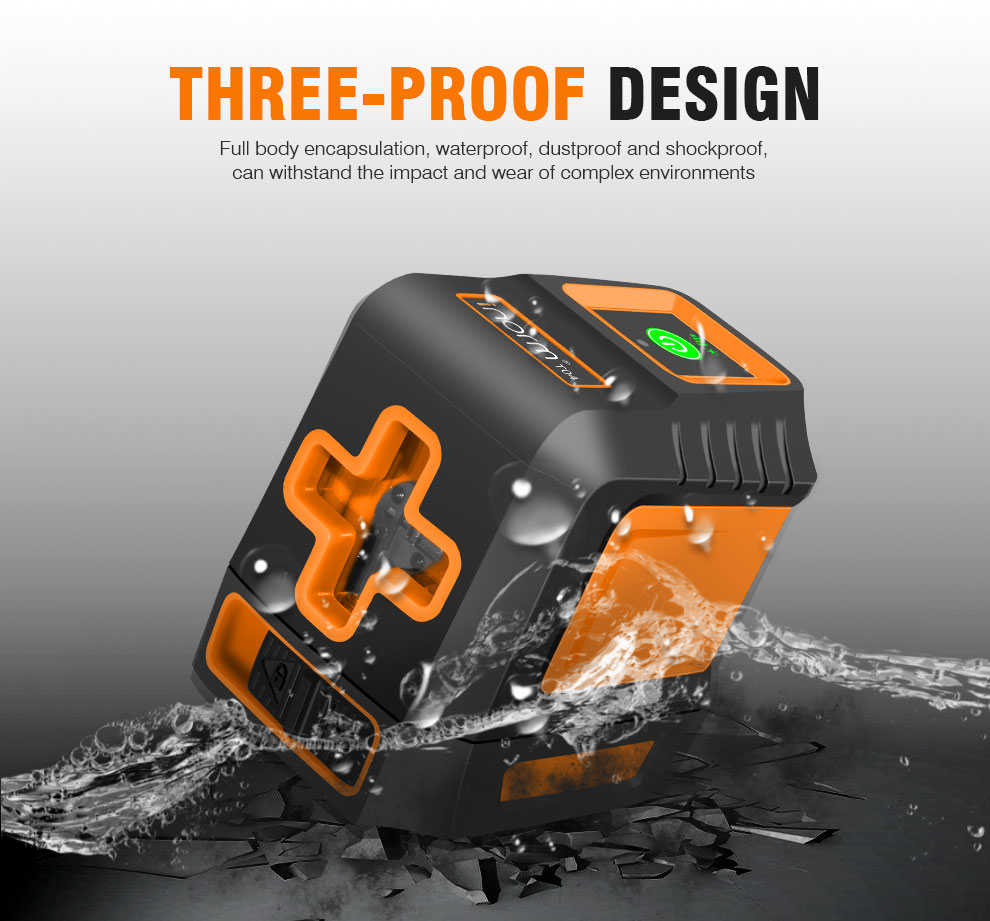

THREE-PROOF DESIGN
Full body encapsulation, waterproof, dustproof and shockproof
can withstand the impact and wear of complex environments

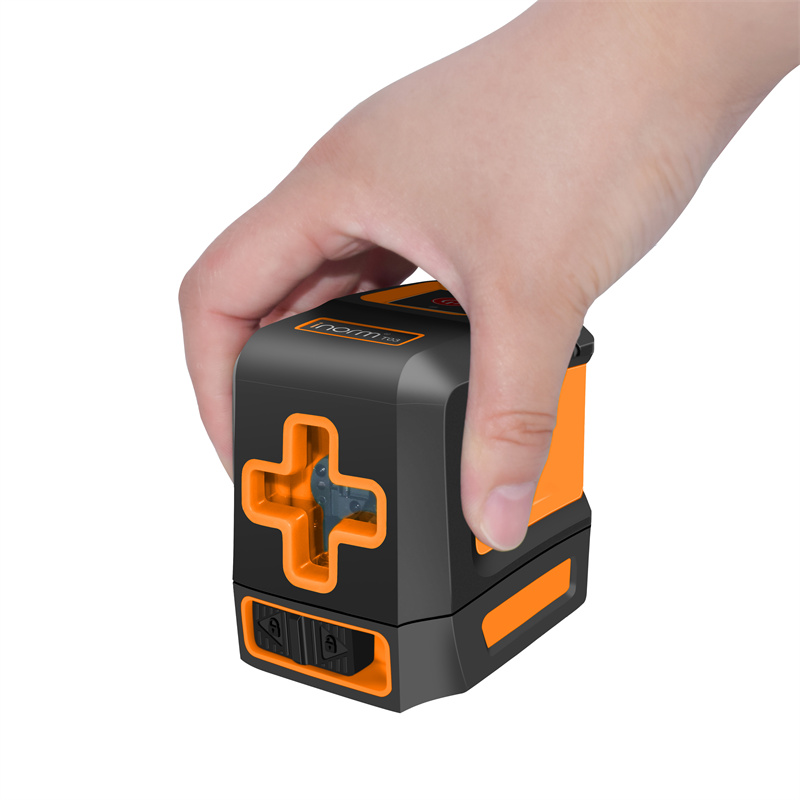

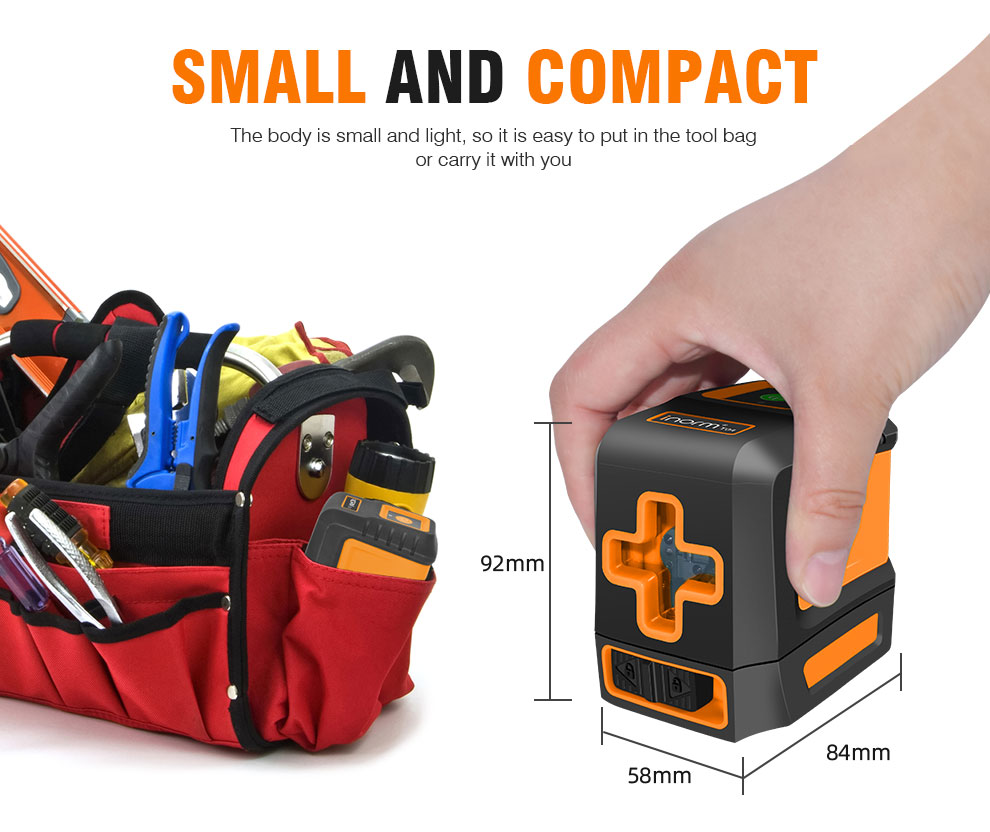

SMALL AND COMPACT
The body is small and light, so it is easy to put in the tool bag
or carry it with you
We are a manufacturer .Our factory has 9,000 square meters of professional production workshops and independent research and development
experimental centers, providing continuous and stable support and guarantee for new product development, production and upgrading quality and market sales.
We have our own factory and excellent design team. OEM/ODM is accepted. Please do not hesitate to contact with us to show your idea.
RoHS CE FCC UKCA FDA
A :Factory (We produce, we sell).
A : We do customizing service for customers. OEM/ ODM is welcome. Any logo and any color is up to you.The English copy of manual is also available.
A : Regular products only 1 standard carton. but no limit for sample order!
a: Send us an inquiry
b: Confirm your wanted products
c: Confirm the price, freight and other details
d: Complete the payment in Alibaba
e: We start production and arrange the shipment
f: You got your products
g: We get the payment
A : It depends on whether we are in stock or not. Our standard arrangement time is 3 days if we have stock, otherwise it will be decided by factory production. Generally, it needs 10-45 days of production according to the quantity of your order.
A : DHL/FEDEX/UPS/EMS all is ok, it is base on Customer's prefer! and we can advise the suitable shipping way base on the customer's order quantity!
A : We offer 12month warranty. Our policy: Within the warranty period, If there is any quality problem, please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair or exchange. Please make sure to contact us first instead of sending it to us directly. You only need to pay double-run freight.
