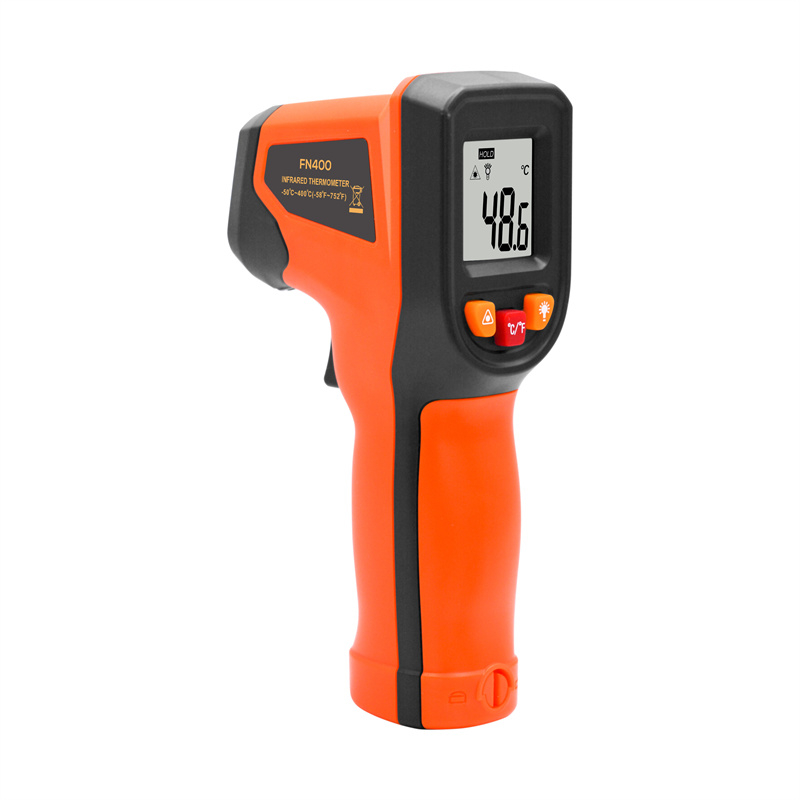

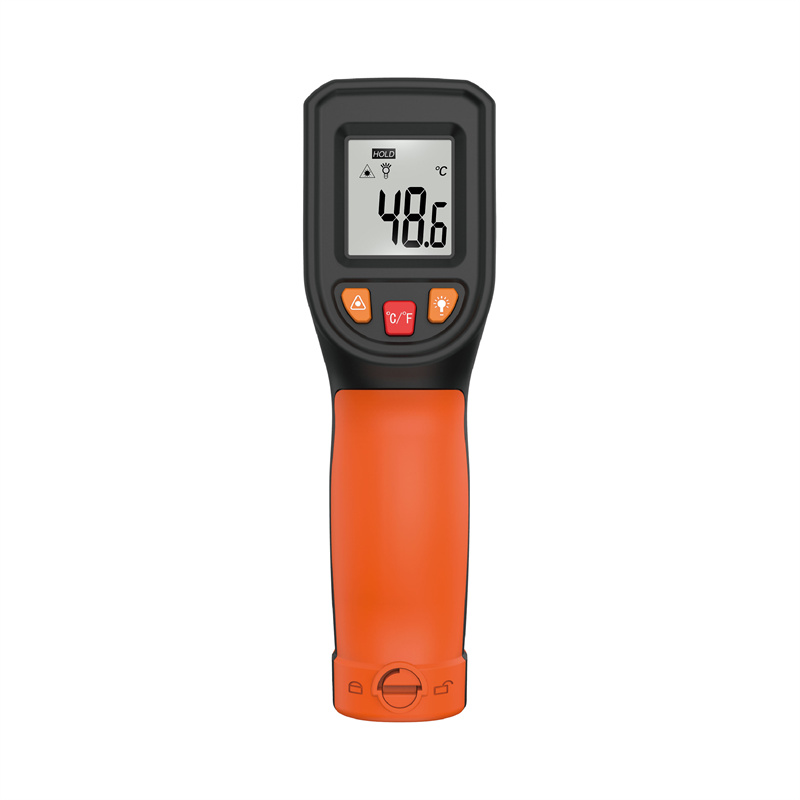

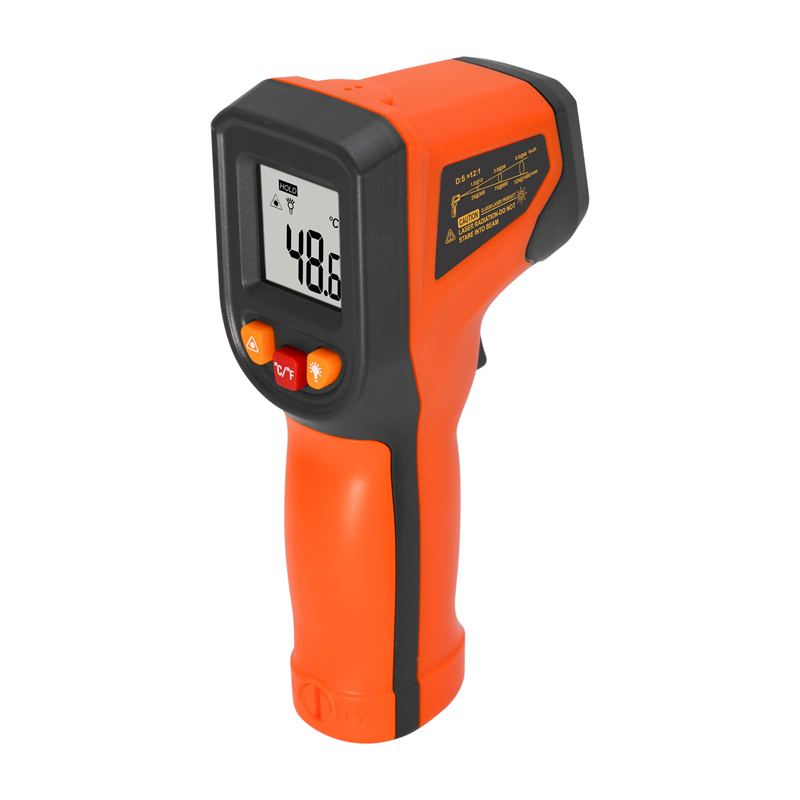

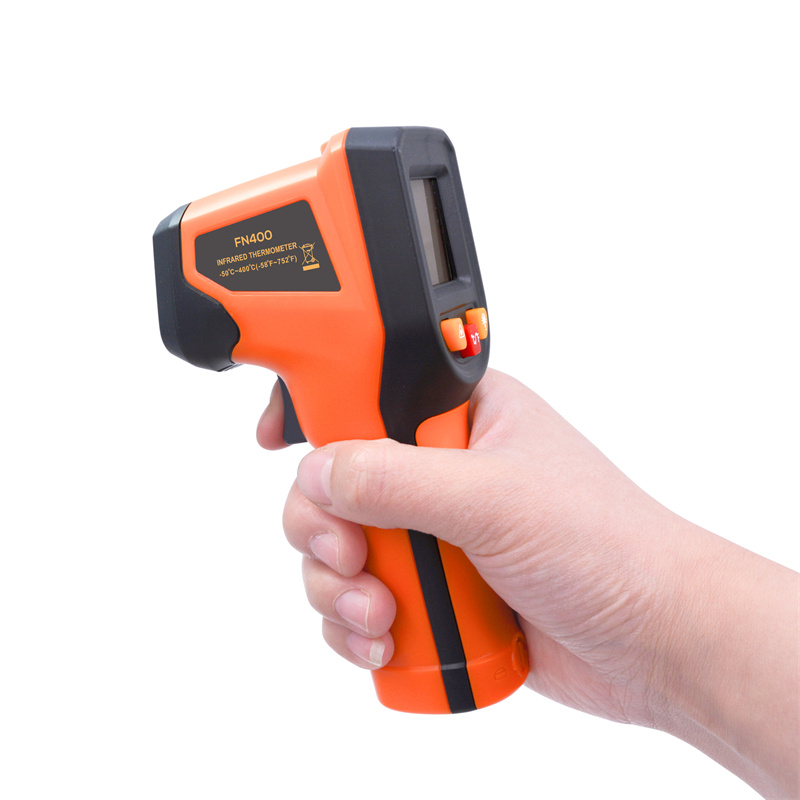

FN400
inorm
≥ 0℃ (32 ℉ ):±1.5℃ (±2.7 ℉ ) or ±1.5%
2x1.5V AAA Battery
| Quantity: | |
|---|---|

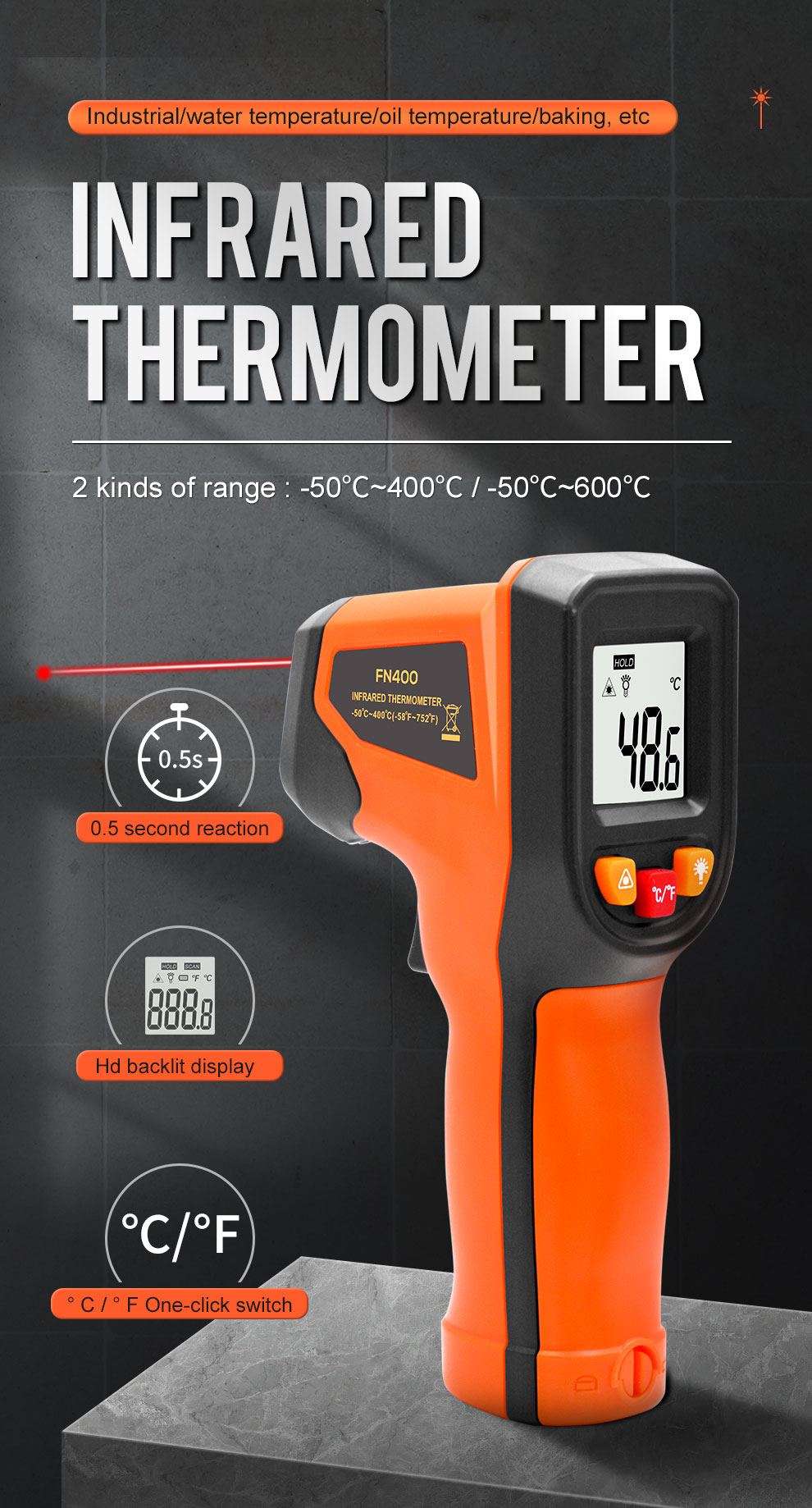

FN series is used to determine the surface temperature of objects by measuring the infrared energy radiated by the
surface of objects. It is suitable for rapidly measuring the surface temperature of various high-temperature, toxic or
difficult-to-reach objects. It has the advantages of quick response of 0.5 seconds, imported chip and probe, high-definition LED backlight display, free switch of ° C / ° F, and simple measurement.

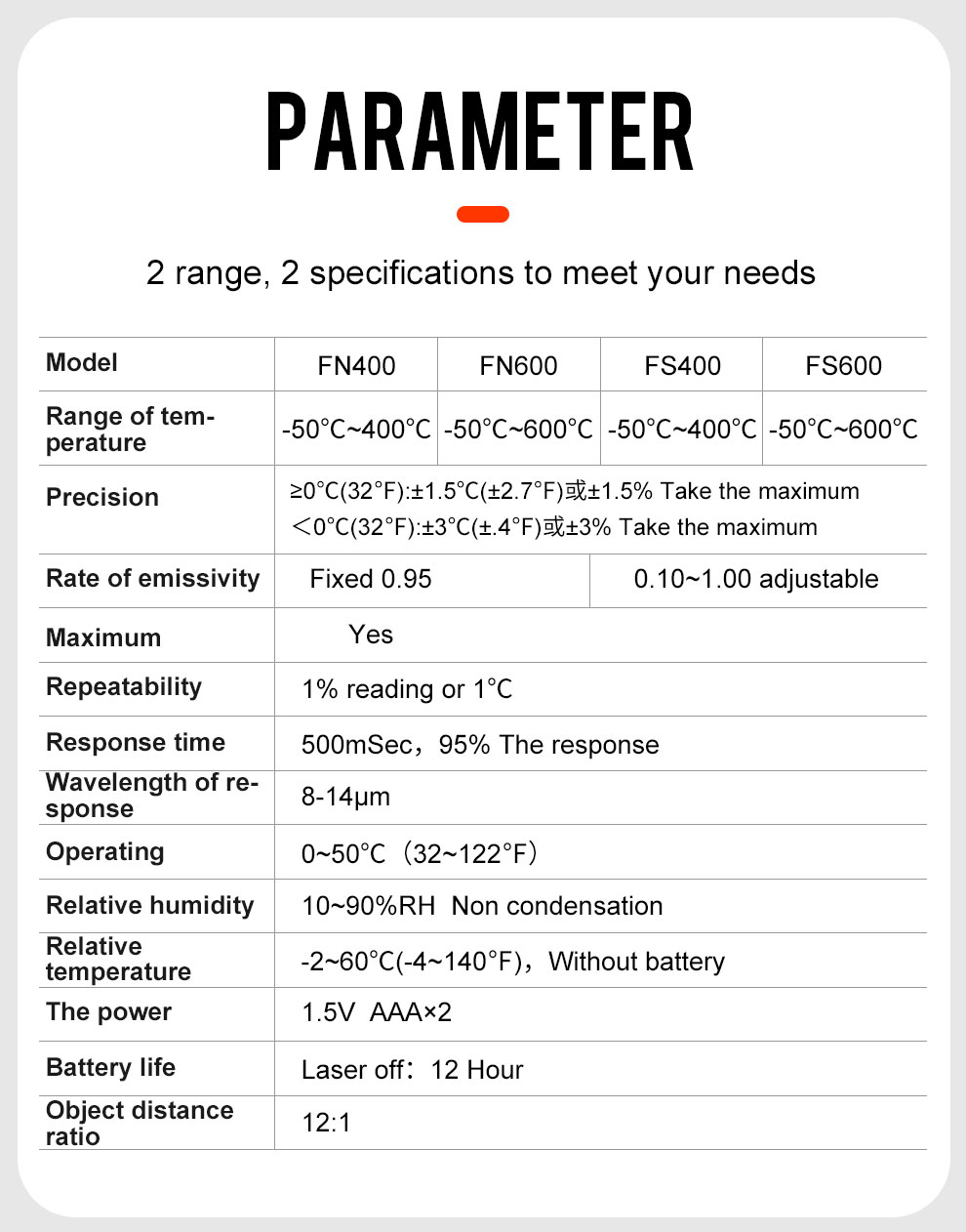

Model | FN400 | FN600 |
Temperature range | -50~400℃ (-58~752 ℉ ) | 50~600℃ (-58~1112 ℉ |
Accuracy | ≥ 0℃ (32 ℉ ):±1.5℃ (±2.7 ℉ ) or ±1.5% Take the maximum ＜ 0℃ (32 ℉ ):±3℃ (±5.4 ℉ ) or ±3% Take the maximum | |
| Resolution | 1% or 1℃ | |
Response tim | 0.5s，95% Response rat | |
wavelength | 8~14μm | |
Emissivit | 0.95，Unadjustable | |
Operating temperature | 0~50℃ (32~122 ℉ | |
Operating Humidit | 10~90%RH | |
Storage Temperature | -20~60℃ (-40~140 ℉ ) | |
Powe | AAA 1.5*2 | |
Distance to Spot Rate | 12:1 | |
Weight | 141g | |
Siz | 80*43*145mm | |
Manual of Infrared Thermometer FN series.pdf

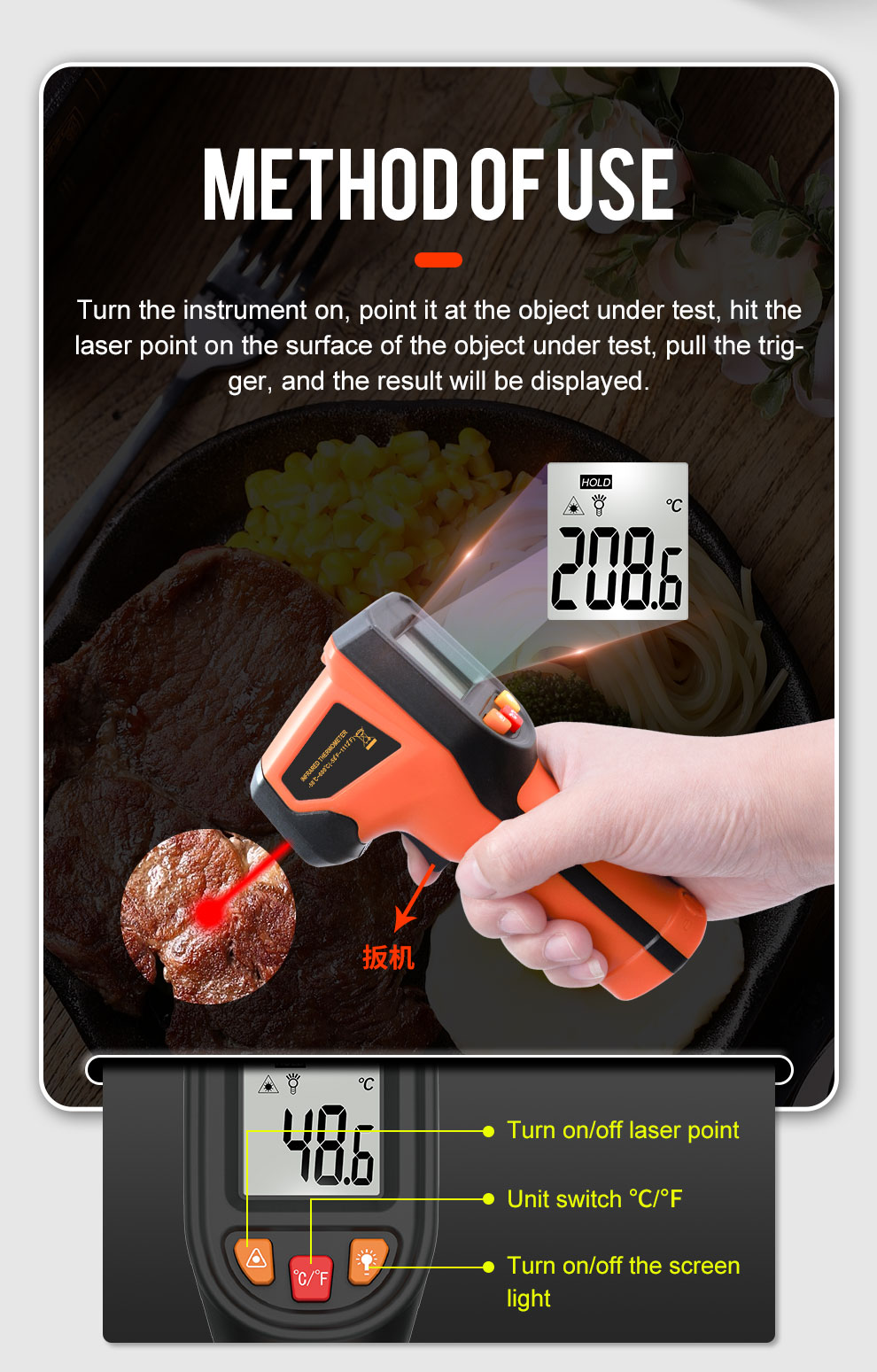

METHOD OF USE
Turn the instrument on, point it at the object under test, hit thelaser point on the surface of the object under test, pull the trig.ger, and the result will be displayed
PROMPT
Thermometers are industrial products and cannot be used to mea-sure the temperature of animals, adults, children and infants.

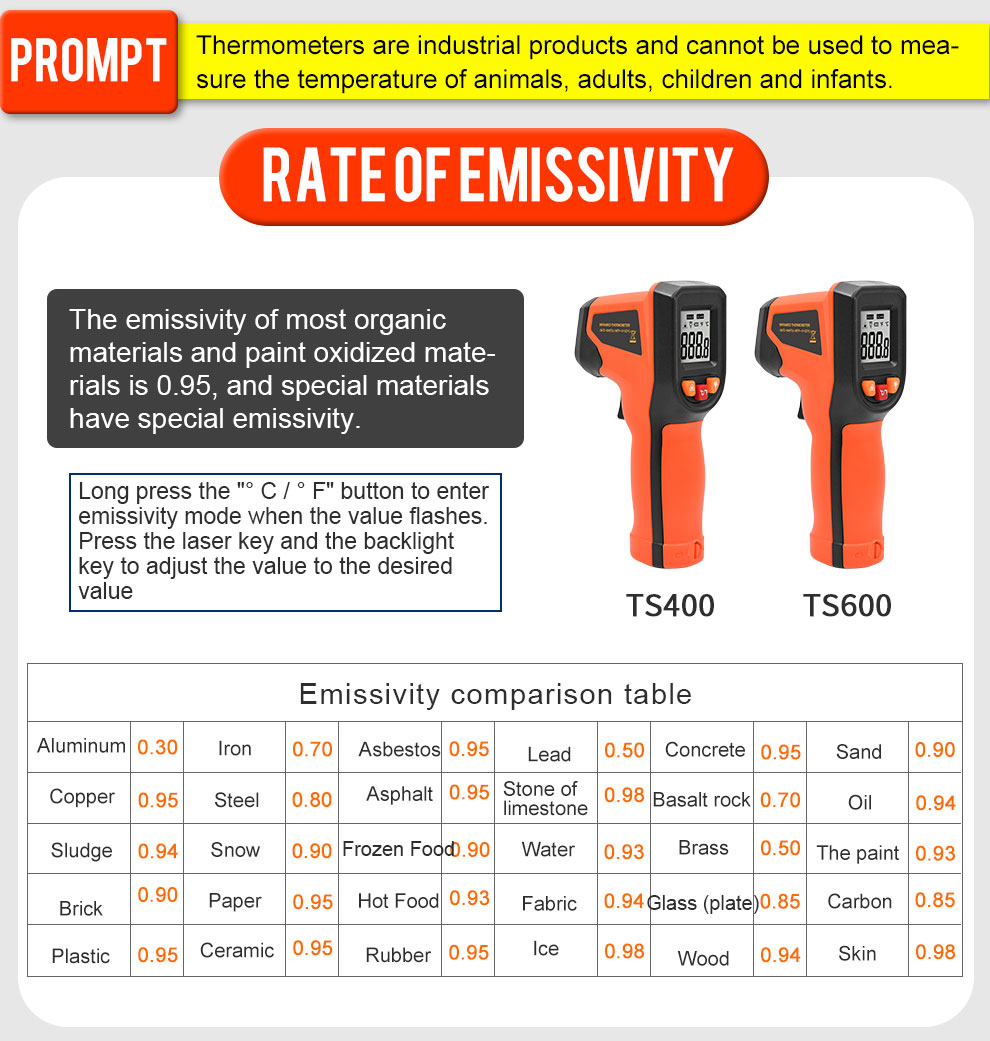

The emissivity of most organicmaterials and paint oxidized mate-rials is 0.95, and special materialshave special emissivity
Long press the " C /° F" button to enteremissivity mode when the value flashesPress the laser key and the backlightkey to adjust the value to the desiredvalue

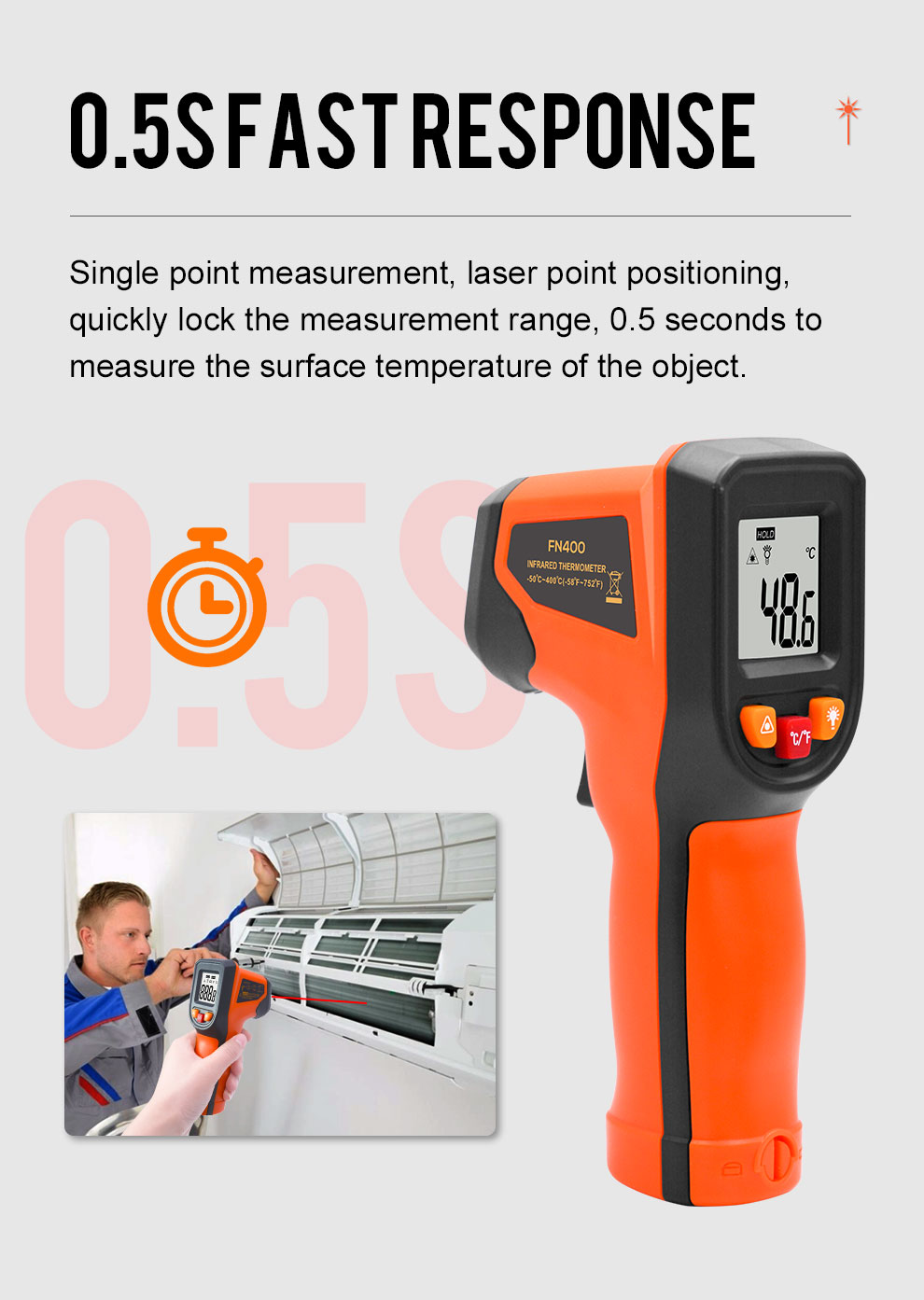

0.5SFASTRESPONSE
Single point measurement, laser point positioning,quickly lock the measurement range, 0.5 seconds tomeasure the surface temperature of the object

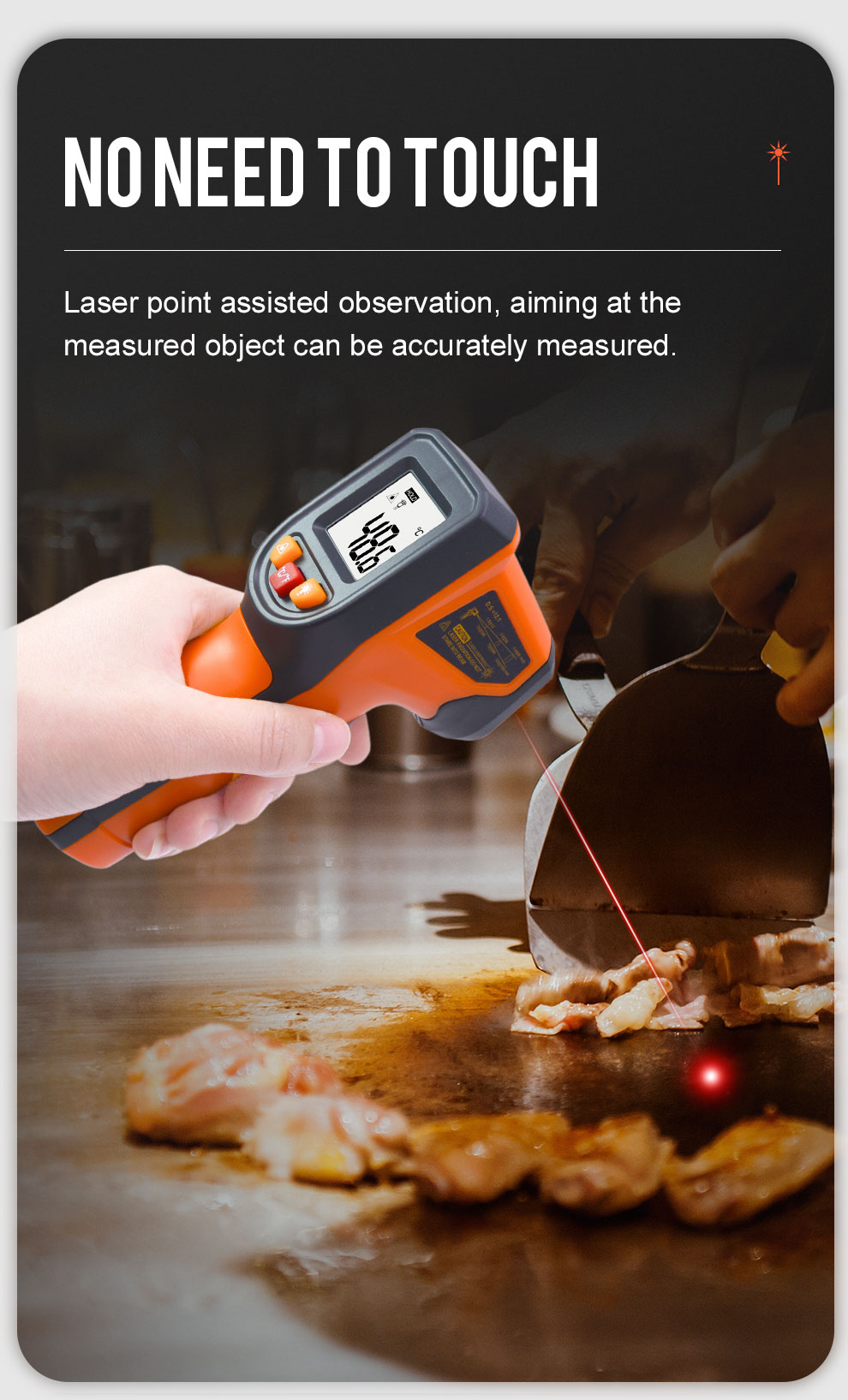

NO NEED TO TOUCH
Laser point assisted observation, aiming at themeasured object can be accurately measured

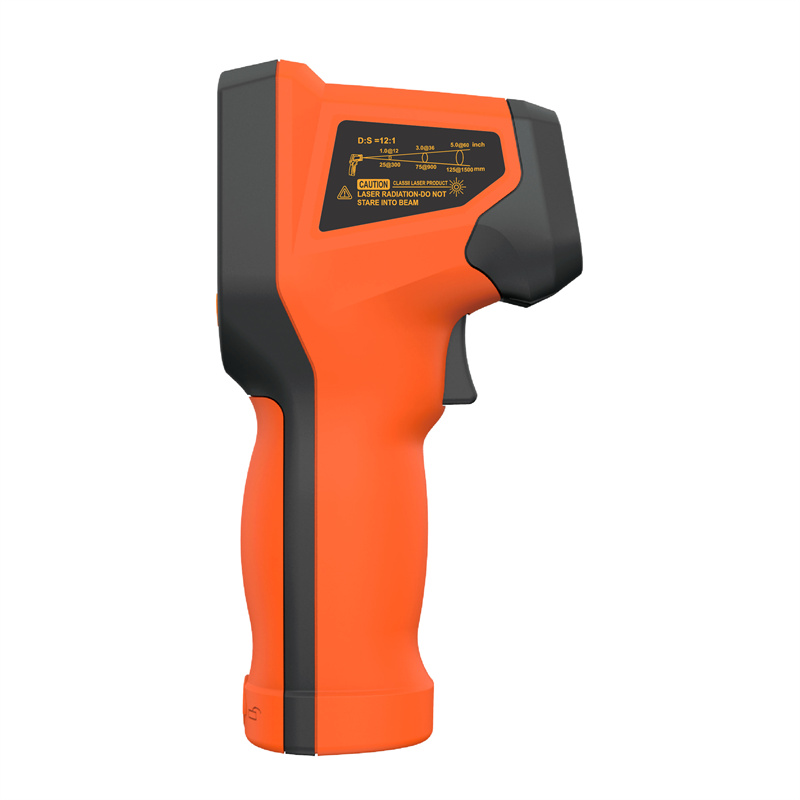

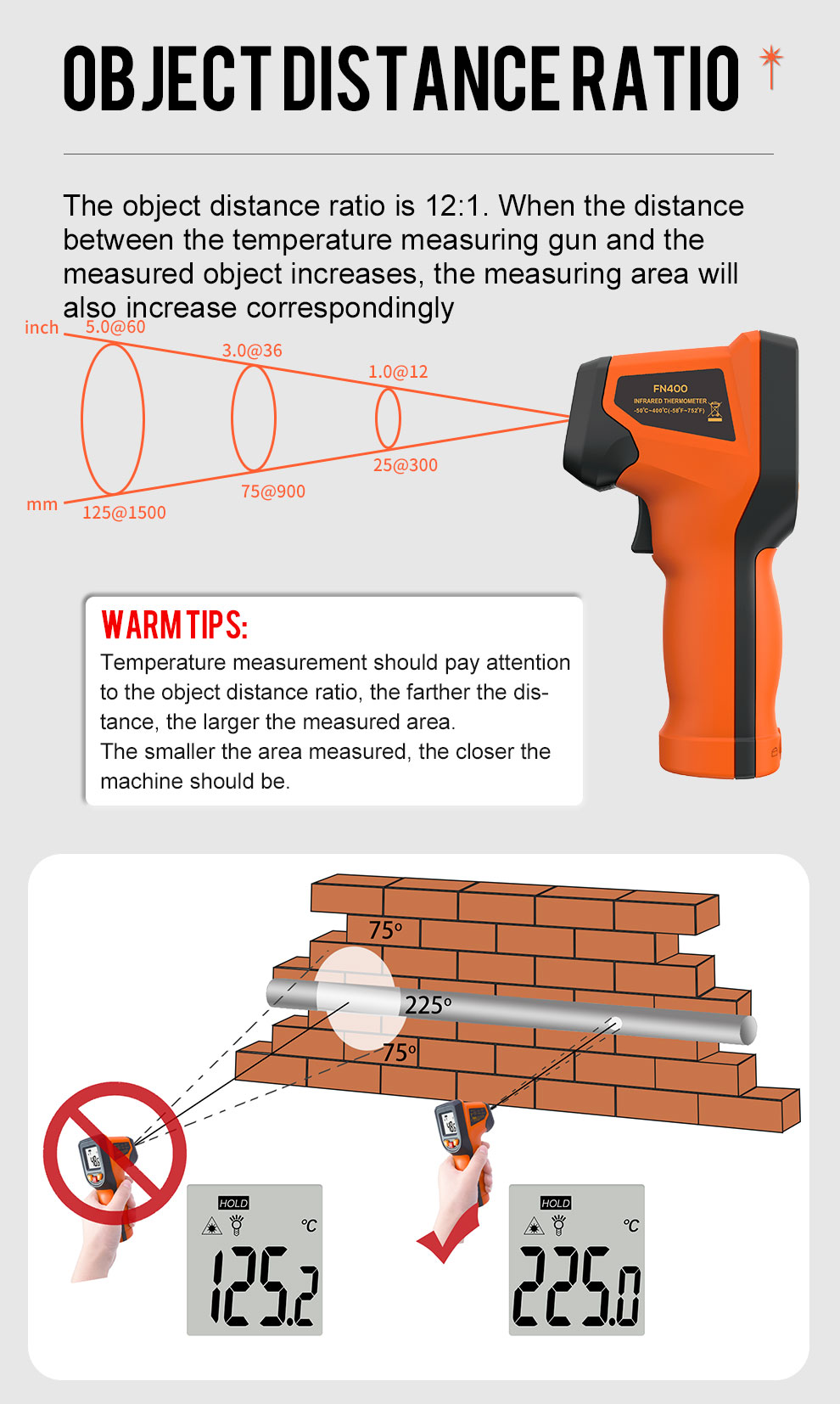

OBJECTDISTANCERATIO
The object distance ratio is 12:1. When the distancebetween the temperature measuring gun and themeasured object increases, the measuring area willalso increase correspondingly
WARM TIPS:
Temperature measurement should pay attentionto the object distance ratio, the farther the distance, the larger the measured areaThe smaller the area measured, the closer themachine should be

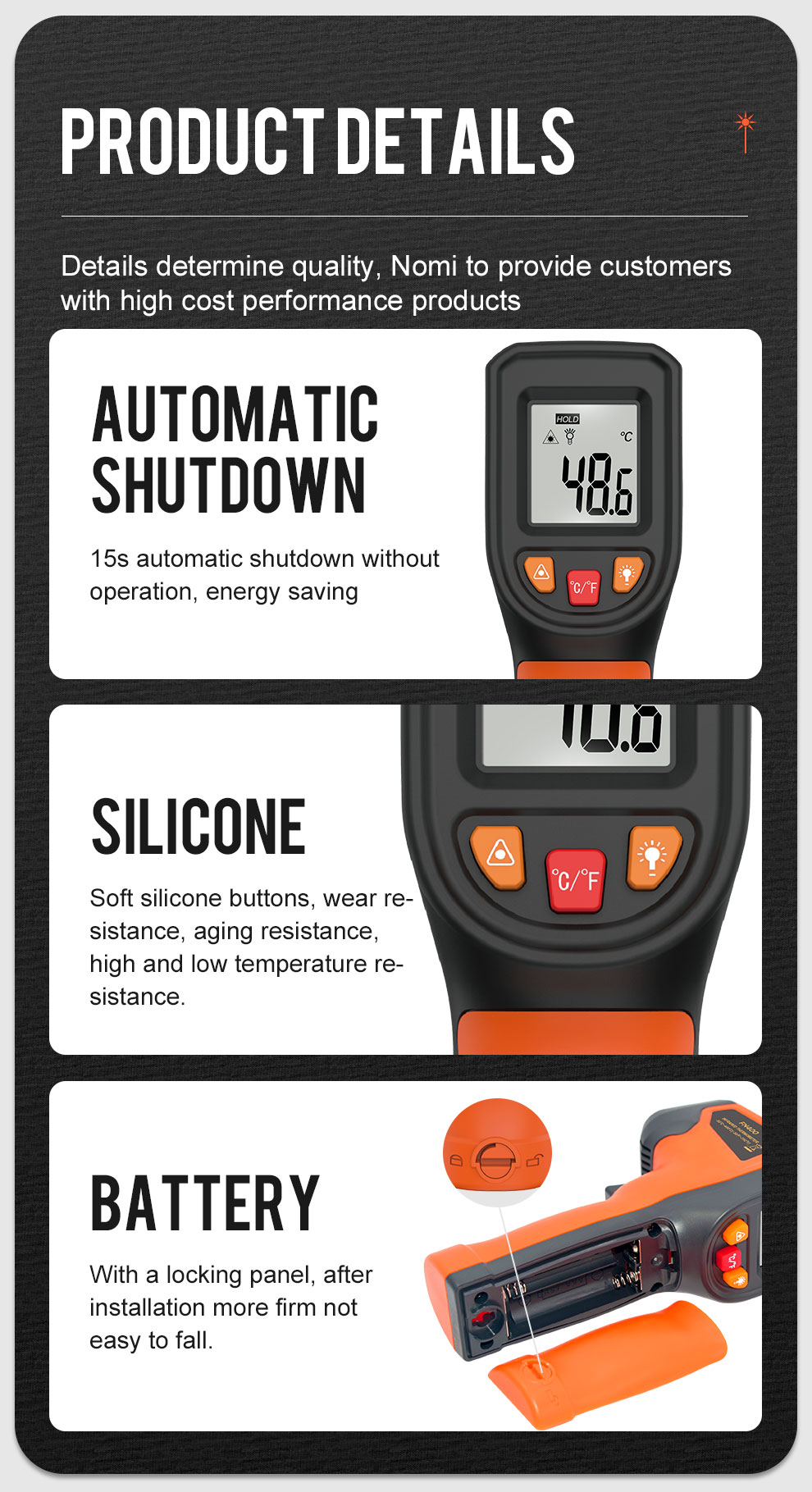

PRODUCT DETAILS
Details determine quality, Nomi to provide customers
with high cost performance products
AUTOMATICSHUTDOWN
15s automatic shutdown withoutoperation, energy saving
SILICONE
Soft silicone buttons, wear re-sistance, aging resistance,high and low temperature re-sistance.
BATTERY
With a locking panel, afterinstallation more firm noteasy to fall.
PLACEOF APPLICATION
Industrial infrared temperature measuring gun is suitable forindustrial forging, water temperature measurement, food tem-perature measurement, a wide range of application, high mea.surement accuracy
1、Industrial forging
2、The water temperature
3、Household survey
4、Electric power
5、Temperature of tire
6、CPU temperature
We are a manufacturer .Our factory has 9,000 square meters of professional production workshops and independent research and development
experimental centers, providing continuous and stable support and guarantee for new product development, production and upgrading quality and market sales.
We have our own factory and excellent design team. OEM/ODM is accepted. Please do not hesitate to contact with us to show your idea.
RoHS CE FCC UKCA FDA
A :Factory (We produce, we sell).
A : We do customizing service for customers. OEM/ ODM is welcome. Any logo and any color is up to you.The English copy of manual is also available.
A : Regular products only 1 standard carton. but no limit for sample order!
a: Send us an inquiry
b: Confirm your wanted products
c: Confirm the price, freight and other details
d: Complete the payment in Alibaba
e: We start production and arrange the shipment
f: You got your products
g: We get the payment
A : It depends on whether we are in stock or not. Our standard arrangement time is 3 days if we have stock, otherwise it will be decided by factory production. Generally, it needs 10-45 days of production according to the quantity of your order.
A : DHL/FEDEX/UPS/EMS all is ok, it is base on Customer's prefer! and we can advise the suitable shipping way base on the customer's order quantity!
A : We offer 12month warranty. Our policy: Within the warranty period, If there is any quality problem, please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair or exchange. Please make sure to contact us first instead of sending it to us directly. You only need to pay double-run freight.
