T01/T02
inorm
±3mm/10m
Class Ⅱ
4*1.5V AA
| Quantity: | |
|---|---|

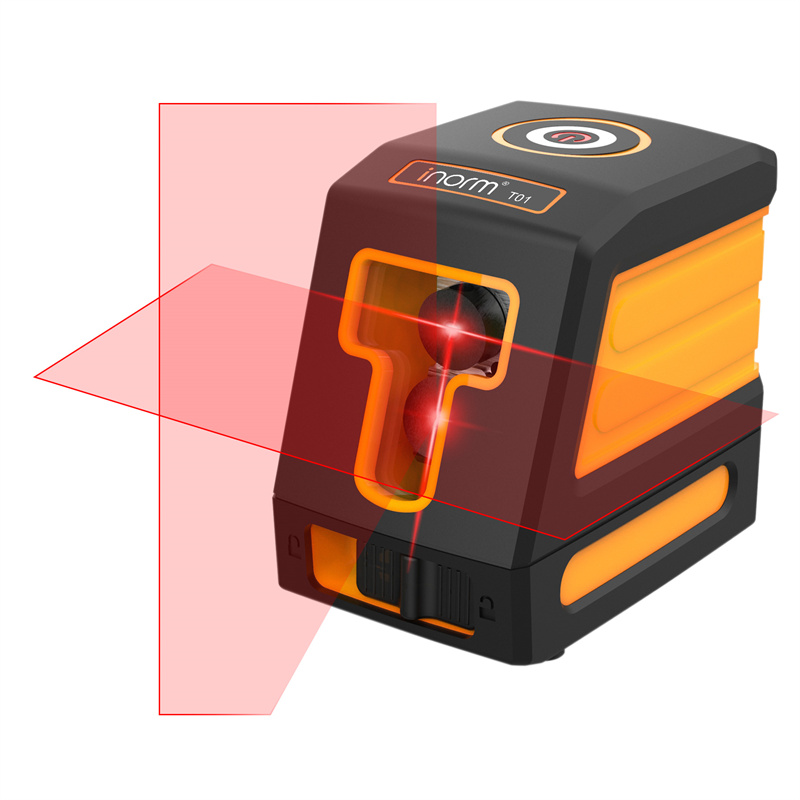

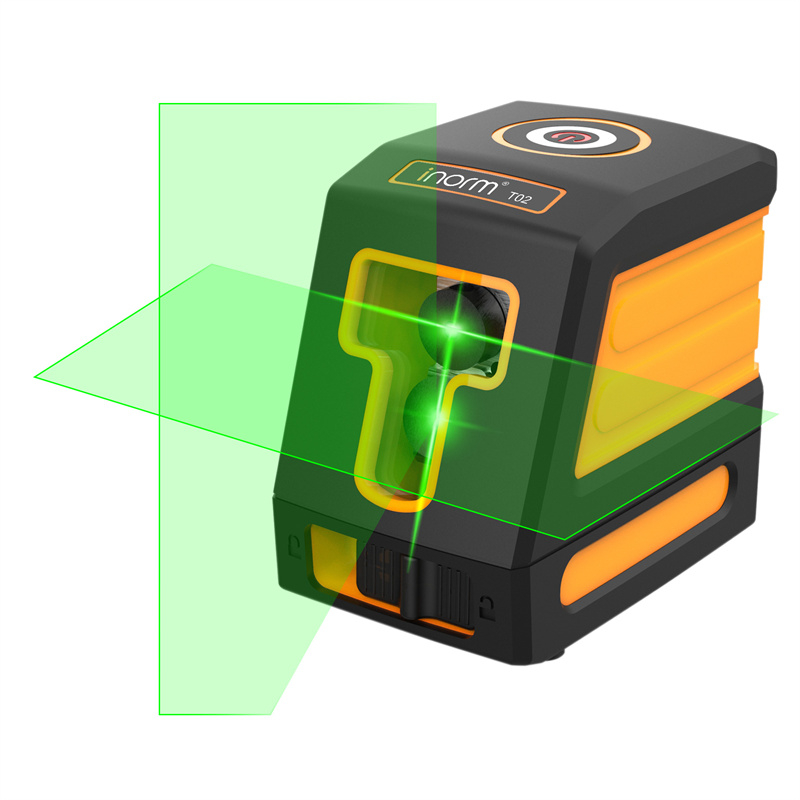

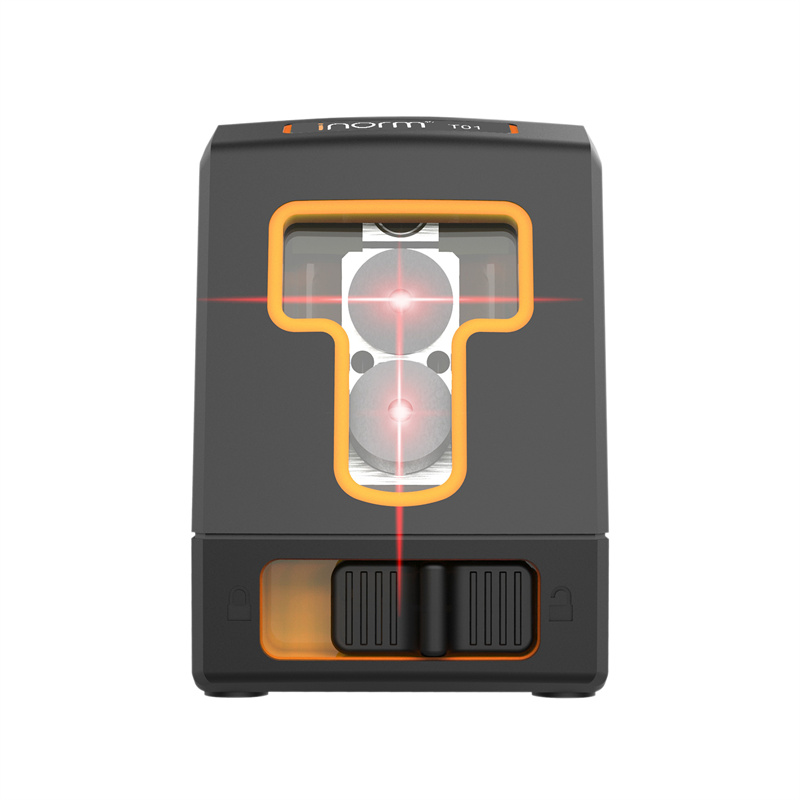

T01 (red light) /T02 (green light) laser level adopts imported high quality light source, one two-color mold process, the whole body is covered with soft glue, shockproof and anti-fall, double switch design, small size, easy to carry

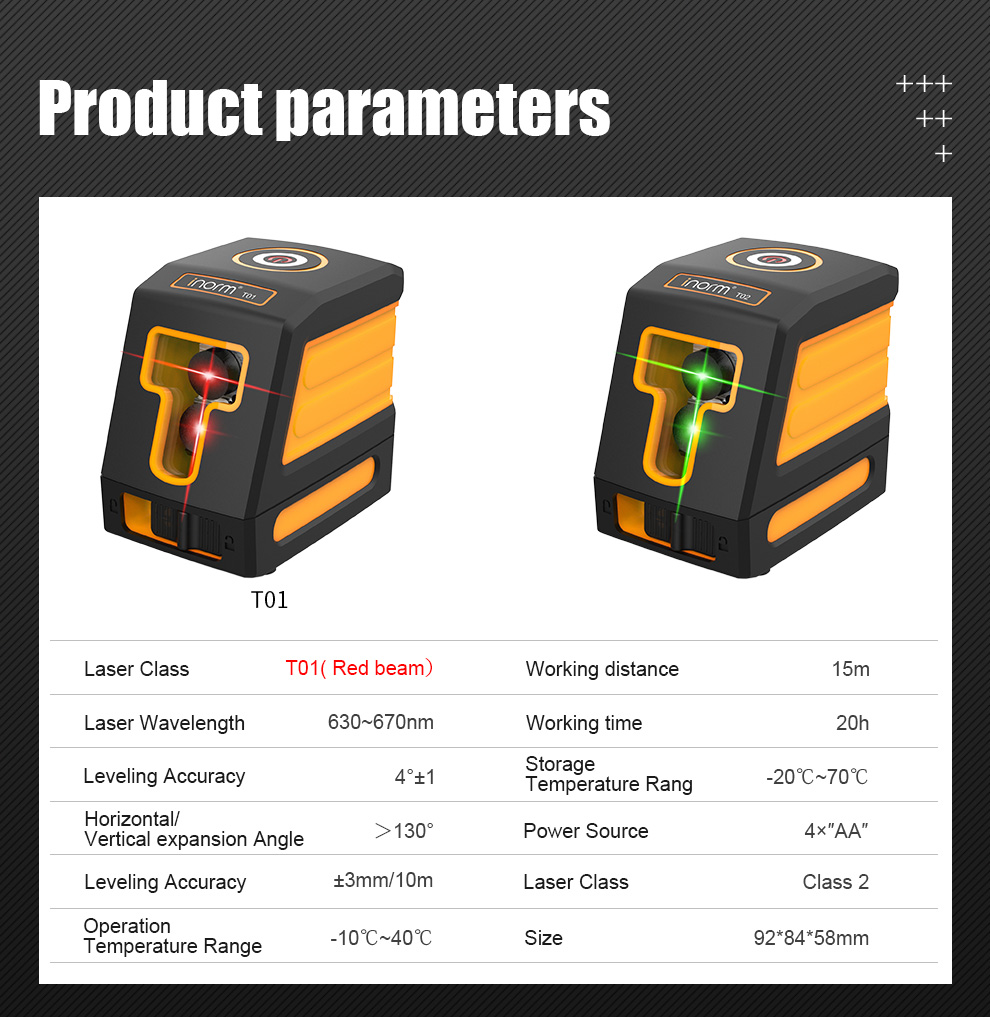

| Model | T01（red beam） | T02 （green beam） | ||
| Laser wavelength | 630-670nm | 505-550nm | ||
| Laser power(H/V) | 5mw | 10mw | ||
| Laser class | Output<1mW Class 2 | Output<1mW Class 2 | ||
| Laser beam | 1H1V(Vertial line over zenith) | 1H1V(Vertial line over zenith) | ||
| Accuracy(H/V) | ±3mm/10m | ±3mm/10m | ||
| Auto-compensation Range | 4°±1° | 4°±1° | ||
| Beam Emission Angle(H/V) | ＞130° | ＞130° | ||
| IP rating | IP54 | IP54 | ||
| Laser class | Class 2 | |||
| Working temperature | ﹣10~50℃ | ﹣10~50℃ | ||
| Working range | 15m | 30m | ||
| Working range with reciever | about 50m | |||
| Battery | 4*1.5V AA | 4*1.5V AA | ||
| Working time | 20h | 8h | ||
| Laser Level Weight/Size of level | 260g g/92*84*58mm | 260g g/92*84*58mm | ||
| Weight/Size of Color box | 455 g/ 127*105*80mm | 455 g/ 127*105*80mm | ||
| Weight/Size of out carton | 32 pcs/ 15 kg/ 44*27*33.5cm | 32 pcs/ 15 kg/ 44*27*33.5cm | ||
Manual of Cross line Laser Level T01T02.pdf
Although this level has only two lines, it is smaller and more portable than a normal two-line level and the vertical line can pass through the zenith

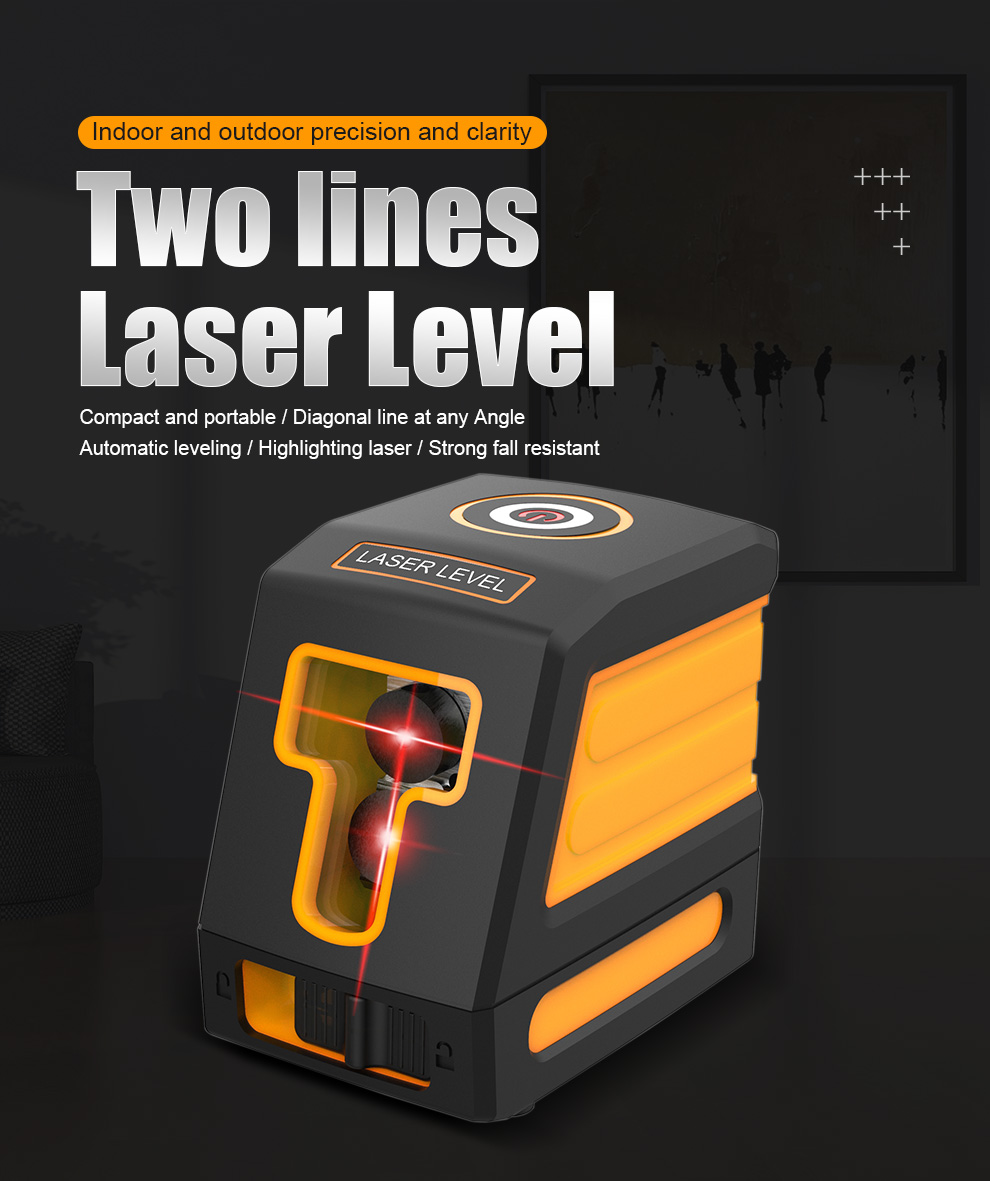

Indoor and outdoor precision and clarity
Two lnesLaser level
Compact and portable / Diagonal line at any AngleAutomatic leveling / Highlighting laser / Strong fall resistant

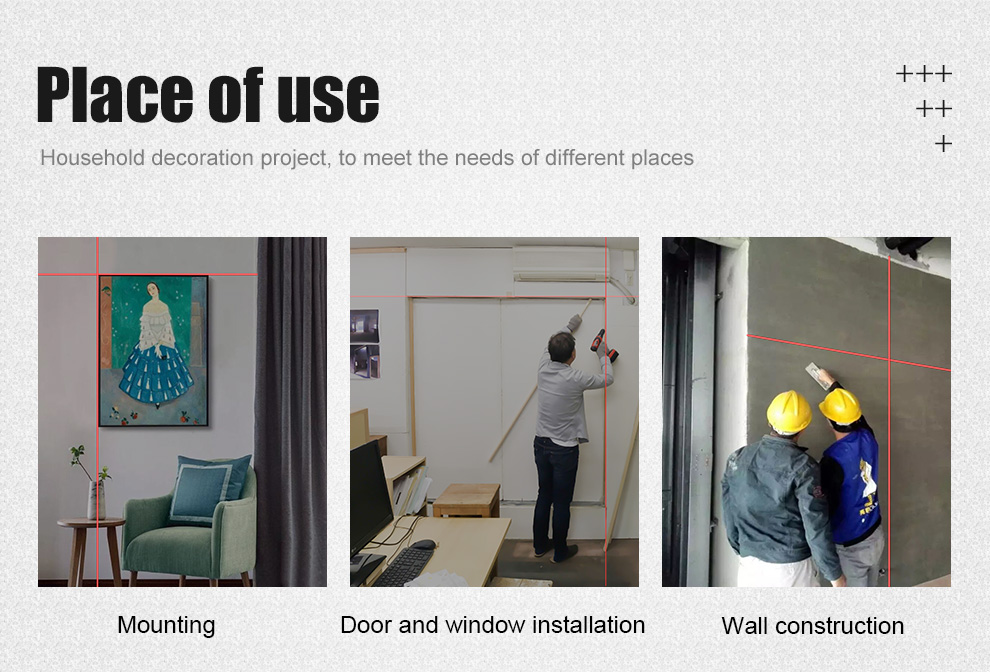

Place of use
Household decoration project, to meet the needs of different places
Mounting
Door and window installation
Wall construction
PACKAGE MATCH
Laser level

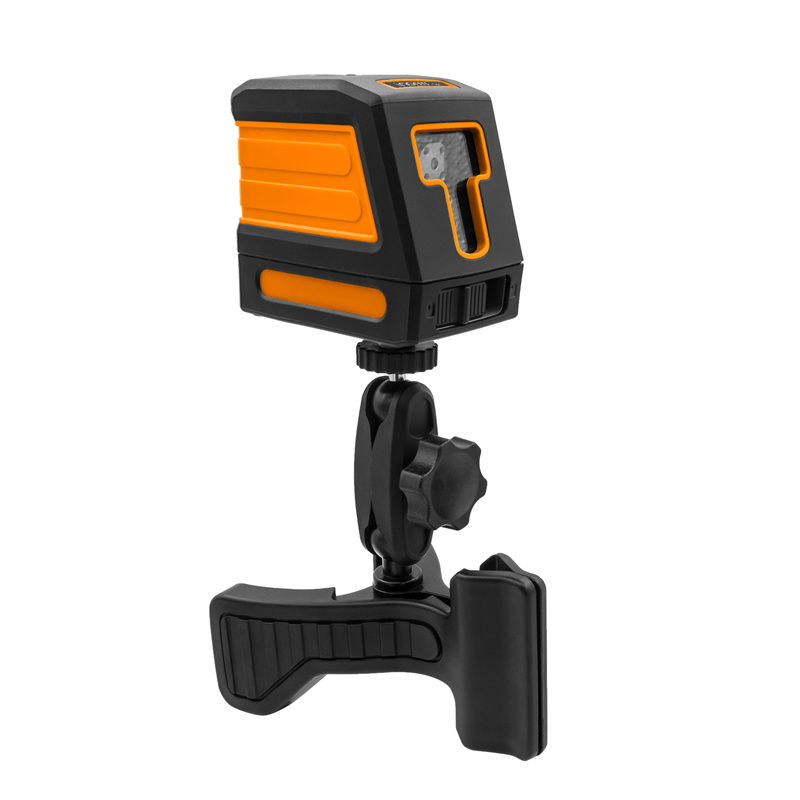

Laser level+Metal support
Laser level+Multifunctional support
High frequency vibrationand high and low tempera-ture impact test
In order to improve the quality of products,the company carries out high and low tem-perature impact test on the instrument in theproduction process. At present, very fewmanufacturers in China add such a process in.
A high and low temperature shock is carried outbefore the assembly of the swing body toremove the residual stress generated during theproduction and processing of the parts.

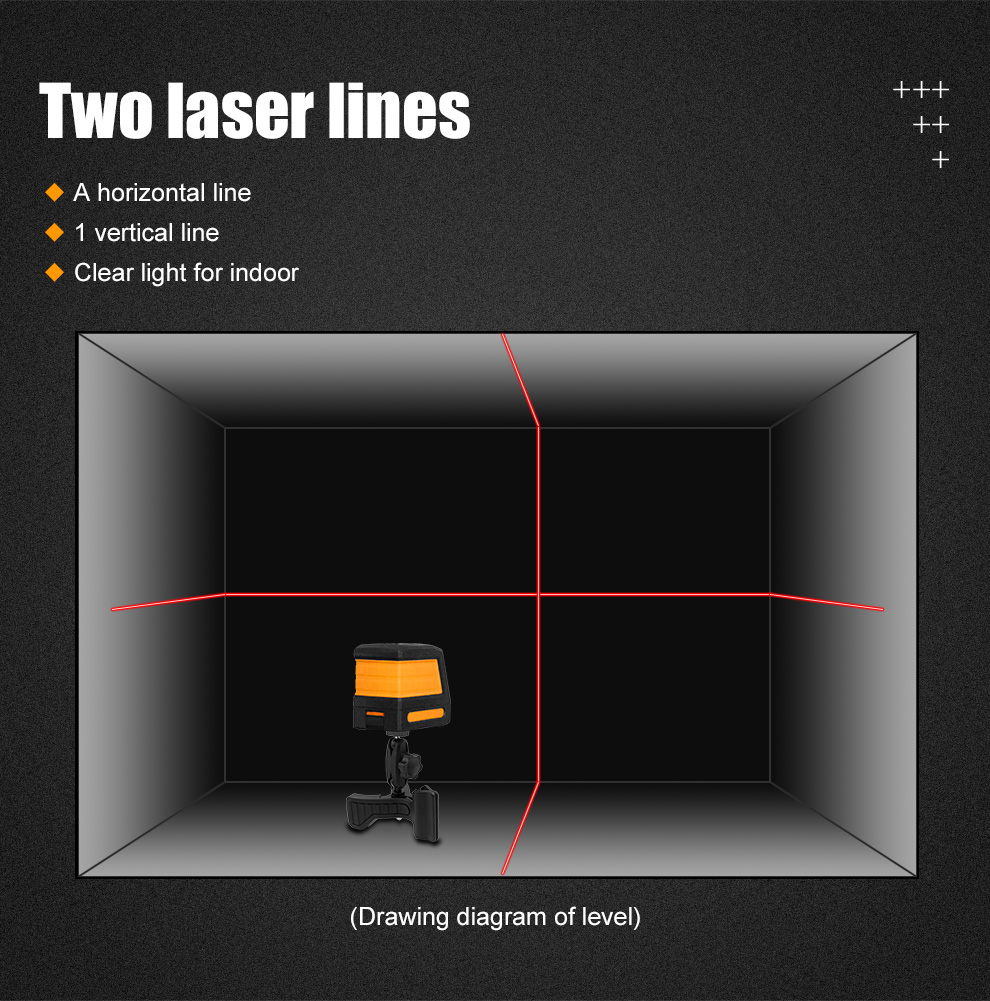

Two laser lines
A horizontal line
1 vertical line
Clear light for indoor

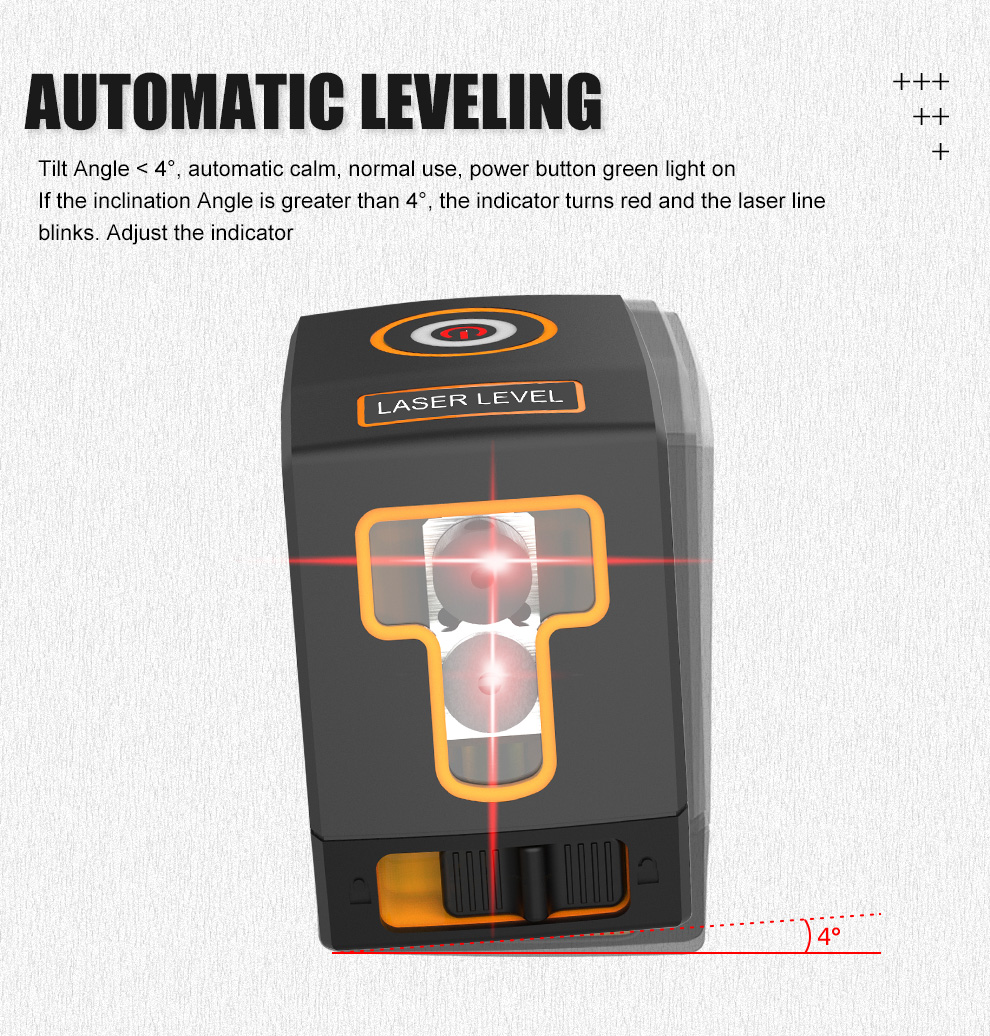

AUTOMATIC LEVELNG
Tilt Angle < 4°,automatic calm, normal use, power button green light onlf the inclination Angle is greater than 4°, the indicator turns red and the laser lineblinks. Adjust the indicator
Five advantayesCreate high quality
01
Dual-mode transmitter
Can achieve horizontal linevertical line, cross line threeoutput modes
02
Diagonal pattern
Mechanical switch, movementlock, you can play the diagonal line, in order to avoidmisoperation in the process ofoperation, the light will blinkevery few seconds

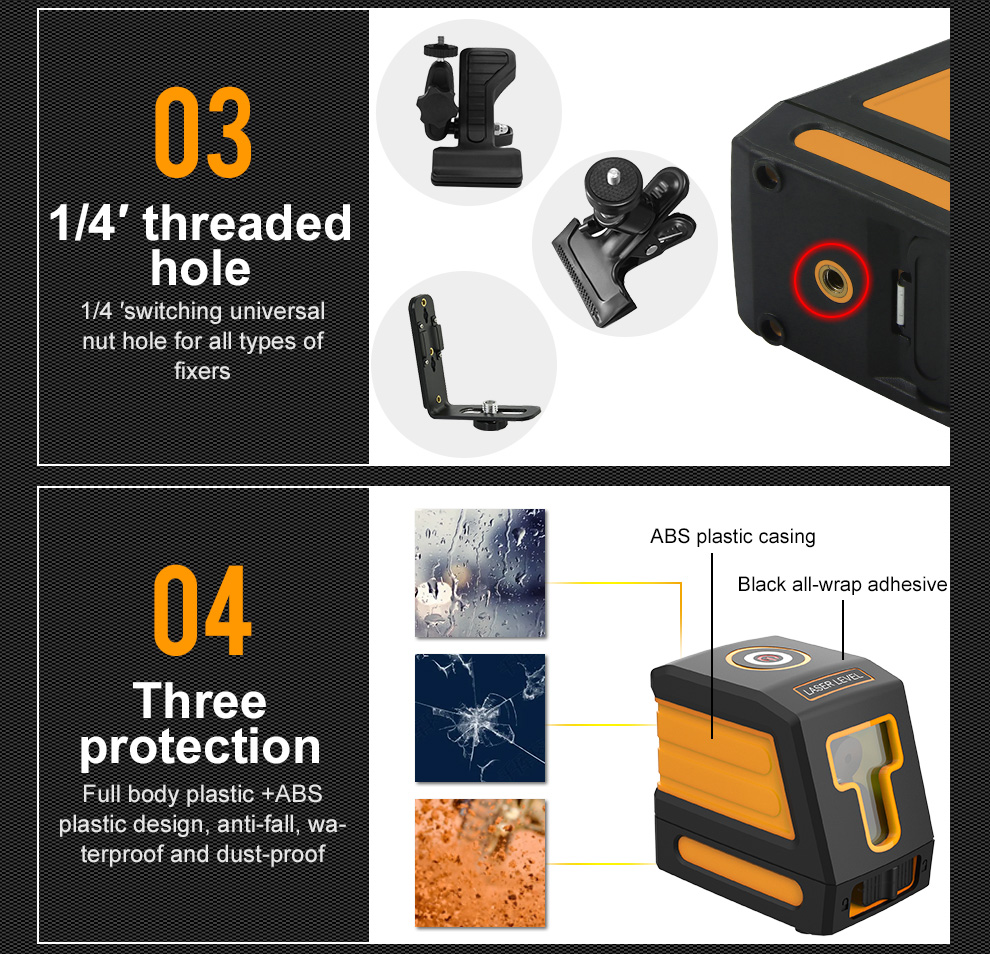

03
1/4' threadedhole114 'switching universalnut hole for all types offixers
04
ThreeprotectionFull body plastic +ABSplastic design, anti-fall, wa-terproof and dust-proof

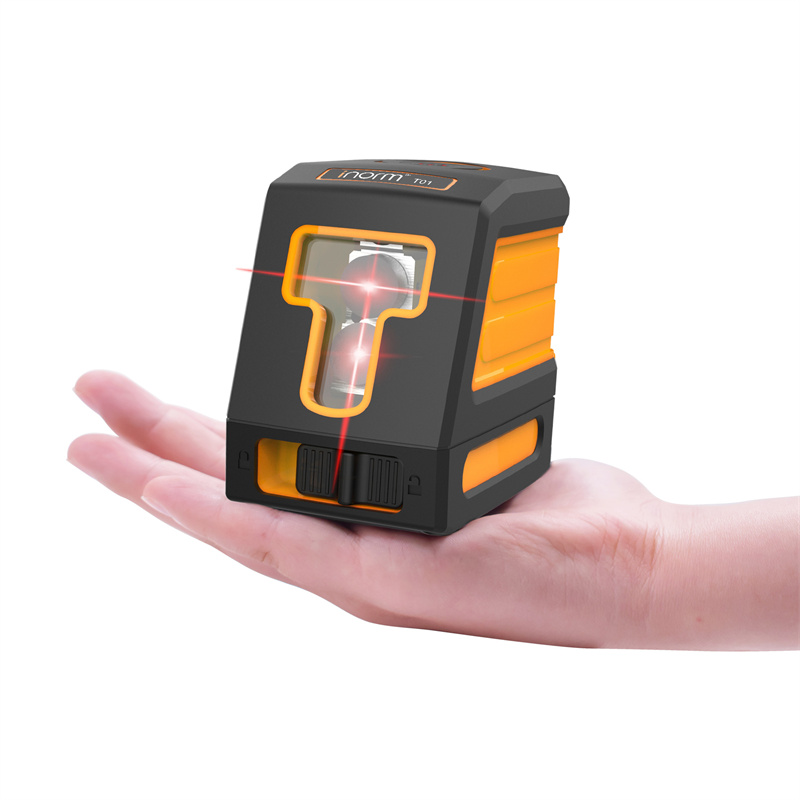

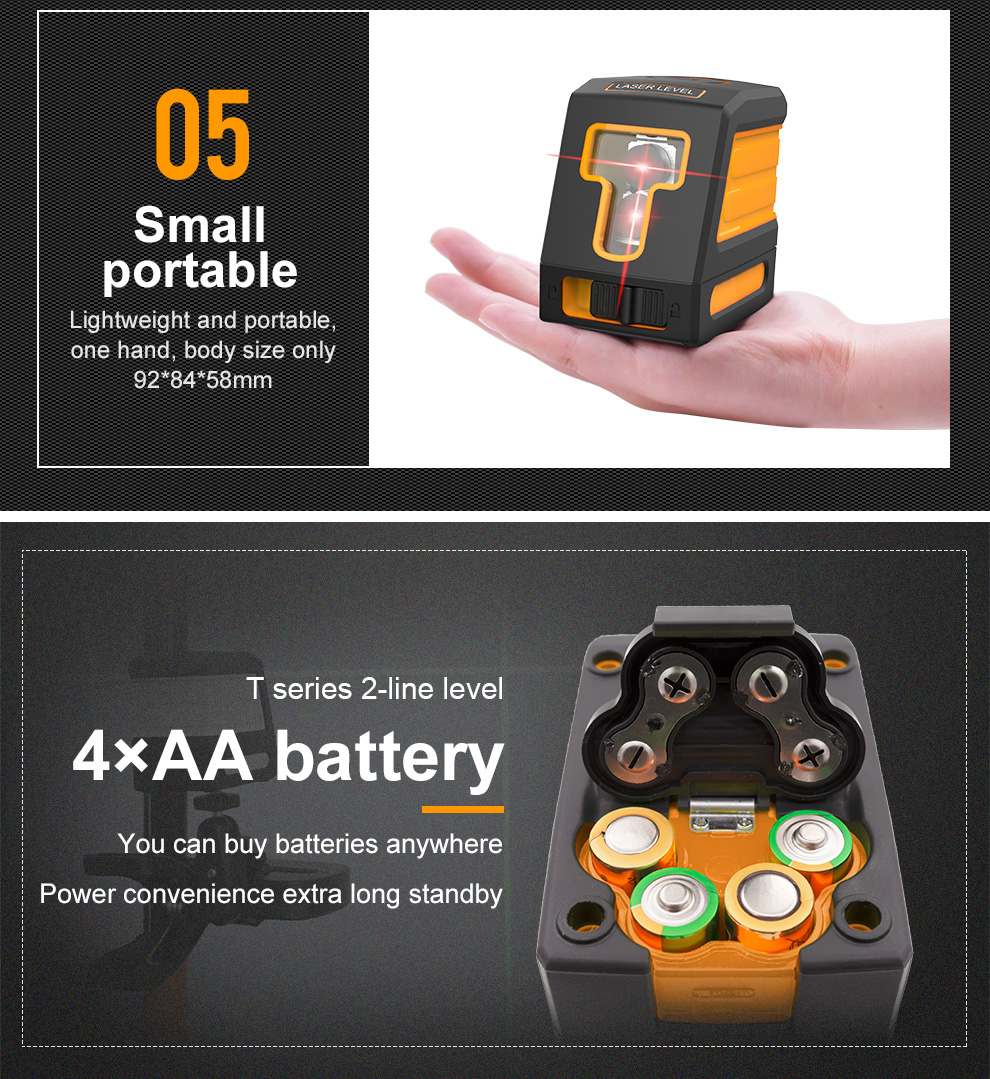

05
SmallportableLightweight and portableone hand, body size only92*84*58mm
T series 2-line level
4xAA battery
You can buy batteries anywherePower convenience extra long standby
We are a manufacturer .Our factory has 9,000 square meters of professional production workshops and independent research and development
experimental centers, providing continuous and stable support and guarantee for new product development, production and upgrading quality and market sales.
We have our own factory and excellent design team. OEM/ODM is accepted. Please do not hesitate to contact with us to show your idea.
RoHS CE FCC UKCA FDA
A :Factory (We produce, we sell).
A : We do customizing service for customers. OEM/ ODM is welcome. Any logo and any color is up to you.The English copy of manual is also available.
A : Regular products only 1 standard carton. but no limit for sample order!
a: Send us an inquiry
b: Confirm your wanted products
c: Confirm the price, freight and other details
d: Complete the payment in Alibaba
e: We start production and arrange the shipment
f: You got your products
g: We get the payment
A : It depends on whether we are in stock or not. Our standard arrangement time is 3 days if we have stock, otherwise it will be decided by factory production. Generally, it needs 10-45 days of production according to the quantity of your order.
A : DHL/FEDEX/UPS/EMS all is ok, it is base on Customer's prefer! and we can advise the suitable shipping way base on the customer's order quantity!
A : We offer 12month warranty. Our policy: Within the warranty period, If there is any quality problem, please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair or exchange. Please make sure to contact us first instead of sending it to us directly. You only need to pay double-run freight.
