T54
inorm
±3mm/10m
Class Ⅱ
3.7V 4400mAh lithium battery
| Quantity: | |
|---|---|

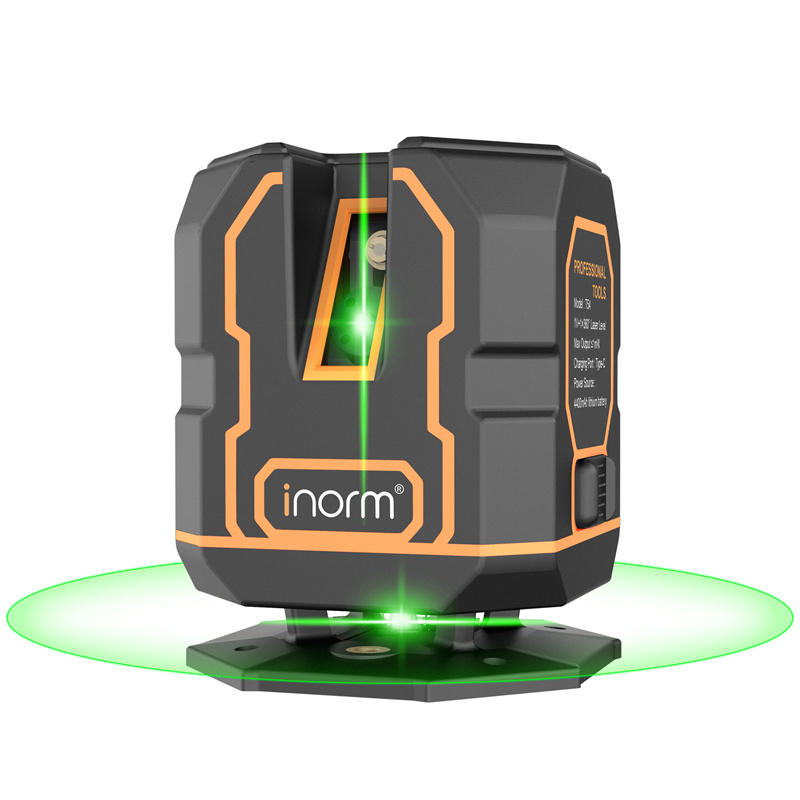

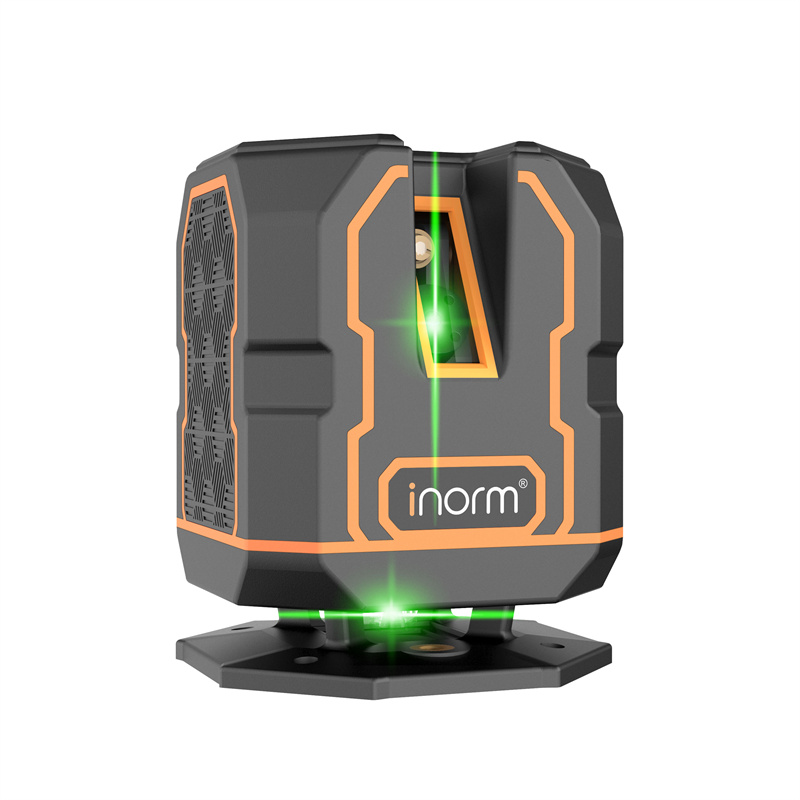

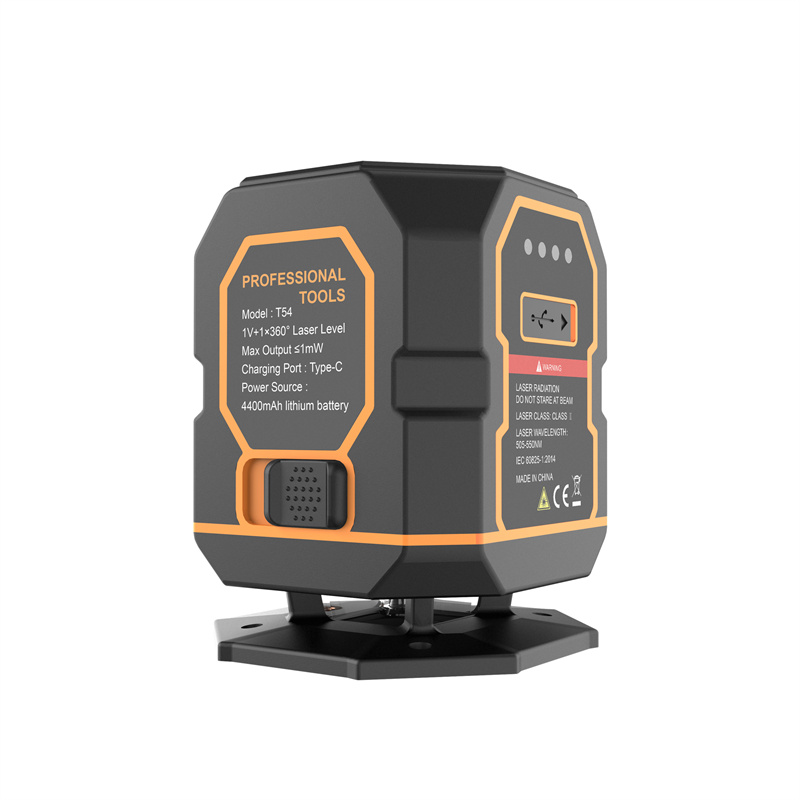

T54 laser rangefinder is 360° horizontal line +1 vertical line output, can achieve 10mm close to the ground, using Sharp high quality LD light source, bright laser can be clearly visible indoors and outside, built-in 4400mAh large lithium battery, with energy saving mode, can be extremely long standby.

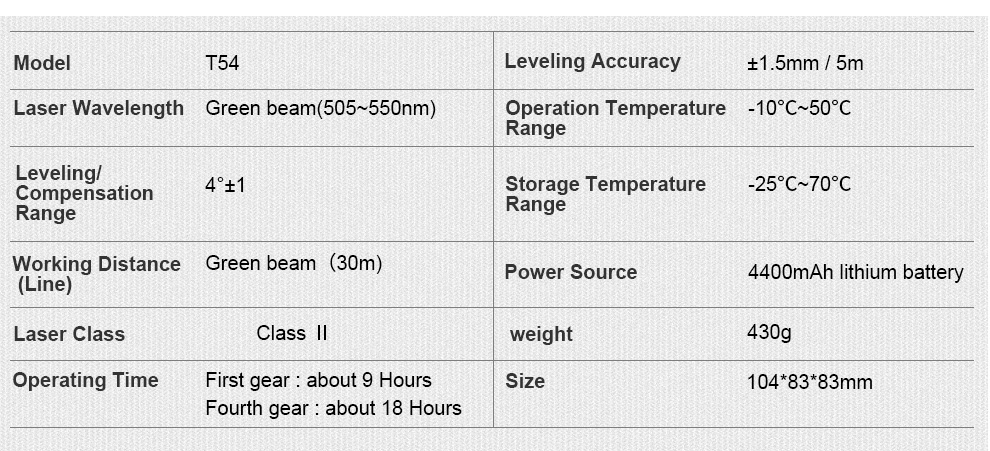

| Model | T54 | ||
| Laser beam | 1H1V | ||
| Qty of laser diode | three | ||
| Color of beam | Green | ||
| Laser wavelength | 520nm | ||
| Laser power(H/V) | 20mw | ||
| Accuracy(H/V) | 3mm at 10m distance | ||
| Auto-compensation Range | 4° ± 1° | ||
| IP rating | IP54 | ||
| Laser class | Class 2 | ||
| Working temperature | -10~500C | ||
| Working range | 30m | ||
| Working range with reciever | about 50m | ||
| Beam Emission Angle(H/V) | 360° | ||
| Battery | 3.7V 4400mAh lithium battery | ||
| Working time | First gear 9h fourth gear 18h | ||

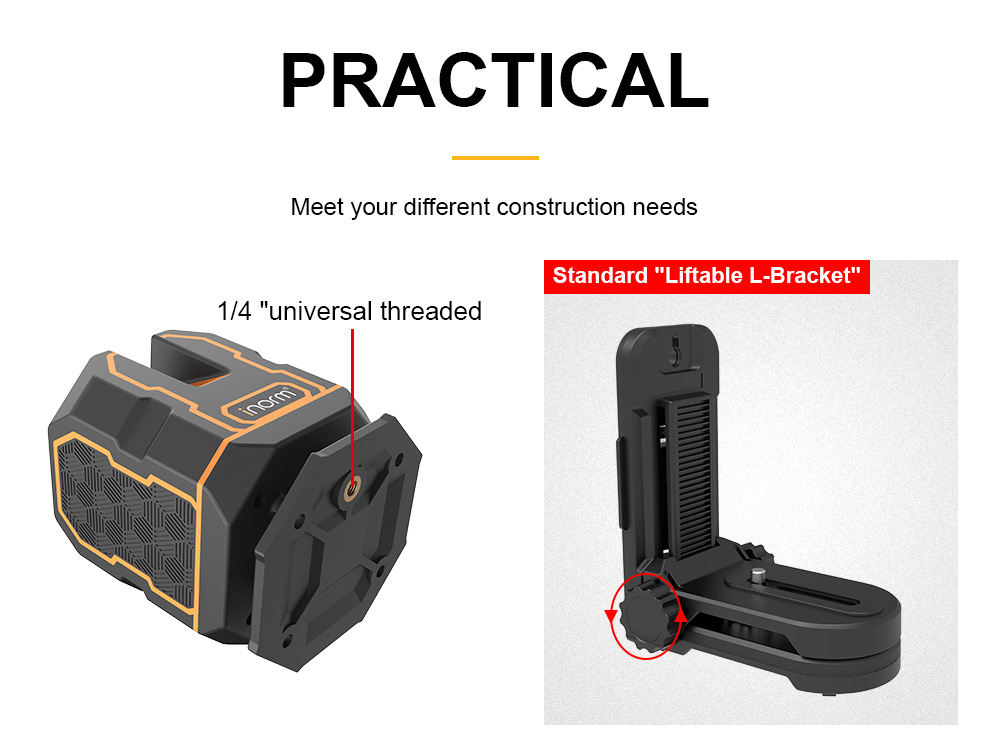

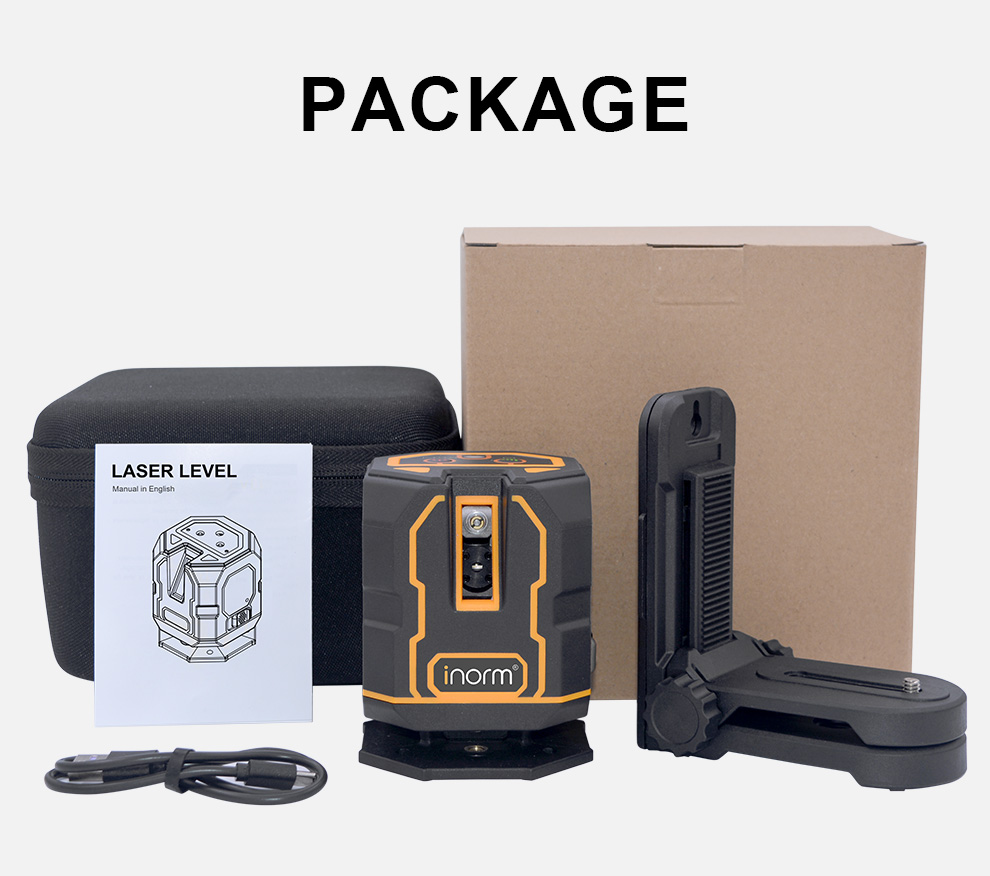

| Kit content | 1 X laser level,1 X L-shaped magnetic support | ||
| 1 X USB-C Charging line,1 X EVA case | |||
| Laser Level Weight/Size of level | 430 g/104*83*83mm | ||
| Weight/Size of Color box | 889 g/ 176*117*179mm | ||
| Weight/Size of out carton | 12pcs/ 11.5 kg/ 37*37*38CM |
Manual of 5 Lines Laser Level T54.pdf
The main advantage of T97 laser level compared with other levels is that it provides more reference lines, to achieve all-round accurate positioning, significantly improve work efficiency and accuracy. 12-line level provides all-round reference through its 12 laser lines makes the marking work of walls, ceiling and floor easy and fast. In addition, 12-line level also has a high-precision and convenient dual-purpose design, to meet the diverse needs of wall and floor work.

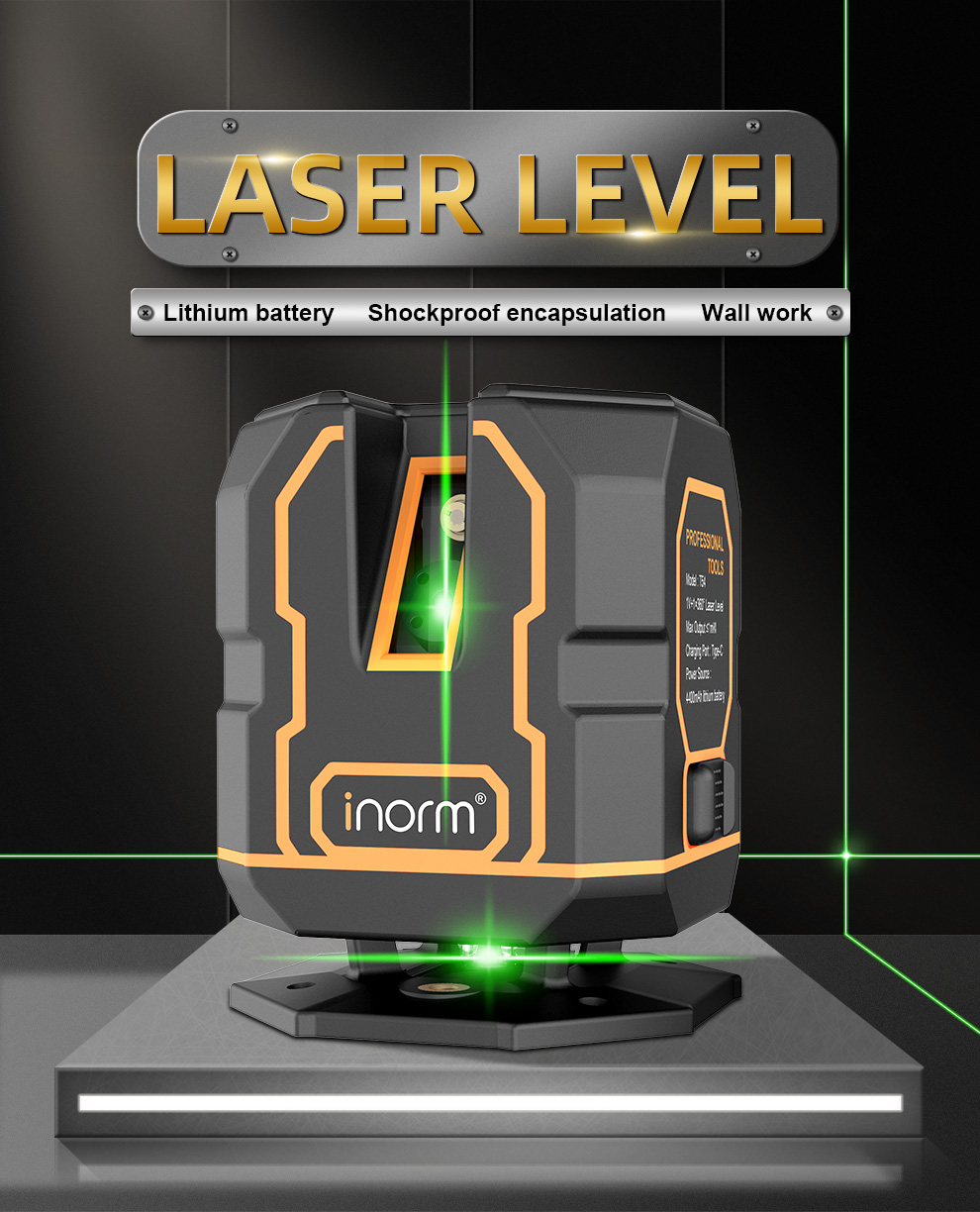

LASER LEVEL
Lithium battery
Shockproof encapsulation
Wall work

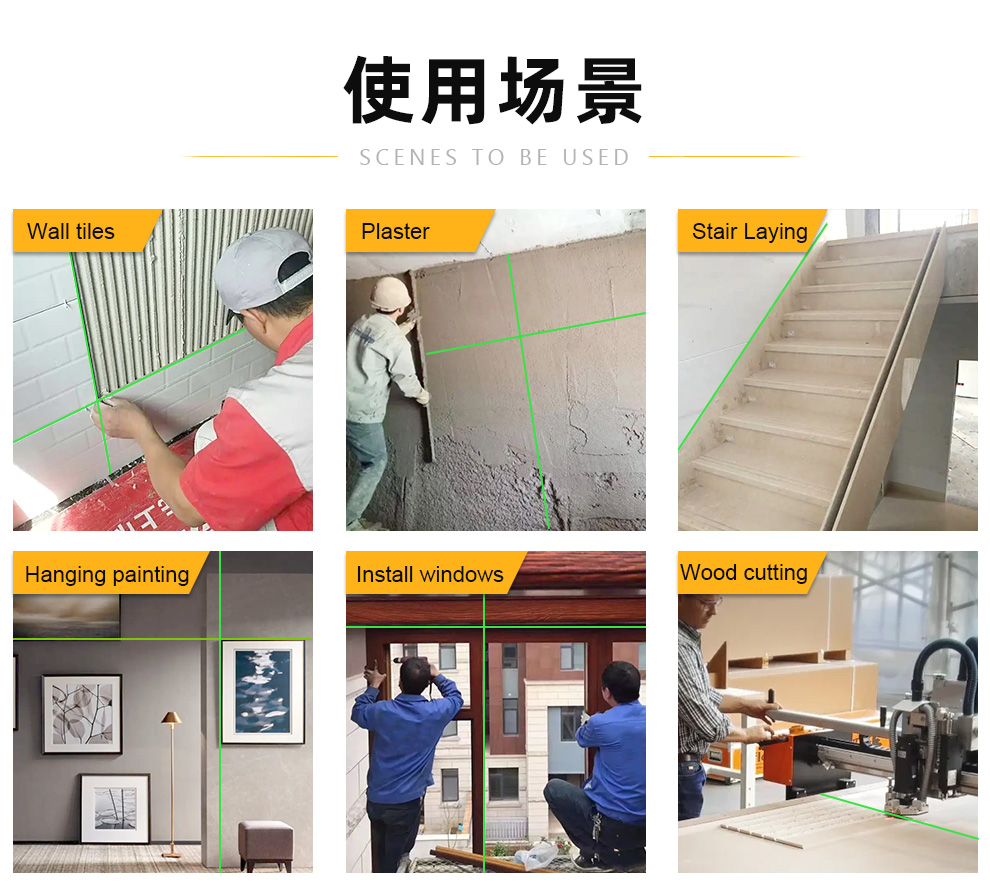

Wall tiles Hanging painting Plaster
Install windows Stair Laying Wood cutting
Bright light source Automatic leveling Large capacity lithium battery Plastic bag anti-fall
Two-color injection 10mm on the ground Energy saving mode Slash function
molding process

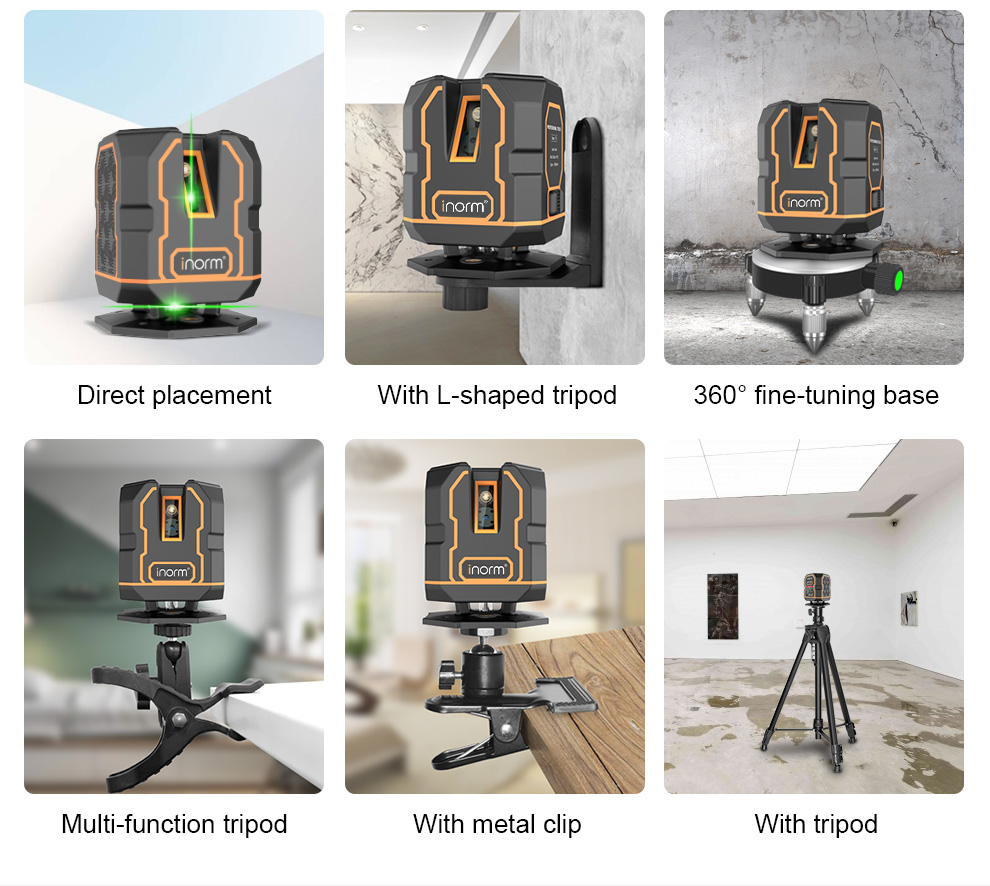

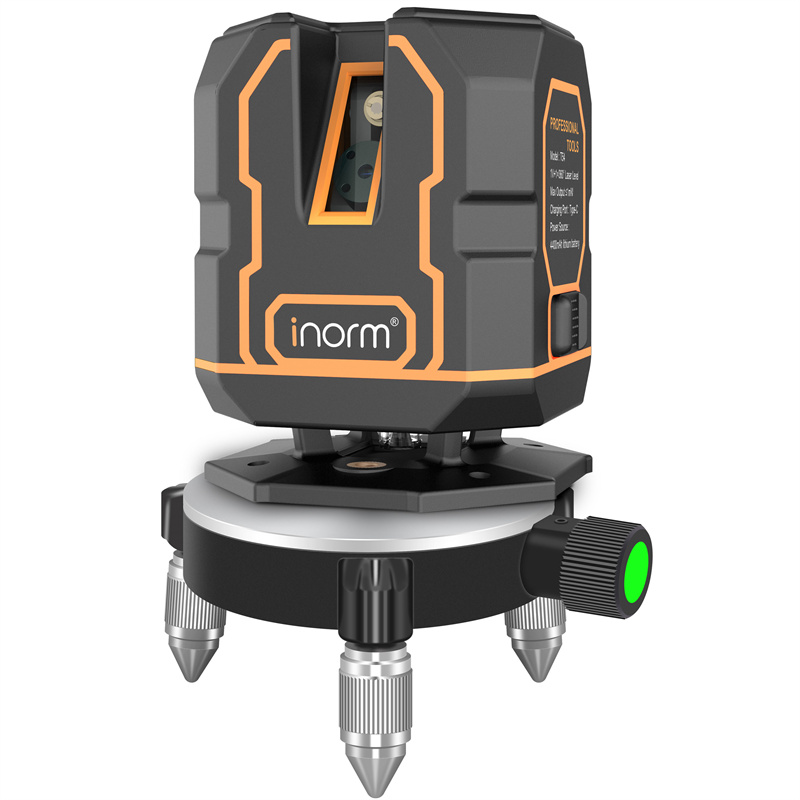

Universal indoor andoutdoor Pulse mode With a variety of tripods Waterproofdustproof

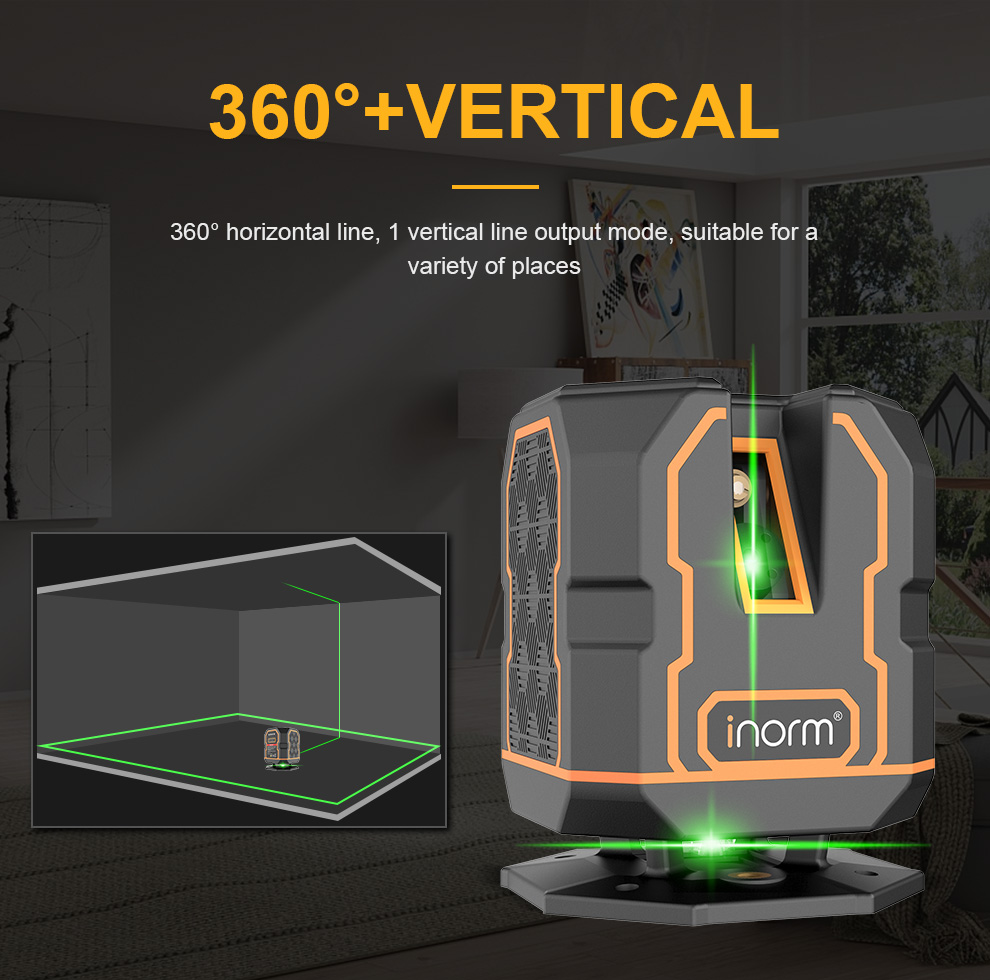

360°+VERTICAL
360° horizontal line, 1 vertical line output mode, suitable for a
variety of places

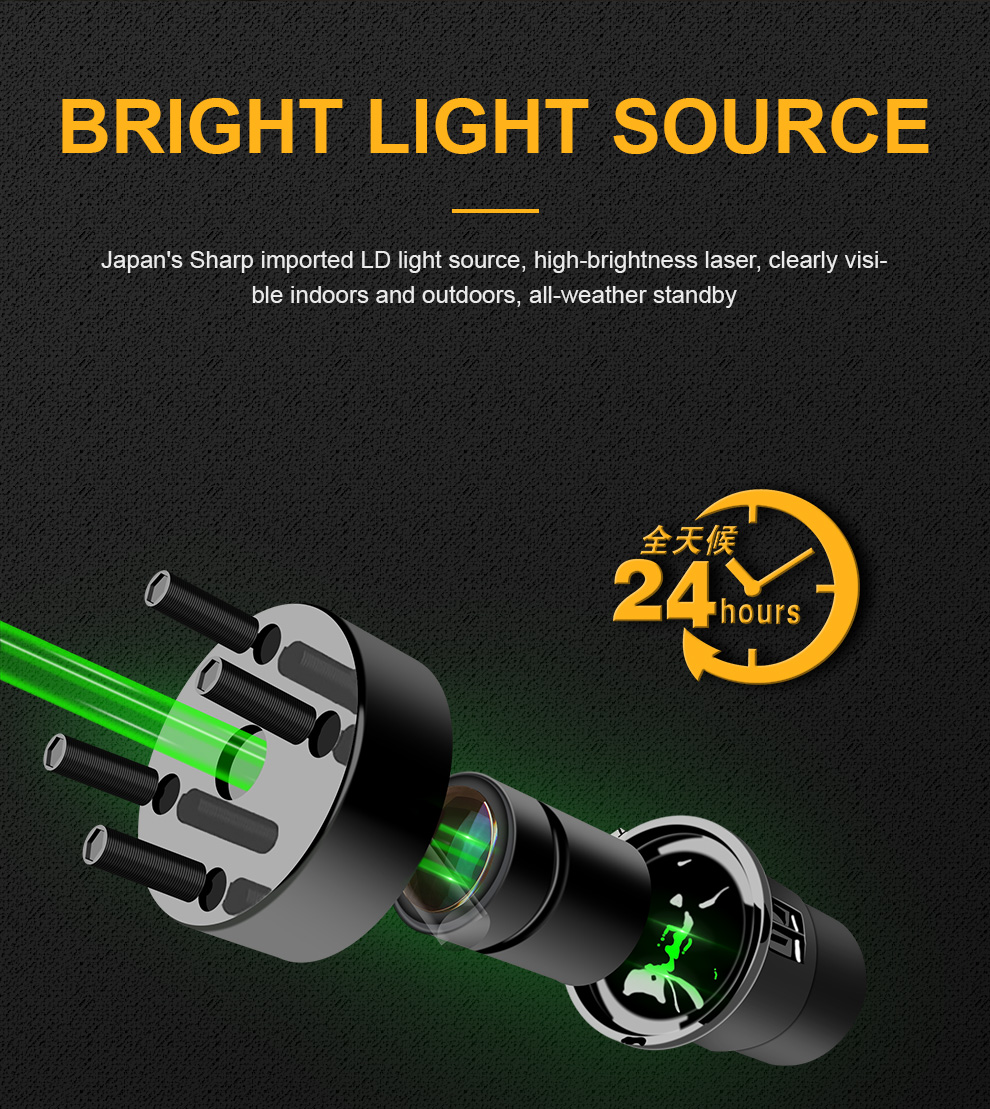

BRIGHT LIGHT SOURCE
Japan's Sharp imported LD light source, high-brightness laser, clearly visible indoors and outdoors, all-weather standby

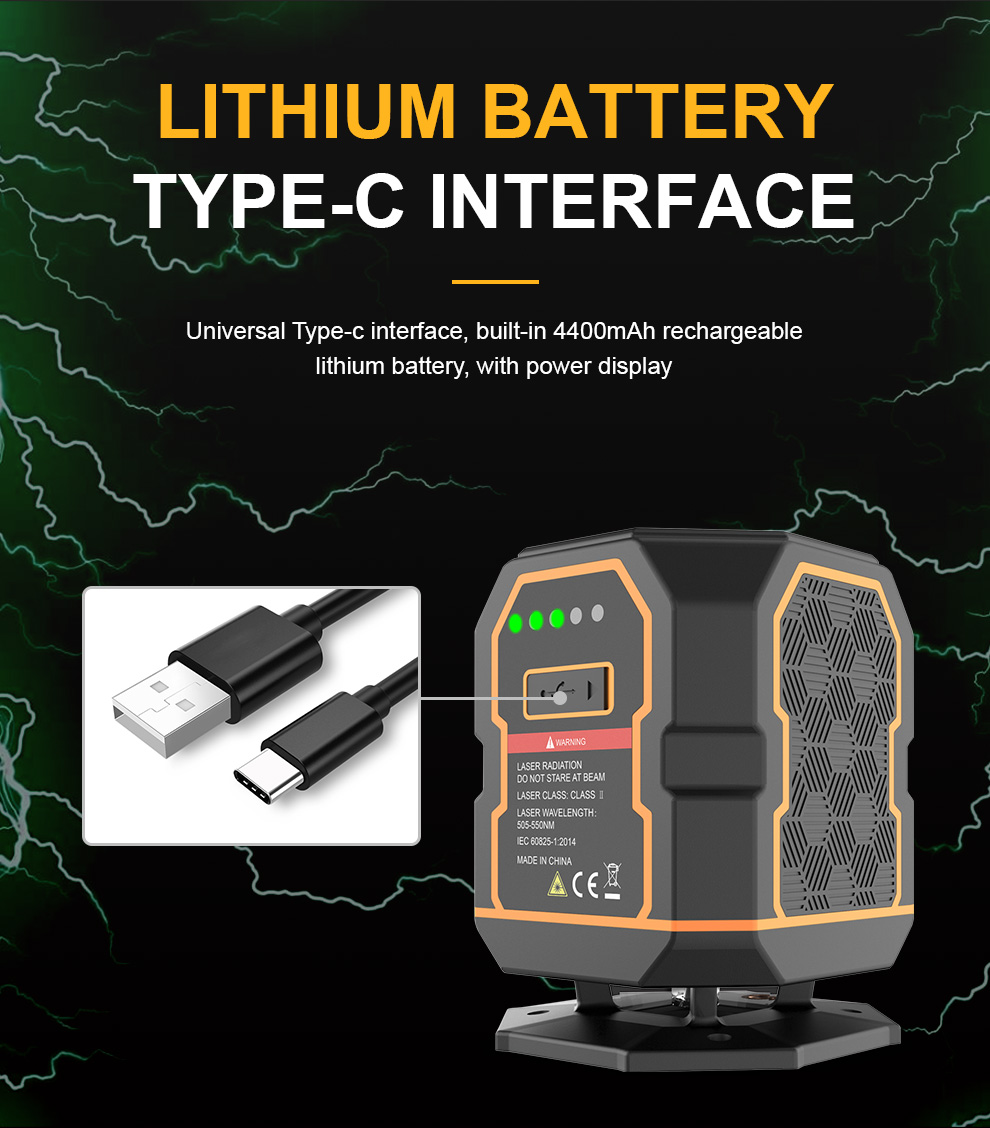

LITHIUM BATTERYTYPE-CINTERFACE
Universal Type-c interface, built-in 4400mAh rechargeablelithium battery, with power display

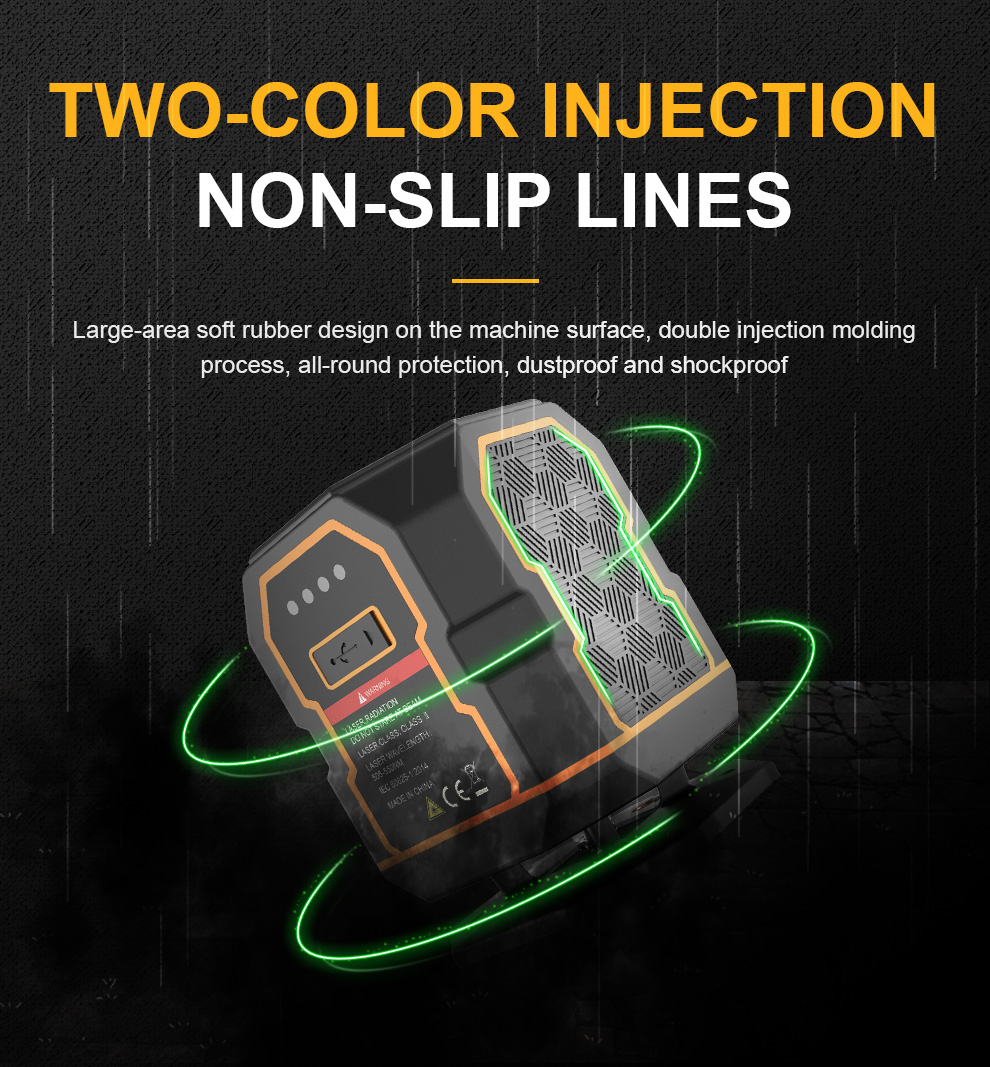

TWO-COLOR INJECTIONNON-SLIP LINES
Large-area soft rubber design on the machine surface, double injection moldingprocess, all-round protection, dustproof and shockproof

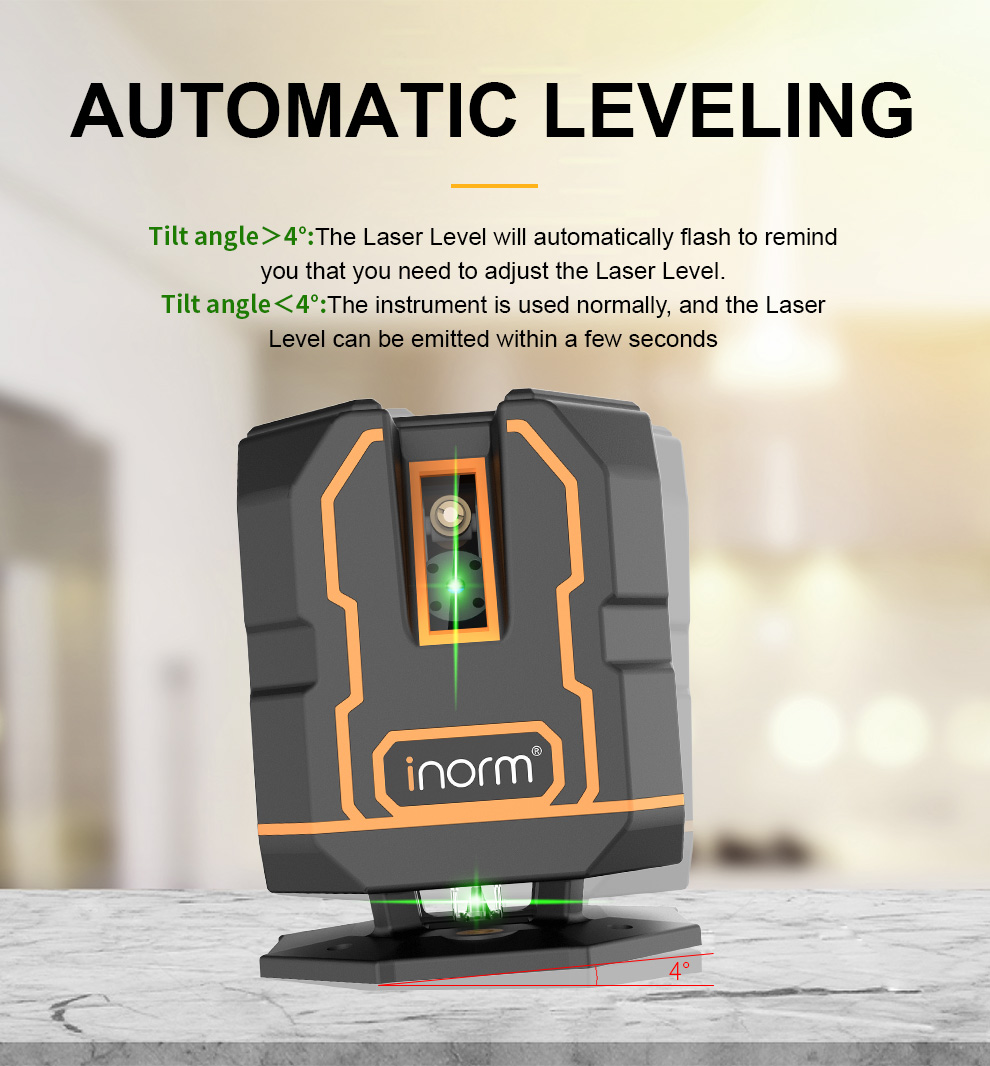

AUTOMATIC LEVELING
Tilt angle>4°:The Laser Level will automatically flash to remindyou that you need to adjust the Laser Level.Tilt angle<4°:The instrument is used normally, and the LaserLevel can be emitted within a few seconds

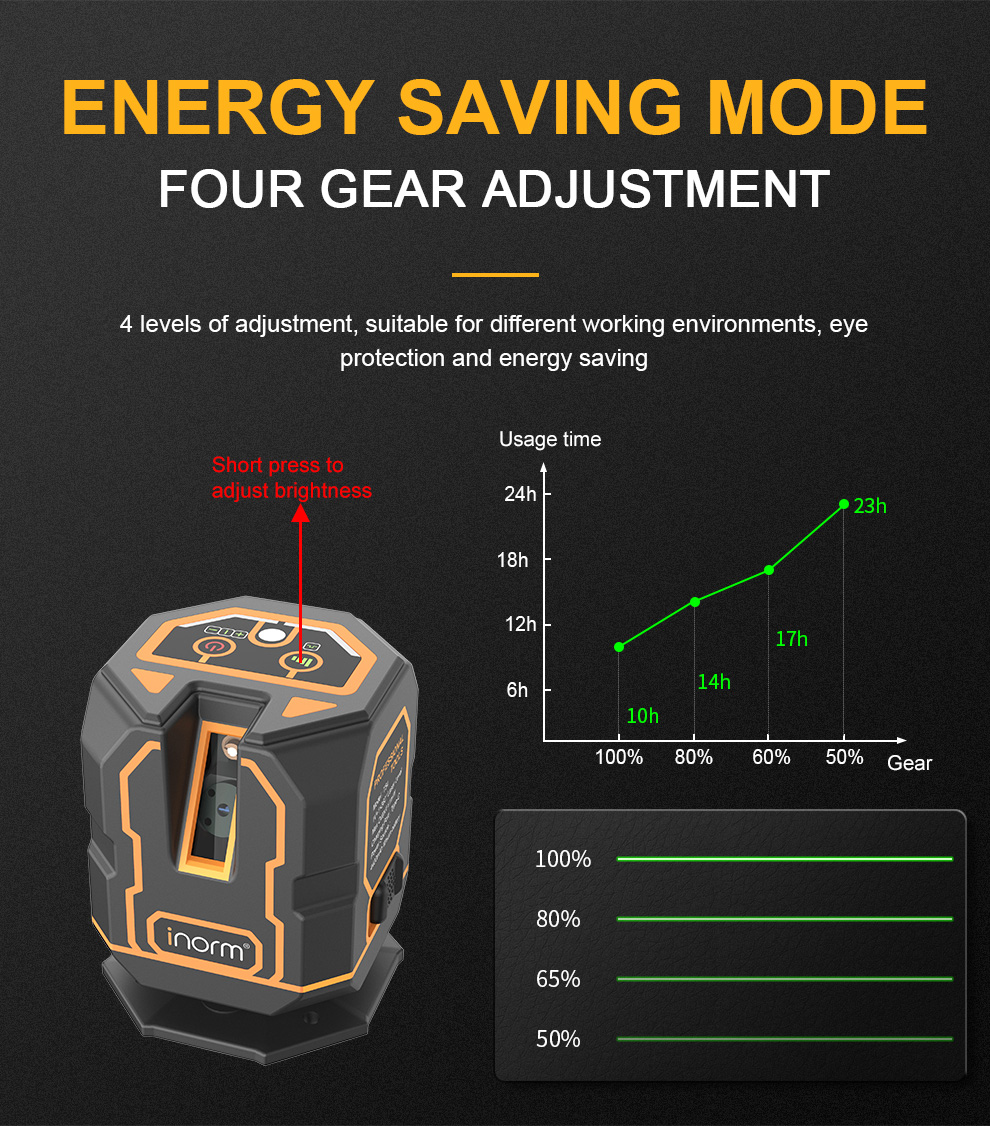

ENERGY SAVING MODEFOUR GEAR ADJUSTMENT
4 levels of adjustment, suitable for different working environments, eyeprotection and energy saving

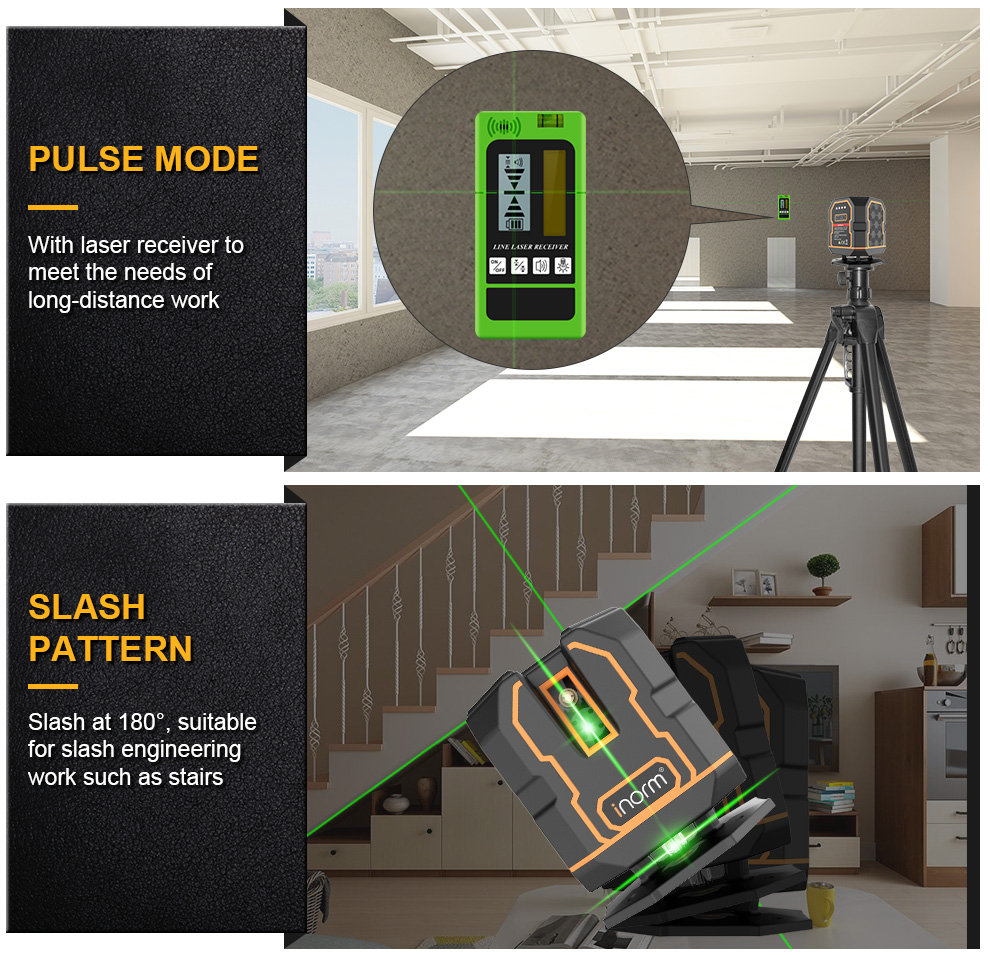

PULSE MODE
With laser receiver tomeet the needs oflong-distance work
SLASH PATTERN
Slash at 180°,suitablefor slash engineeringwork such as stairs

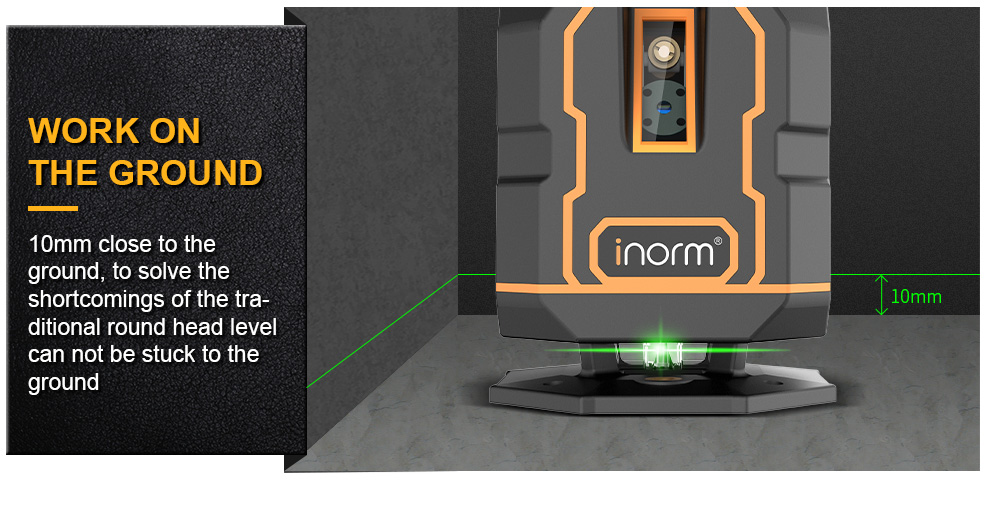

WORK ON THE GROUND
10mm close to theground, to solve theshortcomings of the tra-ditional round head levecan not be stuck to theground
We are a manufacturer .Our factory has 9,000 square meters of professional production workshops and independent research and development
experimental centers, providing continuous and stable support and guarantee for new product development, production and upgrading quality and market sales.
We have our own factory and excellent design team. OEM/ODM is accepted. Please do not hesitate to contact with us to show your idea.
RoHS CE FCC UKCA FDA
A :Factory (We produce, we sell).
A : We do customizing service for customers. OEM/ ODM is welcome. Any logo and any color is up to you.The English copy of manual is also available.
A : Regular products only 1 standard carton. but no limit for sample order!
a: Send us an inquiry
b: Confirm your wanted products
c: Confirm the price, freight and other details
d: Complete the payment in Alibaba
e: We start production and arrange the shipment
f: You got your products
g: We get the payment
A : It depends on whether we are in stock or not. Our standard arrangement time is 3 days if we have stock, otherwise it will be decided by factory production. Generally, it needs 10-45 days of production according to the quantity of your order.
A : DHL/FEDEX/UPS/EMS all is ok, it is base on Customer's prefer! and we can advise the suitable shipping way base on the customer's order quantity!
A : We offer 12month warranty. Our policy: Within the warranty period, If there is any quality problem, please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair or exchange. Please make sure to contact us first instead of sending it to us directly. You only need to pay double-run freight.
