T05/T06
inorm
±3mm/10m
Class Ⅱ
1000 mAh lithium battery
| Quantity: | |
|---|---|

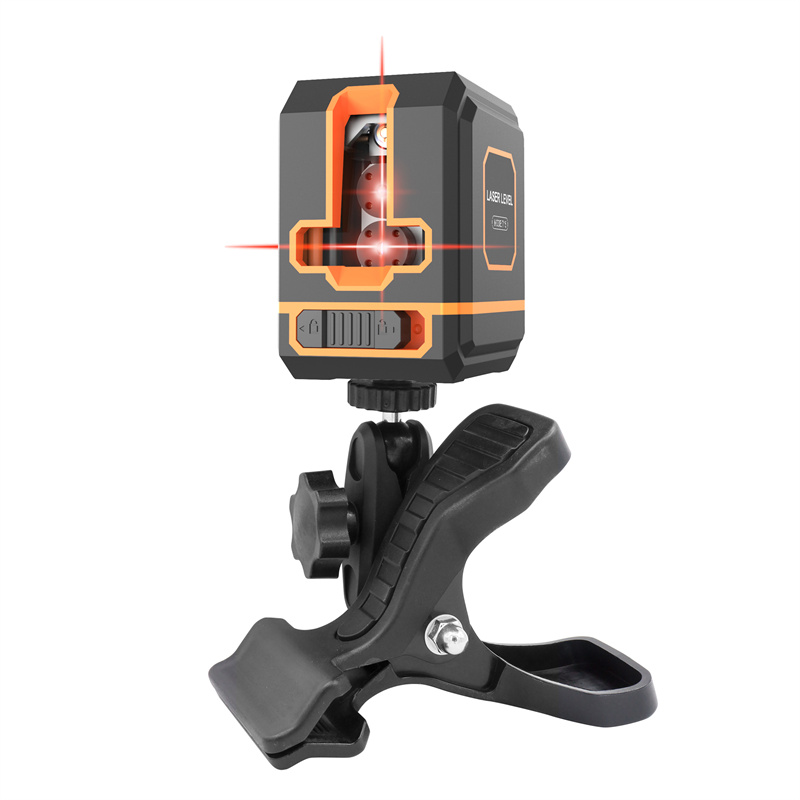

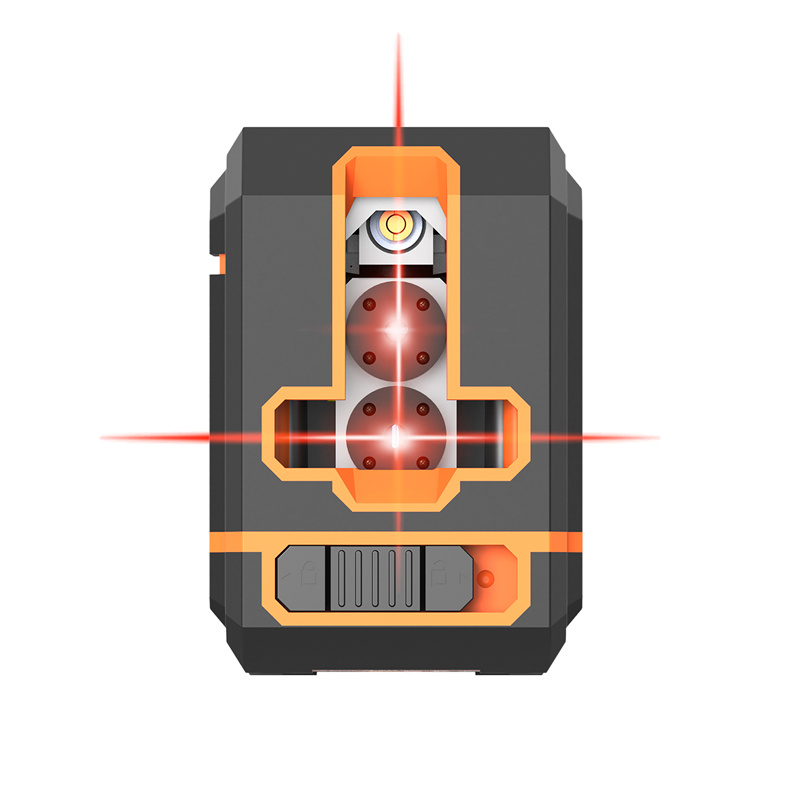

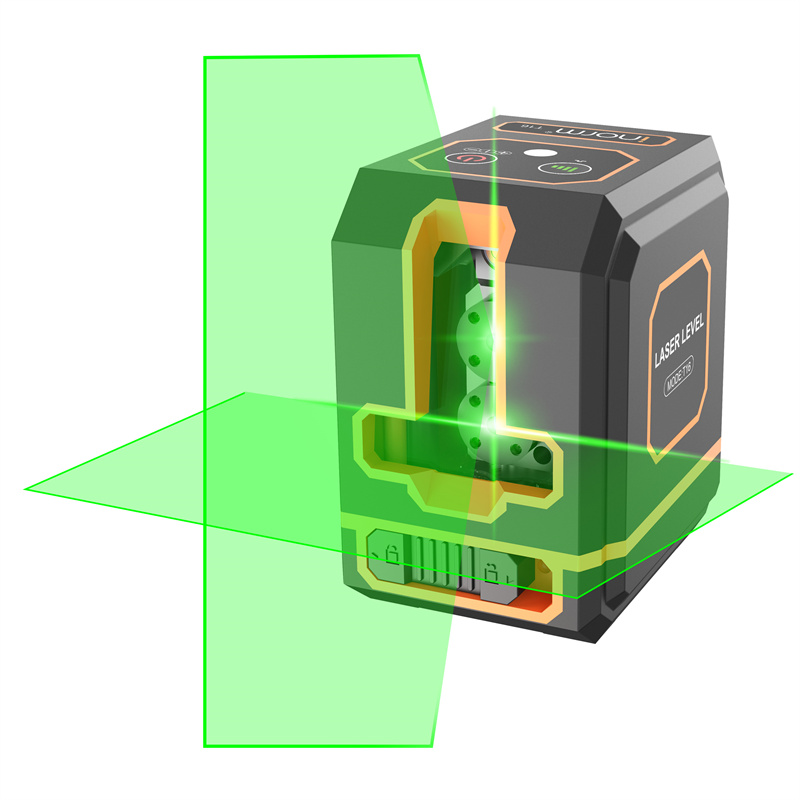

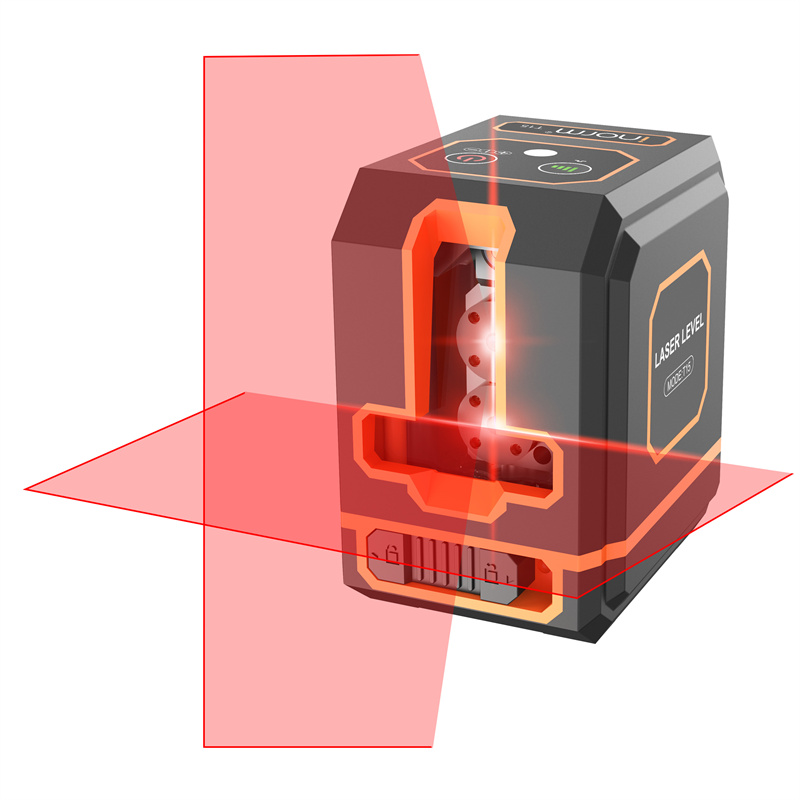

T15 (red light) /T16 (green light) laser level adopts imported high quality light source, cylindrical body design, one two-color mold process, anti-seismic and anti-fall, with magnetic absorption, can be stacked, small and portable.

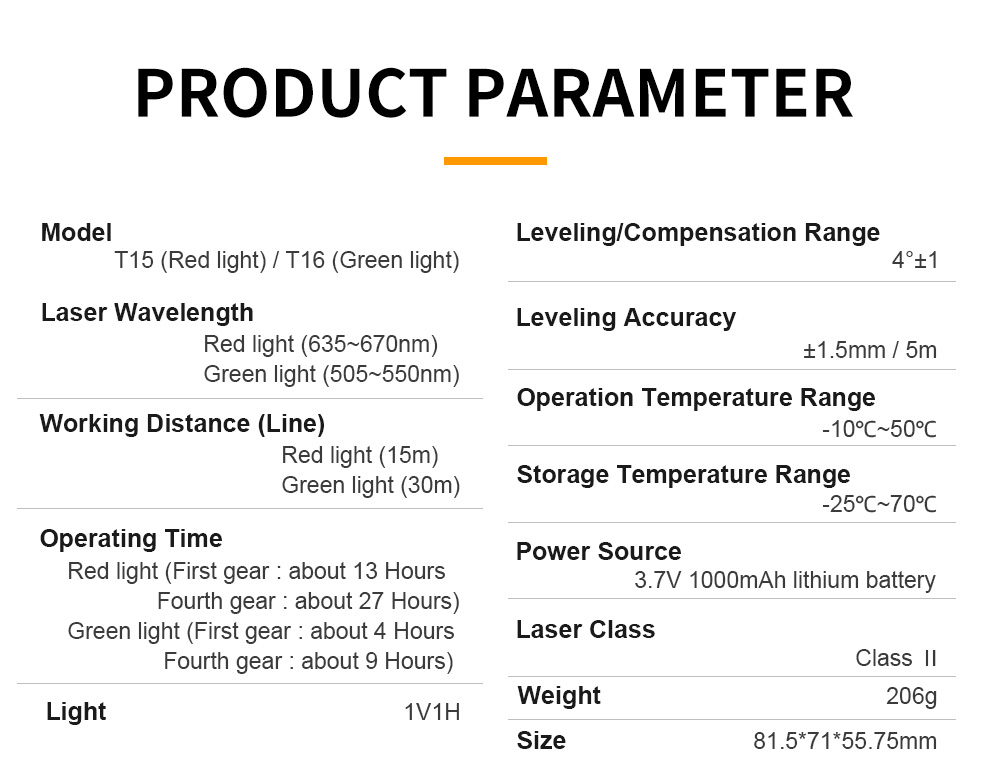

| Model | T15（red beam） | T16 （green beam） | ||
| Laser wavelength | 630-670nm | 505-550nm | ||
| Laser power(H/V) | 5mw | 10mw | ||
| Laser class | Output<1mW Class 2 | Output<1mW Class 2 | ||
| Laser beam | 1H1V(Vertial line over zenith) | 1H1V(Vertial line over zenith) | ||
| Accuracy(H/V) | ±3mm/10m | ±3mm/10m | ||
| Auto-compensation Range | 4°±1° | 4°±1° | ||
| Beam Emission Angle(H/V) | ＞130° | ＞130° | ||
| IP rating | IP54 | IP54 | ||
| Laser class | Class 2 | Class 2 | ||
| Working temperature | ﹣10~50℃ | ﹣10~50℃ | ||
| Working range | 15m | 30m | ||
| Working range with reciever | about 50m | |||
| Battery | 1000 mAh lithium battery | 1000 mAh lithium battery | ||
| Working time | First gear:13H Fourth gear:27H | First gear:4H Fourth gear:9H | ||
| Laser Level Weight/Size of level | 214g/81.5*71*55.5mm | 214g/81.5*71*55.5mm | ||
| Weight/Size of Color box | 460g/158*100.5*77mm | 460g/158*100.5*77mm | ||
| Weight/Size of out carton | 20 pcs/ 10kg/ 46*37*30cm | 20 pcs/ 10kg/ 46*37*30cm | ||
Manual of Cross line Laser Level T15T16.pdf

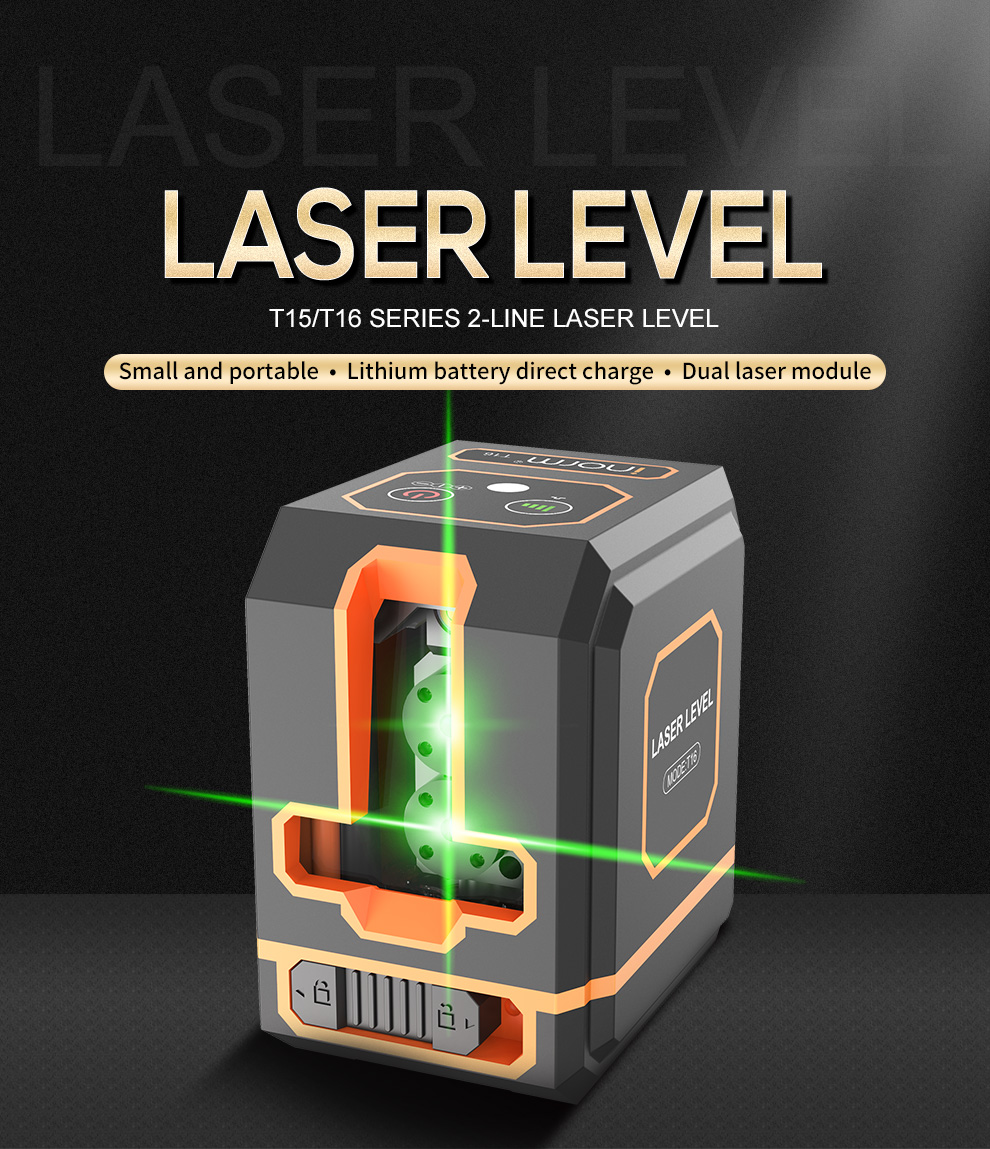

LASER LEVEL
T15/T16 SERIES 2-LINE LASER LEVEL
Small and portable . Lithium battery direct charge . Dual laser module

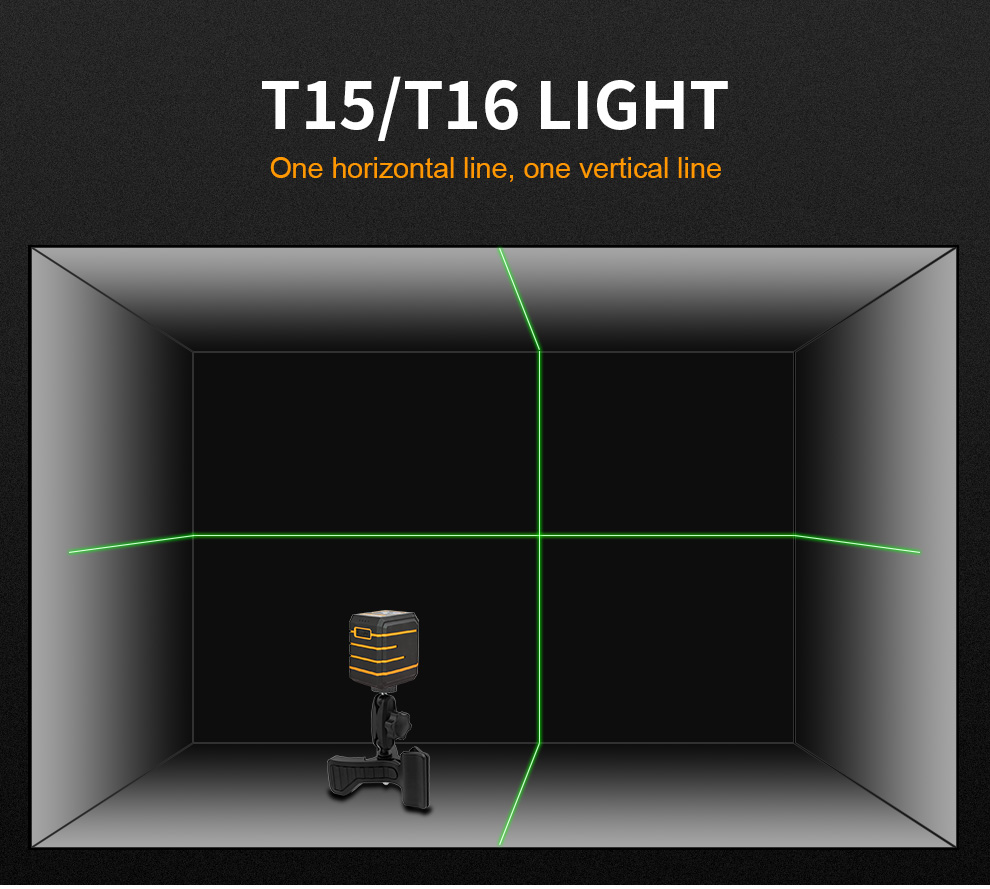

T15/T16 LIGHT
One horizontal line, one vertical line
USE PLACE
Tiling tiles, etc. Furniture installation Painting decoration

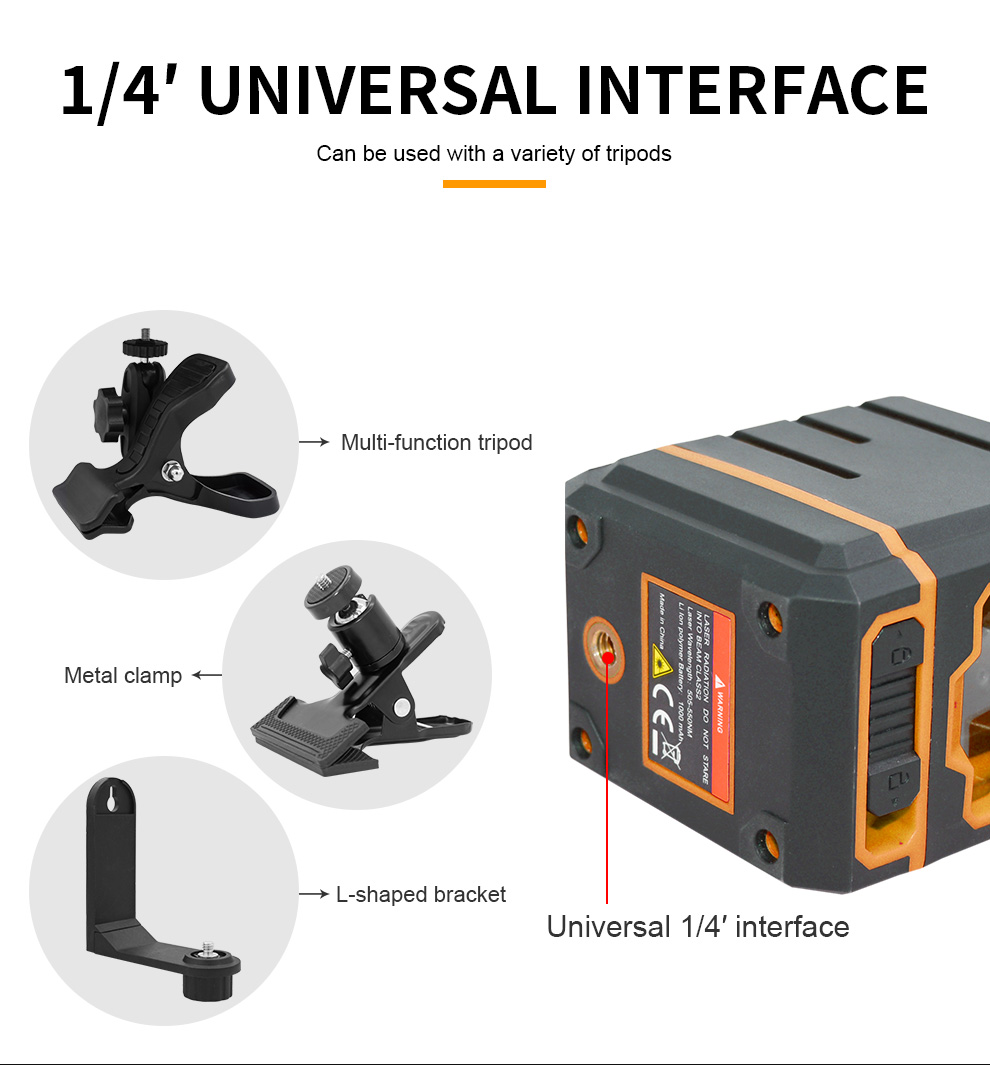

1/4'UNIVERSAL INTERFACE
Can be used with a variety of tripods

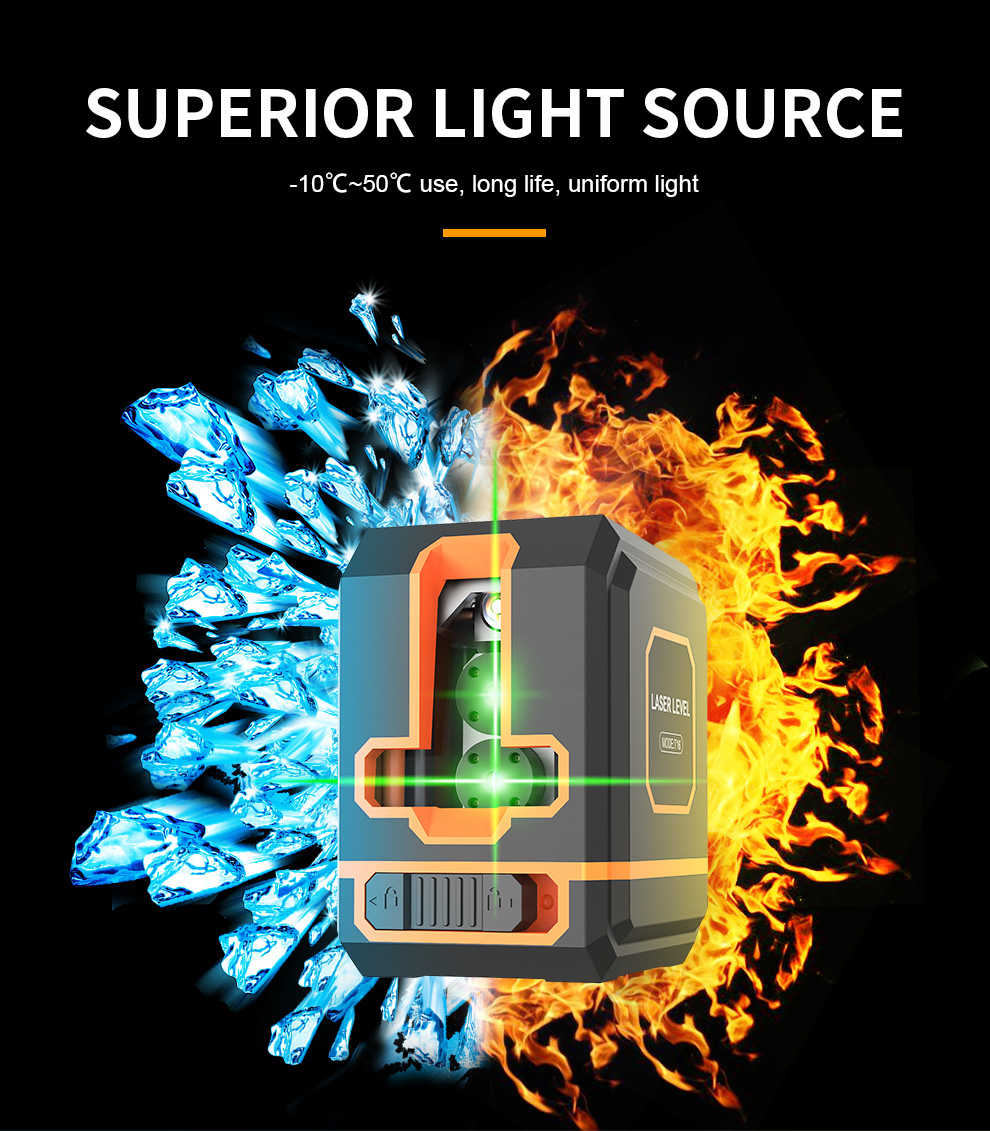

SUPERIOR LIGHT SOURCE
10'C~50'C use, long life, uniform light

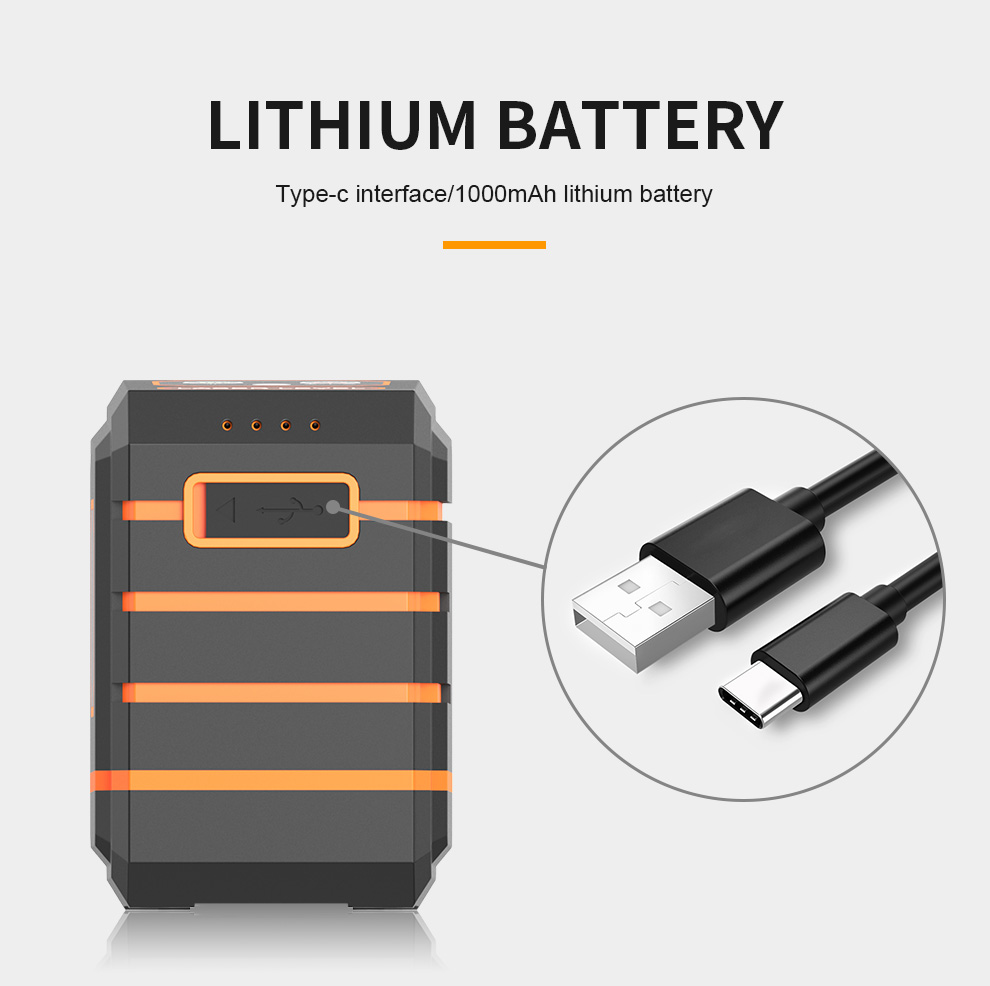

LITHIUM BATTERY
Type-c interface/1000mAh lithium battery

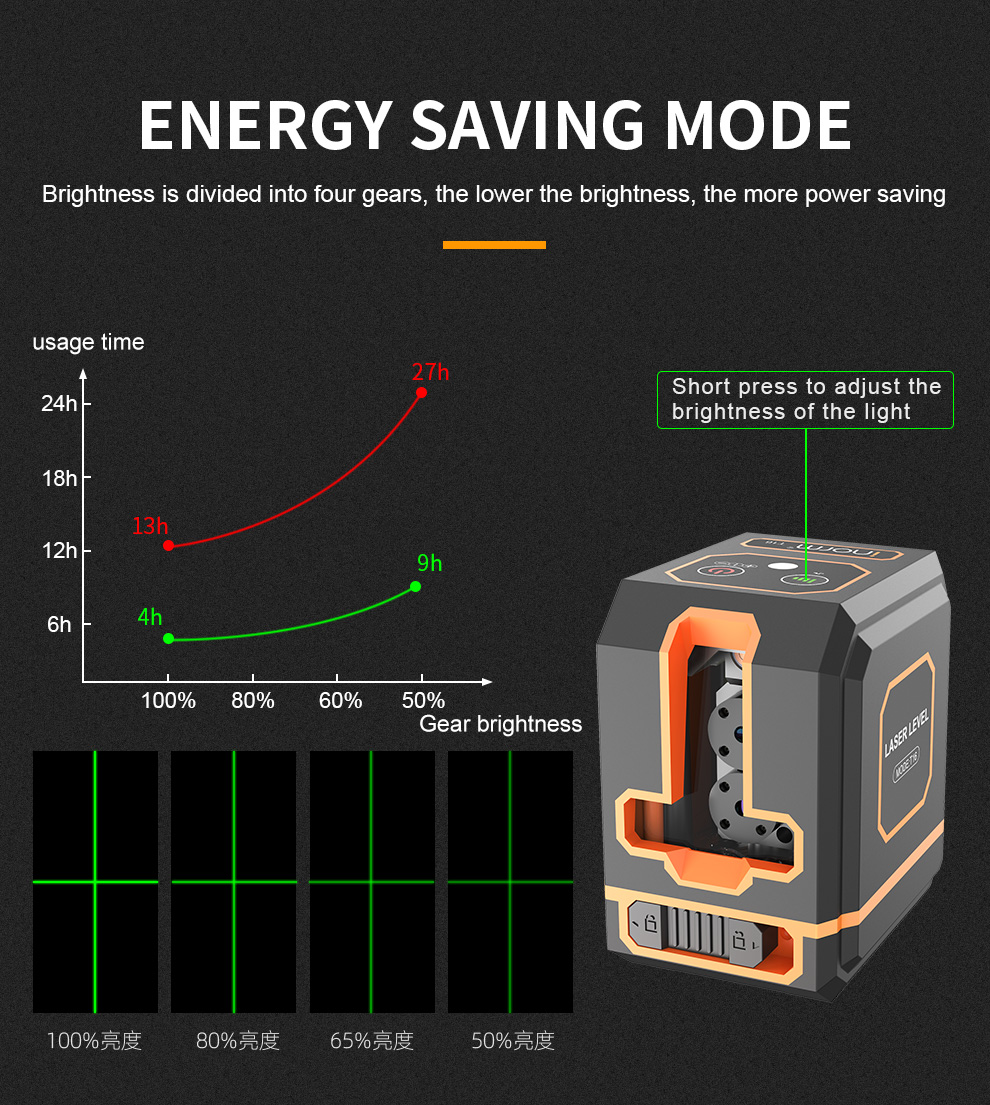

ENERGY SAVING MODE
Brightness is divided into four gears, the lower the brightness, the more power saving

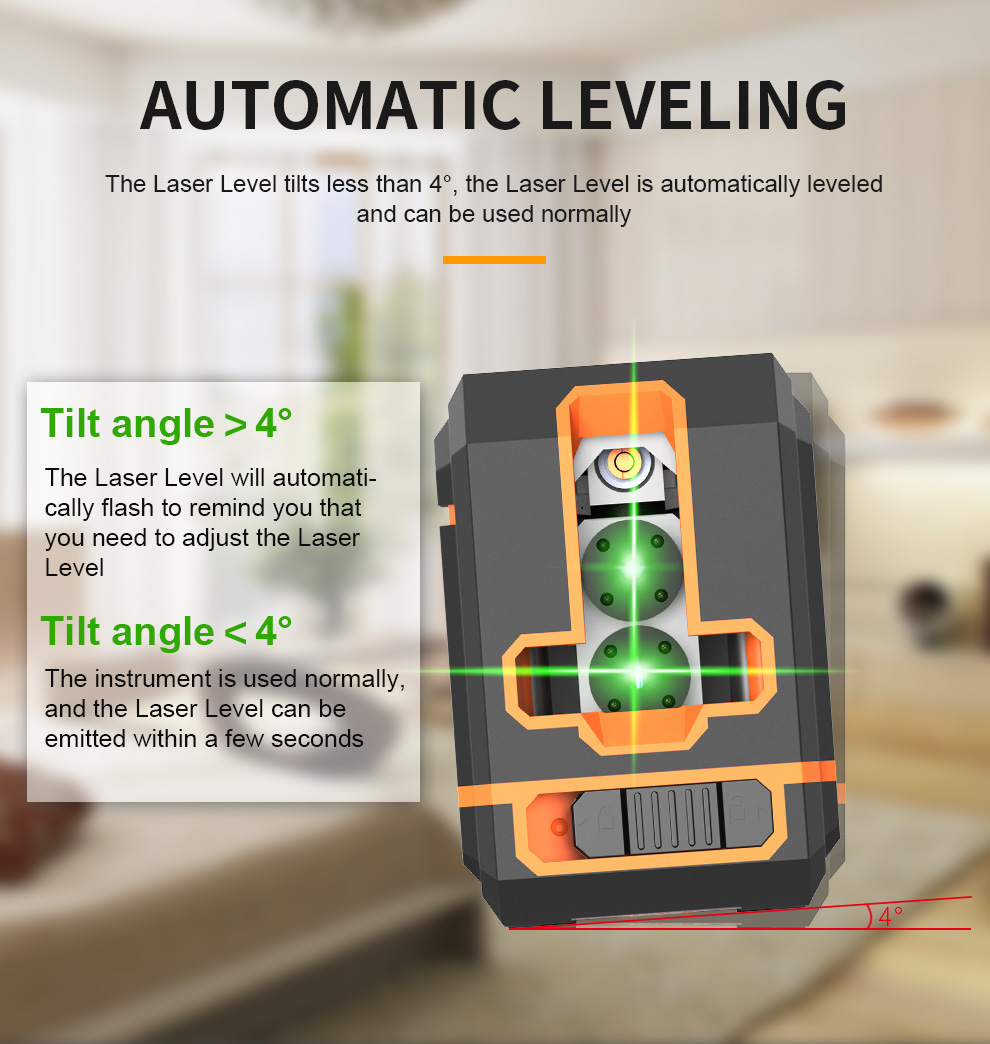

AUTOMATIC LEVELING
The Laser Level tilts less than 4°, the Laser Level is automatically leveledand can be used normally
Tilt angle > 4°
The Laser Level will automati-cally flash to remind you thatyou need to adjust the LaserLevel
Tilt angle < 4°
The instrument is used normally,and the Laser Level can beemitted within a few seconds

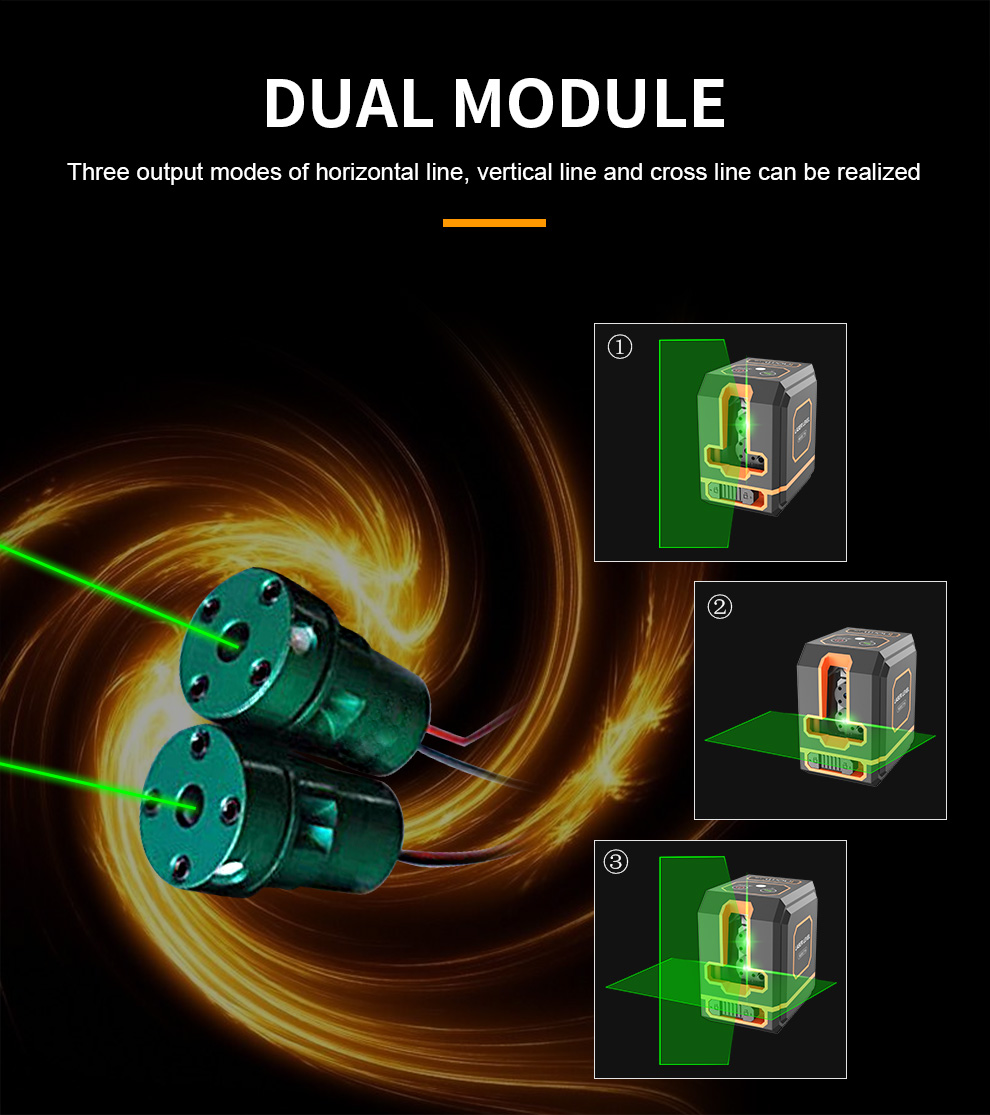

DUAL MODULE
Three output modes of horizontal line, vertical line and cross line can be realized

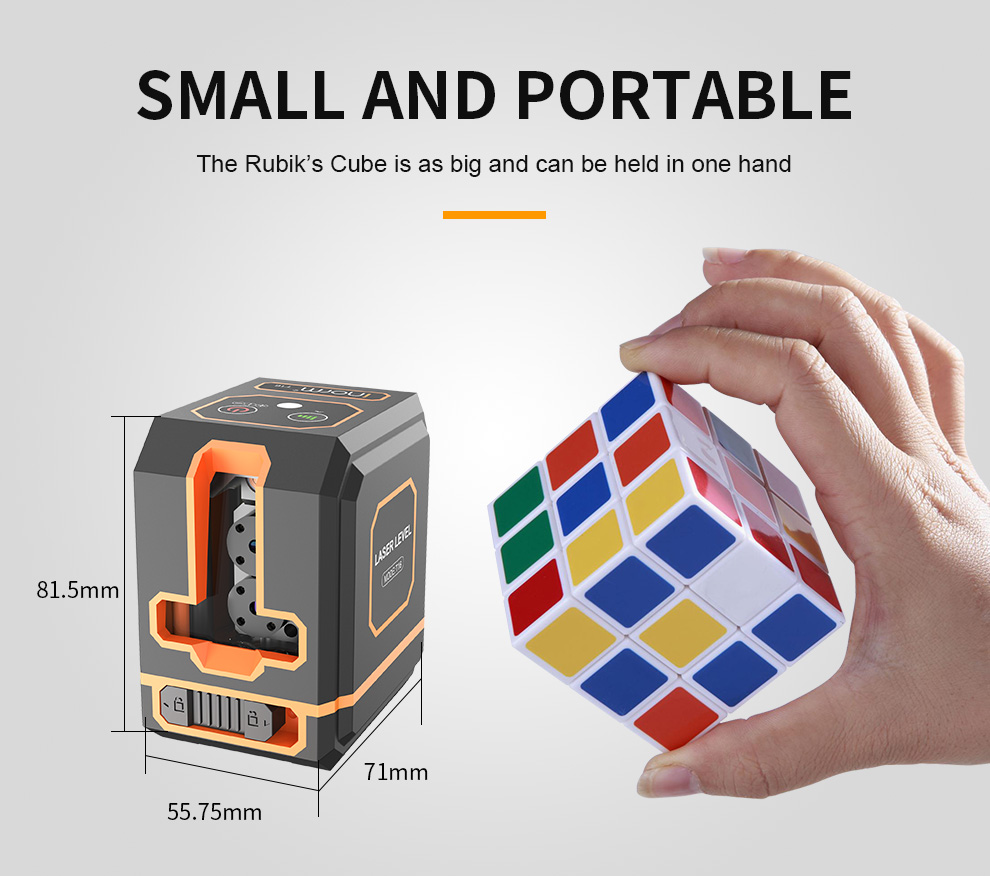

SMALL AND PORTABLE
The Rubik's Cube is as big and can be held in one hand

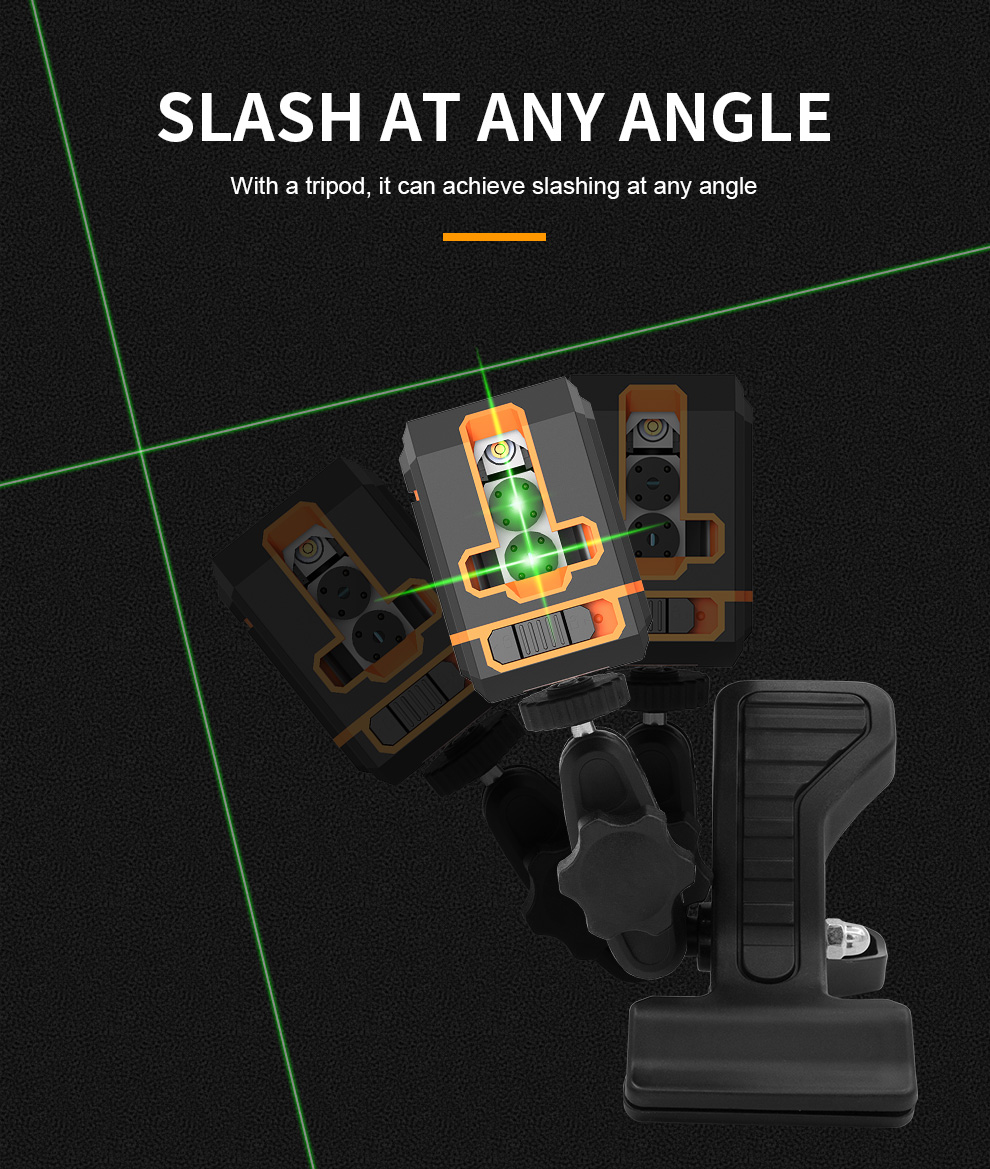

SLASH AT ANY ANGLE
With a tripod, it can achieve slashing at any angle

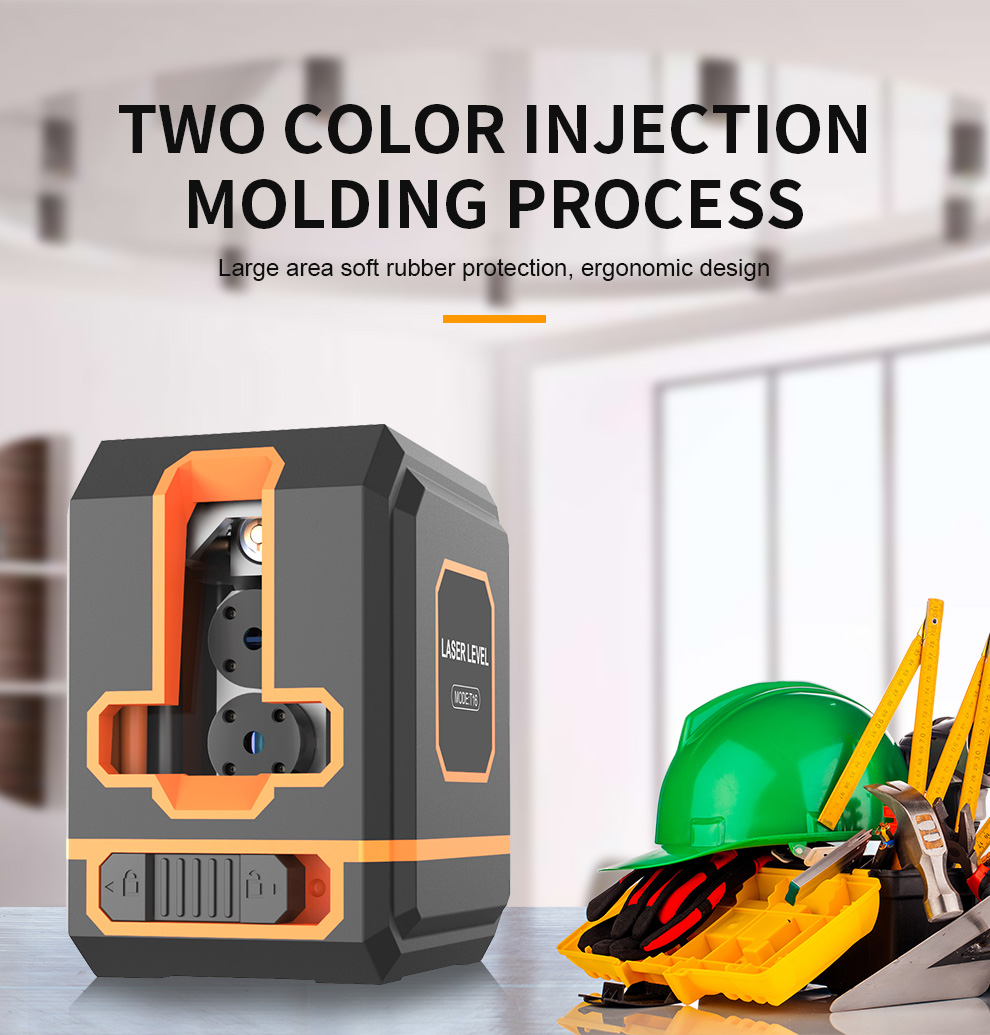

TWO COLORINJECTIONMOLDING PROCESS
Large area soft rubber protection, ergonomic design

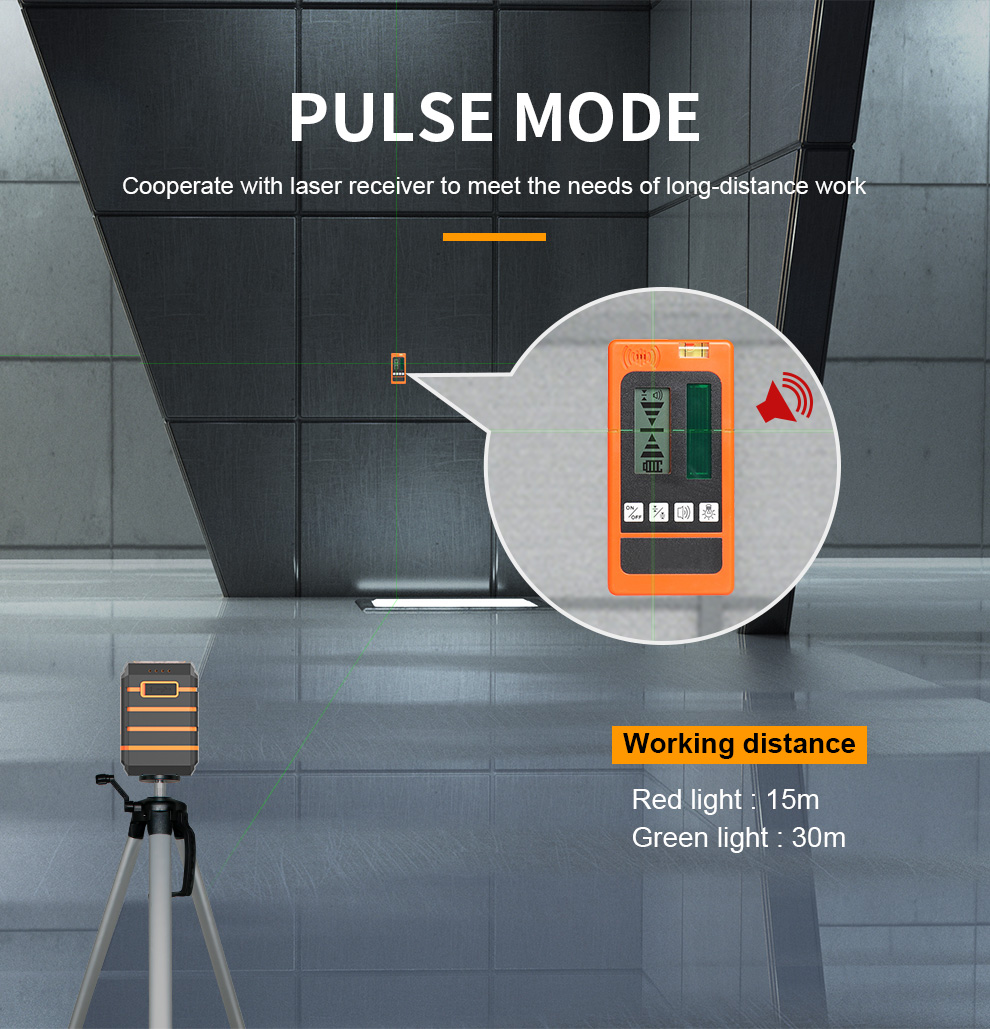

PULSEMODE
Cooperate with laser receiver to meet the needs of long-distance work
We are a manufacturer .Our factory has 9,000 square meters of professional production workshops and independent research and development
experimental centers, providing continuous and stable support and guarantee for new product development, production and upgrading quality and market sales.
We have our own factory and excellent design team. OEM/ODM is accepted. Please do not hesitate to contact with us to show your idea.
RoHS CE FCC UKCA FDA
A :Factory (We produce, we sell).
A : We do customizing service for customers. OEM/ ODM is welcome. Any logo and any color is up to you.The English copy of manual is also available.
A : Regular products only 1 standard carton. but no limit for sample order!
a: Send us an inquiry
b: Confirm your wanted products
c: Confirm the price, freight and other details
d: Complete the payment in Alibaba
e: We start production and arrange the shipment
f: You got your products
g: We get the payment
A : It depends on whether we are in stock or not. Our standard arrangement time is 3 days if we have stock, otherwise it will be decided by factory production. Generally, it needs 10-45 days of production according to the quantity of your order.
A : DHL/FEDEX/UPS/EMS all is ok, it is base on Customer's prefer! and we can advise the suitable shipping way base on the customer's order quantity!
A : We offer 12month warranty. Our policy: Within the warranty period, If there is any quality problem, please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair or exchange. Please make sure to contact us first instead of sending it to us directly. You only need to pay double-run freight.
