T07/T08
inorm
±3mm/10m
Class Ⅱ
4*1.5V AA
| Quantity: | |
|---|---|

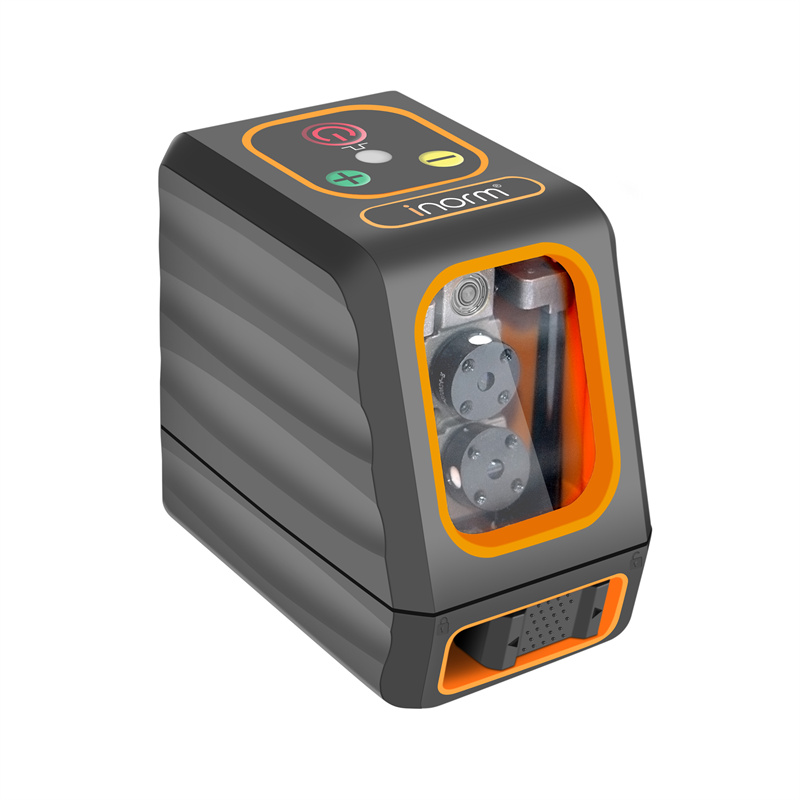

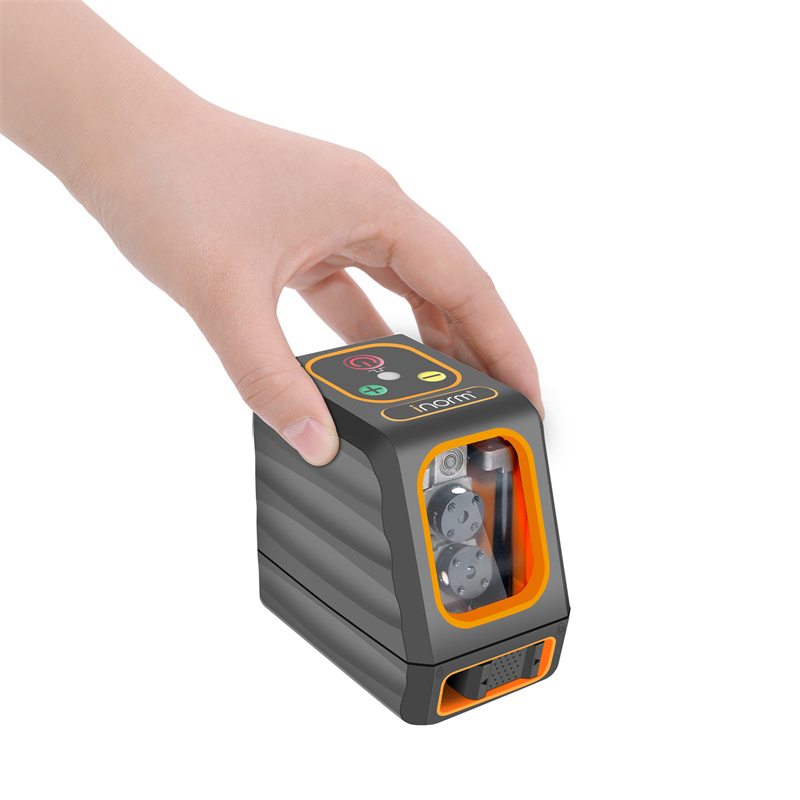

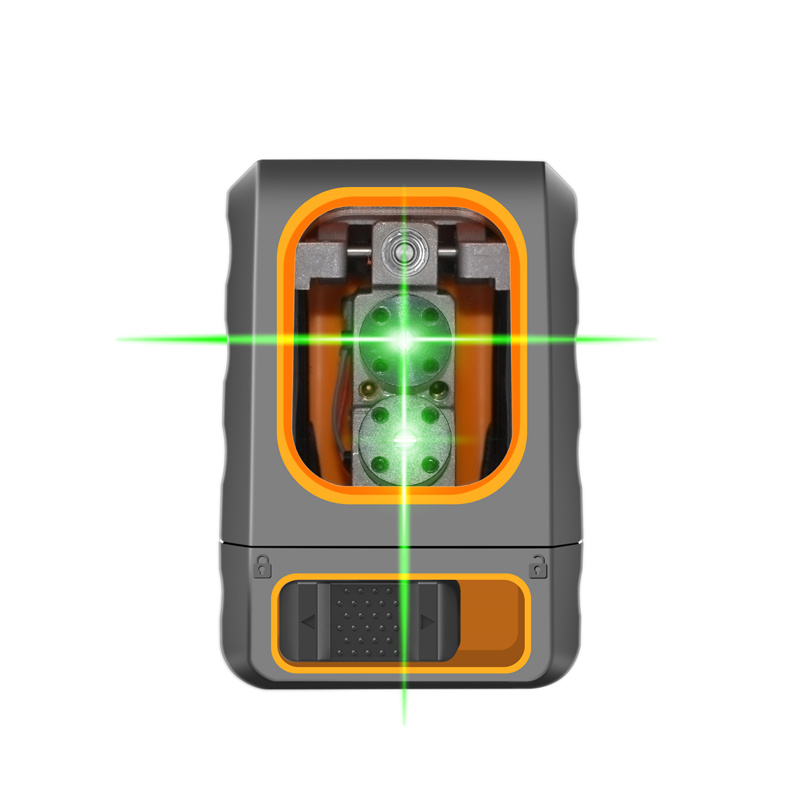

T13 (red light) /T14 (green light) laser level adopts imported high quality light source, the whole body is covered with soft glue, anti-seismic and anti-fall, one two-color mode process, double laser module, double switch design, small size, easy to carry

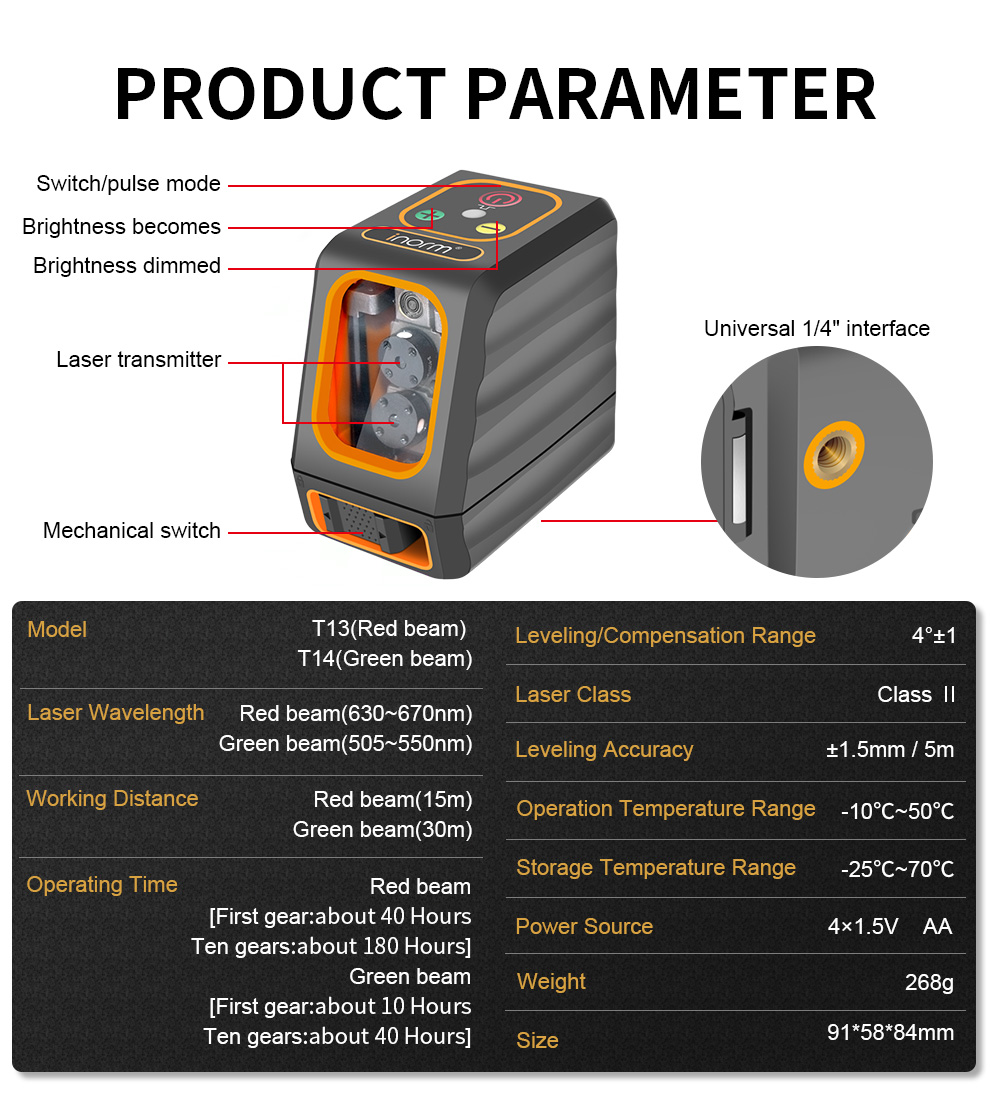

| Model | T13（red beam） | T14 （green beam） | ||
| Laser wavelength | 630-670nm | 505-550nm | ||
| Laser power(H/V) | 5mw | 10mw | ||
| Laser class | Output<1mW Class 2 | Output<1mW Class 2 | ||
| Laser beam | 1H1V(Vertial line over zenith) | 1H1V(Vertial line over zenith) | ||
| Accuracy(H/V) | ±3mm/10m | ±3mm/10m | ||
| Auto-compensation Range | 4°±1° | 4°±1° | ||
| Beam Emission Angle(H/V) | ＞130° | ＞130° | ||
| IP rating | IP54 | IP54 | ||
| Laser class | Class 2 | |||
| Working temperature | ﹣10~50℃ | ﹣10~50℃ | ||
| Working range | 15m | 30m | ||
| Working range with reciever | about 50m | |||
| Battery | 4*1.5V AA | 4*1.5V AA | ||
| Working time | First gear:30H Fourth gear:62H | First gear:11H Fourth gear:28 | ||
| Laser Level Weight/Size of level | 260g g/95*85*60mm | 260g g/95*85*60mm | ||
| Weight/Size of Color box | 455g/127*105*80mm | 455g/127*105*80mm | ||
| Weight/Size of out carton | 32 pcs/ 15kg/ 44*27*33.5cm | 32 pcs/ 15kg/ 44*27*33.5cm | ||
Manual of Cross line Laser Level T13T14.pdf
Although this level has only two lines, it is smaller and more portable than a normal two-line level and the vertical line can pass through the zenith

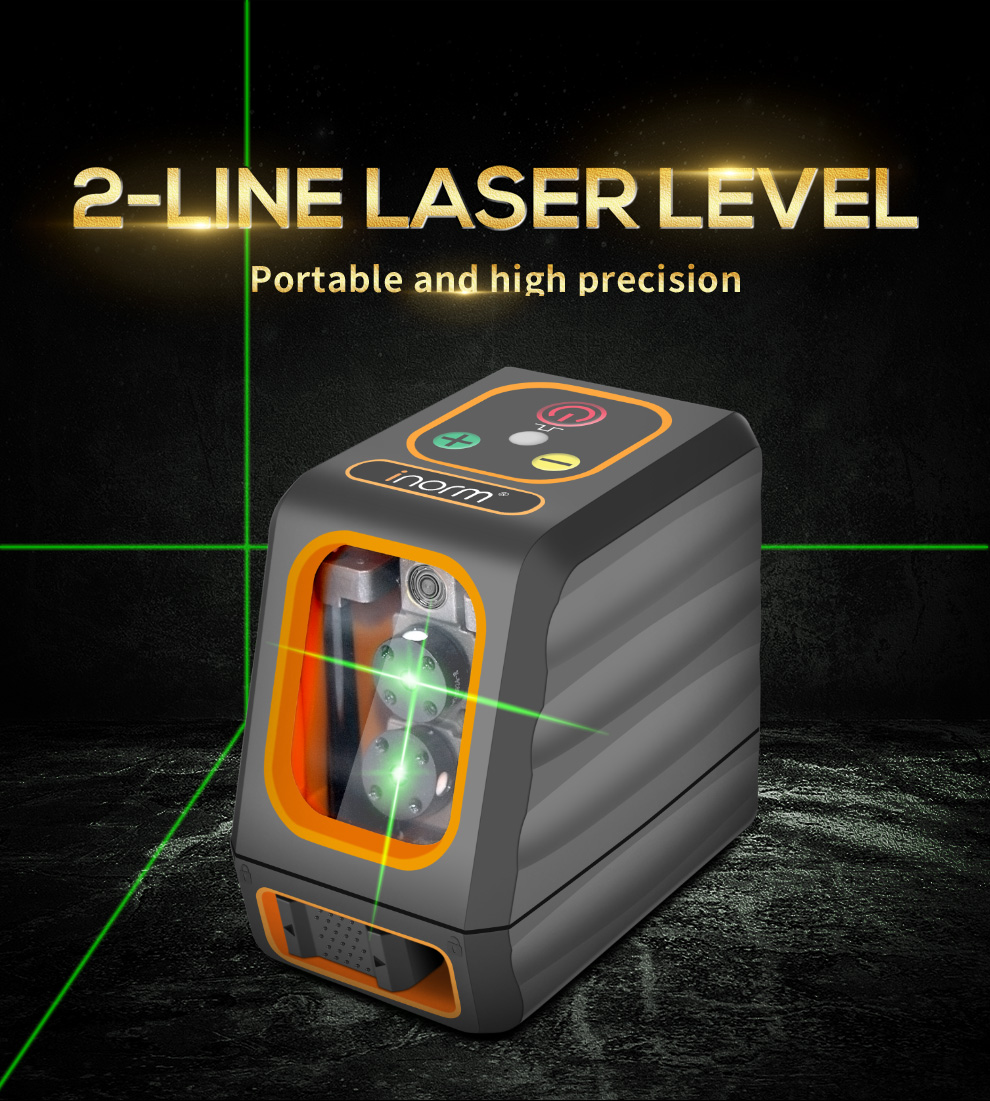

2-LINE LASER LEVEL
Portable and high precision
Bright light source Automatic leveling Energy saving mode
Plastic bag anti-fall Pulse mode With tripod

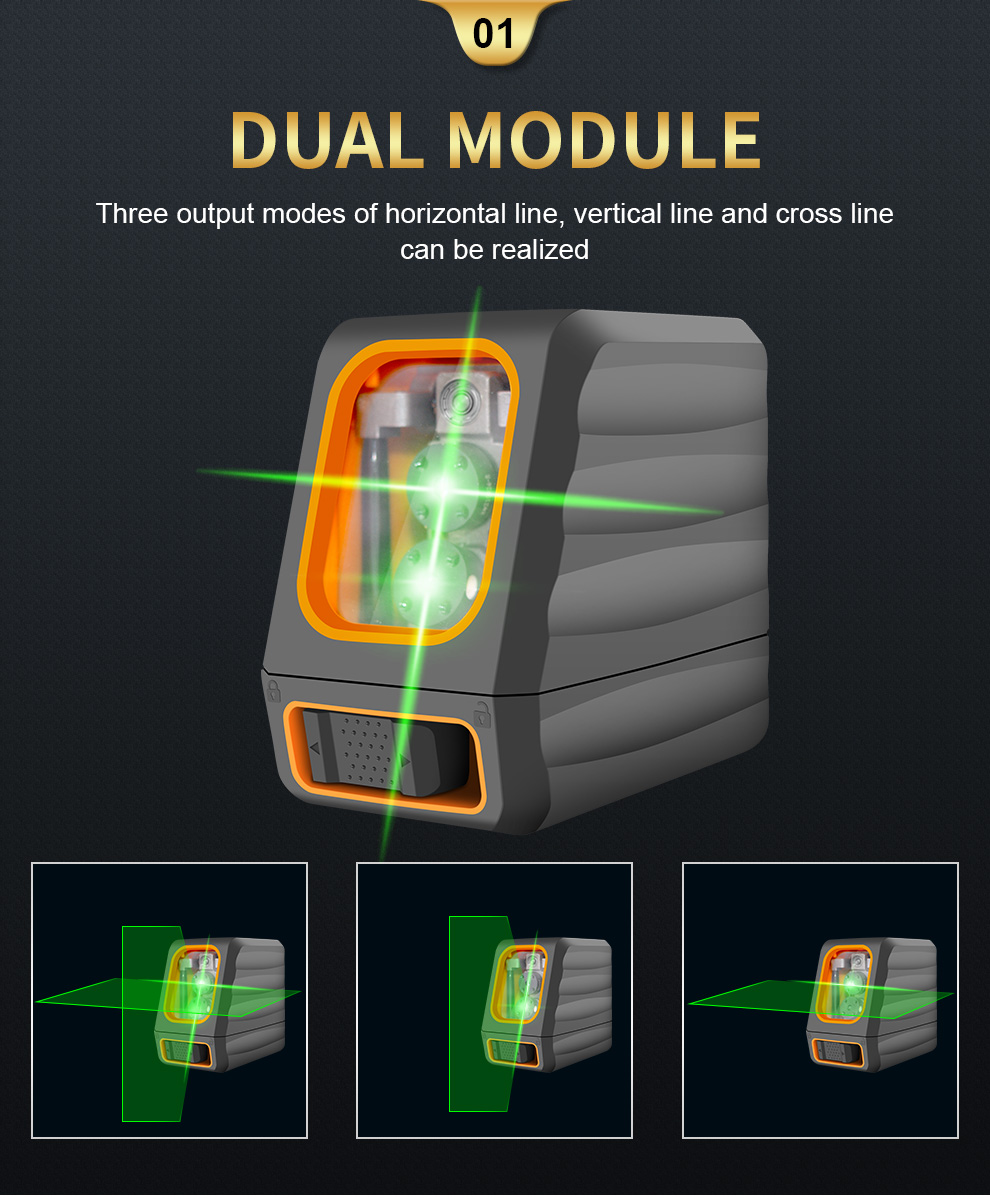

DUAL MODULE

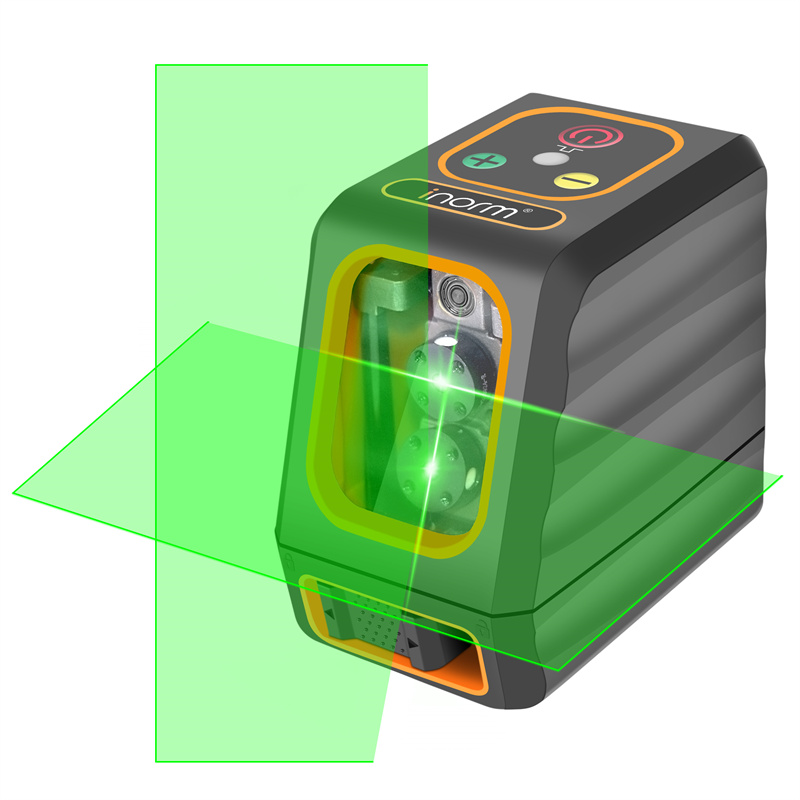

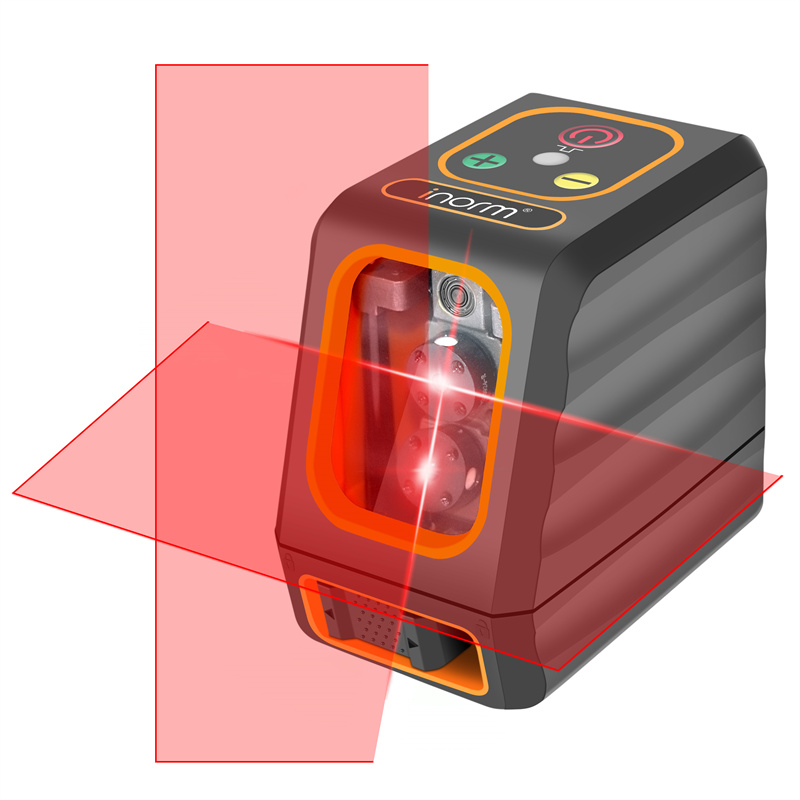

Three output modes of horizontal line, vertical line and cross linecan be realized

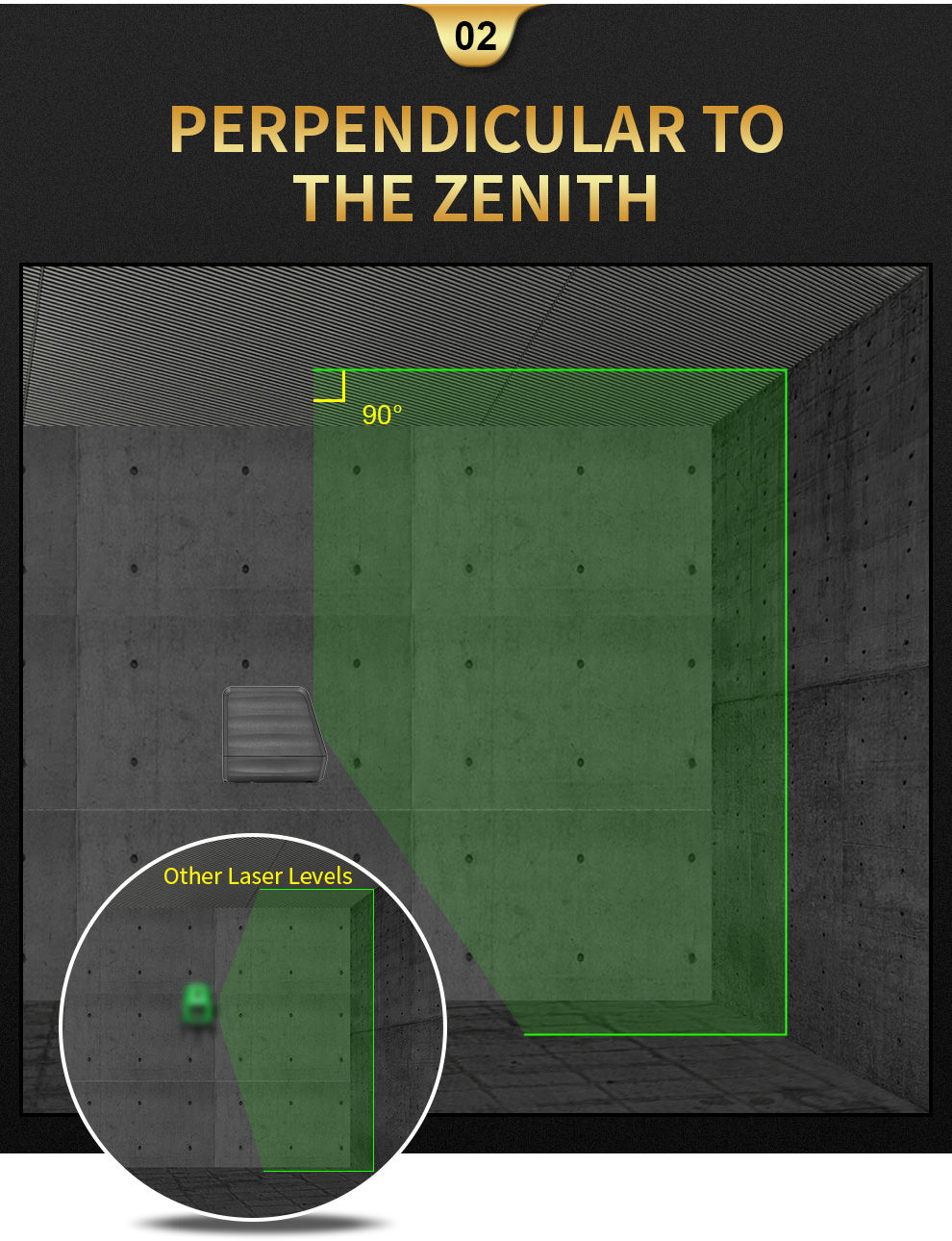

PERPENDICULAR TOTHE ZENITH

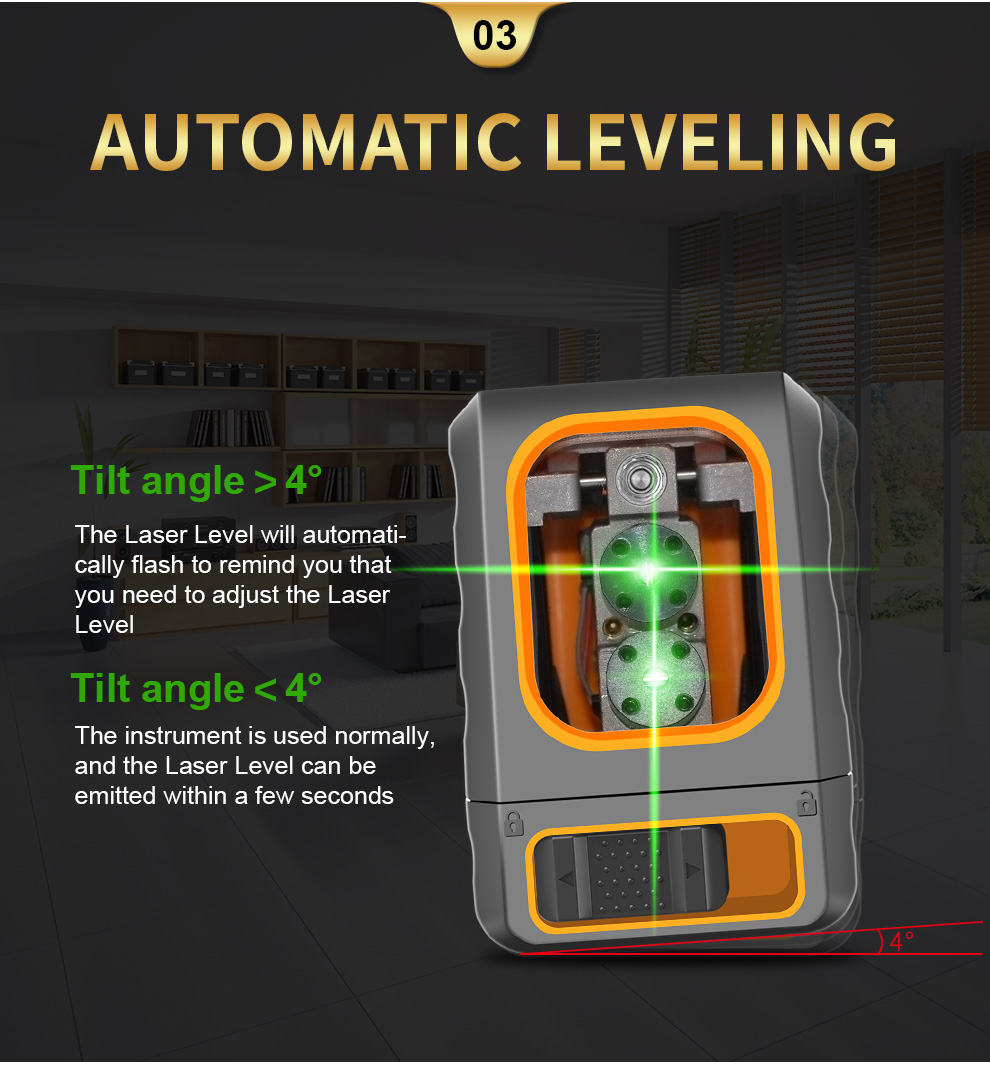

AUTOMATIC LEVELING
Tilt angle > 4
The Laser Level will automati-cally flash to remind you thatyou need to adjust the LaserLevel
Tilt angle < 4°The instrument is used normally.and the Laser Level can beemitted within a few seconds

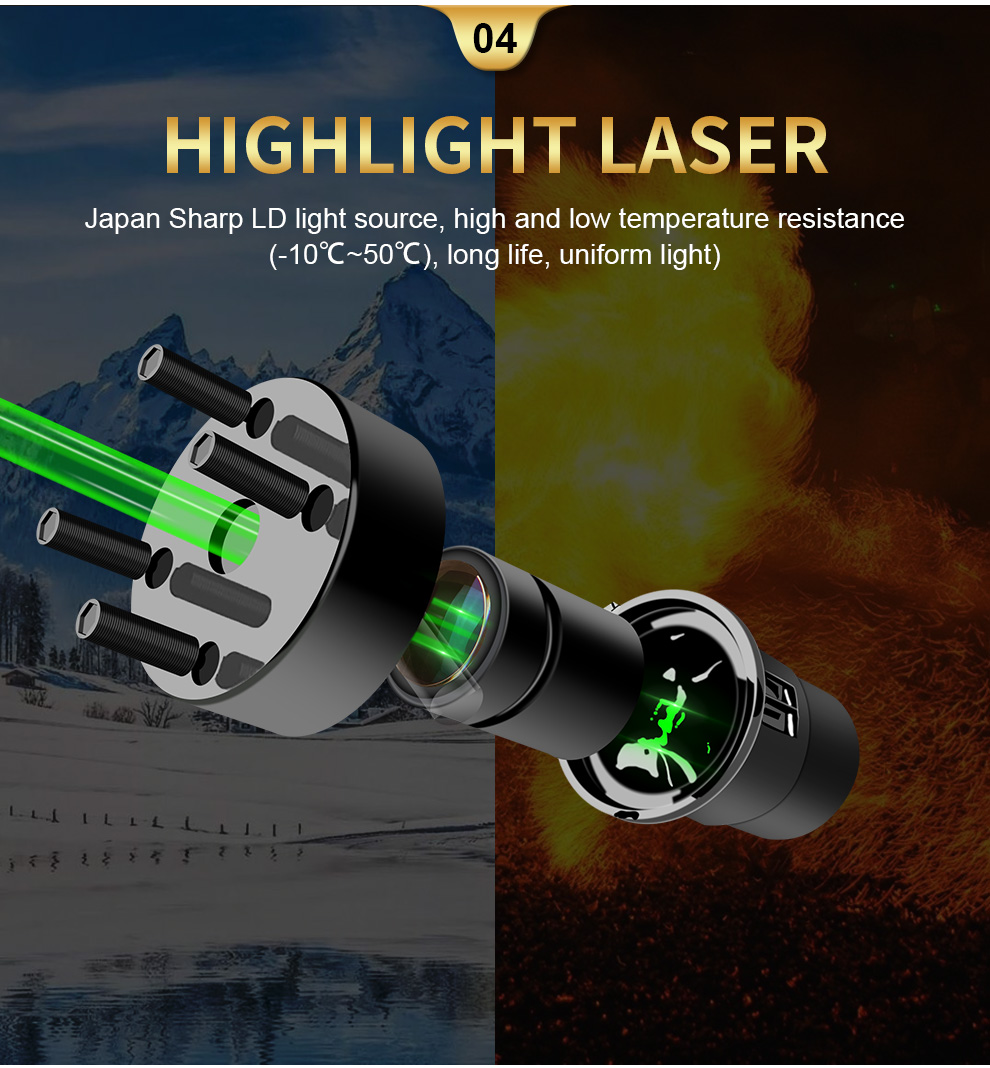

HIGHLIGHTLASER
Japan Sharp LD light source, high and low temperature resistance(-10℃~50'℃), long life, uniform light)

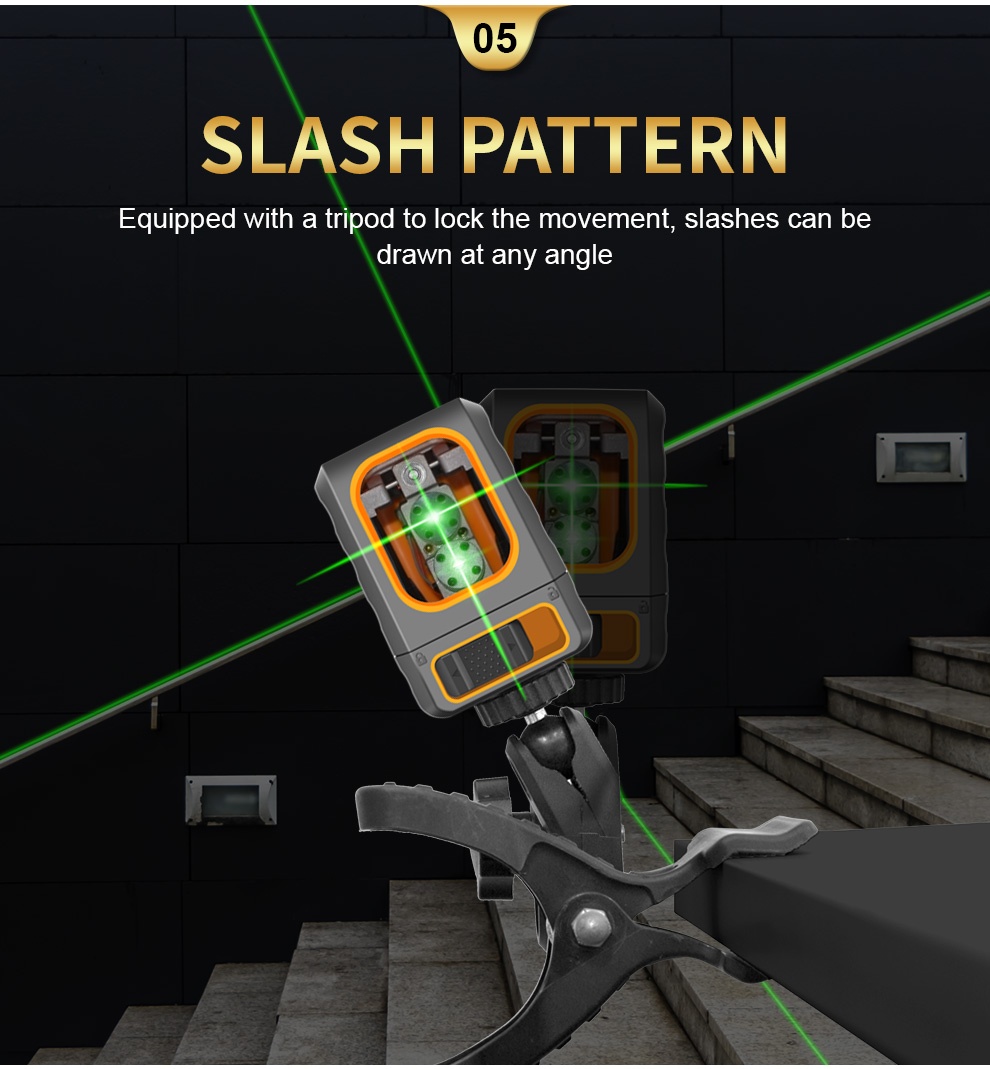

SLASH PATTERN
Equipped with a tripod to lock the movement, slashes can be
drawn at any angle

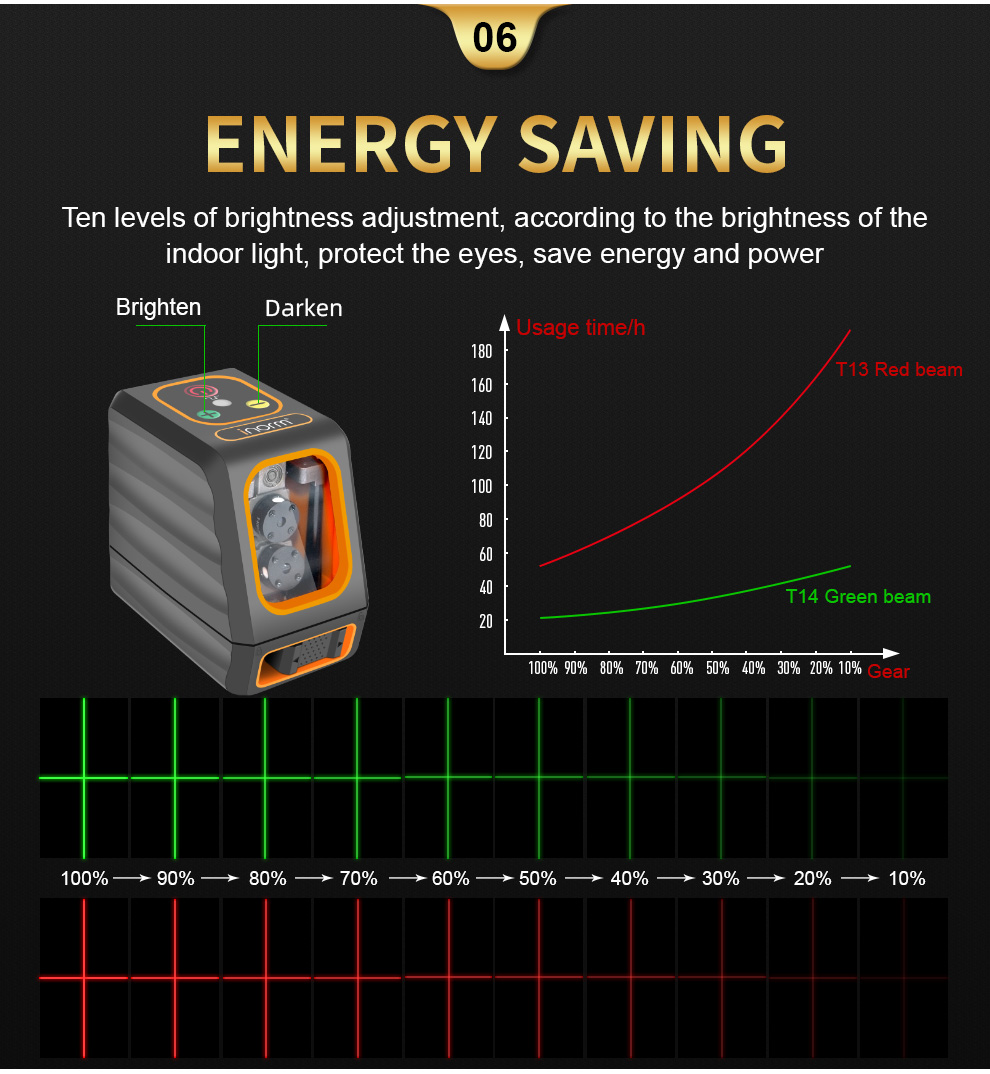

ENERGY SAVING
Ten levels of brightness adjustment, according to the brightness of theindoor light, protect the eyes, save energy and power

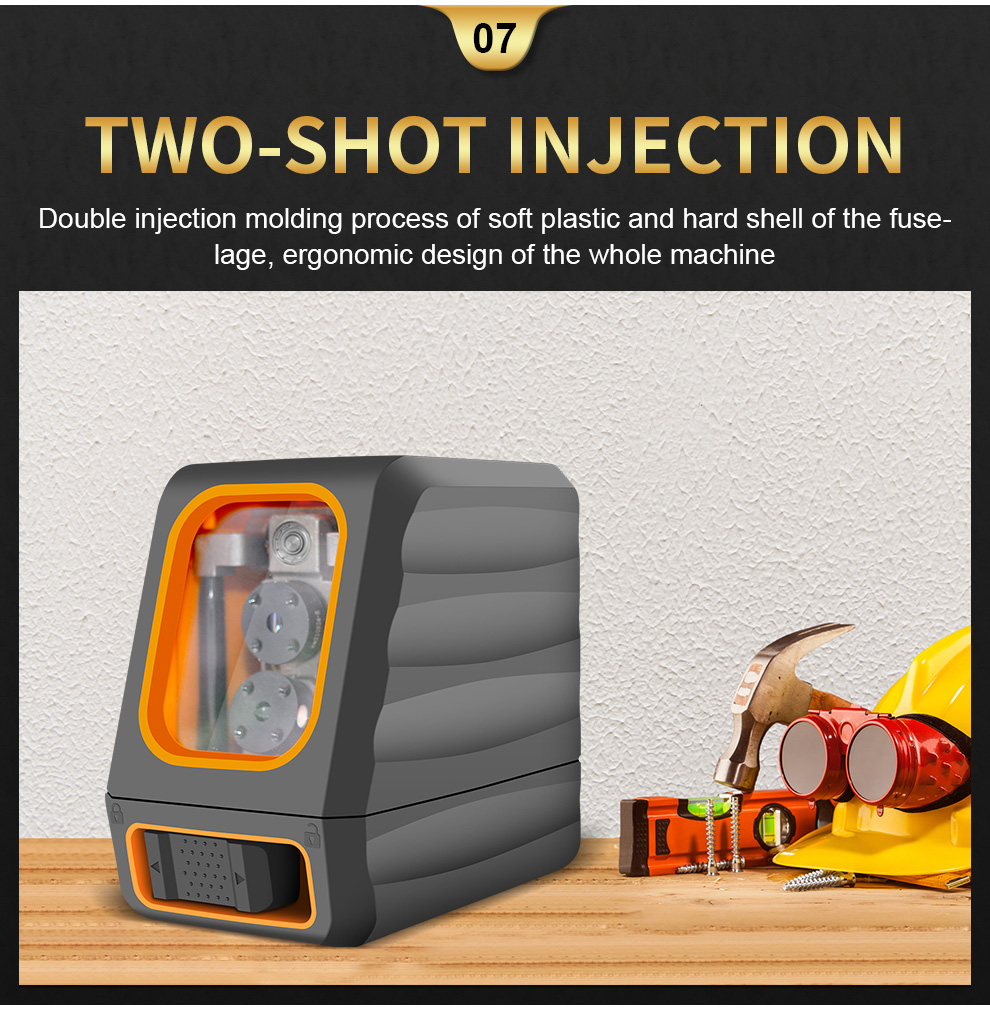

TWO-SHOTINJECTION
Double injection molding process of soft plastic and hard shell of the fuselage,ergonomic design of the whole machine

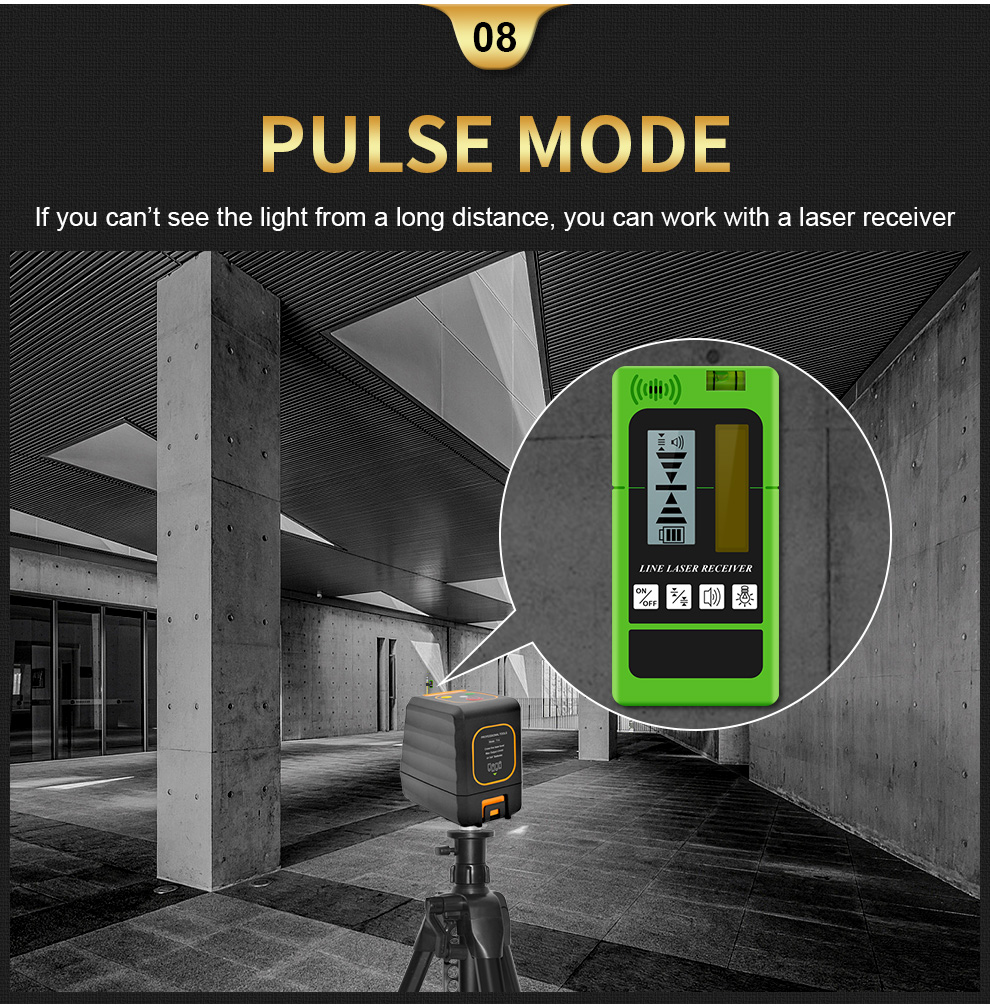

PULSE MODE
If you can't see the light from a long distance, you can work with a laser receiver

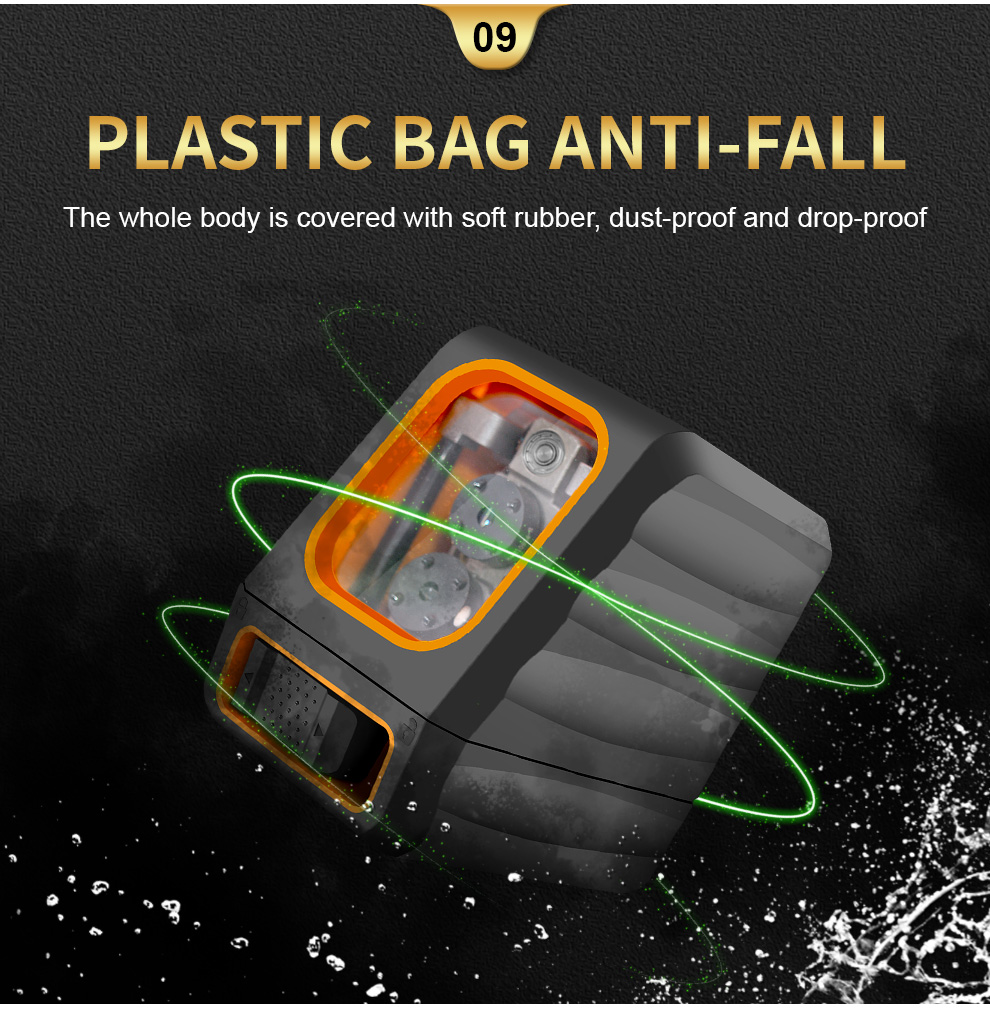

PLASTIC BAG ANTI-FALL
The whole body is covered with soft rubber, dust-proof and drop-proof

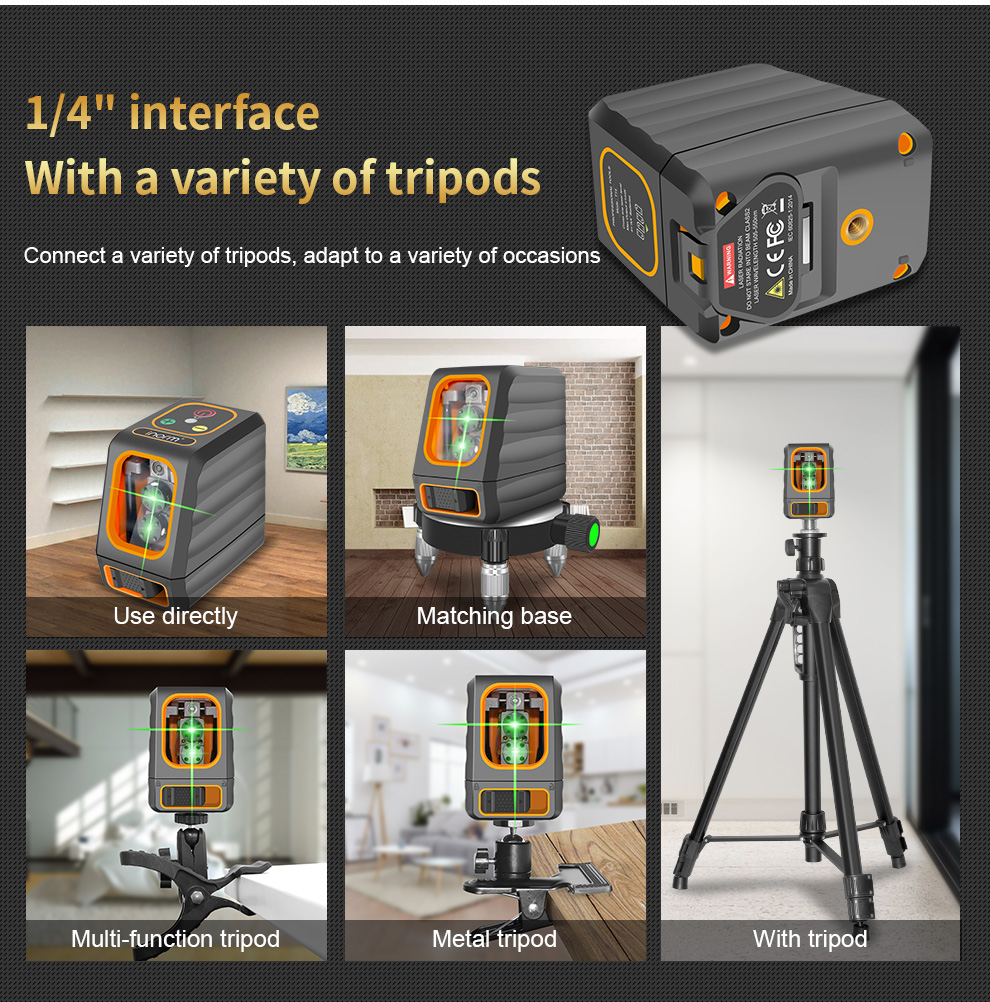

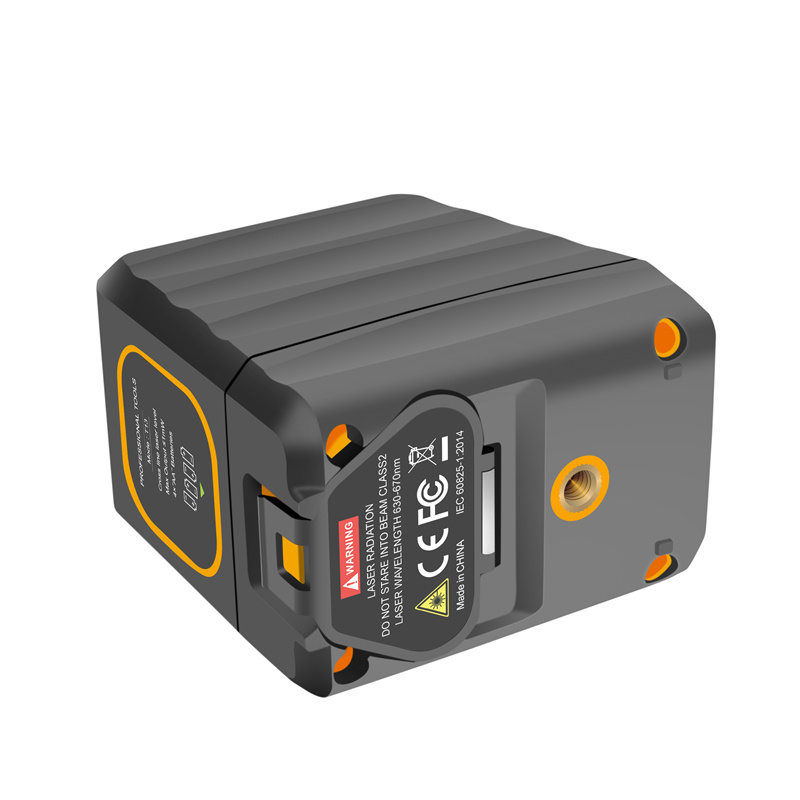

1/4"interfaceWith a variety of tripods
Connect a variety of tripods, adapt to a variety of occasions
We are a manufacturer .Our factory has 9,000 square meters of professional production workshops and independent research and development
experimental centers, providing continuous and stable support and guarantee for new product development, production and upgrading quality and market sales.
We have our own factory and excellent design team. OEM/ODM is accepted. Please do not hesitate to contact with us to show your idea.
RoHS CE FCC UKCA FDA
A :Factory (We produce, we sell).
A : We do customizing service for customers. OEM/ ODM is welcome. Any logo and any color is up to you.The English copy of manual is also available.
A : Regular products only 1 standard carton. but no limit for sample order!
a: Send us an inquiry
b: Confirm your wanted products
c: Confirm the price, freight and other details
d: Complete the payment in Alibaba
e: We start production and arrange the shipment
f: You got your products
g: We get the payment
A : It depends on whether we are in stock or not. Our standard arrangement time is 3 days if we have stock, otherwise it will be decided by factory production. Generally, it needs 10-45 days of production according to the quantity of your order.
A : DHL/FEDEX/UPS/EMS all is ok, it is base on Customer's prefer! and we can advise the suitable shipping way base on the customer's order quantity!
A : We offer 12month warranty. Our policy: Within the warranty period, If there is any quality problem, please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair or exchange. Please make sure to contact us first instead of sending it to us directly. You only need to pay double-run freight.
