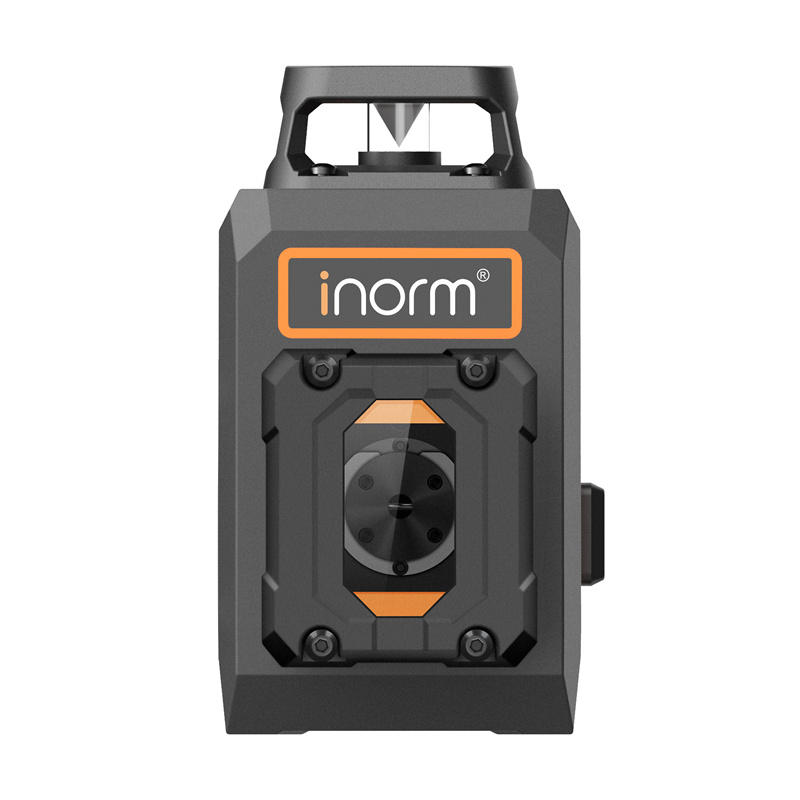

T92V
inorm
±3mm/10m
Class Ⅱ
4400mAh lithium battery
| Quantity: | |
|---|---|

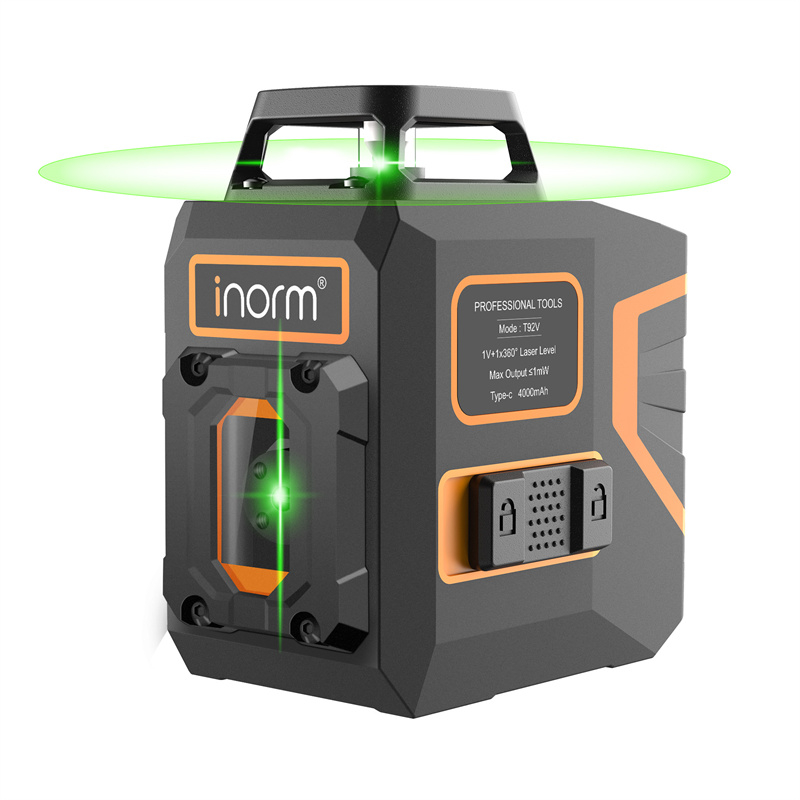

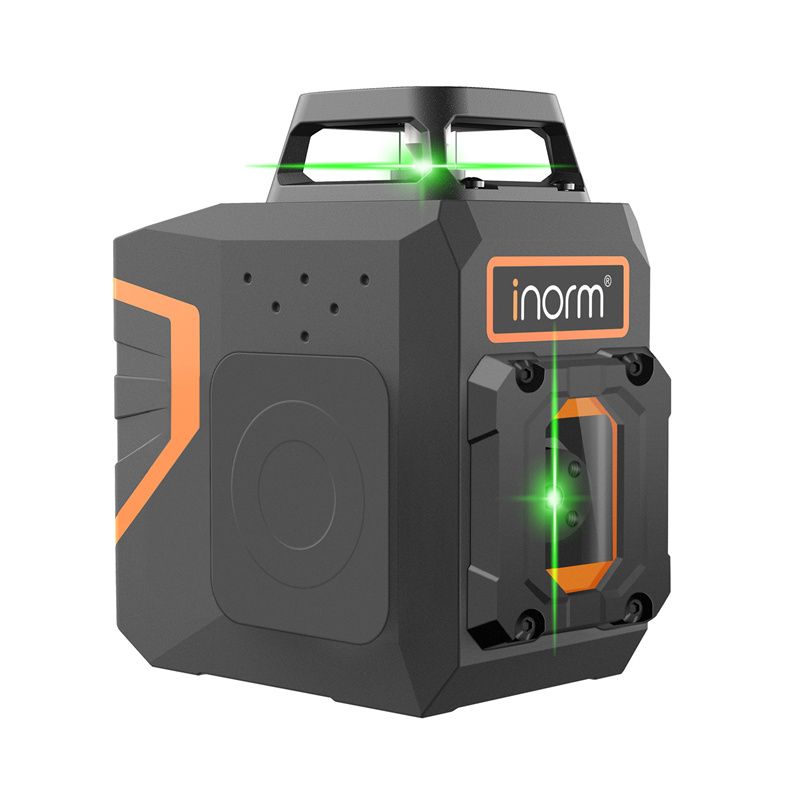

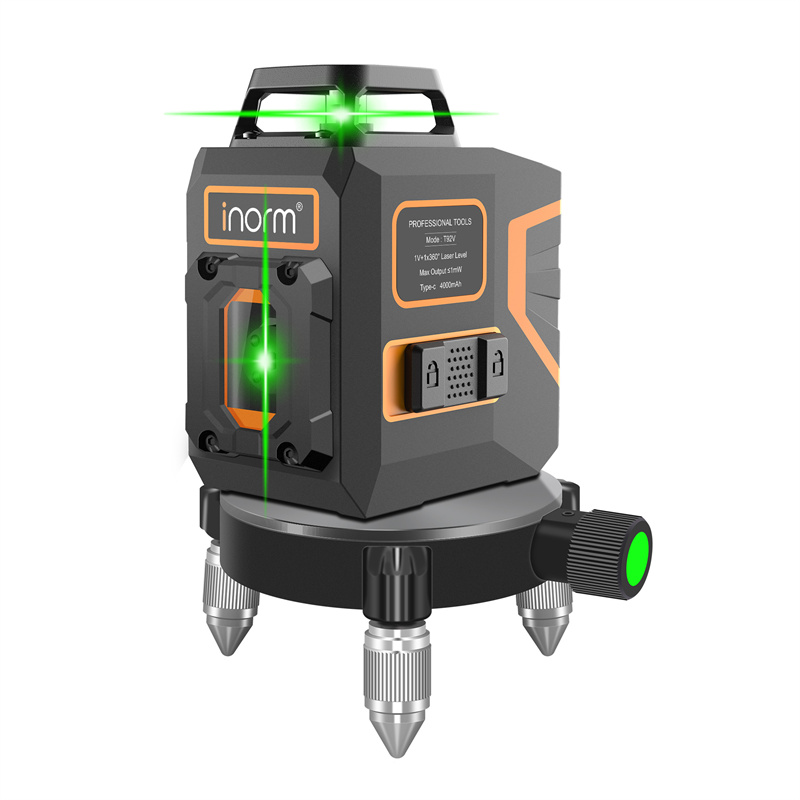

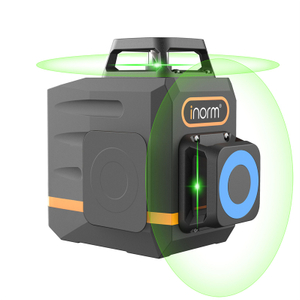

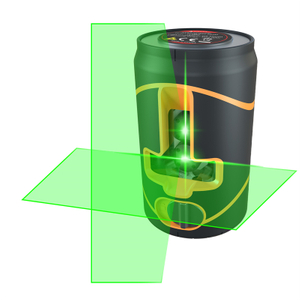

T92V laser rangefinder is 360° horizontal line +1 vertical line output, can achieve 10mm close to the ground, using Sharp high quality LD light source, bright laser can be clearly visible indoors and outside, built-in 4400mAh large lithium battery, with energy saving mode, can be extremely long standby.
| Model | T92V | ||
| Laser beam | 1H1V | ||
| Qty of laser diode | two | ||
| Color of beam | Green | ||
| Laser wavelength | 505-550nm | ||
| Laser power(H/V) | 20mw | ||
| Accuracy(H/V) | 3mm at 10m distance | ||
| Auto-compensation Range | 4° ± 1° | ||
| IP rating | IP54 | ||
| Laser class | Class 2 | ||
| Working temperature | -10~50°C | ||
| Working range | 30m | ||
| Working range with reciever | about 50m | ||
| Beam Emission Angle(H/V) | 360° | ||
| Battery | 4400mAh lithium battery | ||
| Working time | First gear 10h fourth gear 54h | ||
| Kit content | 1 X laser level,1 X L-shaped magnetic support | ||
| 1 X USB-C Charging line,1 X EVA case | |||
| Laser Level Weight/Size of level | 315 g/ 85*53*96mm | ||
| Weight/Size of Color box | 655 g/ 176*92*184mm | ||
| Weight/Size of out carton | 20pcs/ 14.3 kg/ 47*36.5*38.5cm |
Manual of 5 Lines Laser Level T92V.pdf
Different from the level below the T92V 360° laser at the top, suitable for different working environments

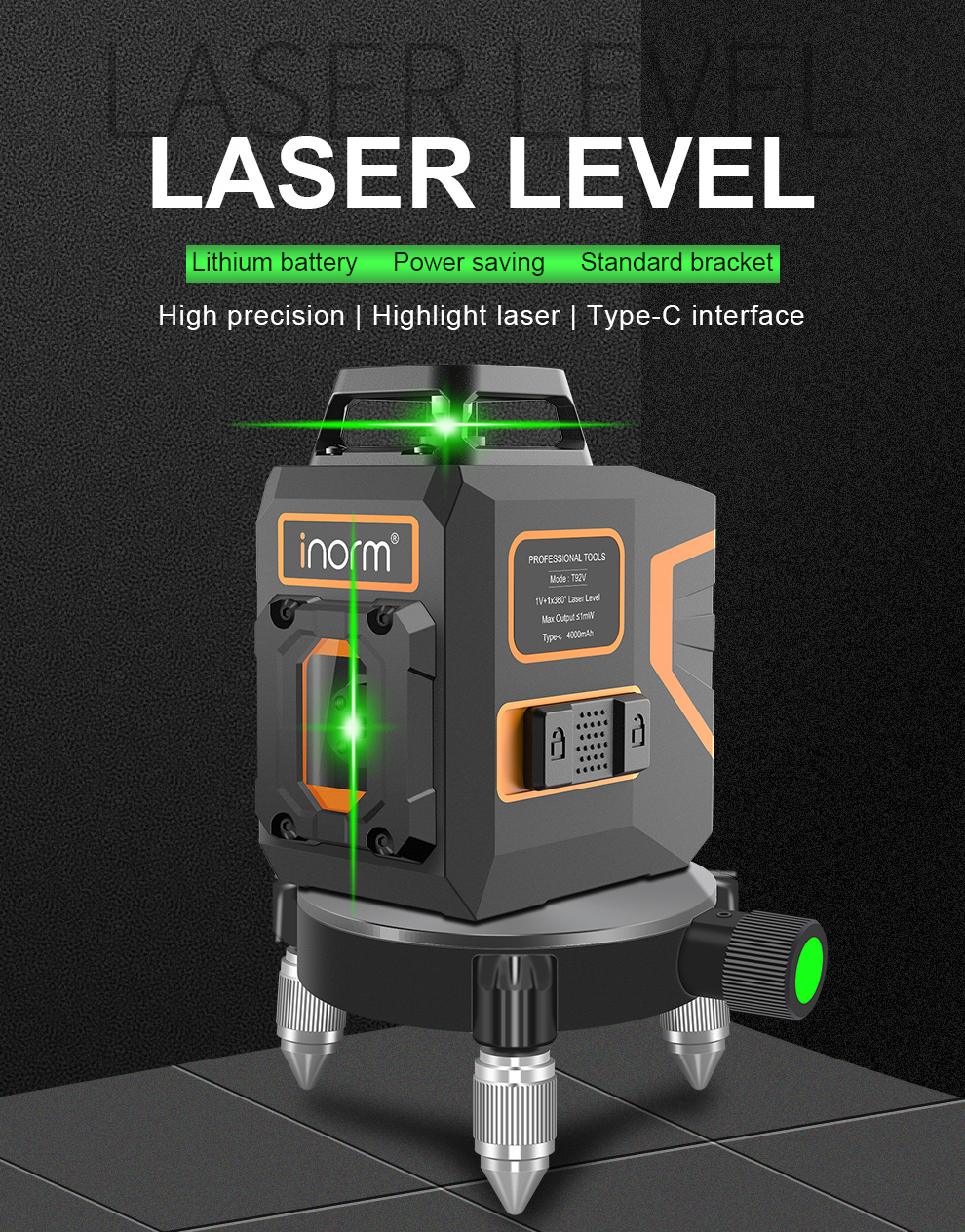

Lithium battery Power saving Standard bracket
High precision Highlight laser Type-C interface

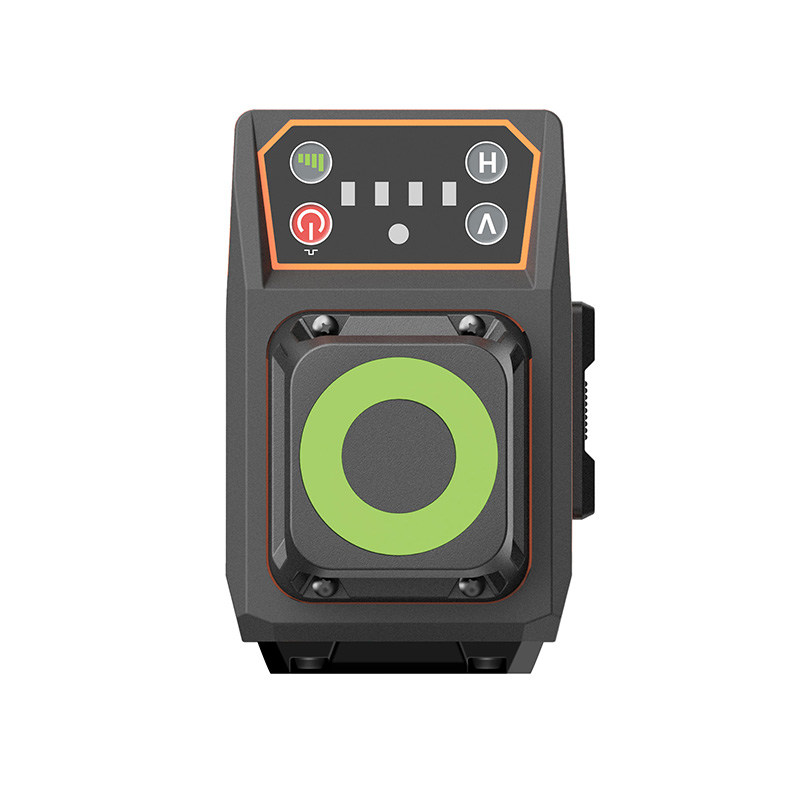

| Automatic leveling | Energy saving | Slash function | Pulse mode | Superior LightSource |

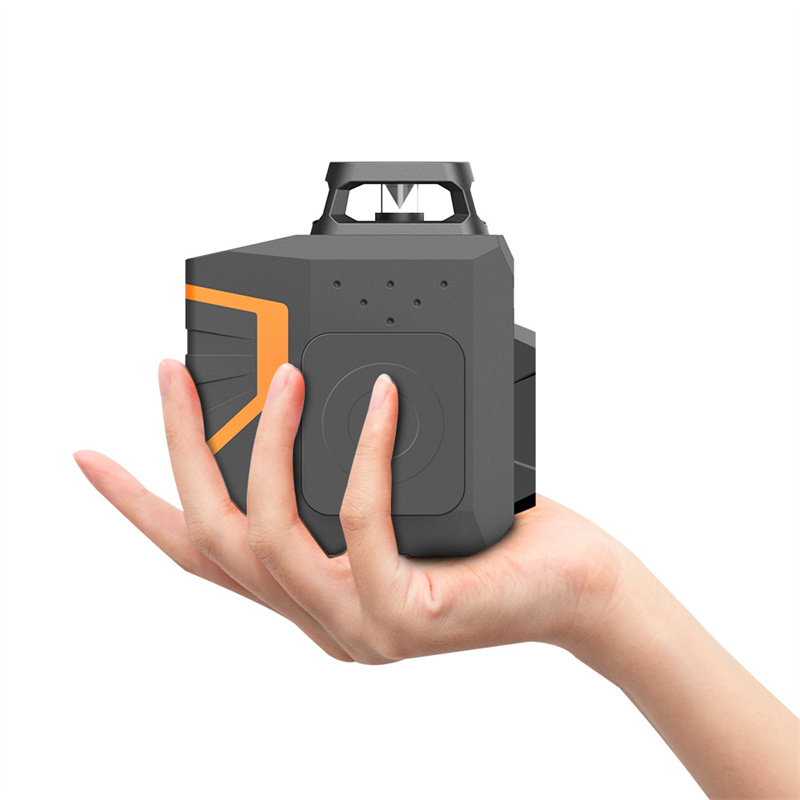

| Lithium battery | Suitable for tripod | Type-C interface | Close to the wall | Portable |
Fully functional, enough for home decoration
Interior Renovation Floor laying Wooden installation
Stair laying Ornamentinstallation Wall construction

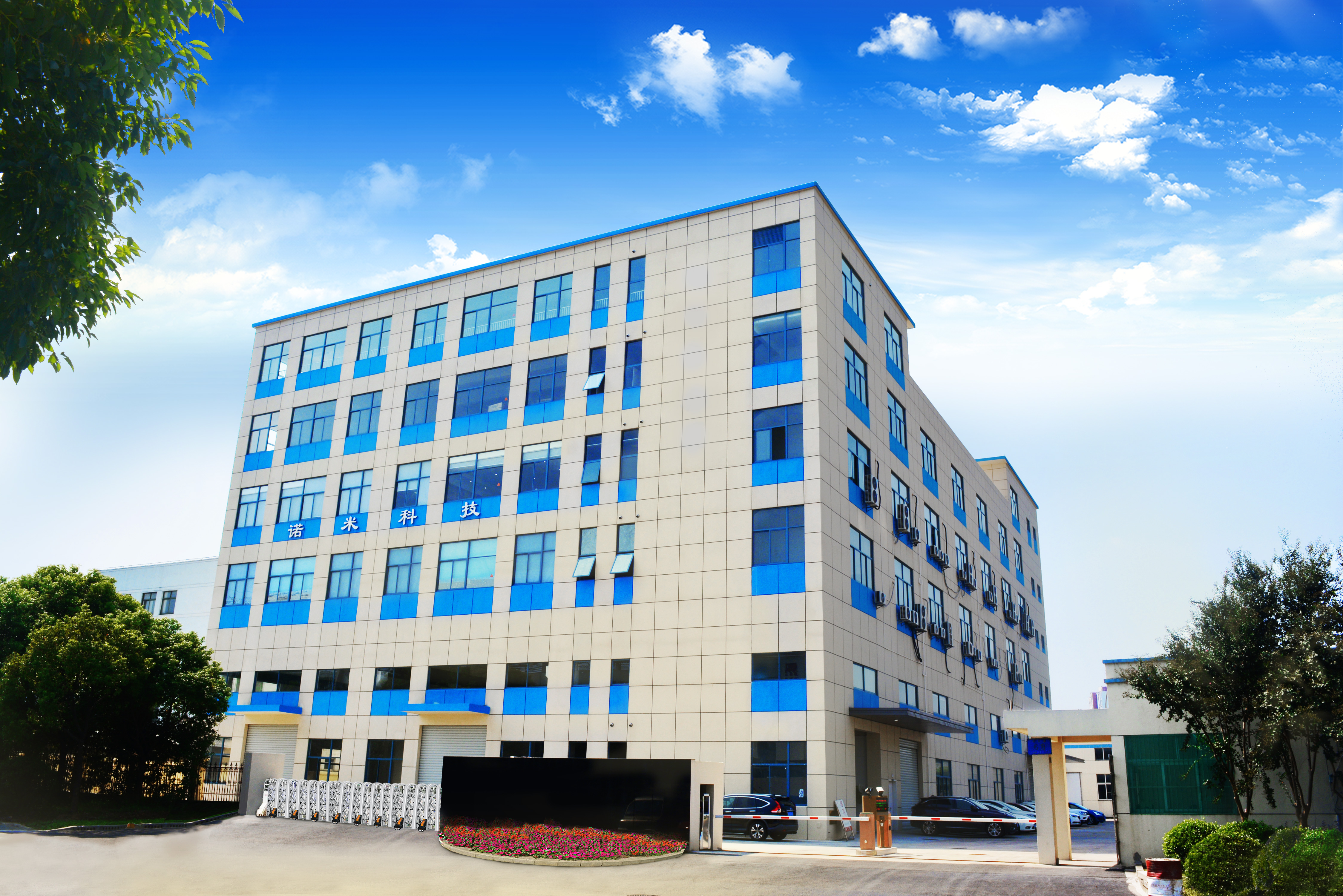

We are a manufacturer .Our factory has 9,000 square meters of professional production workshops and independent research and development
experimental centers, providing continuous and stable support and guarantee for new product development, production and upgrading quality and market sales.
We have our own factory and excellent design team. OEM/ODM is accepted. Please do not hesitate to contact with us to show your idea.

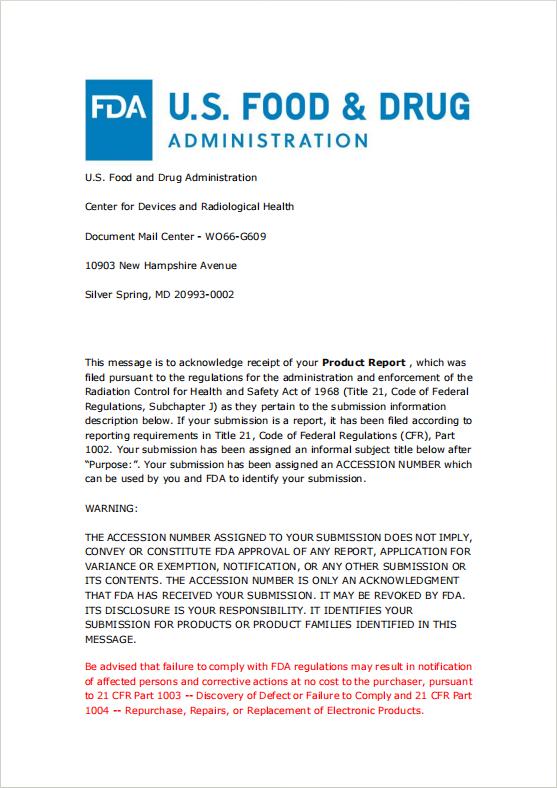

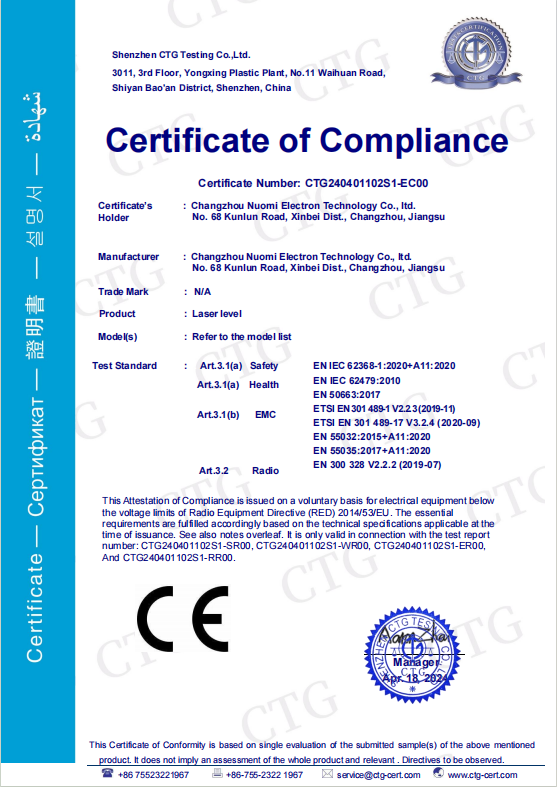

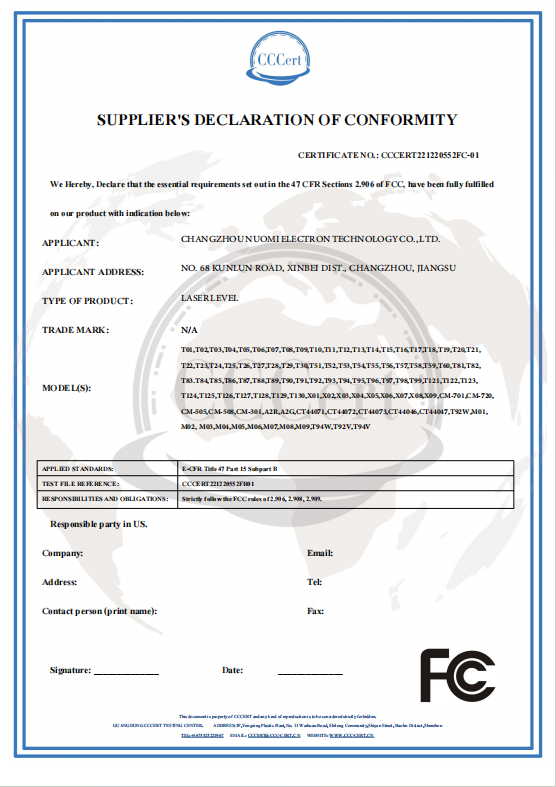

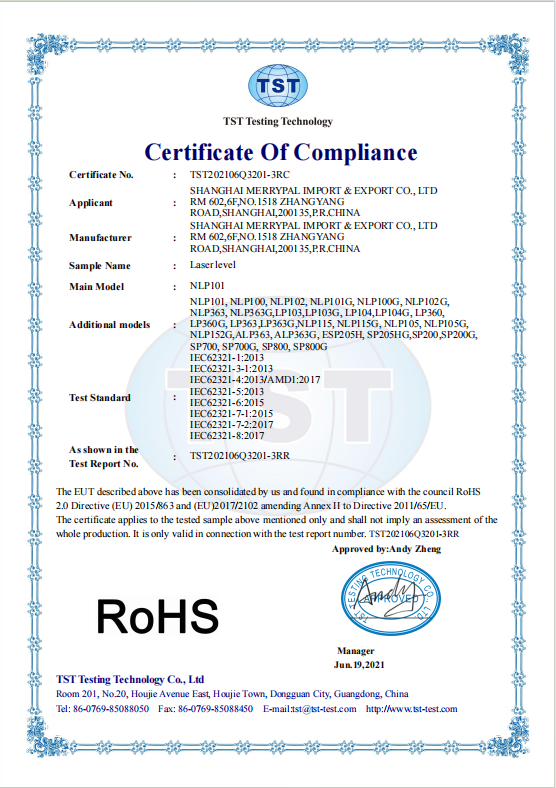

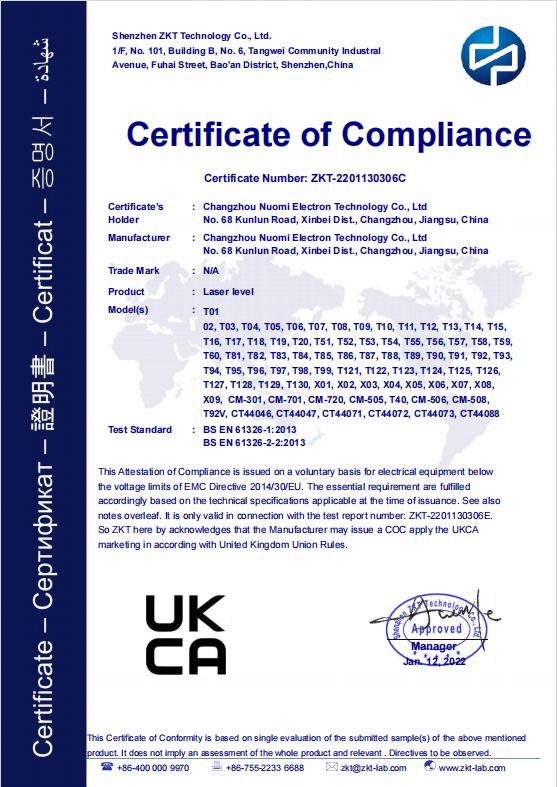

RoHS CE FCC UKCA FDA
A :Factory (We produce, we sell).
A : We do customizing service for customers. OEM/ ODM is welcome. Any logo and any color is up to you.The English copy of manual is also available.
A : Regular products only 1 standard carton. but no limit for sample order!
a: Send us an inquiry
b: Confirm your wanted products
c: Confirm the price, freight and other details
d: Complete the payment in Alibaba
e: We start production and arrange the shipment
f: You got your products
g: We get the payment
A : It depends on whether we are in stock or not. Our standard arrangement time is 3 days if we have stock, otherwise it will be decided by factory production. Generally, it needs 10-45 days of production according to the quantity of your order.
A : DHL/FEDEX/UPS/EMS all is ok, it is base on Customer's prefer! and we can advise the suitable shipping way base on the customer's order quantity!
A : We offer 12month warranty. Our policy: Within the warranty period, If there is any quality problem, please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair or exchange. Please make sure to contact us first instead of sending it to us directly. You only need to pay double-run freight.
